| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STPSC20H12GY-TRDIODE SCHOTTKY 1.2KV 20A D2PAK |
2,372 | 11.74 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, ECOPACK®2 | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 1650pF @ 0V, 1MHz | 0 ns | 120 µA @ 1200 V | 1200 V | 20A | -40°C ~ 175°C | 1.5 V @ 20 A |
|

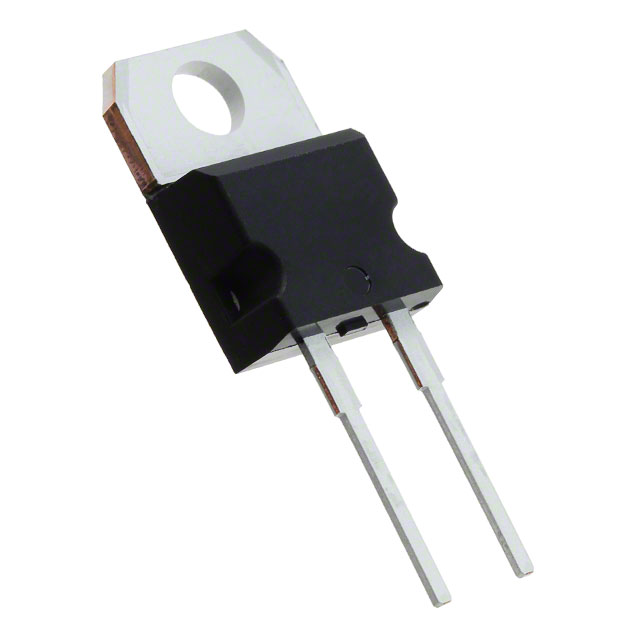

STPSC15H12DDIODE SCHOTTKY 1.2KV 15A TO220AC |
3,094 | 8.43 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 1200pF @ 0V, 1MHz | 0 ns | 90 µA @ 1200 V | 1200 V | 15A | -40°C ~ 175°C | 1.5 V @ 15 A | |
|
STTH1R06ADIODE GEN PURP 600V 1A SMA |
3,141 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 45 ns | 1 µA @ 600 V | 600 V | 1A | 175°C (Max) | 1.7 V @ 1 A | |
|
BAT54FILMDIODE SCHOTTKY 40V 300MA SOT23-3 |
3,515 | 0.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 10pF @ 1V, 1MHz | 5 ns | 1 µA @ 30 V | 40 V | 300mA (DC) | -40°C ~ 150°C | 900 mV @ 100 mA | |
|
|
STPS2L30ADIODE SCHOTTKY 30V 2A SMA |
2,501 | 0.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 30 V | 30 V | 2A | 150°C (Max) | 450 mV @ 2 A | |
|
STPS2L40ZFYDIODE SCHOTTKY 40V 2A SOD123F |
3,060 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 35 µA @ 40 V | 40 V | 2A | -40°C ~ 175°C | 630 mV @ 2 A |
|
1N5819RLDIODE SCHOTTKY 40V 1A DO41 |
3,156 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 40 V | 40 V | 1A | 150°C (Max) | 550 mV @ 1 A | |
|
STPS1H100AFN100 V, 1 A POWER SCHOTTKY RECTIF |
2,144 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 4 µA @ 100 V | 100 V | 1A | 175°C | 770 mV @ 1 A | |
|
STTH8ST06DIDIODE GEN PURP 600V 8A TO220AC |
839 | 1.86 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 17 ns | 6 µA @ 600 V | 600 V | 8A | -40°C ~ 175°C | 3.4 V @ 8 A | |
|
|
STPS1L40ADIODE SCHOTTKY 40V 1A SMA |
2,401 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 35 µA @ 40 V | 40 V | 1A | 150°C (Max) | 500 mV @ 1 A | |
|
|
BAR43FILMDIODE SCHOTTKY 30V 100MA SOT23-3 |
2,689 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 7pF @ 1V, 1MHz | 5 ns | 500 nA @ 30 V | 30 V | 100mA | 150°C (Max) | 1 V @ 100 mA | |
|
BAT54WFILMYDIODE SCHOTTKY 40V 300MA SOT323 |
2,211 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Q Automotive | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 10pF @ 1V, 1MHz | 5 ns | 1 µA @ 30 V | 40 V | 300mA (DC) | -40°C ~ 150°C | 900 mV @ 100 mA |
|
|
STPS1L40ZFDIODE SCHOTTKY 40V 1A SOD123F |
3,595 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 35 µA @ 40 V | 40 V | 1A | -40°C ~ 175°C | 500 mV @ 1 A | |
|
BAT48JFILMDIODE SCHOTTKY 40V 350MA SOD323 |
2,168 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 30pF @ 0V, 1MHz | - | 25 µA @ 40 V | 40 V | 350mA (DC) | -40°C ~ 150°C | 750 mV @ 200 mA | |
|
STTH3L06UDIODE GEN PURP 600V 3A SMB |
3,264 | 0.94 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 85 ns | 3 µA @ 600 V | 600 V | 3A | 175°C (Max) | 1.3 V @ 3 A | |
|
|
STPS2L60ZFYDIODE SCHOTTKY 60V 2A SOD123F |
2,606 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 50 µA @ 60 V | 60 V | 2A | -40°C ~ 175°C | 750 mV @ 2 A |
|
|
BAR46FILMDIODE SCHOTTKY 100V 150MA SOT23 |
3,467 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 10pF @ 0V, 1MHz | - | 5 µA @ 75 V | 100 V | 150mA (DC) | 150°C (Max) | 1 V @ 250 mA | |
|
|
STTH1R02ZFDIODE GEN PURP 200V 1A SOD123F |
3,312 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 32 ns | 500 nA @ 200 V | 200 V | 1A | 175°C (Max) | 1 V @ 1 A | |
|
|
STPS160AFN60 V, 1 A POWER SCHOTTKY RECTIFI |
278 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 4 µA @ 60 V | 60 V | 1A | 150°C | 670 mV @ 1 A | |
|
|
STTH4R02UDIODE GEN PURP 200V 4A SMB |
2,854 | 0.98 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 30 ns | 3 µA @ 200 V | 200 V | 4A | 175°C (Max) | 1.05 V @ 4 A |
