| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STPS2L60ADIODE SCHOTTKY 60V 2A SMA |
2,141 | 0.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 60 V | 60 V | 2A | 150°C (Max) | 600 mV @ 2 A | |
|

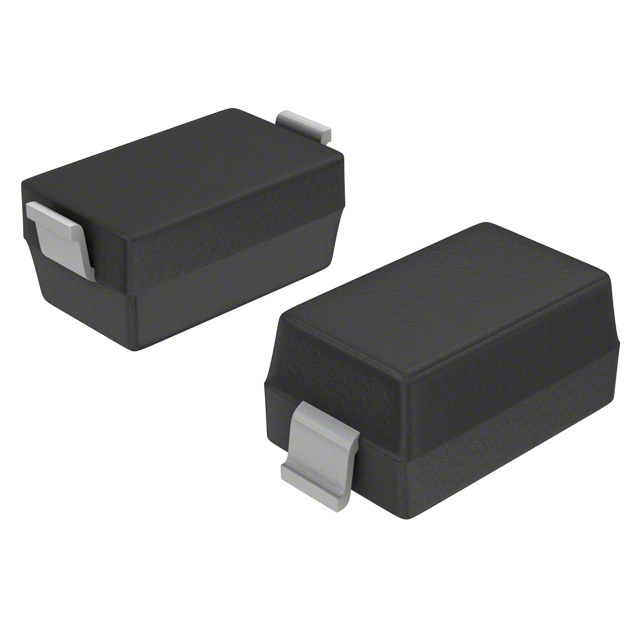

BAT46ZFILMDIODE SCHOTTKY 100V 150MA SOD123 |
2,304 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 10pF @ 0V, 1MHz | - | 5 µA @ 75 V | 100 V | 150mA (DC) | 150°C (Max) | 1 V @ 250 mA | |
|
STPSC8H065G2Y-TRAUTOMOTIVE-GRADE SILICON CARBIDE |
250 | 3.11 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, ECOPACK®2 | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 414pF @ 0V, 1MHz | 0 ns | 80 µA @ 650 V | 650 V | 8A | -40°C ~ 175°C | 1.65 V @ 8 A |
|
STPS3L60UDIODE SCHOTTKY 60V 3A SMB |
3,356 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 150 µA @ 60 V | 60 V | 3A | 150°C (Max) | 620 mV @ 3 A | |
|
STPSC8H065G-TRDIODE SCHOTTKY 650V 8A D2PAK |
3,346 | 3.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 414pF @ 0V, 1MHz | 0 ns | 80 µA @ 650 V | 650 V | 8A | -40°C ~ 175°C | 1.75 V @ 8 A | |
;;2.jpg)
|
STPSC10H065B-TRDIODE SCHOTTKY 650V 10A DPAK |
2,570 | 3.67 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 480pF @ 0V, 1MHz | 0 ns | 100 µA @ 650 V | 650 V | 10A | -40°C ~ 175°C | 1.75 V @ 10 A | |
|
BAT54KFILMDIODE SCHOTTKY 40V 300MA SOD523 |
2,988 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 10pF @ 1V, 1MHz | 5 ns | 1 µA @ 30 V | 40 V | 300mA (DC) | -40°C ~ 150°C | 900 mV @ 100 mA | |
|
|
STPS1H100AYDIODE SCHOTTKY 100V 1A SMA |
2,874 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Q Automotive | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 4 µA @ 100 V | 100 V | 1A | -40°C ~ 175°C | 770 mV @ 1 A |
|
|
STPS2L40UDIODE SCHOTTKY 40V 2A SMB |
2,600 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 220 µA @ 40 V | 40 V | 2A | 150°C (Max) | 430 mV @ 2 A | |
|

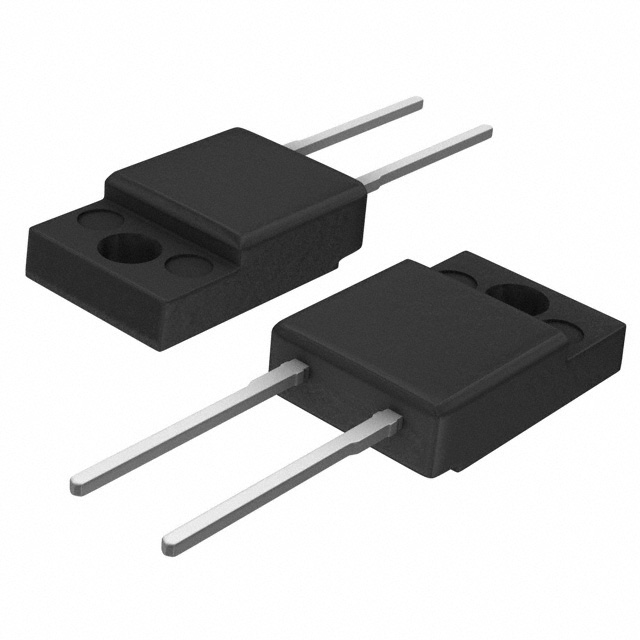

STTH8R06FPDIODE GEN PURP 600V 8A TO220FP |
477 | 2.51 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 45 ns | 30 µA @ 600 V | 600 V | 8A | 175°C (Max) | 2.9 V @ 8 A | |
|
|
STPS2150ADIODE SCHOTTKY 150V 2A SMA |
2,343 | 0.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 1.5 µA @ 150 V | 150 V | 2A | 175°C (Max) | 820 mV @ 2 A | |
|
STPS3L40UFDIODE SCHOTTKY 40V 3A SMBFLAT |
2,809 | 0.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 40 V | 40 V | 3A | 150°C (Max) | 500 mV @ 3 A | |
|
STBR3008WYAUTOMOTIVE 800 V, 30 A BRIDGE |
211 | 2.95 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 2 µA @ 800 V | 800 V | 30A | -40°C ~ 175°C | 1.1 V @ 30 A |
|
STPSC806DDIODE SCHOTTKY 600V 8A TO220AC |
697 | 2.96 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 450pF @ 0V, 1MHz | 0 ns | 100 µA @ 600 V | 600 V | 8A | -40°C ~ 175°C | 1.7 V @ 8 A | |
|
|
STPS0530ZDIODE SCHOTTKY 30V 500MA SOD123 |
3,215 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 130 µA @ 30 V | 30 V | 500mA | 150°C (Max) | 430 mV @ 500 mA | |
|
STPSC6H065DIDIODE SCHOTTKY 650V 6A TO220AC |
605 | 2.98 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Silicon Carbide Schottky | Active | Through Hole | - | - | 60 µA @ 650 V | 650 V | 6A | -40°C ~ 175°C | 1.75 V @ 6 A | |
|
|
STTH108ADIODE GEN PURP 800V 1A SMA |
2,518 | 0.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 75 ns | 5 µA @ 800 V | 800 V | 1A | 175°C (Max) | 1.65 V @ 1 A | |
|
STTH212SDIODE GEN PURP 1.2KV 2A SMC |
49,860 | 0.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 75 ns | 10 µA @ 1200 V | 1200 V | 2A | 175°C (Max) | 1.75 V @ 2 A | |
|
|
STTH806DIRGDIODE GEN PURP 600V 8A TO220AC |
3,223 | 3.11 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 55 ns | 8 µA @ 600 V | 600 V | 8A | 175°C (Max) | 1.85 V @ 8 A | |
|

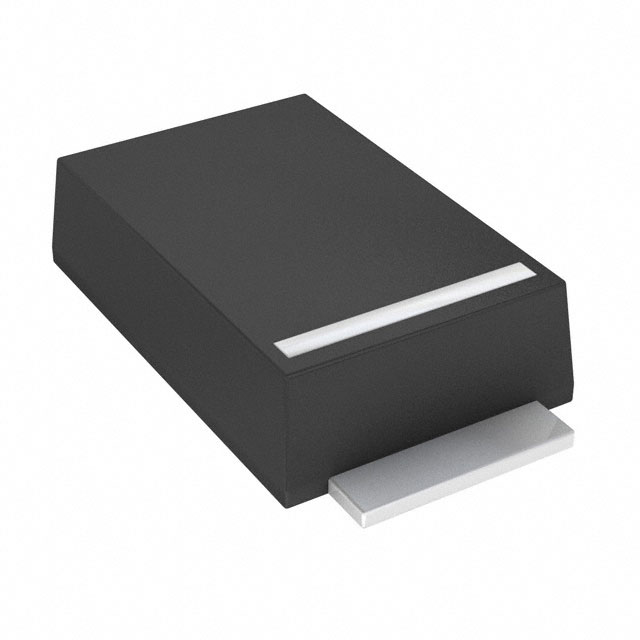

STPS5H100AFYDIODE SCHOTTKY 100V 5A SOD128 |
2,591 | 0.67 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 3.5 µA @ 100 V | 100 V | 5A | -40°C ~ 175°C | 760 mV @ 5 A |
