| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDBQR0140R-HFDIODE SCHOTTKY 40V 100MA 0402 |
3,967 | 0.06 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 6pF @ 10V, 1MHz | - | 1 µA @ 10 V | 40 V | 100mA | 125°C (Max) | 450 mV @ 10 mA | |
|
CDSV-21-GDIODE GEN PURP 200V 200MA SOD323 |
2,782 | 0.06 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 5pF @ 0V, 1MHz | 50 ns | 100 nA @ 200 V | 200 V | 200mA (DC) | -65°C ~ 150°C | 1.25 V @ 200 mA | |
|
CDBM140-HFDIODE SCHOTTKY 40V 1A MINISMA |
3,830 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 120pF @ 4V, 1MHz | - | 500 µA @ 40 V | 40 V | 1A (DC) | -50°C ~ 125°C | 500 mV @ 1 A | |
|
CDBU0130-HFDIODE SCHOTTKY 30V 100MA 0603 |
3,898 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 9pF @ 10V, 1MHz | - | 30 µA @ 30 V | 30 V | 100mA | 125°C (Max) | 440 mV @ 100 mA | |
|
ES1E-HFRECTIFIER SUPER FAST RECOVERY 30 |
2,003 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 35 ns | 5 µA @ 300 V | 300 V | 1A | -55°C ~ 150°C | 1.25 V @ 1 A | |
|
|
ES1C-HFRECTIFIER SUPER FAST RECOVERY 15 |
3,721 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 35 ns | 5 µA @ 150 V | 200 V | 1A | -55°C ~ 150°C | 1 V @ 1 A | |
|
S1J-HFRECTIFIER GEN PURP 600V 1A SMA |
3,181 | 0.20 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | - | 5 µA @ 600 V | 600 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A | |
|
CDBQC0240LR-HFDIODE SCHOTTKY 40V 200MA 0402C |
2,490 | 0.33 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 25pF @ 1V, 1MHz | - | 5 µA @ 40 V | 40 V | 200mA | -55°C ~ 150°C | 580 mV @ 200 mA | |
|
CDSFR4148DIODE GEN PURP 75V 150MA 1005 |
3,454 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 4pF @ 0V, 1MHz | 4 ns | 2.5 µA @ 75 V | 75 V | 150mA | 125°C (Max) | 1 V @ 50 mA | |
|
CDBP00340-GDIODE SCHOTTKY 30V 30MA SOD723 |
2,446 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 2pF @ 1V, 1MHz | - | 500 nA @ 30 V | 30 V | 30mA | 125°C (Max) | 370 mV @ 1 mA | |
|
|
ACDBA160-HFDIODE SCHOTTKY 60V 1A DO214AC |
3,571 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 60pF @ 4V, 1MHz | - | 500 µA @ 60 V | 60 V | 1A (DC) | -55°C ~ 125°C | 700 mV @ 1 A |
|
ACGRKM4001-HFDIODE GEN PURP 50V 1A SOD123F |
3,849 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | - | 5 µA @ 50 V | 50 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A |
|
|
ACGRKM4002-HFDIODE GEN PURP 100V 1A SOD123F |
3,526 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | - | 5 µA @ 100 V | 100 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A |
|
|
S2A-HFRECTIFIER GEN PURP 50V 2A SMA |
2,101 | 0.37 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 25pF @ 4V, 1MHz | - | 5 µA @ 50 V | 50 V | 2A | -55°C ~ 150°C | 1.1 V @ 2 A | ||
|
RS2A-HFRECTIFIER FAST RECOVERY 50V 2A S |
3,775 | 0.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 22pF @ 4V, 1MHz | 150 ns | 5 µA @ 50 V | 50 V | 2A | -55°C ~ 150°C | 1.3 V @ 2 A | |
|

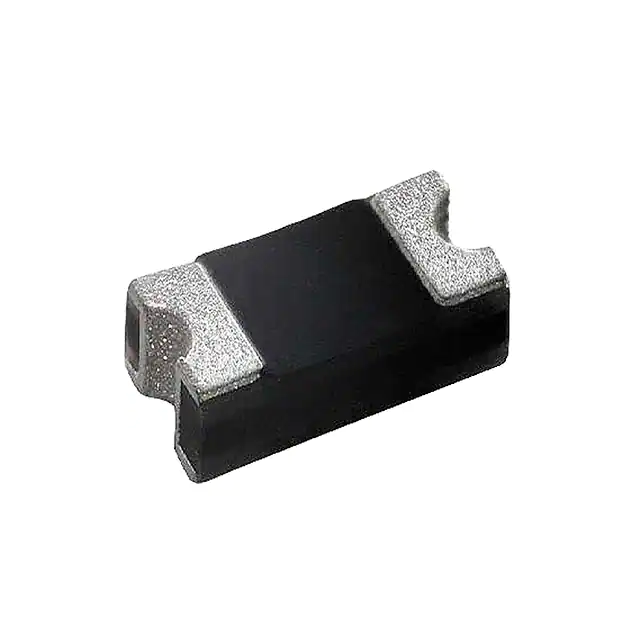

ACGRAT105-HFDIODE GEN PURP 1KV 1A 2010 |
3,996 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Last Time Buy | Surface Mount | 8pF @ 4V, 1MHz | - | 5 µA @ 1000 V | 1000 V | 1A | -65°C ~ 175°C | 1 V @ 1 A |
|
|
ACGRAT104-HFDIODE GEN PURP 800V 1A 2010 |
3,735 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Last Time Buy | Surface Mount | 8pF @ 4V, 1MHz | - | 5 µA @ 800 V | 800 V | 1A | -65°C ~ 175°C | 1 V @ 1 A |
|
CGRB204-GDIODE GEN PURP 400V 2A DO214AA |
2,148 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | - | 5 µA @ 400 V | 400 V | 2A | 150°C (Max) | 1.1 V @ 2 A | |
|
|
CGRB207-GDIODE GEN PURP 1KV 2A DO214AA |
3,233 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | - | 5 µA @ 1000 V | 1000 V | 2A | 150°C (Max) | 1.1 V @ 2 A | |
|
|
CGRB202-GDIODE GEN PURP 100V 2A DO214AA |
2,101 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | - | 5 µA @ 100 V | 100 V | 2A | 150°C (Max) | 1.1 V @ 2 A |
