| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1SS389-GDIODE SCHOTTKY 10V 100MA SOD523 |
9,787 | 0.25 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 40pF @ 0V, 1MHz | - | 20 µA @ 10 V | 10 V | 100mA (DC) | -40°C ~ 100°C | 500 mV @ 100 mA | |
|
|
RB521S-30-HFDIODE SCHOTTKY 30V 0.2A SOD-523 |
268 | 0.26 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | - | - | 30 µA @ 10 V | 30 V | 200mA | - | 500 mV @ 200 mA | ||
|
ES1D-HFRECTIFIER SUPER FAST RECOVERY 20 |
3,565 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 35 ns | 5 µA @ 200 V | 200 V | 1A | -55°C ~ 150°C | 1 V @ 1 A | |
|
CDBUR0140LDIODE SCHOTTKY 40V 100MA 0603 |
3,056 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 6pF @ 10V, 1MHz | - | 30 µA @ 10 V | 40 V | 100mA | 125°C (Max) | 550 mV @ 100 mA | |
|
CDBFR0140LDIODE SCHOTTKY 40V 100MA 1005 |
1,941 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 6pF @ 10V, 1MHz | - | 30 µA @ 10 V | 40 V | 100mA | 125°C (Max) | 550 mV @ 100 mA | |
|
CDBDSC3650-GDIODE SIC 3A 650V TO-252/DPAK |
360 | 1.70 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 181pF @ 0V, 1MHz | 0 ns | 100 µA @ 650 V | 650 V | 11A (DC) | -55°C ~ 175°C | 1.7 V @ 3 A | |
|
CDBJSC3650-GDIODE, SIC STKY 3A 650V TO-220-2 |
352 | 1.70 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 190pF @ 0V, 1MHz | 0 ns | 100 µA @ 650 V | 650 V | 3A (DC) | -55°C ~ 175°C | 1.7 V @ 3 A | |
|
|
CDBF0530DIODE SCHOTTKY 20V 500MA 1005 |
3,050 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 100pF @ 0V, 1MHz | - | 100 µA @ 20 V | 20 V | 500mA | 125°C (Max) | 470 mV @ 500 mA | |
|
RS3AB-HFRECTIFIER FAST RECOVERY 50V 3A S |
2,895 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 40pF @ 4V, 1MHz | 150 ns | 5 µA @ 50 V | 50 V | 3A | -55°C ~ 150°C | 1.3 V @ 3 A | |
|

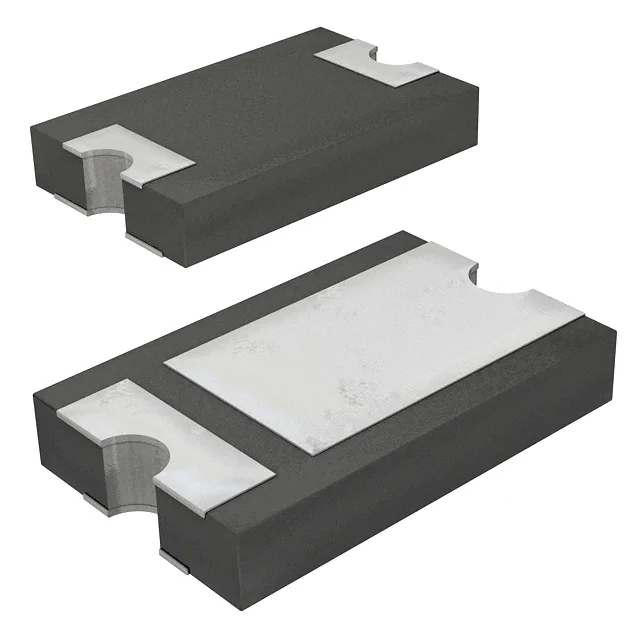

CDBZ5T1045-HFDIODE SCHOTTKY 45V 10A SMC |
374 | 1.83 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 100 µA @ 45 V | 45 V | 10A | -55°C ~ 150°C | 550 mV @ 10 A | |
|
|
RS3KB-HFRECTIFIER FAST RECOVERY 800V 3A |
2,745 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 40pF @ 4V, 1MHz | 500 ns | 5 µA @ 800 V | 800 V | 3A | -55°C ~ 150°C | 1.3 V @ 3 A | |
|
|
CDBJFSC3650-GDIODE, SIC STKY 3A 650V TO-220F |
493 | 1.93 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 190pF @ 0V, 1MHz | 0 ns | 100 µA @ 650 V | 650 V | 3A (DC) | -55°C ~ 175°C | 1.7 V @ 3 A | |
|
CURN102-HFDIODE GEN PURP 400V 1A 1206 |
1,284 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 4V, 1MHz | 50 ns | - | 400 V | 1A | -65°C ~ 175°C | 1.7 V @ 1 A | |
|
CURMT104-HFDIODE GEN PURP 400V 1A SOD123H |
2,884 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 5 µA @ 400 V | 400 V | 1A | -55°C ~ 150°C | 1.3 V @ 1 A | |
|
ACGRAT103-HFDIODE GEN PURP 600V 1A 2010 |
2,831 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Last Time Buy | Surface Mount | 8pF @ 4V, 1MHz | - | 5 µA @ 600 V | 600 V | 1A | -65°C ~ 175°C | 1 V @ 1 A |
|
|
ACGRAT102-HFDIODE GEN PURP 400V 1A 2010 |
2,303 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Last Time Buy | Surface Mount | 8pF @ 4V, 1MHz | - | 5 µA @ 400 V | 400 V | 1A | -65°C ~ 175°C | 1 V @ 1 A |
|
CDBB240-GDIODE SCHOTTKY 40V 2A DO214AA |
2,947 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 40 V | 40 V | 2A | -55°C ~ 125°C | 500 mV @ 2 A | |
|
1N5401-GDIODE GEN PURP 100V 3A DO201AD |
2,741 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 5 µA @ 100 V | 100 V | 3A | -65°C ~ 125°C | 950 mV @ 3 A | |
|
|
1N5404-GDIODE GEN PURP 400V 3A DO201AD |
2,637 | 0.41 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 5 µA @ 400 V | 400 V | 3A | -65°C ~ 125°C | 950 mV @ 3 A | |
|
CDBC340-HFDIODE SCHOTTKY 40V 3A DO214AB |
469 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 250pF @ 4V, 1MHz | - | 500 µA @ 40 V | 40 V | 3A | -50°C ~ 150°C | 500 mV @ 3 A |
