| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S2MA-13-FDIODE GEN PURP 1KV 1.5A SMA |
166,105 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 20pF @ 4V, 1MHz | - | 5 µA @ 1000 V | 1000 V | 1.5A | -65°C ~ 150°C | 1.15 V @ 1.5 A | |
|
|
RS1J-13-FDIODE GEN PURP 600V 1A SMA |
68,257 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 250 ns | 5 µA @ 600 V | 600 V | 1A | -65°C ~ 150°C | 1.3 V @ 1 A | |
|

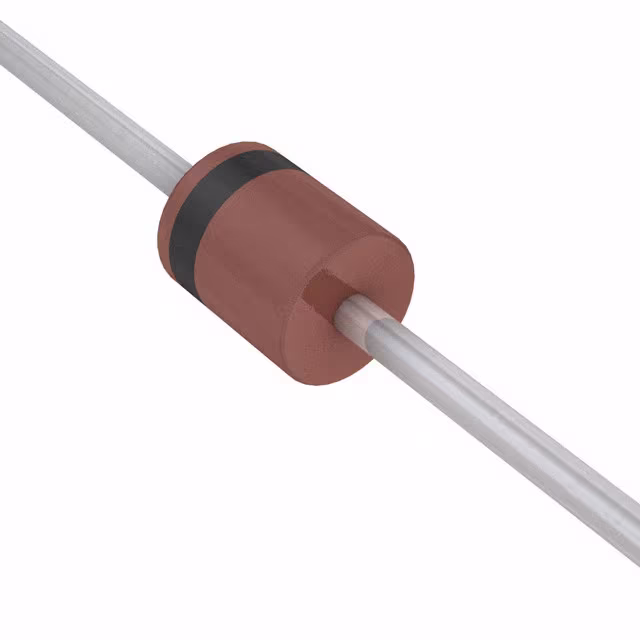

D4G-TDIODE GEN PURP 400V 1A T1 |
29,990 | 0.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 8pF @ 4V, 1MHz | 2 µs | 5 µA @ 400 V | 400 V | 1A | -65°C ~ 150°C | 1 V @ 1 A | |
|
SDM1U40CSP-7DIODE SCHTKY 40V 500MA X3WLB1406 |
14,281 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 35pF @ 4V, 1MHz | - | 75 µA @ 40 V | 40 V | 500mA | -55°C ~ 150°C | 460 mV @ 500 mA | |
|
PD3S0230-7DIODE SCHOTTKY 30V POWERDI323 |
4,223 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 10.7pF @ 1V, 1MHz | 5 ns | 2 µA @ 25 V | 30 V | 200mA (DC) | -65°C ~ 125°C | 800 mV @ 100 mA | |
|
|
RS2BA-13-FDIODE GEN PURP 100V 1.5A SMA |
6,169 | 0.53 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 30pF @ 4V, 1MHz | 150 ns | 5 µA @ 100 V | 100 V | 1.5A | -65°C ~ 150°C | 1.3 V @ 1.5 A | |
|
|
PD3S230HQ-7DIODE SCHOTTKY 30V 2A POWERDI323 |
61,845 | 0.53 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 40pF @ 10V, 1MHz | - | 100 µA @ 30 V | 30 V | 2A | -55°C ~ 150°C | 600 mV @ 2 A |
|
|
RS2GA-13-FDIODE GEN PURP 400V 1.5A SMA |
9,403 | 0.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 30pF @ 4V, 1MHz | 150 ns | 5 µA @ 400 V | 400 V | 1.5A | -65°C ~ 150°C | 1.3 V @ 1.5 A | |
|
|
B190-13-FDIODE SCHOTTKY 90V 1A SMA |
9,619 | 0.61 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 80pF @ 4V, 1MHz | - | 500 µA @ 90 V | 90 V | 1A | -65°C ~ 150°C | 790 mV @ 1 A | |
|
BAS40T-7-FDIODE SCHOTTKY 40V 200MA SOT523 |
2,940 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 5pF @ 0V, 1MHz | 5 ns | 200 nA @ 30 V | 40 V | 200mA (DC) | -55°C ~ 125°C | 1 V @ 40 mA | |
|
|
S2D-13-FDIODE GEN PURP 200V 1.5A SMB |
12,130 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 20pF @ 4V, 1MHz | - | 5 µA @ 200 V | 200 V | 1.5A | -65°C ~ 150°C | 1.15 V @ 1.5 A | |
|
|
RS2K-13-FDIODE GEN PURP 800V 1.5A SMB |
5,046 | 0.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 30pF @ 4V, 1MHz | 500 ns | 5 µA @ 800 V | 800 V | 1.5A | -65°C ~ 150°C | 1.3 V @ 1.5 A | |
|
|
SDMP0340LT-7-FDIODE SCHOTTKY 40V 30MA SOT523 |
2,245 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 2pF @ 1V, 1MHz | - | 1 µA @ 10 V | 40 V | 30mA (DC) | -40°C ~ 125°C | 370 mV @ 1 mA | |
|
|
RS2D-13-FDIODE GEN PURP 200V 1.5A SMB |
9,843 | 0.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 30pF @ 4V, 1MHz | 150 ns | 5 µA @ 200 V | 200 V | 1.5A | -65°C ~ 150°C | 1.3 V @ 1.5 A | |
|
SR102-TDIODE SCHOTTKY 20V 1A DO41 |
10,000 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Through Hole | 110pF @ 4V, 1MHz | - | 1 mA @ 20 V | 20 V | 1A | -65°C ~ 150°C | 550 mV @ 1 A | |
|
|
RS1DB-13DIODE GEN PURP 200V 1A SMB |
111,000 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | 15pF @ 4V, 1MHz | 150 ns | 5 µA @ 200 V | 200 V | 1A | -65°C ~ 150°C | 1.3 V @ 1 A | |
|
SD103B-FDIODE SCHOTTKY 30V 350MA DO35 |
30,000 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Discontinued at Digi-Key | Through Hole | 50pF @ 0V, 1MHz | 10 ns | 5 µA @ 20 V | 30 V | 350mA (DC) | 125°C (Max) | 600 mV @ 200 mA | |
|
MMBD4148W-7-FDIODE GEN PURP 75V 150MA SOT323 |
3,869 | 0.23 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 2pF @ 0V, 1MHz | 4 ns | 1 µA @ 75 V | 75 V | 150mA | -65°C ~ 150°C | 1.25 V @ 150 mA | |
|
SD101AWS-7DIODE SCHOTTKY 60V 15MA SOD323 |
15,000 | 0.16 |
RFQ |
Datasheet |
Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Discontinued at Digi-Key | Surface Mount | 2pF @ 0V, 1MHz | 1 ns | 200 µA @ 50 V | 60 V | 15mA (DC) | -65°C ~ 125°C | 1 V @ 15 mA | |
|

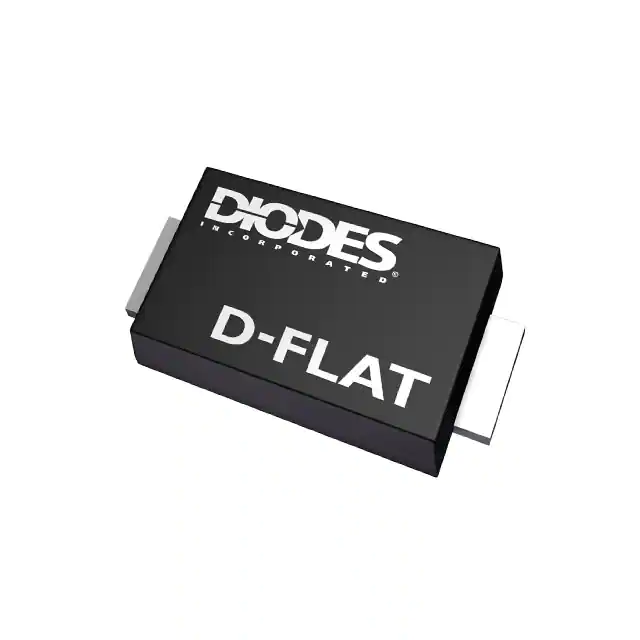

SF2DDF-13SUPERFAST RECOVERY RECTIFIER D-F |
7,784 | 0.53 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 50pF @ 4V, 1MHz | 35 ns | 5 µA @ 200 V | 200 V | 2A | -55°C ~ 150°C | 1.1 V @ 2 A |
