| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BAS40W-7-FDIODE SCHOTTKY 40V 200MA SOT323 |
7,971 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 5pF @ 0V, 1MHz | 5 ns | 200 nA @ 30 V | 40 V | 200mA (DC) | -55°C ~ 125°C | 1 V @ 40 mA | |
|
UF1001-TDIODE GEN PURP 50V 1A DO41 |
10,579 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 20pF @ 4V, 1MHz | 50 ns | 5 µA @ 50 V | 50 V | 1A | -65°C ~ 150°C | 1 V @ 1 A | |
|
|
1N4006G-TDIODE GEN PURP 800V 1A DO41 |
27,985 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 8pF @ 4V, 1MHz | 2 µs | 5 µA @ 800 V | 800 V | 1A | -65°C ~ 175°C | 1 V @ 1 A | |
|
|
1N5817-TDIODE SCHOTTKY 20V 1A DO41 |
35,633 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | 110pF @ 4V, 1MHz | - | 1 mA @ 20 V | 20 V | 1A | -65°C ~ 125°C | 450 mV @ 1 A | |
|
BAS16LP-7DIODE GEN PURP 75V 200MA 2DFN |
33,201 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 2pF @ 0V, 1MHz | 4 ns | 1 µA @ 75 V | 75 V | 200mA | -65°C ~ 150°C | 1.25 V @ 150 mA | |
|
S1M-13-FDIODE GEN PURP 1KV 1A SMA |
2,020,748 | 0.27 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 4V, 1MHz | 3 µs | 5 µA @ 1000 V | 1000 V | 1A | -65°C ~ 150°C | 1.1 V @ 1 A | |
|
BAV116HWFQ-7DIODE GEN PURP 85V 215MA SOD123F |
4,317 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 2pF @ 0V, 1MHz | 3 µs | 5 nA @ 75 V | 85 V | 215mA (DC) | -65°C ~ 150°C | 1.25 V @ 150 mA |
|
|
UF1002-TDIODE GEN PURP 100V 1A DO41 |
14,060 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 20pF @ 4V, 1MHz | 50 ns | 5 µA @ 100 V | 100 V | 1A | -65°C ~ 150°C | 1 V @ 1 A | |
|
US1MDFQ-13DIODE GEN PURP 1KV 1A DFLAT |
31,187 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 4V, 1MHz | 75 ns | 5 µA @ 1000 V | 1000 V | 1A | -55°C ~ 150°C | 1.7 V @ 1 A |
|
|
S2B-13-FDIODE GEN PURP 100V 1.5A SMB |
79,640 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 20pF @ 4V, 1MHz | - | 5 µA @ 100 V | 100 V | 1.5A | -65°C ~ 150°C | 1.15 V @ 1.5 A | |
|
|
US1M-13-FDIODE GEN PURP 1KV 1A SMA |
146,488 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 4V, 1MHz | 75 ns | 5 µA @ 1000 V | 1000 V | 1A | -65°C ~ 150°C | 1.7 V @ 1 A | |
|
SD101BW-7-FDIODE SCHOTTKY 50V 15MA SOD123 |
44,500 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 2.1pF @ 0V, 1MHz | 1 ns | 200 nA @ 40 V | 50 V | 15mA (DC) | -65°C ~ 125°C | 950 mV @ 15 mA | |
|
|
B160Q-13-FDIODE SCHOTTKY 60V 1A SMA |
9,798 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 110pF @ 4V, 1MHz | - | 500 µA @ 40 V | 60 V | 1A | -65°C ~ 150°C | 700 mV @ 1 A |
|
SDM1M40LP8-7DIODE SCHOTTKY 40V 1A 2DFN |
49,794 | 0.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 25pF @ 5V, 1MHz | 8.4 ns | 20 µA @ 40 V | 40 V | 1A | -65°C ~ 150°C | 660 mV @ 1 A | |
|
|
SD101CW-7-FDIODE SCHOTTKY 40V 15MA SOD123 |
13,700 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 2.2pF @ 0V, 1MHz | 1 ns | 200 nA @ 30 V | 40 V | 15mA (DC) | -65°C ~ 125°C | 900 mV @ 15 mA | |
|
|
US1A-13-FDIODE GEN PURP 50V 1A SMA |
77,944 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 20pF @ 4V, 1MHz | 50 ns | 5 µA @ 50 V | 50 V | 1A | -65°C ~ 150°C | 1 V @ 1 A | |
|
|
S2DA-13-FDIODE GEN PURP 200V 1.5A SMA |
12,137 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 20pF @ 4V, 1MHz | - | 5 µA @ 200 V | 200 V | 1.5A | -65°C ~ 150°C | 1.15 V @ 1.5 A | |
|
|
S2A-13-FDIODE GEN PURP 50V 1.5A SMB |
11,643 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 20pF @ 4V, 1MHz | - | 5 µA @ 50 V | 50 V | 1.5A | -65°C ~ 150°C | 1.15 V @ 1.5 A | |
|

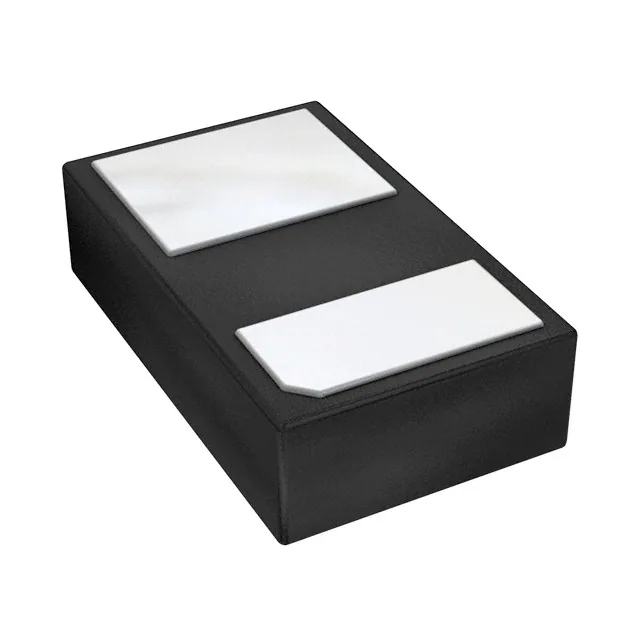

SDM2U30CSP-7DIODE SCHTKY 30V 2A X3-WLB1608-2 |
55,420 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 110pF @ 4V, 1MHz | - | 150 µA @ 30 V | 30 V | 2A | -55°C ~ 150°C | 480 mV @ 2 A | |
|
|
S2JA-13-FDIODE GEN PURP 600V 1.5A SMA |
232,583 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 20pF @ 4V, 1MHz | - | 5 µA @ 600 V | 600 V | 1.5A | -65°C ~ 150°C | 1.15 V @ 1.5 A |
