| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S1D-13-FDIODE GEN PURP 200V 1A SMA |
273,239 | 0.30 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 4V, 1MHz | 3 µs | 5 µA @ 200 V | 200 V | 1A | -65°C ~ 150°C | 1.1 V @ 1 A | |
|
1SS361LP3-7DIODE GEN PURP 80V 100MA 2DFN |
112,063 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 3pF @ 0V, 1MHz | 4 ns | 1 µA @ 80 V | 80 V | 100mA | -65°C ~ 150°C | 1.23 V @ 100 mA | |
|
BAS116LPH4-7BDIODE GEN PURP 85V 215MA 2DFN |
241,484 | 0.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 1.5pF @ 0V, 1MHz | 3 µs | 5 nA @ 75 V | 85 V | 215mA (DC) | -55°C ~ 150°C | 1.25 V @ 150 mA | |
|
BAV116W-7-FDIODE GEN PURP 130V 215MA SOD123 |
77,820 | 0.30 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 5pF @ 0V, 1MHz | 3 µs | 5 nA @ 75 V | 130 V | 215mA (DC) | -65°C ~ 150°C | 1.25 V @ 150 mA | |
|
|
MBR0580S1-7DIODE SCHOTTKY 80V 500MA SOD123 |
403 | 0.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 15pF @ 5V, 1MHz | - | 5 µA @ 80 V | 80 V | 500mA | -55°C ~ 175°C | 800 mV @ 500 mA | |
|
BAS70LP-7BDIODE SCHTTKY 70V 70MA X1DFN1006 |
169,025 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 1pF @ 0V, 1MHz | 1.6 ns | 10 µA @ 70 V | 70 V | 70mA (DC) | -65°C ~ 150°C | 960 mV @ 15 mA | |
|
|
S1AB-13-FDIODE GEN PURP 50V 1A SMB |
244,317 | 0.36 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 4V, 1MHz | 3 µs | 5 µA @ 50 V | 50 V | 1A | -65°C ~ 150°C | 1.1 V @ 1 A | |
|
|
B0520LW-7-FDIODE SCHOTTKY 20V 500MA SOD123 |
10,401 | 0.36 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 170pF @ 0V, 1MHz | - | 250 µA @ 20 V | 20 V | 500mA | -65°C ~ 125°C | 385 mV @ 500 mA | |
|
|
S1GB-13-FDIODE GEN PURP 400V 1A SMB |
704,683 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 4V, 1MHz | 3 µs | 5 µA @ 400 V | 400 V | 1A | -65°C ~ 150°C | 1.1 V @ 1 A | |
|
|
S1BB-13-FDIODE GEN PURP 100V 1A SMB |
145,103 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 4V, 1MHz | 3 µs | 5 µA @ 100 V | 100 V | 1A | -65°C ~ 150°C | 1.1 V @ 1 A | |
|

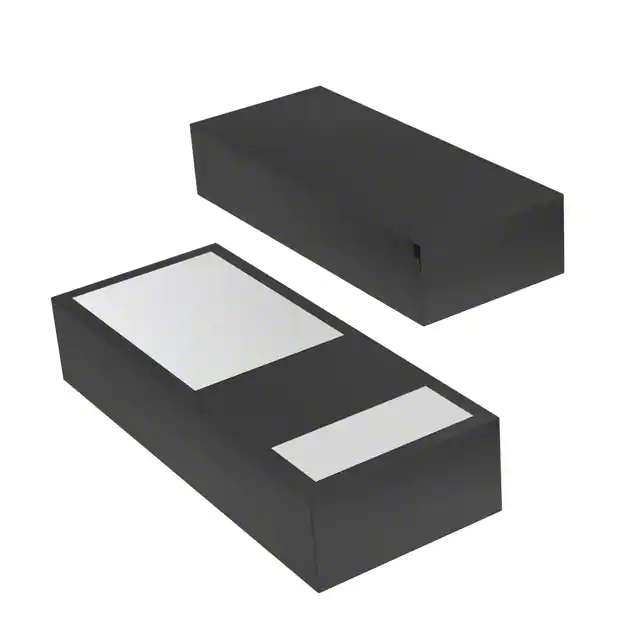

SDM1L30CSP-7DIODE SCHOTTKY 30V 1A 2CSP |
5,897 | 0.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 150pF @ 5V, 1MHz | - | 1 mA @ 30 V | 30 V | 1A | -55°C ~ 150°C | 400 mV @ 1 A | |
|
|
S2M-13-FDIODE GEN PURP 1KV 1.5A SMB |
636,671 | 0.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 20pF @ 4V, 1MHz | - | 5 µA @ 1000 V | 1000 V | 1.5A | -65°C ~ 150°C | 1.15 V @ 1.5 A | |
|

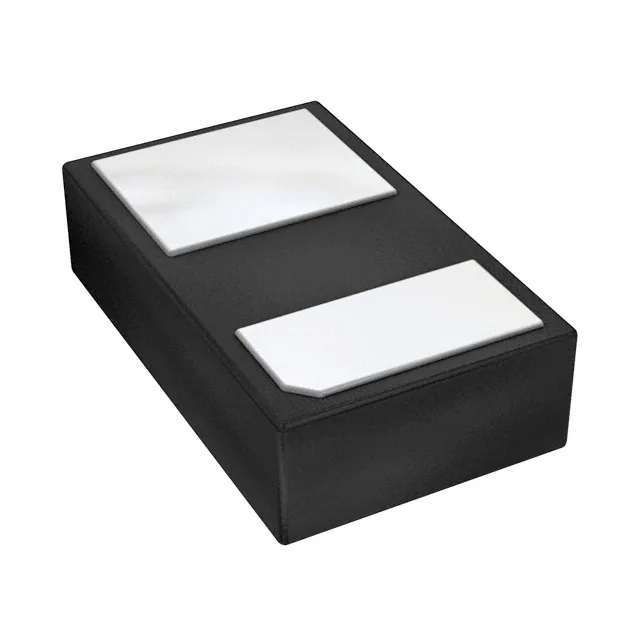

SDM05U40CSP-7DIODE SCHTKY 40V 500MA X3WLB1006 |
272,609 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 35pF @ 4V, 1MHz | - | 75 µA @ 40 V | 40 V | 500mA | -55°C ~ 150°C | 460 mV @ 500 mA | |
|
|
S1JB-13-FDIODE GEN PURP 600V 1A SMB |
240,046 | 0.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 4V, 1MHz | 3 µs | 5 µA @ 600 V | 600 V | 1A | -65°C ~ 150°C | 1.1 V @ 1 A | |
|
|
S2G-13-FDIODE GEN PURP 400V 1.5A SMB |
25,874 | 0.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 20pF @ 4V, 1MHz | - | 5 µA @ 400 V | 400 V | 1.5A | -65°C ~ 150°C | 1.15 V @ 1.5 A | |
|
|
S1MB-13-FDIODE GEN PURP 1KV 1A SMB |
657,943 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 4V, 1MHz | 3 µs | 5 µA @ 1000 V | 1000 V | 1A | -65°C ~ 150°C | 1.1 V @ 1 A | |
|
|
BAS16HLP-7DIODE GEN PURP 100V 215MA 2DFN |
92,108 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 1.5pF @ 0V, 1MHz | 4 ns | 500 nA @ 80 V | 100 V | 215mA | -65°C ~ 150°C | 1.25 V @ 150 mA | |
|
|
S2AA-13-FDIODE GEN PURP 50V 1.5A SMA |
67,125 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 20pF @ 4V, 1MHz | - | 5 µA @ 50 V | 50 V | 1.5A | -65°C ~ 150°C | 1.15 V @ 1.5 A | |
|
|
S2BA-13-FDIODE GEN PURP 100V 1.5A SMA |
58,573 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 20pF @ 4V, 1MHz | - | 5 µA @ 100 V | 100 V | 1.5A | -65°C ~ 150°C | 1.15 V @ 1.5 A | |
|
UF1007-TDIODE GEN PURP 1KV 1A DO41 |
43,177 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 10pF @ 4V, 1MHz | 75 ns | 5 µA @ 1000 V | 1000 V | 1A | -65°C ~ 150°C | 1.7 V @ 1 A |
