| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DB2G42600L1DIODE SCHOTTKY 40V 1A 0402 |
3,127 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Discontinued at Digi-Key | Surface Mount | 28pF @ 10V, 1MHz | 8.7 ns | 30 µA @ 40 V | 40 V | 1A | 150°C (Max) | 600 mV @ 1 A | |
|
DB2132000LDIODE SCHOTTKY 30V 1.5A SMINI2 |
3,814 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Discontinued at Digi-Key | Surface Mount | 48pF @ 10V, 1MHz | 16 ns | 100 µA @ 30 V | 30 V | 1.5A | 125°C (Max) | 460 mV @ 1.5 A | |
|
|
DB2141300LDIODE SCHOTTKY 40V 2A SMINI2 |
3,783 | 0.00 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Discontinued at Digi-Key | Surface Mount | 43pF @ 10V, 1MHz | 12 ns | 150 µA @ 40 V | 40 V | 2A | 150°C (Max) | 530 mV @ 2 A | ||
|
DB2J30900LDIODE SCHOTTKY 30V 100MA SMINI2 |
2,764 | 0.00 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Discontinued at Digi-Key | Surface Mount | 3pF @ 10V, 1MHz | 1.3 ns | 2 µA @ 30 V | 30 V | 100mA | 125°C (Max) | 580 mV @ 100 mA | ||
|
DB2430700LDIODE SCHOTTKY 30V 3A TMINIP2 |
3,491 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Discontinued at Digi-Key | Surface Mount | 111pF @ 10V, 1MHz | 35 ns | 2 mA @ 30 V | 30 V | 3A (DC) | 125°C (Max) | 370 mV @ 3 A | |
|
|

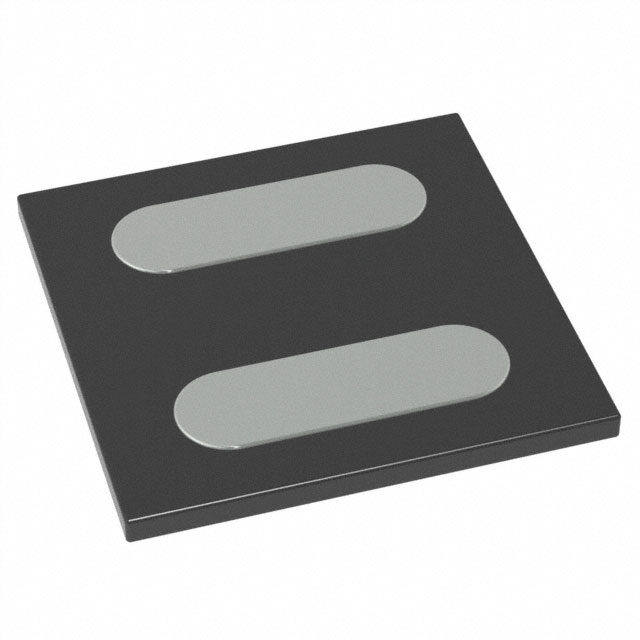

DB2G60800L1CSP SCHOTTKY BARRIER DIODE |
3,453 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Discontinued at Digi-Key | Surface Mount | 20pF @ 10V, 1MHz | 6.6 ns | 40 µA @ 60 V | 60 V | 1A | 150°C (Max) | 680 mV @ 1 A | |
|
DB2F43100L1CSP SCHOTTKY BARRIER DIODE |
3,130 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Discontinued at Digi-Key | Surface Mount | 140pF @ 10V, 1MHz | 45 ns | 100 µA @ 40 V | 40 V | 5A | 150°C (Max) | 600 mV @ 5 A | |
|
MAU2D3000BDIODE SCHOTTKY 30V 100MA USSMINI |
8,705 | 0.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Obsolete | Surface Mount | 9pF @ 0V, 1MHz | 1 ns | 2 µA @ 30 V | 30 V | 100mA | 125°C (Max) | 580 mV @ 100 mA | |
|
MA2C029QAFDIODE GEN PURP 6V 50MA DO34 |
1,016 | 0.35 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Obsolete | Through Hole | - | - | 1 µA @ 6 V | 6 V | 50mA (DC) | 150°C (Max) | 2.4 V @ 3 mA | |
|

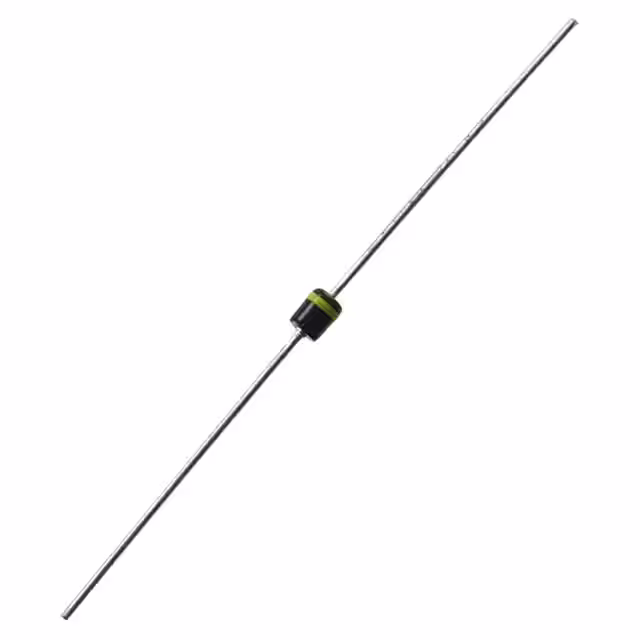

MA2C029TAFDIODE GEN PURP 6V 70MA DO34 |
1,087 | 0.36 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Obsolete | Through Hole | - | - | 1 µA @ 6 V | 6 V | 70mA (DC) | 150°C (Max) | 1.92 V @ 3 mA | |
|
MA3X15800LDIODE GEN PURP 200V 100MA MINI3 |
175 | 0.18 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Obsolete | Surface Mount | - | - | 1 µA @ 200 V | 200 V | 100mA | 125°C (Max) | 1.3 V @ 100 mA | |
|
MA3J142KGLDIODE GEN PURP 80V 100MA SMINI3 |
948 | 0.19 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Obsolete | Surface Mount | - | 3 ns | 100 nA @ 75 V | 80 V | 100mA (DC) | 150°C (Max) | 1.2 V @ 100 mA | |
|
DA3S101A0LDIODE GEN PURP 80V 100MA SSMINI3 |
237 | 0.22 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Discontinued at Digi-Key | Surface Mount | 1.2pF @ 0V, 1MHz | 3 ns | 100 nA @ 80 V | 80 V | 100mA (DC) | 150°C (Max) | 1.2 V @ 100 mA | ||
|
|
MA3J142AGLDIODE GEN PURP 80V 100MA SMINI3 |
4,869 | 0.19 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Obsolete | Surface Mount | - | 3 ns | 100 nA @ 75 V | 80 V | 100mA (DC) | 150°C (Max) | 1.2 V @ 100 mA | |
|
|
MA3S132A0LDIODE GEN PURP 80V 100MA SSMINI3 |
5,980 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Obsolete | Surface Mount | 2pF @ 0V, 1MHz | 3 ns | 100 nA @ 75 V | 80 V | 100mA (DC) | 150°C (Max) | 1.2 V @ 100 mA | |
|
MA3J142A0LDIODE GEN PURP 80V 100MA SMINI3 |
35,958 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Obsolete | Surface Mount | 15pF @ 0V, 1MHz | 10 ns | 100 nA @ 75 V | 80 V | 100mA (DC) | 150°C (Max) | 1.2 V @ 100 mA | |
|
MA2C0290BFDIODE GEN PURP 6V 50MA DO34 |
469 | 0.29 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Obsolete | Through Hole | - | - | 10 µA @ 6 V | 6 V | 50mA | 150°C (Max) | 1.1 V @ 50 mA | |
|
MA4L11100ADIODE GEN PURP 80V LEADLESS |
2,740 | 0.13 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Obsolete | Surface Mount | - | 3 ns | - | 80 V | - | - | - | ||
|
|
DB3X207K0LDIODE GEN PURP 20V 1A MINI3 |
2,470 | 0.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | 43pF @ 10V, 1MHz | 12 ns | 1.5 mA @ 6 V | 20 V | 1A | 125°C (Max) | 400 mV @ 1 A | |
|
MA22D1500LDIODE SCHOTTKY 20V 1A MINI2 |
2,220 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | 30pF @ 10V, 1MHz | 10 ns | 100 µA @ 20 V | 20 V | 1A | 150°C (Max) | 430 mV @ 1 mA |
