| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DB2460100LDIODE SCHOTTKY 60V 3A TMINIP2 |
3,828 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Discontinued at Digi-Key | Surface Mount | 65pF @ 10V, 1MHz | 21 ns | 150 µA @ 60 V | 60 V | 3A (DC) | 150°C (Max) | 650 mV @ 3 A | |
|
|
DB2460600LDIODE SCHOTTKY 60V 3A TMINIP2 |
3,887 | 0.00 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Discontinued at Digi-Key | Surface Mount | 40pF @ 10V, 1MHz | 12 ns | 350 µA @ 60 V | 60 V | 3A (DC) | 150°C (Max) | 700 mV @ 3 A | ||
|
|
DB2440200LDIODE SCHOTTKY 40V 2A TMINIP2 |
3,838 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Discontinued at Digi-Key | Surface Mount | 50pF @ 10V, 1MHz | 15 ns | 250 µA @ 40 V | 40 V | 2A (DC) | 150°C (Max) | 470 mV @ 2 A | |
|
|
DB2440100LDIODE SCHOTTKY 40V 1A TMINIP2 |
2,307 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Discontinued at Digi-Key | Surface Mount | 50pF @ 10V, 1MHz | 15 ns | 250 µA @ 40 V | 40 V | 1A (DC) | 150°C (Max) | 390 mV @ 1 A | |
|
|
DB2431200LDIODE SCHOTTKY 30V 5A TMINIP2 |
3,987 | 0.00 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Discontinued at Digi-Key | Surface Mount | 74pF @ 10V, 1MHz | 23 ns | 300 µA @ 30 V | 30 V | 5A (DC) | 150°C (Max) | 510 mV @ 5 A | ||
|
|
DB2430500LDIODE SCHOTTKY 30V 3A TMINIP2 |
3,562 | 0.00 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Discontinued at Digi-Key | Surface Mount | 74pF @ 10V, 1MHz | 23 ns | 300 µA @ 30 V | 30 V | 3A (DC) | 150°C (Max) | 450 mV @ 3 A | ||
|
DA2J10100LDIODE GEN PURP 80V 100MA SMINI2 |
3,188 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Discontinued at Digi-Key | Surface Mount | 1.2pF @ 0V, 1MHz | 3 ns | 100 nA @ 75 V | 80 V | 100mA (DC) | 150°C (Max) | 1.2 V @ 100 mA | |
|
|
DA2J10400LDIODE GEN PURP 80V 200MA SMINI2 |
3,234 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Discontinued at Digi-Key | Surface Mount | 4pF @ 0V, 1MHz | 10 ns | 500 nA @ 75 V | 80 V | 200mA (DC) | 150°C (Max) | 1.1 V @ 200 mA | |
|
|
DB2J31700LDIODE SCHOTTKY 30V 1A SMINI2 |
2,020 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Discontinued at Digi-Key | Surface Mount | 22pF @ 10V, 1MHz | 7.8 ns | 100 µA @ 40 V | 30 V | 1A | 125°C (Max) | 520 mV @ 1 A | |
|
DA2710100LDIODE GP 80V 100MA SSSMINI2-F4-B |
2,733 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Discontinued at Digi-Key | Surface Mount | 1.2pF @ 0V, 1MHz | 3 ns | 100 nA @ 75 V | 80 V | 100mA (DC) | 150°C (Max) | 1.2 V @ 100 mA | |
|
DA2S10100LDIODE GEN PURP 80V 100MA SSMINI2 |
2,513 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Discontinued at Digi-Key | Surface Mount | 1.2pF @ 0V, 1MHz | 3 ns | 100 nA @ 75 V | 80 V | 100mA (DC) | 150°C (Max) | 1.2 V @ 100 mA | |
|
DA3X101K0LDIODE GEN PURP 80V 100MA MINI3 |
2,045 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Discontinued at Digi-Key | Surface Mount | 1.2pF @ 0V, 1MHz | 3 ns | 100 nA @ 80 V | 80 V | 100mA (DC) | 150°C (Max) | 1.2 V @ 100 mA | |
|
DA3S101K0LDIODE GEN PURP 80V 100MA SSMINI3 |
2,565 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Discontinued at Digi-Key | Surface Mount | 1.2pF @ 0V, 1MHz | 3 ns | 100 nA @ 80 V | 80 V | 100mA (DC) | 150°C (Max) | 1.2 V @ 100 mA | |
|
DB2J50100LDIODE SCHOTTKY 50V 200MA SMINI2 |
2,907 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Discontinued at Digi-Key | Surface Mount | 4pF @ 10V, 1MHz | 1.6 ns | 200 µA @ 50 V | 50 V | 200mA | 125°C (Max) | 550 mV @ 200 mA | |
|
|
DB3X501K0LDIODE SCHOTTKY 50V 200MA MINI3 |
3,779 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Discontinued at Digi-Key | Surface Mount | 4pF @ 10V, 1MHz | 1.6 ns | 200 µA @ 50 V | 50 V | 200mA | 125°C (Max) | 550 mV @ 200 mA | |
|
|
DB2J20800LDIODE SCHOTTKY 20V 500MA SMINI2 |
2,979 | 0.00 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Discontinued at Digi-Key | Surface Mount | 12pF @ 10V, 1MHz | 4.3 ns | 200 µA @ 20 V | 20 V | 500mA | 125°C (Max) | 420 mV @ 500 mA | ||
|

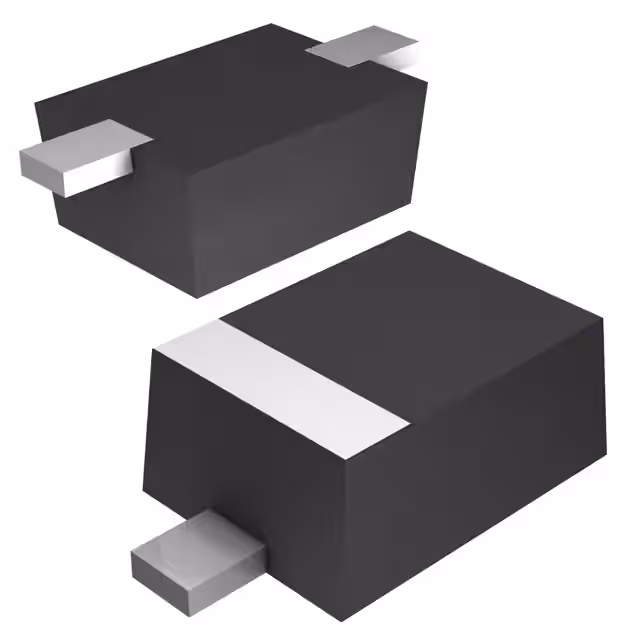

DB2J31000LDIODE SCHOTTKY 30V 200MA SMINI2 |
2,134 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Discontinued at Digi-Key | Surface Mount | 4.5pF @ 10V, 1MHz | 1.6 ns | 200 µA @ 30 V | 30 V | 200mA | 125°C (Max) | 470 mV @ 200 mA | |
|
|
DB2J31600LDIODE SCHOTTKY 30V 100MA SMINI2 |
2,029 | 0.00 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Discontinued at Digi-Key | Surface Mount | 2pF @ 10V, 1MHz | 800 ps | 15 µA @ 30 V | 30 V | 100mA | 125°C (Max) | 550 mV @ 100 mA | ||
|
DB2G32600L1DIODE SCHOTTKY 30V 1A 0402 |
2,222 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Discontinued at Digi-Key | Surface Mount | 32pF @ 10V, 1MHz | 10 ns | 900 µA @ 30 V | 30 V | 1A | 150°C (Max) | 440 mV @ 1 A | |
|
|
DB2G42900L1DIODE SCHOTTKY 40V 1A 0402 |
2,015 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Discontinued at Digi-Key | Surface Mount | 28pF @ 10V, 1MHz | 8.8 ns | 150 µA @ 40 V | 40 V | 1A | 150°C (Max) | 520 mV @ 1 A |
