| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

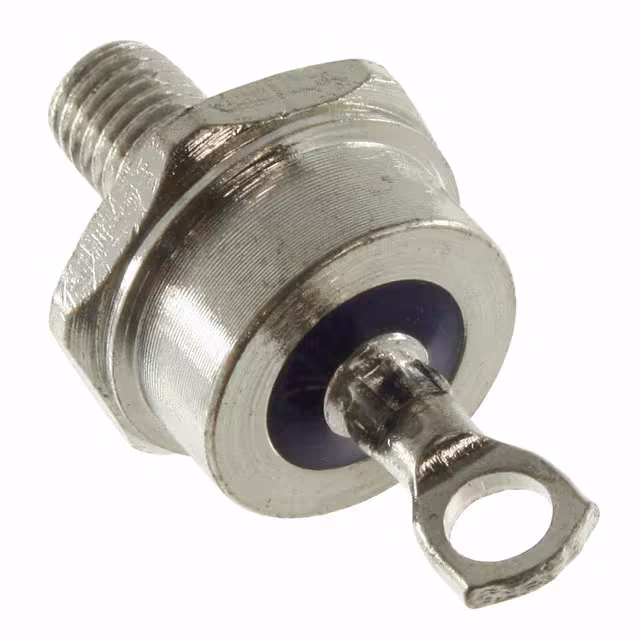

1N2131ADIODE GEN PURP 200V 60A DO5 |
3,342 | 10.12 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 200 V | 60A | -65°C ~ 200°C | 1.1 V @ 60 A | |
|
1N2138ADIODE GEN PURP 600V 60A DO5 |
2,086 | 10.12 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 600 V | 60A | -65°C ~ 200°C | 1.1 V @ 60 A | |
|
1N2128ADIODE GEN PURP 50V 60A DO5 |
3,361 | 10.12 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 50 V | 60A | -65°C ~ 200°C | 1.1 V @ 60 A | |
|
|
1N2128ARDIODE GEN PURP REV 50V 60A DO5 |
2,305 | 10.12 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 50 V | 60A | -65°C ~ 200°C | 1.1 V @ 60 A | |
|
|
1N2129ADIODE GEN PURP 100V 60A DO5 |
2,840 | 10.12 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 100 V | 60A | -65°C ~ 200°C | 1.1 V @ 60 A | |
|
|
1N2129ARDIODE GEN PURP REV 100V 60A DO5 |
2,900 | 10.12 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 100 V | 60A | -65°C ~ 200°C | 1.1 V @ 60 A | |
|
|
1N2133ADIODE GEN PURP 300V 60A DO5 |
2,839 | 10.12 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 300 V | 60A | -65°C ~ 200°C | 1.1 V @ 60 A | |
|
|
1N2133ARDIODE GEN PURP REV 300V 60A DO5 |
2,116 | 10.12 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 300 V | 60A | -65°C ~ 200°C | 1.1 V @ 60 A | |
|
|
1N2135ADIODE GEN PURP 400V 60A DO5 |
3,841 | 10.12 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 400 V | 60A | -65°C ~ 200°C | 1.1 V @ 60 A | |
|
|
1N2135ARDIODE GEN PURP REV 400V 60A DO5 |
3,196 | 10.12 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 400 V | 60A | -65°C ~ 200°C | 1.1 V @ 60 A | |
|
|
1N2137ADIODE GEN PURP 500V 60A DO5 |
2,678 | 10.12 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 500 V | 60A | -65°C ~ 200°C | 1.1 V @ 60 A | |
|
|
1N2137ARDIODE GEN PURP REV 500V 60A DO5 |
2,497 | 10.12 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 500 V | 60A | -65°C ~ 200°C | 1.1 V @ 60 A | |
|
|
S40YDIODE GEN PURP 1.6KV 40A DO5 |
3,351 | 9.62 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 100 V | 1600 V | 40A | -65°C ~ 160°C | 1.1 V @ 40 A | |
|
|
S40YRDIODE GEN PURP REV 1.6KV 40A DO5 |
2,425 | 9.62 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 100 V | 1600 V | 40A | -65°C ~ 160°C | 1.1 V @ 40 A | |
|
|
FR16BR02DIODE GEN PURP REV 100V 16A DO4 |
3,051 | 9.66 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 200 ns | 25 µA @ 100 V | 100 V | 16A | -65°C ~ 150°C | 900 mV @ 16 A | |
|
|
FR16BR05DIODE GEN PURP REV 100V 16A DO4 |
2,082 | 9.66 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 500 ns | 25 µA @ 100 V | 100 V | 16A | -65°C ~ 150°C | 1.1 V @ 16 A | |
|
|
FR16DR02DIODE GEN PURP REV 200V 16A DO4 |
3,902 | 9.66 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 200 ns | 25 µA @ 100 V | 200 V | 16A | -65°C ~ 150°C | 900 mV @ 16 A | |
|
|
FR40GR05DIODE GEN PURP REV 400V 40A DO5 |
3,419 | 16.54 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 500 ns | 25 µA @ 100 V | 400 V | 40A | -40°C ~ 125°C | 1 V @ 40 A | |
|
|
FR16DR05DIODE GEN PURP REV 200V 16A DO4 |
2,166 | 9.66 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 500 ns | 25 µA @ 100 V | 200 V | 16A | -65°C ~ 150°C | 1.1 V @ 16 A | |
|
|
FR40JR02DIODE GEN PURP REV 600V 40A DO5 |
2,992 | 16.54 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 250 ns | 25 µA @ 100 V | 600 V | 40A | -40°C ~ 125°C | 1 V @ 40 A |
