| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBR7560RDIODE SCHOTTKY REV 60V DO5 |
2,506 | 24.43 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 1 mA @ 60 V | 60 V | 75A | -55°C ~ 150°C | 750 mV @ 75 A | |
|
|
MBR7580RDIODE SCHOTTKY REV 80V DO5 |
3,841 | 24.43 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 1 mA @ 80 V | 80 V | 75A | -55°C ~ 150°C | 840 mV @ 75 A | |
|
GC10MPS12-252SIC DIODE 1200V 10A TO-252-2 |
2,929 | 5.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SiC Schottky MPS™ | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 660pF @ 1V, 1MHz | 0 ns | 10 µA @ 1200 V | 1200 V | 50A (DC) | -55°C ~ 175°C | 1.8 V @ 10 A |
|
|
MBR80100RDIODE SCHOTTKY REV 100V DO5 |
3,290 | 24.74 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 5 mA @ 20 V | 100 V | 80A | -65°C ~ 150°C | 840 mV @ 80 A | |
|
|
MBR8020RDIODE SCHOTTKY REV 20V DO5 |
3,322 | 24.74 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 1 mA @ 20 V | 20 V | 80A | -55°C ~ 150°C | 750 mV @ 80 A | |
|
|
MBR8030RDIODE SCHOTTKY REV 30V DO5 |
3,319 | 24.74 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 1 mA @ 30 V | 30 V | 80A | -55°C ~ 150°C | 750 mV @ 80 A | |
|
|
MBR8035RDIODE SCHOTTKY REV 35V DO5 |
3,335 | 24.74 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 1 mA @ 35 V | 35 V | 80A | -65°C ~ 150°C | 750 mV @ 80 A | |
|
|
MBR8040RDIODE SCHOTTKY REV 40V DO5 |
3,095 | 24.74 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 1 mA @ 35 V | 40 V | 80A | -55°C ~ 150°C | 750 mV @ 80 A | |
|
|
MBR8060RDIODE SCHOTTKY REV 60V DO5 |
3,682 | 24.74 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 1 mA @ 60 V | 60 V | 80A | -55°C ~ 160°C | 750 mV @ 80 A | |
|
|
MBR8080RDIODE SCHOTTKY REV 80V DO5 |
3,595 | 24.74 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 1 mA @ 80 V | 80 V | 80A | -55°C ~ 150°C | 840 mV @ 80 A | |
|
1N1184RDIODE GEN PURP REV 100V 35A DO5 |
2,396 | 9.32 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 100 V | 35A | -65°C ~ 190°C | 1.2 V @ 35 A | |
|

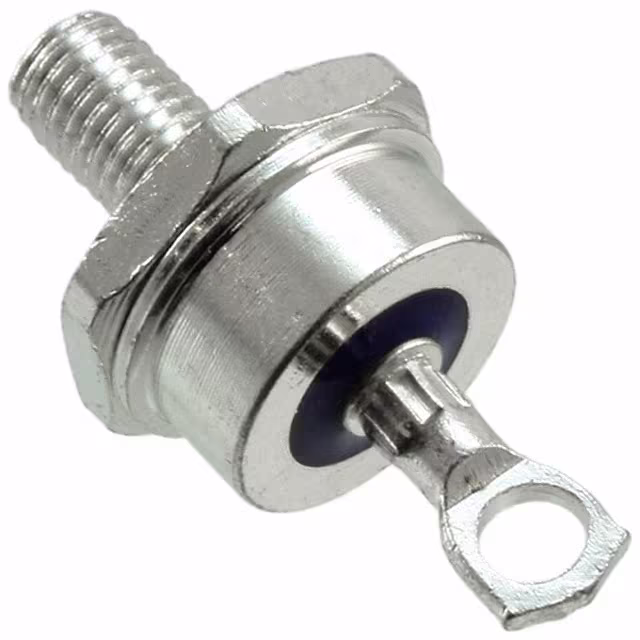

1N1190DIODE GEN PURP 600V 35A DO5 |
3,550 | 9.32 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 600 V | 35A | -65°C ~ 190°C | 1.2 V @ 35 A | |
|
1N1188DIODE GEN PURP 400V 35A DO5 |
2,072 | 9.32 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 400 V | 35A | -65°C ~ 190°C | 1.2 V @ 35 A | |
|
1N1190RDIODE GEN PURP REV 600V 35A DO5 |
3,210 | 9.32 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 600 V | 35A | -65°C ~ 190°C | 1.2 V @ 35 A | |
|
1N3768DIODE GEN PURP 1KV 35A DO5 |
2,495 | 9.32 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 1000 V | 35A | -65°C ~ 190°C | 1.2 V @ 35 A | |
|
|
FR6GR05DIODE GEN PURP REV 400V 16A DO4 |
2,019 | 9.82 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 500 ns | 25 µA @ 50 V | 400 V | 16A | -65°C ~ 150°C | 1.4 V @ 6 A | |
|
|
1N1183DIODE GEN PURP 50V 35A DO203AB |
3,493 | 9.32 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 50 V | 35A | -65°C ~ 190°C | 1.2 V @ 35 A | |
|

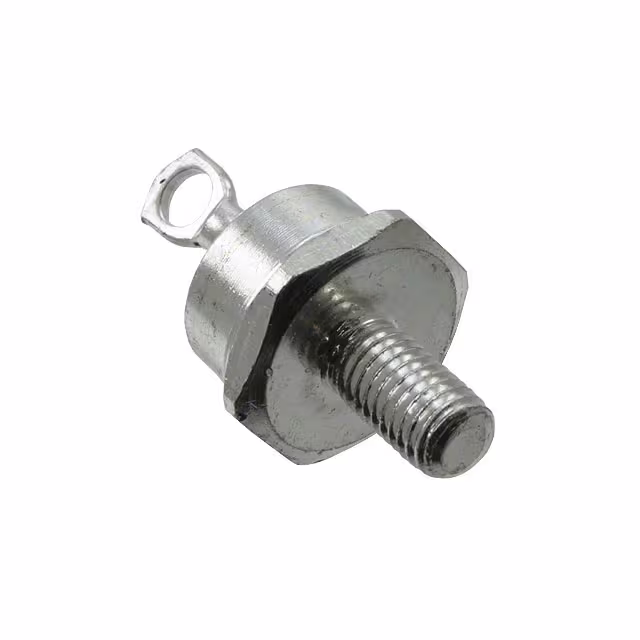

FR70G02DIODE GEN PURP 400V 70A DO5 |
3,310 | 24.90 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 200 ns | 25 µA @ 100 V | 400 V | 70A | -40°C ~ 125°C | 1.4 V @ 70 A | |
|
|
1N1183RDIODE GEN PURP REV 50V 35A DO5 |
3,084 | 9.32 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 50 V | 35A | -65°C ~ 190°C | 1.2 V @ 35 A | |
|
|
1N1186DIODE GEN PURP 200V 35A DO5 |
2,746 | 9.32 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 200 V | 35A | -65°C ~ 190°C | 1.2 V @ 35 A |
