| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N1186RDIODE GEN PURP REV 200V 35A DO5 |
2,291 | 9.32 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 200 V | 35A | -65°C ~ 190°C | 1.2 V @ 35 A | |
|
1N1187DIODE GEN PURP 300V 35A DO5 |
2,638 | 9.32 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 300 V | 35A | -65°C ~ 190°C | 1.2 V @ 35 A | |
|
|
1N1187RDIODE GEN PURP REV 300V 35A DO5 |
2,063 | 9.32 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 300 V | 35A | -65°C ~ 190°C | 1.2 V @ 35 A | |
|
|
1N1189DIODE GEN PURP 600V 35A DO5 |
3,735 | 9.32 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 600 V | 35A | -65°C ~ 190°C | 1.2 V @ 35 A | |
|
|
1N1189RDIODE GEN PURP REV 600V 35A DO5 |
2,163 | 9.32 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 600 V | 35A | -65°C ~ 190°C | 1.2 V @ 35 A | |
|
|
1N3765DIODE GEN PURP 700V 35A DO5 |
3,859 | 9.32 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 700 V | 35A | -65°C ~ 190°C | 1.2 V @ 35 A | |
|
|
1N3765RDIODE GEN PURP REV 700V 35A DO5 |
2,399 | 9.32 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 700 V | 35A | -65°C ~ 190°C | 1.2 V @ 35 A | |
|
|
1N3766DIODE GEN PURP 800V 35A DO5 |
2,174 | 9.32 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 800 V | 35A | -65°C ~ 190°C | 1.2 V @ 35 A | |
|
|
1N3766RDIODE GEN PURP REV 800V 35A DO5 |
3,757 | 9.32 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 800 V | 35A | -65°C ~ 190°C | 1.2 V @ 35 A | |
|
|
1N3767DIODE GEN PURP 900V 35A DO5 |
3,728 | 9.32 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 900 V | 35A | -65°C ~ 190°C | 1.2 V @ 35 A | |
|
|
1N3767RDIODE GEN PURP REV 900V 35A DO5 |
3,409 | 9.32 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 900 V | 35A | -65°C ~ 190°C | 1.2 V @ 35 A | |
|
|
FR12B02DIODE GEN PURP 100V 12A DO4 |
3,507 | 9.35 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 200 ns | 25 µA @ 100 V | 100 V | 12A | -65°C ~ 150°C | 800 mV @ 12 A | |
|
|
FR12D02DIODE GEN PURP 200V 12A DO4 |
3,094 | 9.35 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 200 ns | 25 µA @ 100 V | 200 V | 12A | -65°C ~ 150°C | 800 mV @ 12 A | |
|
|
FR12G02DIODE GEN PURP 400V 12A DO4 |
3,975 | 9.35 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 200 ns | 25 µA @ 100 V | 400 V | 12A | -65°C ~ 150°C | 800 mV @ 12 A | |
|
|
FR12J02DIODE GEN PURP 600V 12A DO4 |
2,769 | 9.35 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 250 ns | 25 µA @ 100 V | 600 V | 12A | -65°C ~ 150°C | 800 mV @ 12 A | |
|

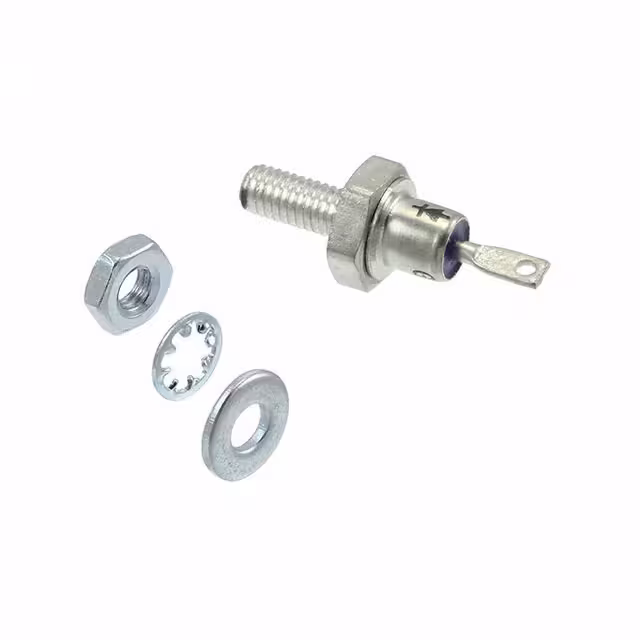

FR16K05DIODE GEN PURP 800V 16A DO4 |
2,643 | 9.35 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 500 ns | 25 µA @ 100 V | 800 V | 16A | -65°C ~ 150°C | 1.1 V @ 16 A | |
|
|
FR16M05DIODE GEN PURP 1KV 16A DO4 |
2,211 | 9.45 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 500 ns | 25 µA @ 100 V | 1000 V | 16A | -65°C ~ 150°C | 1.1 V @ 16 A | |
|
|
S40MRDIODE GEN PURP REV 1KV 40A DO5 |
2,079 | 9.46 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 100 V | 1000 V | 40A | -65°C ~ 190°C | 1.1 V @ 40 A | |
|
|
S40VDIODE GEN PURP 1.4KV 40A DO5 |
3,297 | 9.46 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 100 V | 1400 V | 40A | -65°C ~ 160°C | 1.1 V @ 40 A | |
|
1N2130ADIODE GEN PURP 150V 60A DO5 |
3,596 | 10.12 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 150 V | 60A | -65°C ~ 200°C | 1.1 V @ 60 A |
