| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APT40DQ120BGDIODE GEN PURP 1.2KV 40A TO247 |
3,364 | 2.16 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 350 ns | 100 µA @ 1200 V | 1200 V | 40A | -55°C ~ 175°C | 3.3 V @ 40 A | |
|
|
APT30D120BGDIODE GEN PURP 1.2KV 30A TO247 |
2,681 | 2.29 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 370 ns | 250 µA @ 1200 V | 1200 V | 30A | -55°C ~ 175°C | 2.5 V @ 30 A | |
|
JANTX1N3595-1DIODE GEN PURP 125V 150MA DO35 |
3,381 | 3.39 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/241 | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | - | 3 µs | 1 nA @ 125 V | 125 V | 150mA | -65°C ~ 175°C | 920 mV @ 100 mA |
|
|
APT75DQ60BGDIODE GEN PURP 600V 75A TO247 |
3,850 | 2.65 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 31 ns | 25 µA @ 600 V | 600 V | 75A | -55°C ~ 175°C | 2.5 V @ 75 A | |
|
APT15DQ120BHBGFRED DQ 1200 V 15 A TO-247 |
2,489 | 6.11 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 240 ns | 100 µA @ 1200 V | 1200 V | 15A | -55°C ~ 175°C | 3.5 V @ 15 A | |
|

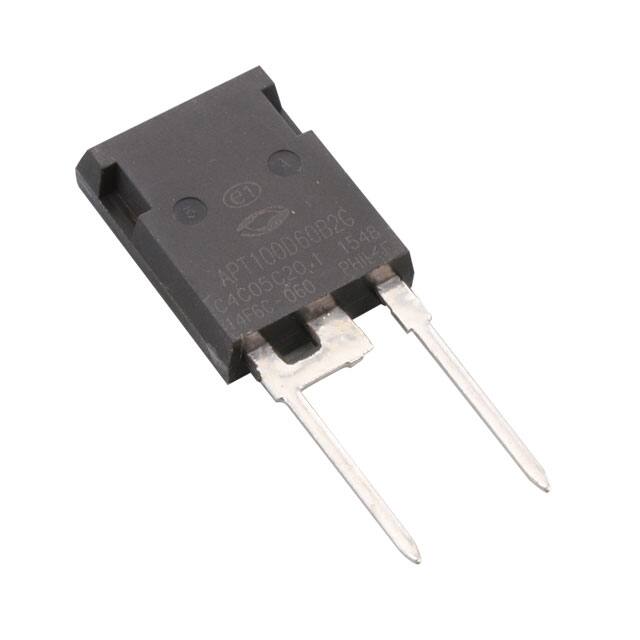

APT100D60B2GFRED D 600 V 100 A TO-247 MAX |
3,280 | 6.59 |
RFQ |
Tube | RoHS | - | Standard | Active | Through Hole | - | - | - | 600 V | 100A | - | - | ||
|
|
JANTX1N5711-1DIODE SCHOTTKY 70V 33MA DO35 |
3,809 | 6.98 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/444 | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Through Hole | 2pF @ 0V, 1MHz | - | 200 nA @ 50 V | 70 V | 33mA | -65°C ~ 150°C | 410 mV @ 1 mA |
|

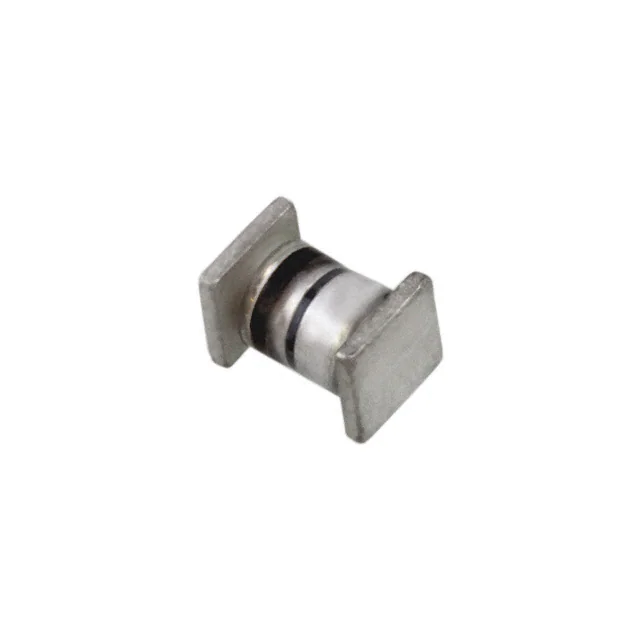

JANTX1N5811USDIODE GEN PURP 150V 3A B-MELF |
2,231 | 8.25 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/477 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 60pF @ 10V, 1MHz | 30 ns | 5 µA @ 150 V | 150 V | 3A | -65°C ~ 175°C | 875 mV @ 4 A |
|

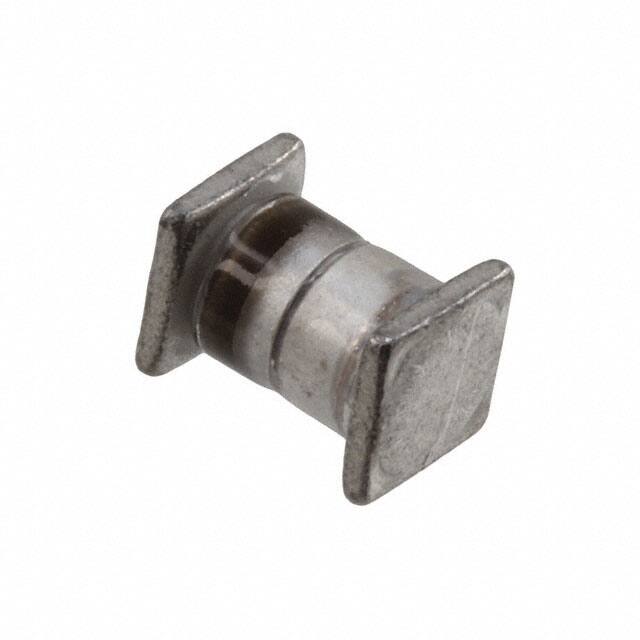

1N5416USDIODE GEN PURP 100V 3A D5B |
3,957 | 9.56 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 150 ns | 1 µA @ 100 V | 100 V | 3A | -65°C ~ 175°C | 1.5 V @ 9 A | |
|
MSC050SDA170BSIC SBD 1700 V 50 A TO-247 |
3,047 | 37.43 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 4450pF @ 1V, 1MHz | 0 ns | 200 µA @ 1700 V | 1700 V | 136A (DC) | -55°C ~ 175°C | 1.8 V @ 50 A | |
|
UES1306HR2/TRUFR,FRR |
2,409 | 77.10 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 50 ns | 20 µA @ 400 V | 400 V | 5A | - | 1 V @ 5 A | ||
|
UPS5817E3/TR13DIODE SCHOTTKY 20V 1A POWERMITE |
3,450 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 105pF @ 5V, 1MHz | - | 1 mA @ 20 V | 20 V | 1A | -55°C ~ 150°C | 450 mV @ 1 A | |
|
|
UPS160E3/TR7DIODE SCHOTTKY 60V 1A POWERMITE1 |
3,394 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 55pF @ 4V, 1MHz | - | 100 µA @ 60 V | 60 V | 1A | -55°C ~ 125°C | 600 mV @ 1 A | |
|
|
5820SMJE3/TR13DIODE SCHOTTKY 20V 3A DO214AB |
2,847 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 1.5 mA @ 20 V | 20 V | 3A | -55°C ~ 150°C | 460 mV @ 3 A | |
|
|
UPS120E3/TR13DIODE SCHOTTKY 20V 1A POWERMITE |
2,397 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 80pF @ 5V, 1MHz | - | 400 µA @ 20 V | 20 V | 1A | -55°C ~ 125°C | 450 mV @ 1 A | |
.jpg)
|
5821SMJE3/TR13DIODE SCHOTTKY 30V 3A DO214AB |
3,420 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 1.5 mA @ 30 V | 30 V | 3A | -55°C ~ 150°C | 480 mV @ 3 A | |
|
|
UPS120EE3/TR13DIODE SCHOTTKY 20V 1A POWERMITE |
2,188 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 10 µA @ 20 V | 20 V | 1A | -55°C ~ 125°C | 530 mV @ 1 A | |
|
|
UPS5817/TR7DIODE SCHOTTKY 20V 1A POWERMITE |
2,747 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 1 mA @ 20 V | 20 V | 1A | -55°C ~ 150°C | 450 mV @ 1 A | |
|
|
UPS130LE3/TR13DIODE SCHOTTKY 1A 30V POWERMITE |
3,015 | 0.42 |
RFQ |
Tape & Reel (TR) | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
|
UPS140E3/TR13DIODE SCHOTTKY 40V 1A POWERMITE |
3,791 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 400 µA @ 40 V | 40 V | 1A | -55°C ~ 125°C | 450 mV @ 1 A |
