| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LXS301-23-0SI SCHOTTKY NON HERMETIC PLASTIC |
177 | 4.48 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 1.4pF @ 0V, 1MHz | - | 200 nA @ 15 V | 20 V | - | -55°C ~ 125°C | 430 mV @ 1 mA | |
|
APT40DQ120SGFRED DQ 1200 V 40 A TO-268 |
326 | 3.34 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 350 ns | 100 µA @ 1200 V | 1200 V | 40A | -55°C ~ 175°C | 3.4 V @ 40 A | |
|
UPS120EE3/TR7DIODE SCHOTTKY 20V 1A POWERMITE1 |
5,188 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 10 µA @ 20 V | 20 V | 1A | -55°C ~ 125°C | 530 mV @ 1 A | |
|
UPS540E3/TR13DIODE SCHOTTKY 40V 5A POWERMITE3 |
4,213 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 250pF @ 4V, 1MHz | - | 500 µA @ 40 V | 40 V | 5A | -55°C ~ 125°C | 540 mV @ 5 A | |
|
1N5619DIODE GEN PURP 600V 1A AXIAL |
2,763 | 4.60 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 25pF @ 12V, 1MHz | 250 ns | 500 nA @ 600 V | 600 V | 1A | -65°C ~ 175°C | 1.6 V @ 3 A | |
|
1N5416DIODE GEN PURP 100V 3A AXIAL |
2,725 | 5.64 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 150 ns | 1 µA @ 100 V | 100 V | 3A | -65°C ~ 175°C | 1.5 V @ 9 A | |
|
CDLL5711DIODE SCHOTTKY 50V 33MA DO213AA |
3,587 | 9.57 |
RFQ |
Datasheet |
Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 2pF @ 0V, 1MHz | - | 200 nA @ 50 V | 50 V | 33mA | -65°C ~ 150°C | 410 mV @ 1 mA | |
|
1N4153-1DIODE GEN PURP 50V 150MA DO35 |
939 | 1.11 |
RFQ |
Datasheet |
Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | - | 4 ns | 50 nA @ 50 V | 50 V | 150mA | -65°C ~ 175°C | 880 mV @ 20 mA | |
|
MSC030SDA070BCTSIC SBD 700 V 30 A TO-247 |
2,510 | 11.55 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 1200pF @ 1V, 1MHz | 0 ns | 200 µA @ 700 V | 700 V | 60A (DC) | -55°C ~ 175°C | 1.8 V @ 30 A | |
|
UPS3100E3/TR13DIODE SCHOTTKY 100V 3A POWERMITE |
10,930 | 1.30 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 85pF @ 4V, 1MHz | - | 200 µA @ 100 V | 100 V | 3A | -55°C ~ 125°C | 760 mV @ 3 A | |
|
|
MSC030SDA120BCTSIC SBD 1200 V 30 A TO-247 |
2,119 | 17.87 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 141pF @ 400V, 1MHz | 0 ns | 200 µA @ 1200 V | 1200 V | 65A (DC) | -55°C ~ 175°C | 1.8 V @ 30 A | |
|
|
MSC050SDA070BCTSIC SBD 700 V 50 A TO-247 |
3,922 | 18.69 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 2034pF @ 1V, 1MHz | 0 ns | 200 µA @ 700 V | 700 V | 88A (DC) | -55°C ~ 175°C | 1.8 V @ 50 A | |
|
APT15D60KGDIODE GEN PURP 600V 15A TO220 |
841 | 1.56 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 80 ns | 250 µA @ 600 V | 600 V | 15A | -55°C ~ 175°C | 1.8 V @ 15 A | |
|
APT30DQ120BGDIODE GEN PURP 1.2KV 30A TO247 |
178 | 1.61 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 320 ns | 100 µA @ 1200 V | 1200 V | 30A | -55°C ~ 175°C | 3.3 V @ 30 A | |
|
|
APT10SCD120KDIODE SCHOTTKY 1.2KV 10A TO220 |
505 | 9.64 |
RFQ |
Bulk | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Obsolete | Through Hole | - | 0 ns | - | 1200 V | 10A | - | 1.5 V @ 10 A | ||
|
|
1N4454UR-1DIODE GEN PURP 50V 200MA DO213AA |
106 | 2.31 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 4 ns | 100 nA @ 50 V | 50 V | 200mA (DC) | -55°C ~ 175°C | 1 V @ 10 mA | |
|
JANS1N6642DIODE GEN PURP 75V 300MA DO204AH |
801 | 14.85 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/578 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 5pF @ 0V, 1MHz | 5 ns | 500 nA @ 75 V | 75 V | 300mA | -65°C ~ 175°C | 1.2 V @ 100 mA |
|
JAN1N4454UR-1DIODE GEN PURP 50V 4A DO213AA |
4,709 | 2.40 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/144 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 4 ns | 100 nA @ 50 V | 50 V | 200mA (DC) | -55°C ~ 175°C | 1 V @ 10 mA |
|

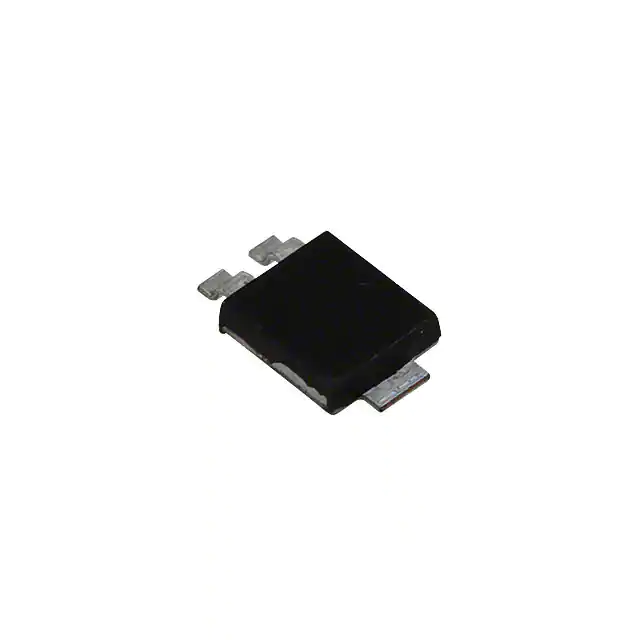

UPS840/TR13DIODE SCHOTTKY 40V 8A POWERMITE |
2,649 | 2.82 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 5 mA @ 40 V | 40 V | 8A | -55°C ~ 125°C | 450 mV @ 8 A | |
|
1N4608DIODE GEN PURP 85V 200MA DO35 |
3,983 | 2.73 |
RFQ |
Datasheet |
Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | - | 10 ns | 100 µA @ 50 V | 85 V | 200mA | -65°C ~ 150°C | 1.1 V @ 400 mA |
