| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSASC75W45FV/TRDIODE POWER SCHOTTKY |
3,817 | 253.26 |
RFQ |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 750 µA @ 45 V | 45 V | 75A | -55°C ~ 175°C | 760 mV @ 75 A | ||
|
|
UMAF5817DIODE SCHOTTKY 20V 1A ULTRAMITE |
3,912 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 500 µA @ 20 V | 20 V | 1A | -50°C ~ 125°C | 450 mV @ 1 A | |
|
|
UMAF5818DIODE SCHOTTKY 30V 1A ULTRAMITE |
3,385 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 500 µA @ 30 V | 30 V | 1A | -50°C ~ 125°C | 550 mV @ 1 A | |
|
|
UMAF5819DIODE SCHOTTKY 40V 1A ULTRAMITE |
3,881 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 500 µA @ 40 V | 40 V | 1A | -50°C ~ 125°C | 600 mV @ 1 A | |
|
|
UMA5817-T7DIODE SCHOTTKY 20V 1A ULTRAMITE |
2,386 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 500 µA @ 20 V | 20 V | 1A | -50°C ~ 125°C | 450 mV @ 1 A | |
|
|
UMA5818DIODE SCHOTTKY 30V 1A ULTRAMITE |
2,176 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 500 µA @ 30 V | 30 V | 1A | -50°C ~ 125°C | 550 mV @ 1 A | |
|
|
UMA5819DIODE SCHOTTKY 40V 1A ULTRAMITE |
2,205 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 500 µA @ 40 V | 40 V | 1A | -50°C ~ 125°C | 600 mV @ 1 A | |
|

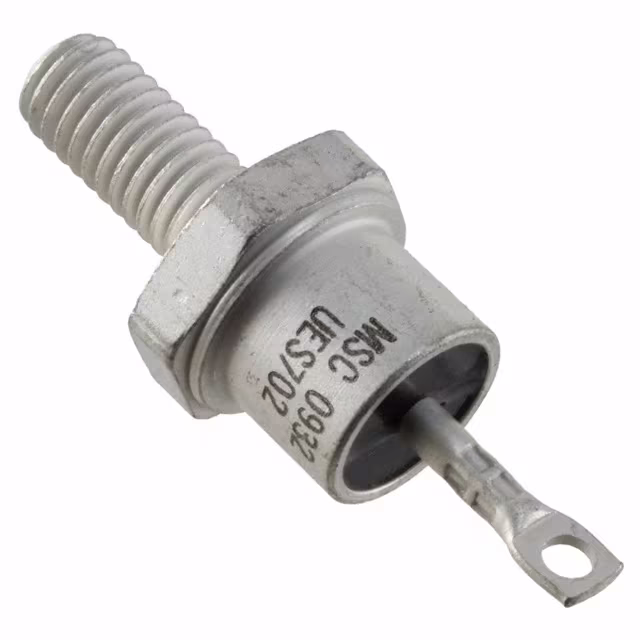

UES702DIODE GEN PURP 100V 25A DO4 |
3,505 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Chassis, Stud Mount | - | 35 ns | 20 µA @ 100 V | 100 V | 25A | -55°C ~ 175°C | 950 mV @ 25 A | |
|
1N5806TRDIODE GEN PURP 150V 2.5A AXIAL |
2,464 | 0.00 |
RFQ |
Datasheet |
Bag | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 25 ns | 1 µA @ 150 V | 150 V | 2.5A | -65°C ~ 175°C | 875 mV @ 1 A | |
|

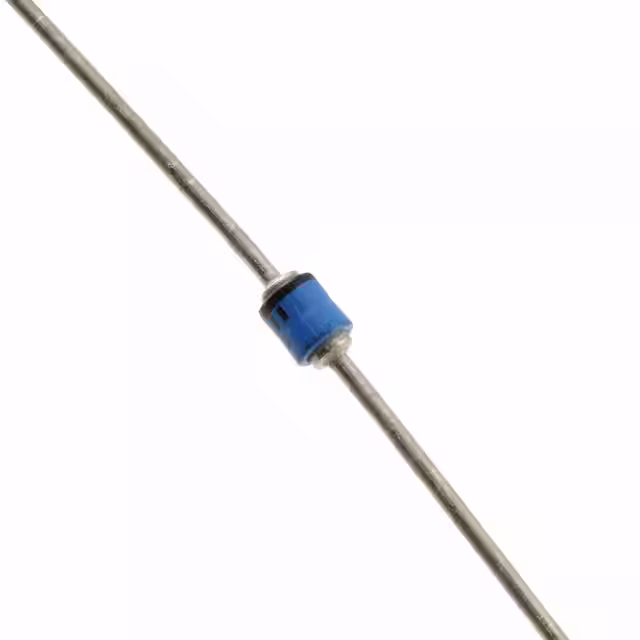

1N5811TRDIODE GEN PURP 150V 6A AXIAL |
2,091 | 0.00 |
RFQ |
Datasheet |
Bag | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 30 ns | 5 µA @ 150 V | 150 V | 6A | -65°C ~ 175°C | 875 mV @ 4 A | |
|
UPDS3200DIODE SCHOTTKY 200V 3A POWERDI5 |
2,191 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 10 µA @ 200 V | 200 V | 3A | - | 780 mV @ 3 A | |
|
|
UPDS5100HDIODE SCHOTTKY 100V 5A POWERDI5 |
2,033 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 10 µA @ 100 V | 100 V | 5A | - | 710 mV @ 5 A | |
|

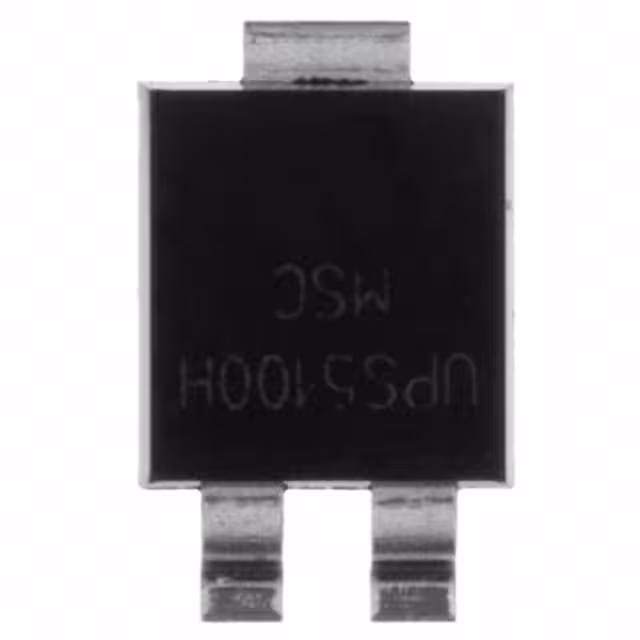

UPS5100HE3DIODE SCHOTTKY 100V 5A POWERMITE |
3,702 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | 150pF @ 4V, 1MHz | - | 200 µA @ 100 V | 100 V | 5A | -55°C ~ 125°C | 810 mV @ 5 A | |
|
UPS140/TR7DIODE SCHOTTKY 40V 1A POWERMITE |
2,600 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Discontinued at Digi-Key | Surface Mount | 70pF @ 5V, 1MHz | - | 400 µA @ 40 V | 40 V | 1A | -55°C ~ 125°C | 450 mV @ 1 A | |
|

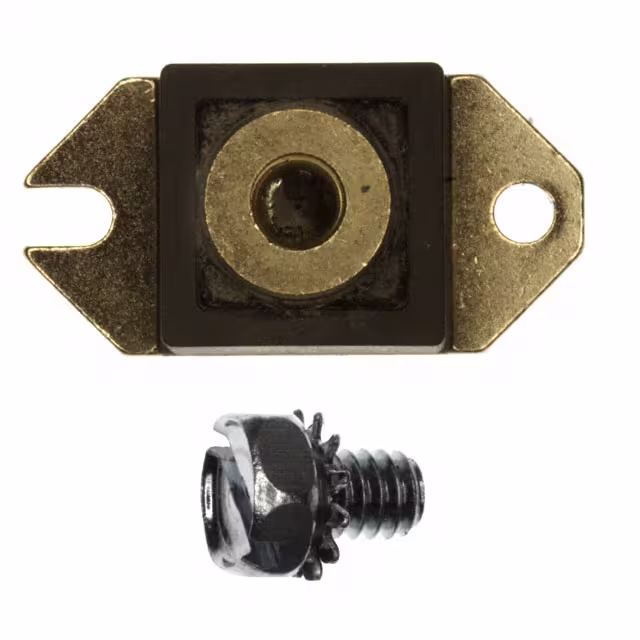

HS24515E3DIODE SCHOTTKY 15V 240A HALFPAK |
3,132 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Chassis Mount | 21700pF @ 5V, 1MHz | - | 150 mA @ 15 V | 15 V | 240A | - | 370 mV @ 240 A | |
|
SBR3050E3DIODE SCHOTTKY 50V 30A DO203AA |
2,795 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Discontinued at Digi-Key | Chassis, Stud Mount | - | - | 1.5 mA @ 50 V | 50 V | 30A | -55°C ~ 175°C | 630 mV @ 30 A | |
|
SBR6045E3DIODE SCHOTTKY 45V 60A DO203AB |
3,677 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Discontinued at Digi-Key | Chassis, Stud Mount | - | - | 2 mA @ 45 V | 45 V | 60A | -65°C ~ 150°C | 600 mV @ 60 A | |
|
|
SBR8050E3DIODE SCHOTTKY 50V 80A DO203AB |
2,450 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Discontinued at Digi-Key | Chassis, Stud Mount | - | - | 2 mA @ 50 V | 50 V | 80A | -65°C ~ 175°C | 740 mV @ 80 A | |
.jpg)
|
LSM345JE3DIODE SCHOTTKY 45V 3A DO214AB |
3,382 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Discontinued at Digi-Key | Surface Mount | - | - | 1.5 mA @ 45 V | 45 V | 3A | -55°C ~ 150°C | 520 mV @ 3 A | |
|
|
LSM545JE3DIODE SCHOTTKY 45V 5A DO214AB |
2,809 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Discontinued at Digi-Key | Surface Mount | - | - | 2 mA @ 45 V | 45 V | 5A | -55°C ~ 150°C | 520 mV @ 5 A |
