| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
LSM845JE3DIODE SCHOTTKY 45V 8A DO214AB |
2,108 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Discontinued at Digi-Key | Surface Mount | - | - | 2 mA @ 45 V | 45 V | 8A | -55°C ~ 150°C | 520 mV @ 8 A | |
|
APT15D30KGDIODE GEN PURP 300V 15A TO220-2 |
2,232 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 32 ns | 150 µA @ 300 V | 300 V | 15A | -55°C ~ 150°C | 1.4 V @ 15 A | |
|
|
APT15D40KGDIODE GEN PURP 400V 15A TO220-2 |
2,729 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 35 ns | 150 µA @ 400 V | 400 V | 15A | -55°C ~ 175°C | 1.5 V @ 15 A | |
|
|
APT15S20KGDIODE SCHOTTKY 200V 25A TO220 |
2,432 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Through Hole | - | 80 ns | 250 µA @ 200 V | 200 V | 25A | -55°C ~ 150°C | 830 mV @ 15 A | |
|
APT30S20SGDIODE SCHOTTKY 200V 45A D3 |
2,671 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | 55 ns | 500 µA @ 200 V | 200 V | 45A | -55°C ~ 150°C | 850 mV @ 30 A | |
|
APT60D30BGDIODE GEN PURP 300V 60A TO247 |
2,878 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 38 ns | 250 µA @ 300 V | 300 V | 60A | -55°C ~ 175°C | 1.4 V @ 60 A | |
|

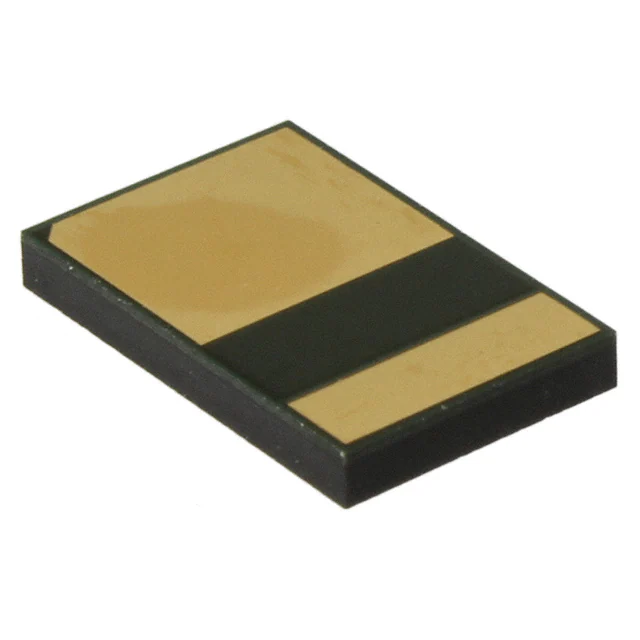

LX2400ILGDIODE GEN PURP 24V 25A 2LGA |
2,633 | 0.00 |
RFQ |
Bulk | IDEALSolar™ | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | - | - | 250 µA @ 20 V | 24 V | 25A (DC) | -55°C ~ 225°C | 65 mV @ 10 A | |
|
JANTX1N483BDIODE GEN PURP 70V 200MA DO35 |
2,792 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/118 | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | - | - | 25 nA @ 70 V | 70 V | 200mA | -65°C ~ 175°C | 1 V @ 100 mA |
|
|
JANTX1N4938-1DIODE GEN PURP 175V 100MA DO35 |
3,372 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/169 | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | - | 50 ns | 100 nA @ 175 V | 175 V | 100mA | -65°C ~ 175°C | 1 V @ 100 mA |
|
|
JANTX1N649-1DIODE GEN PURP 600V 400MA DO35 |
2,872 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/240 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 50 nA @ 600 V | 600 V | 400mA | -65°C ~ 175°C | 1 V @ 400 mA |
|
JANTX1N6626USDIODE GEN PURP 200V 1.75A D5B |
2,044 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/578 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | - | 45 ns | 2 µA @ 200 V | 200 V | 1.75A | -65°C ~ 150°C | 1.35 V @ 2 A |
|
MS106/TR12DIODE SCHOTTKY 60V 1A DO204AL |
3,569 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Through Hole | - | - | 100 µA @ 60 V | 60 V | 1A | -55°C ~ 175°C | 690 mV @ 1 A | |
|
|
MS106E3/TR12DIODE SCHOTTKY 60V 1A DO204AL |
3,920 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Through Hole | - | - | 100 µA @ 60 V | 60 V | 1A | -55°C ~ 175°C | 690 mV @ 1 A | |
|
|
MS108/TR12DIODE SCHOTTKY 80V 1A DO204AL |
2,489 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Through Hole | - | - | 100 µA @ 80 V | 80 V | 1A | -55°C ~ 175°C | 810 mV @ 1 A | |
|
|
MS108E3/TR12DIODE SCHOTTKY 80V 1A DO204AL |
3,101 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Through Hole | - | - | 100 µA @ 80 V | 80 V | 1A | -55°C ~ 175°C | 810 mV @ 1 A | |
|
|
MS109/TR12DIODE SCHOTTKY 90V 1A DO204AL |
2,303 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Through Hole | - | - | 100 µA @ 90 V | 90 V | 1A | -55°C ~ 175°C | 810 mV @ 1 A | |
|
|
MS109E3/TR12DIODE SCHOTTKY 90V 1A DO204AL |
2,374 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Through Hole | - | - | 100 µA @ 90 V | 90 V | 1A | -55°C ~ 175°C | 810 mV @ 1 A | |
|
|
MS110/TR12DIODE SCHOTTKY 100V 1A DO204AL |
3,674 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Through Hole | - | - | 100 µA @ 100 V | 100 V | 1A | -55°C ~ 175°C | 830 mV @ 1 A | |
|
|
MS110E3/TR12DIODE SCHOTTKY 100V 1A DO204AL |
2,540 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Through Hole | - | - | 100 µA @ 100 V | 100 V | 1A | -55°C ~ 175°C | 830 mV @ 1 A | |
|
SK110E3/TR13DIODE SCHOTTKY 100V 1A DO214BA |
2,339 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 100 V | 100 V | 1A | -65°C ~ 175°C | 800 mV @ 1 A |
