| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JANTX1N5711UBDSCHOTTKY DIODE |
2,985 | 100.41 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/444 | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 2pF @ 0V, 1MHz | - | 200 nA @ 50 V | 50 V | 33mA (DC) | -65°C ~ 150°C | 1 V @ 15 mA |
|
|
JANS1N5802URSRECTIFIER DIODE |
3,129 | 113.85 |
RFQ |
Bulk | Military, MIL-PRF-19500/477 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 25pF @ 10V, 1MHz | 25 ns | - | 50 V | 2A | -65°C ~ 175°C | 975 mV @ 2.5 A | |
|
|
JANS1N5804URSRECTIFIER DIODE |
3,325 | 113.85 |
RFQ |
Bulk | Military, MIL-PRF-19500/477 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 25pF @ 10V, 1MHz | 25 ns | - | 100 V | 2A | -65°C ~ 175°C | 975 mV @ 2.5 A | |
|
|
JANS1N5806URSRECTIFIER DIODE |
3,535 | 113.85 |
RFQ |
Bulk | Military, MIL-PRF-19500/477 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 25pF @ 10V, 1MHz | 25 ns | - | 150 V | 2A | -65°C ~ 175°C | 975 mV @ 2.5 A | |
|

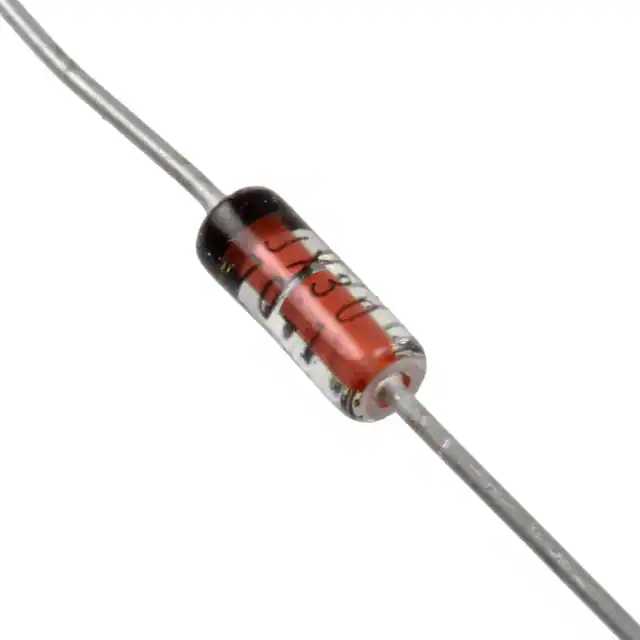

JANTX1N3070-1DIODE GEN PURP 175V 100MA DO7 |
2,377 | 102.24 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/169 | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | - | 50 ns | 100 nA @ 175 V | 175 V | 100mA | -65°C ~ 175°C | 1 V @ 100 mA |
|
JANS1N5551US/TRSTD RECTIFIER |
3,318 | 102.45 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/420 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 2 µs | - | 400 V | 3A | -65°C ~ 175°C | 1.2 V @ 9 A | |
|
|
1N6776RECTIFIER DIODE |
2,880 | 264.00 |
RFQ |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 300pF @ 5V, 1MHz | 35 ns | 10 µA @ 800 mV | 150 V | 15A (DC) | -65°C ~ 150°C | 1.15 V @ 15 A | ||
|
|
JANS1N5554USRECTIFIER DIODE |
3,360 | 102.60 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 2 µs | 1 µA @ 150 V | - | 3A | -65°C ~ 175°C | 1.3 V @ 9 A | ||
|
|
1N6777RECTIFIER DIODE |
2,547 | 264.00 |
RFQ |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 300pF @ 5V, 1MHz | 35 ns | 10 µA @ 800 mV | 200 V | 15A (DC) | -65°C ~ 150°C | 1.15 V @ 15 A | ||
|
|
1N6778RECTIFIER DIODE |
3,780 | 264.00 |
RFQ |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 300pF @ 5V, 1MHz | 60 ns | 10 µA @ 320 V | 400 V | 15A | 150°C (Max) | 1.6 V @ 15 A | ||
|
|
1N6779RECTIFIER DIODE |
2,157 | 264.00 |
RFQ |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 300pF @ 5V, 1MHz | 60 ns | 10 µA @ 480 V | 600 V | 15A | 150°C (Max) | 1.6 V @ 15 A | ||
|
JANS1N5554US/TRSTD RECTIFIER |
3,582 | 102.75 |
RFQ |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 2 µs | 1 µA @ 150 V | - | 3A | -65°C ~ 175°C | 1.3 V @ 9 A | ||
|
|
85HQ035SCHOTTKY DIODE |
3,302 | 102.96 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Stud Mount | - | - | 2 mA @ 35 V | 35 V | 80A | -65°C ~ 175°C | 740 mV @ 80 A | |
|
|
85HQ040SCHOTTKY DIODE |
3,777 | 102.96 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Stud Mount | - | - | 2 mA @ 40 V | 40 V | 80A | -65°C ~ 175°C | 740 mV @ 80 A | |
|
|
85HQ045SCHOTTKY DIODE |
3,801 | 102.96 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|
|
JAN1N6657RRECTIFIER |
2,092 | 205.44 |
RFQ |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 150pF @ 10V, 1MHz | 35 ns | 10 µA @ 100 V | 100 V | 15A (DC) | - | 1.2 V @ 20 A | ||
|
|
JAN1N6658RECTIFIER |
3,426 | 205.44 |
RFQ |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 150pF @ 10V, 1MHz | 35 ns | 10 µA @ 150 V | 150 V | 15A (DC) | - | 1.2 V @ 20 A | ||
|
|
JAN1N6658RRECTIFIER |
2,798 | 205.44 |
RFQ |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 150pF @ 10V, 1MHz | 35 ns | 10 µA @ 150 V | 150 V | 15A (DC) | - | 1.2 V @ 20 A | ||
|
|
JAN1N6659RECTIFIER |
3,234 | 205.44 |
RFQ |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 150pF @ 10V, 1MHz | 35 ns | 10 µA @ 200 V | 200 V | 15A (DC) | - | 1.2 V @ 20 A | ||
|
|
JAN1N6659RRECTIFIER |
2,329 | 205.44 |
RFQ |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 150pF @ 10V, 1MHz | 35 ns | 10 µA @ 200 V | 200 V | 15A (DC) | - | 1.2 V @ 20 A |
