| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM5407-CTCUT-TAPE VERSION. STANDARD RECO |
5,000 | 1.10 |
RFQ |
Datasheet |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 800 V | 800 V | 3A | -50°C ~ 175°C | 1.2 V @ 3 A | |
|
SL1JST Rect, 600V, 1A |
183,000 | 0.03 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1 µs | 1 µA @ 600 V | 600 V | 1A | -50°C ~ 150°C | 1.1 V @ 1 A | |
|
BY550-400-CTCUT-TAPE VERSION. STANDARD RECO |
1,237 | 1.12 |
RFQ |
Datasheet |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 5 µA @ 400 V | 400 V | 5A | -50°C ~ 175°C | 1 V @ 5 A | |
|
S3MSMBST Rect, 1000V, 3A |
240,000 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 1000 V | 1000 V | 3A | -50°C ~ 150°C | 1.1 V @ 3 A | |
|
1N4148WT-AQDIODE SOD-523 100V 0.125A 4NS |
2,223 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 2pF @ 0V, 1MHz | 4 ns | 1 µA @ 75 V | 80 V | 125mA | -55°C ~ 150°C | 1 V @ 50 mA | |
|

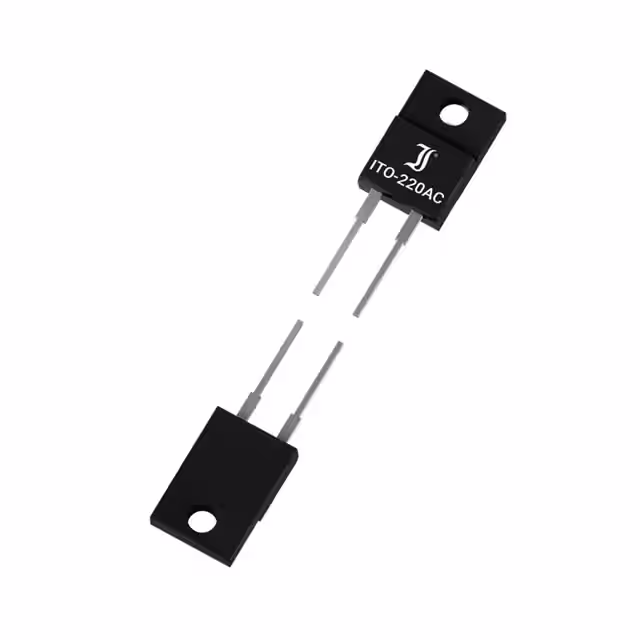

SBJ1845-3GSchottky D, 45V, 18A |
1,195 | 1.15 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 100 µA @ 45 V | 45 V | 18A | -50°C ~ 150°C | 550 mV @ 18 A | |
|
S3DSMBST Rect, 200V, 3A |
9,000 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 200 V | 200 V | 3A | -50°C ~ 150°C | 1.1 V @ 3 A | |
|
SM4005Std Rect, 600V, 1A |
4,970 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 600 V | 600 V | 1A | -50°C ~ 175°C | 1.1 V @ 1 A | |
|
|
SM4006Std Rect, 800V, 1A |
4,934 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 800 V | 800 V | 1A | -50°C ~ 175°C | 1.1 V @ 1 A | |
|
DD1600HV Rect, 16000V, 0.02A, 150ns |
160,000 | 1.15 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | - | 150 ns | 5 µA @ 16000 V | 16000 V | 20mA | -50°C ~ 150°C | 40 V @ 10 mA | |
|
|
SM4004Std Rect, 400V, 1A |
3,794 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 400 V | 400 V | 1A | -50°C ~ 175°C | 1.1 V @ 1 A | |
|
EGL1ASF Rect, 50V, 1.00A, 50ns |
2,500 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 5 µA @ 50 V | 50 V | 1A | -50°C ~ 175°C | 1.25 V @ 1 A | |
|
|
BY550-600-CTCUT-TAPE VERSION. STANDARD RECO |
368,750 | 1.19 |
RFQ |
Datasheet |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 5 µA @ 600 V | 600 V | 5A | -50°C ~ 175°C | 1 V @ 5 A | |
|
PX1500GST Rect, 400V, 15A |
1,000 | 1.19 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 10 µA @ 400 V | 400 V | 15A | -50°C ~ 175°C | 1 V @ 15 A | |
|
1SS5004WSDIODE SOD-323 400V 0.22A 100NS |
3,559 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 5pF @ 0V, 1MHz | 100 ns | 100 nA @ 240 V | 400 V | 225mA | -55°C ~ 150°C | 1.25 V @ 200 mA | |
|
|
BY550-800-CTCUT-TAPE VERSION. STANDARD RECO |
8,750 | 1.19 |
RFQ |
Datasheet |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 5 µA @ 800 V | 800 V | 5A | -50°C ~ 175°C | 1 V @ 5 A | |
|
FT2000KGFast Rect., 400V, 20.00A, 200ns |
1,000 | 1.97 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 200 ns | 5 µA @ 400 V | 400 V | 20A | -50°C ~ 150°C | 960 mV @ 20 A | |
|
SKL15SchottkyD, 50V, 1A |
3,000 | 0.16 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 50 V | 50 V | 1A | -50°C ~ 150°C | 700 mV @ 1 A | |
|
|
F12K120Fast Rect., 120V, 12.00A, 300ns |
1,000 | 1.19 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 300 ns | 5 µA @ 120 V | 120 V | 12A | -50°C ~ 175°C | 900 mV @ 12 A | |
|
|
KT20K120Fast Rect., 120V, 20.00A, 300ns |
1,200 | 1.98 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 300 ns | 5 µA @ 120 V | 120 V | 20A | -50°C ~ 175°C | 980 mV @ 20 A |
