| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M6ST Rect, 800V, 1A |
7,500 | 0.03 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 800 V | 800 V | 1A | -50°C ~ 150°C | 1.1 V @ 1 A | |
|

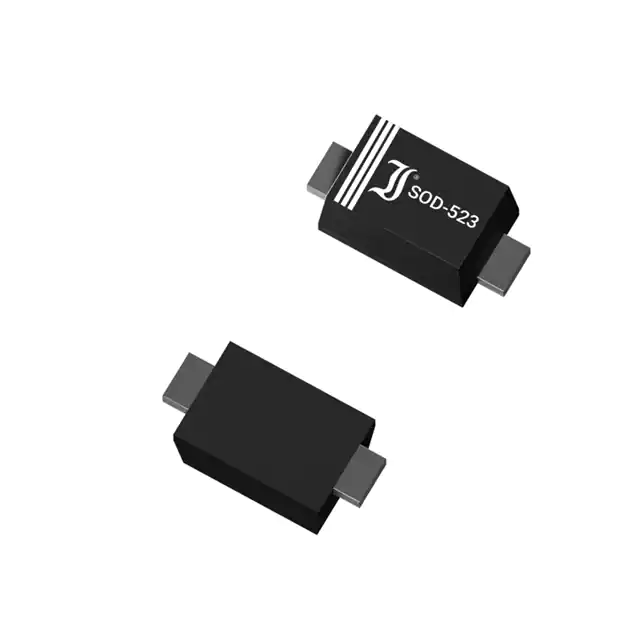

1N4148WTDIODE SOD-523 100V 0.125A 4NS |
3,979 | 0.03 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 2pF @ 0V, 1MHz | 4 ns | 1 µA @ 75 V | 80 V | 125mA | -55°C ~ 150°C | 1 V @ 50 mA | |
|
DD1200HV Rect, 12000V, 0.02A, 150ns |
4,964 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | - | 150 ns | 5 µA @ 12000 V | 12000 V | 20mA | -50°C ~ 150°C | 40 V @ 10 mA | |
|
BAS21WR13DIODE SOT-323 250V 0.2A 50NS |
3,096 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 5pF @ 0V, 1MHz | 50 ns | 100 nA @ 200 V | 200 V | 200mA | -55°C ~ 150°C | 1.25 V @ 200 mA | |
|
S5YST Rect, 2000V, 5A |
2,799 | 1.04 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 10 µA @ 2000 V | 2000 V | 8A | -50°C ~ 150°C | 1.1 V @ 5 A | |
|
BAS216WT-AQDIODE SOD-523 85V 0.15A 4NS |
3,024 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 1.5pF @ 0V, 1MHz | 4 ns | 1 µA @ 75 V | 85 V | 250mA | -55°C ~ 150°C | 1.25 V @ 150 mA | |
|
SD103AWSchottkyD, 40V, 0.35A |
144,000 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 50pF @ 0V, 1MHz | 10 ns | 5 µA @ 30 V | 32 V | 350mA | -55°C ~ 125°C | 600 mV @ 200 mA | |
|
BAS21-AQDIODE SOT-23 250V 0.2A 50NS |
3,829 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 5pF @ 0V, 1MHz | 50 ns | 100 nA @ 200 V | 200 V | 200mA | -55°C ~ 150°C | 1.25 V @ 200 mA | |
|
S2J-AQ-CTCUT-TAPE VERSION. STANDARD RECO |
3,000 | 1.05 |
RFQ |
Datasheet |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 600 V | 600 V | 2A | -50°C ~ 150°C | 1.15 V @ 2 A | |
|
BAT46WSSchottky, 100V, 0.150A, 0.45V |
2,556 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 10pF @ 0V, 1MHz | 6 ns | 5 µA @ 75 V | 100 V | 150mA | -55°C ~ 150°C | 450 mV @ 10 mA | |
|
|
BAS21WDIODE SOT-323 250V 0.2A 50NS |
2,076 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 5pF @ 0V, 1MHz | 50 ns | 100 nA @ 200 V | 200 V | 200mA | -55°C ~ 150°C | 1.25 V @ 200 mA | |
|
|
S2M-AQ-CTCUT-TAPE VERSION. STANDARD RECO |
3,000 | 1.05 |
RFQ |
Datasheet |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 1000 V | 1000 V | 2A | -50°C ~ 150°C | 1.15 V @ 2 A | |
|
|
M7ST Rect, 1000V, 1A |
10,118,000 | 0.03 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 1000 V | 1000 V | 1A | -50°C ~ 150°C | 1.1 V @ 1 A | |
|
SM5406-CTCUT-TAPE VERSION. STANDARD RECO |
4,970 | 1.07 |
RFQ |
Datasheet |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 600 V | 600 V | 3A | -50°C ~ 175°C | 1.2 V @ 3 A | |
|
SL1GST Rect, 400V, 1A |
783,000 | 0.03 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1 µs | 1 µA @ 400 V | 400 V | 1A | -50°C ~ 150°C | 1.1 V @ 1 A | |
|
SBT10100SchottkyD, 100V, 10A |
19,414 | 1.07 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 300 µA @ 100 V | 100 V | 10A | -50°C ~ 150°C | 850 mV @ 10 A | |
|
|
SL1DST Rect, 200V, 1A |
402,000 | 0.03 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1 µs | 1 µA @ 200 V | 200 V | 1A | -50°C ~ 150°C | 1.1 V @ 1 A | |
|
PX1500AST Rect, 50V, 15A |
2,500 | 1.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 10 µA @ 50 V | 50 V | 15A | -50°C ~ 175°C | 1 V @ 15 A | |
|
|
SL1BST Rect, 100V, 1A |
3,000 | 0.03 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1 µs | 1 µA @ 100 V | 100 V | 1A | -50°C ~ 150°C | 1.1 V @ 1 A | |
|
|
SL1AST Rect, 50V, 1A |
2,178 | 0.03 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1 µs | 1 µA @ 50 V | 50 V | 1A | -50°C ~ 150°C | 1.1 V @ 1 A |
