| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S1T-CTCUT-TAPE VERSION. STANDARD RECO |
2,766 | 1.12 |
RFQ |
Datasheet |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 1300 V | 1300 V | 1A | -50°C ~ 150°C | 1.1 V @ 1 A | |
|
SK1060D2RSchottkyD, 60V, 10A |
3,663 | 1.12 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 60 V | 60 V | 10A | -50°C ~ 150°C | 700 mV @ 10 A | |
|
|
SK1080D2RSchottkyD, 80V, 10A |
2,988 | 1.12 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 80 V | 80 V | 10A | -50°C ~ 150°C | 830 mV @ 10 A | |
|
PX1500BST Rect, 100V, 15A |
3,371 | 1.13 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 10 µA @ 100 V | 100 V | 15A | -50°C ~ 175°C | 1 V @ 15 A | |
|

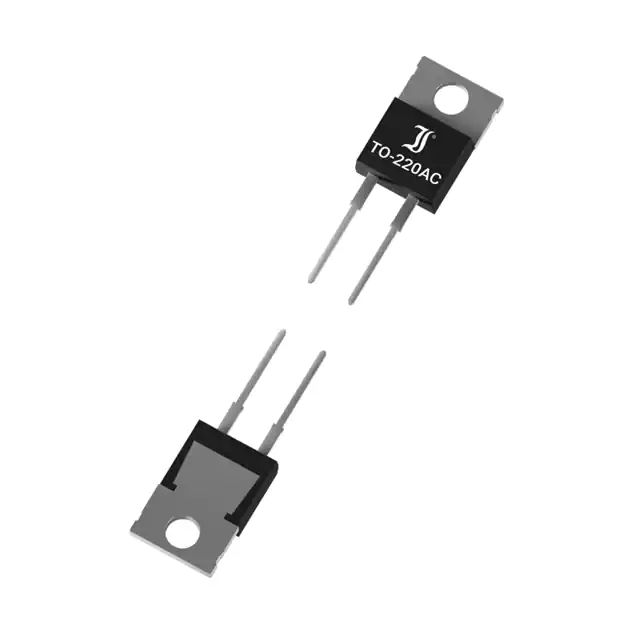

MBR10100Schottky, 100V, 10A |
2,604 | 1.14 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 5 µA @ 100 V | 100 V | 10A | -50°C ~ 175°C | 800 mV @ 10 A | |
|
|
PX1500DST Rect, 200V, 15A |
3,716 | 1.17 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 10 µA @ 200 V | 200 V | 15A | -50°C ~ 175°C | 1 V @ 15 A | |
|
PPL2060Schottky, 60V, 20A, 0.63V, 250A |
2,190 | 1.17 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 150 µA @ 60 V | 60 V | 20A | -50°C ~ 150°C | 630 mV @ 20 A | |
|
|
SK10100D2RSchottkyD, 100V, 10A |
2,173 | 1.18 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 100 V | 100 V | 10A | -50°C ~ 150°C | 830 mV @ 10 A | |
|
|
MUR860SF Rect, 600V, 8.00A, 50ns |
3,840 | 1.20 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 60 ns | 5 µA @ 600 V | 600 V | 8A | -50°C ~ 175°C | 1.5 V @ 8 A | |
|
|
PX1500JST Rect, 600V, 15A |
2,502 | 1.21 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 10 µA @ 600 V | 600 V | 15A | -50°C ~ 175°C | 1 V @ 15 A | |
|

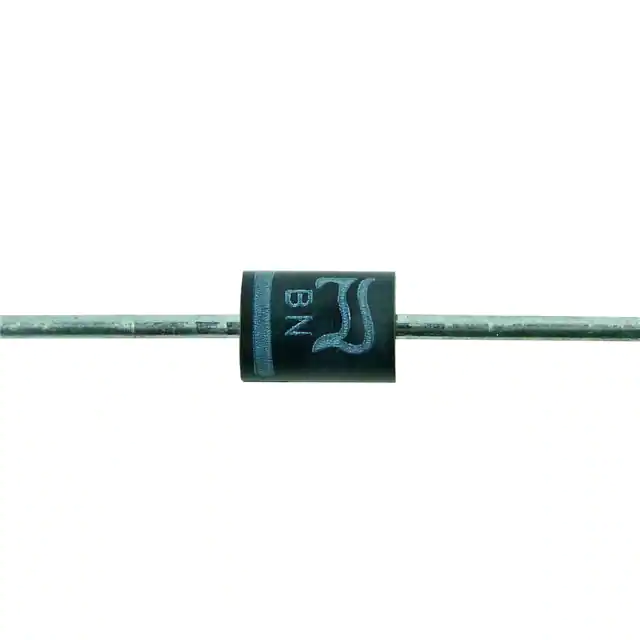

BY550-1000-CTCUT-TAPE VERSION. STANDARD RECO |
3,819 | 1.22 |
RFQ |
Datasheet |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 5 µA @ 1000 V | 1000 V | 5A | -50°C ~ 175°C | 1 V @ 5 A | |
|
|
PX1500KST Rect, 800V, 15A |
3,652 | 1.23 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 10 µA @ 800 V | 800 V | 15A | -50°C ~ 175°C | 1 V @ 15 A | |
|
|
P1000SST Rect, 1200V, 10A |
3,348 | 1.24 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 10 µA @ 1200 V | 1200 V | 10A | -50°C ~ 175°C | 1.05 V @ 10 A | |
|
UGB8BTSF Rect, 100V, 8.00A, 25ns |
2,467 | 1.25 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 35 ns | 5 µA @ 100 V | 100 V | 8A | -50°C ~ 150°C | 1 V @ 8 A | |
|
P2000A-CTCUT-TAPE VERSION. STANDARD RECO |
2,411 | 7.95 |
RFQ |
Datasheet |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 10 µA @ 50 V | 50 V | 20A | -50°C ~ 150°C | 1.1 V @ 20 A | |
|
|
UGB8ATSF Rect, 50V, 8.00A, 25ns |
3,601 | 1.25 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 35 ns | 5 µA @ 50 V | 50 V | 8A | -50°C ~ 150°C | 1 V @ 8 A | |
|
|
UGB8DTSF Rect, 200V, 8.00A, 25ns |
2,719 | 1.25 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 35 ns | 5 µA @ 200 V | 200 V | 8A | -50°C ~ 150°C | 1 V @ 8 A | |
|
|
P2000B-CTCUT-TAPE VERSION. STANDARD RECO |
3,395 | 8.04 |
RFQ |
Datasheet |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 10 µA @ 100 V | 100 V | 20A | -50°C ~ 150°C | 1.1 V @ 20 A | |
|
S15MYD2-CTCUT-TAPE VERSION. STANDARD RECO |
2,143 | 8.39 |
RFQ |
Datasheet |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 10 µA @ 1000 V | 1000 V | 15A | -50°C ~ 150°C | 1.3 V @ 15 A | |
|
|
S16DSD2-CTCUT-TAPE VERSION. STANDARD RECO |
2,873 | 8.56 |
RFQ |
Datasheet |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | - | 5 µA @ 200 V | 200 V | - | -50°C ~ 150°C | 1.1 V @ 8 A |
