| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P1200G-CTCUT-TAPE VERSION. STANDARD RECO |
2,172 | 5.47 |
RFQ |
Datasheet |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 10 µA @ 400 V | 400 V | 12A | -50°C ~ 150°C | 950 mV @ 12 A | |
|
S5X-CTCUT-TAPE VERSION. STANDARD RECO |
3,334 | 5.61 |
RFQ |
Datasheet |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 10 µA @ 1800 V | 1800 V | 5A | -50°C ~ 150°C | 1.1 V @ 5 A | |
|
|
PX1500B-CTCUT-TAPE VERSION. STANDARD RECO |
3,947 | 6.72 |
RFQ |
Datasheet |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 10 µA @ 100 V | 100 V | 15A | -50°C ~ 175°C | 1 V @ 15 A | |
|
|
PX1500D-CTCUT-TAPE VERSION. STANDARD RECO |
3,682 | 6.92 |
RFQ |
Datasheet |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 10 µA @ 200 V | 200 V | 15A | -50°C ~ 175°C | 1 V @ 15 A | |
|
S16KSD2-CTCUT-TAPE VERSION. STANDARD RECO |
2,898 | 7.13 |
RFQ |
Datasheet |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | - | 5 µA @ 800 V | 800 V | - | -50°C ~ 150°C | 1.1 V @ 8 A | |
|
|
S16MSD2-CTCUT-TAPE VERSION. STANDARD RECO |
3,077 | 7.13 |
RFQ |
Datasheet |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | - | 5 µA @ 1000 V | 1000 V | - | -50°C ~ 150°C | 1.1 V @ 8 A | |
|
|
PX1500J-CTCUT-TAPE VERSION. STANDARD RECO |
3,411 | 7.16 |
RFQ |
Datasheet |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 10 µA @ 600 V | 600 V | 15A | -50°C ~ 175°C | 1 V @ 15 A | |
|
|
PX1500K-CTCUT-TAPE VERSION. STANDARD RECO |
3,556 | 7.29 |
RFQ |
Datasheet |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 10 µA @ 800 V | 800 V | 15A | -50°C ~ 175°C | 1 V @ 15 A | |
|
|
P1000S-CTCUT-TAPE VERSION. STANDARD RECO |
2,533 | 7.29 |
RFQ |
Datasheet |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 10 µA @ 1200 V | 1200 V | 10A | -50°C ~ 175°C | 1.05 V @ 10 A | |
|

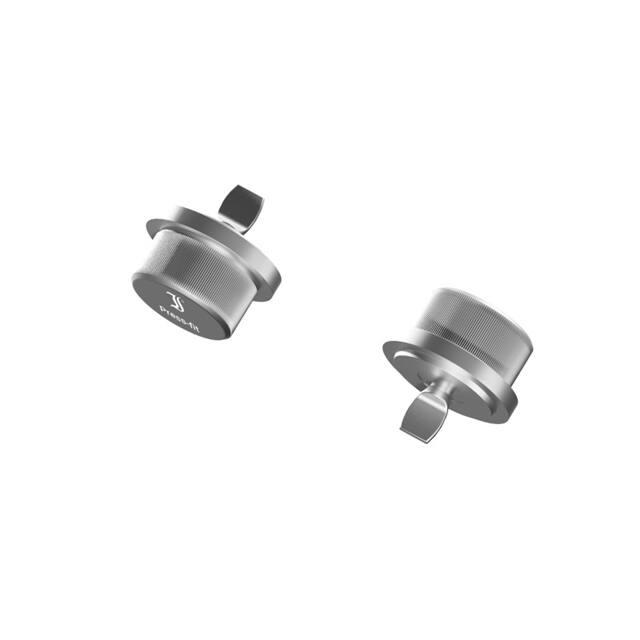

KMSF71SF Rect, 200V, 20.000A, 200ns |
2,504 | 0.00 |
RFQ |
Datasheet |
Box | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 200 ns | 5 µA @ 100 V | 100 V | 35A | -50°C ~ 175°C | 1.1 V @ 20 A | |
|
SI-E8000-4St Rectifier, 24000V, 4A |
2,334 | 0.00 |
RFQ |
Datasheet |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 1.5 µs | 5 µA @ 24000 V | 24000 V | 4A | -50°C ~ 150°C | 12 V @ 4 A | |
|
BY550-100Std Rect, 100V, 5A |
2,389 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 5 µA @ 100 V | 100 V | 5A | -50°C ~ 175°C | 1 V @ 5 A | |
|
1N5393Std Rect, 200V, 1.5A |
2,907 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 5 µA @ 200 V | 200 V | 1.5A | -50°C ~ 175°C | 1.3 V @ 1.5 A | |
|
S5Y-AQDiode, SMC, 2000V, 5A |
2,646 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 10 µA @ 2000 V | 2000 V | 8A | -50°C ~ 150°C | 1.1 V @ 5 A | |
|
BYG10YStd Rect, 800V, 1.5A |
3,663 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Avalanche | Active | Surface Mount | - | 1.5 µs | 5 µA @ 1600 V | 1600 V | 1.5A | -50°C ~ 150°C | 1.15 V @ 1.5 A | |
|
UF4002UF Rect, 100V, 1.00A, 50ns |
3,901 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 50 ns | 5 µA @ 100 V | 100 V | 1A | -50°C ~ 175°C | 1 V @ 1 A | |
|
US1M-AQUF Rect, 1000V, 1.00A, 75ns |
3,834 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 75 ns | 5 µA @ 1000 V | 1000 V | 1A | -50°C ~ 150°C | 1.7 V @ 1 A |
|
GL34MST Rect, 1000V, 0.5A |
2,822 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 1000 V | 1000 V | 500mA | -50°C ~ 175°C | 1.3 V @ 500 mA | |
|
UFT800AUF Rect, 50V, 8.00A, 25ns |
2,488 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 35 ns | 5 µA @ 50 V | 50 V | 8A | -50°C ~ 150°C | 1 V @ 8 A | |
|
1N5393-AQST Rect, 200V, 1.5A |
2,103 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 5 µA @ 200 V | 200 V | 1.5A | -50°C ~ 175°C | 1.3 V @ 1.5 A |
