| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P2500JST Rect, 600V, 25A |
2,308 | 1.58 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 10 µA @ 600 V | 600 V | 25A | -50°C ~ 175°C | 1.1 V @ 25 A | |
|
AM2000-CTCUT-TAPE VERSION. STANDARD RECO |
2,367 | 0.92 |
RFQ |
Datasheet |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Avalanche | Active | Surface Mount | - | 1.5 µs | 5 µA @ 1600 V | 1600 V | 1A | -50°C ~ 150°C | 1.1 V @ 1 A | |
|
|
P2500KST Rect, 800V, 25A |
3,059 | 1.59 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 10 µA @ 800 V | 800 V | 25A | -50°C ~ 175°C | 1.1 V @ 25 A | |
|
|
P1200DST Rect, 200V, 12A |
2,836 | 0.92 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 10 µA @ 200 V | 200 V | 12A | -50°C ~ 150°C | 950 mV @ 12 A | |
|
PPH810SchottkyD, 100V, 8A |
2,129 | 0.92 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 100 V | 100 V | 8A | -50°C ~ 175°C | 730 mV @ 8 A | |
|
ES3GSMBSuperfastD, 400V, 3A, 25ns |
2,529 | 0.92 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 25 ns | 5 A @ 400 V | 400 V | 3A | -50°C ~ 150°C | 1.3 V @ 3 µA | |
|
|
SM518-CTCUT-TAPE VERSION. STANDARD RECO |
2,359 | 0.92 |
RFQ |
Datasheet |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 1800 V | 1800 V | 1A | -50°C ~ 175°C | 1.1 V @ 1 A | |
|
|
P1000MST Rect, 1000V, 10A |
3,637 | 0.93 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 10 µA @ 1000 V | 1000 V | 10A | -50°C ~ 175°C | 1.05 V @ 10 A | |
|
|
P1200GST Rect, 400V, 12A |
3,910 | 0.93 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 10 µA @ 400 V | 400 V | 12A | -50°C ~ 150°C | 950 mV @ 12 A | |
|
|
SM5403-CTCUT-TAPE VERSION. STANDARD RECO |
3,734 | 0.94 |
RFQ |
Datasheet |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 300 V | 300 V | 3A | -50°C ~ 175°C | 1.2 V @ 3 A | |
|
SB1240-3GSchottkyD, 40V, 12A |
3,125 | 0.96 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 200 µA @ 40 V | 40 V | 12A | -50°C ~ 150°C | 550 mV @ 12 A | |
|
BY550-100-CTCUT-TAPE VERSION. STANDARD RECO |
2,668 | 0.97 |
RFQ |
Datasheet |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 5 µA @ 100 V | 100 V | 5A | -50°C ~ 175°C | 1 V @ 5 A | |
|
PT800BST Rect, 100V, 8A |
3,265 | 0.98 |
RFQ |
Datasheet |
Tube | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 5 µA @ 100 V | 100 V | 8A | -50°C ~ 150°C | 1.1 V @ 8 A | |
|
|
PT800DST Rect, 200V, 8A |
3,823 | 0.98 |
RFQ |
Datasheet |
Tube | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 5 µA @ 200 V | 200 V | 8A | -50°C ~ 150°C | 1.1 V @ 8 A | |
|
|
PT800MST Rect, 1000V, 8A |
3,662 | 0.98 |
RFQ |
Datasheet |
Tube | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 5 µA @ 1000 V | 1000 V | 8A | -50°C ~ 150°C | 1.1 V @ 8 A | |
|
|
PT800GST Rect, 400V, 8A |
3,037 | 0.98 |
RFQ |
Datasheet |
Tube | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 5 µA @ 400 V | 400 V | 8A | -50°C ~ 150°C | 1.1 V @ 8 A | |
|
MUR460SF Rect, 600V, 4.00A, 50ns |
3,943 | 0.99 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 50pF @ 4V, 1MHz | 75 ns | 5 µA @ 600 V | 600 V | 4A | -50°C ~ 175°C | 1.28 V @ 4 A | |
|
|
MUR420SF Rect, 200V, 4.00A, 25ns |
3,282 | 0.99 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 100pF @ 4V, 1MHz | 35 ns | 5 µA @ 200 V | 200 V | 4A | -50°C ~ 175°C | 890 mV @ 4 A | |
|
|
MUR440SF Rect, 400V, 4.00A, 50ns |
3,157 | 0.99 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 50pF @ 4V, 1MHz | 75 ns | 5 µA @ 400 V | 400 V | 4A | -50°C ~ 175°C | 1.28 V @ 4 A | |
|

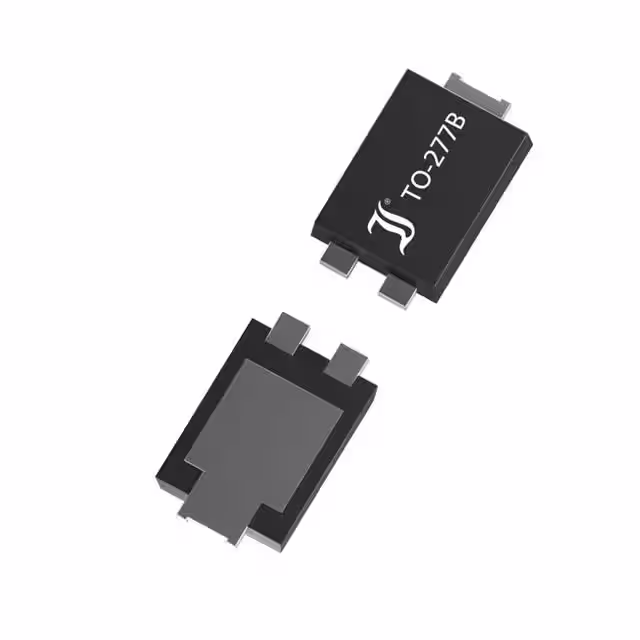

PPH10100SchottkyD, 100V, 10A |
2,895 | 0.99 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 150 µA @ 100 V | 100 V | 10A | -50°C ~ 175°C | 680 mV @ 10 A |
