| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

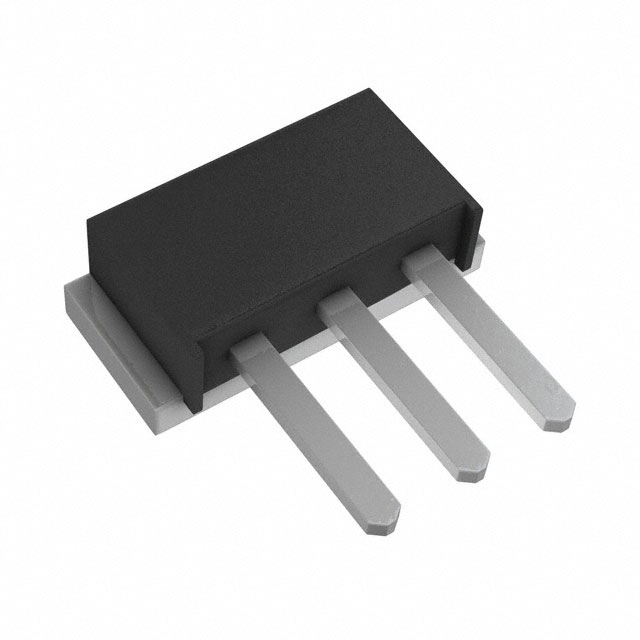

80CNQ045SMDIODE SCHOTTKY 45V 40A PRM2-SM |
974 | 21.26 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 45 V | 40A | 660 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 45 V | -55°C ~ 150°C | Through Hole |
|
82CNQ030SLDIODE SCHOTTKY 30V 40A PRM2-SL |
2,078 | 22.80 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 30 V | 40A | 550 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 30 V | -55°C ~ 150°C | Surface Mount |
|
85CNQ015DIODE SCHOTTKY 15V 40A PRM2 |
384 | 22.82 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 15 V | 40A | 450 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 mA @ 15 V | -55°C ~ 125°C | Chassis Mount |
|
|
83CNQ080S2DIODE ARRAY SCHOTTKY 80V PRM2 |
3,286 | 23.23 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 80 V | 80A | 1 V @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 80 V | -55°C ~ 175°C | Chassis Mount |
|
20CJQ0452A, 45V, SOT-223, SCHOTTKY RECTI |
2,681 | 0.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 45 V | 2A | 700 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 45 V | -55°C ~ 150°C | Surface Mount |
|
SDURD1030CTDIODE ARRAY GEN PURP 300V DPAK |
3,664 | 0.64 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Standard | 300 V | - | 1.3 V @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 30 µA @ 300 V | -55°C ~ 150°C | Surface Mount |
|
|
MBRD2045CTDIODE ARRAY SCHOTTKY 45V DPAK |
3,476 | 0.67 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 45 V | - | 840 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 45 V | -55°C ~ 150°C | Surface Mount |
|
|
MBRD1045CTDIODE ARRAY SCHOTTKY 45V DPAK |
3,024 | 0.67 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 45 V | - | 700 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 45 V | -55°C ~ 150°C | Surface Mount |
|
|
MBRD10150CTDIODE ARRAY SCHOTTKY 150V DPAK |
3,255 | 0.68 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 150 V | - | 900 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 150 V | -55°C ~ 150°C | Surface Mount |
|
|
SDURD1020CTDIODE ARRAY GEN PURP 200V DPAK |
2,243 | 0.64 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Standard | 200 V | - | 975 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 10 µA @ 200 V | -55°C ~ 150°C | Surface Mount |
|
SDURF1530CTRDIODE ARRAY GP 300V ITO220AB |
3,609 | 0.76 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Anode | Standard | 300 V | - | 1.3 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 45 ns | 10 µA @ 300 V | -55°C ~ 150°C | Through Hole |
|
|
MBRD20150CTDIODE ARRAY SCHOTTKY 150V DPAK |
3,765 | 0.77 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 150 V | - | 1 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 150 V | -55°C ~ 150°C | Surface Mount |
|
SDURB1020CTDIODE ARRAY GEN PURP 200V D2PAK |
2,871 | 0.77 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Standard | 200 V | - | 975 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 10 µA @ 200 V | -55°C ~ 150°C | Surface Mount |
|
|
SDURD1530CTDIODE ARRAY GEN PURP 300V DPAK |
3,058 | 0.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Standard | 300 V | - | 1.3 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 45 ns | 10 µA @ 300 V | -55°C ~ 150°C | Surface Mount |
|
|
MBRF30100CTDIODE ARRAY SCHOTTKY 100V ITO220 |
3,005 | 1.29 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 100 V | - | 850 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 100 V | -55°C ~ 150°C | Through Hole |
|
|
SDURD1560CTDIODE ARRAY GEN PURP 600V DPAK |
2,940 | 0.79 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Standard | 600 V | - | 1.5 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 10 µA @ 600 V | -55°C ~ 150°C | Surface Mount |
|
|
MBRF15100CTDIODE ARRAY SCHOTTKY 100V ITO220 |
2,983 | 0.83 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 100 V | - | 950 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 100 V | -55°C ~ 150°C | Through Hole |
|
SDUR1020CTDIODE ARRAY GP 200V TO220AB |
3,404 | 0.84 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Standard | 200 V | - | 975 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 10 µA @ 200 V | -55°C ~ 150°C | Through Hole |
|
|
12CTQ045S12A, 45V, D2PAK, SCHOTTKY RECTIF |
3,757 | 0.90 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 45 V | 6A | 600 mV @ 6 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 800 µA @ 45 V | -55°C ~ 175°C | Surface Mount |
|
|
SDUR1530CTDIODE ARRAY GP 300V TO220AB |
3,226 | 0.98 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Standard | 300 V | - | 1.3 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 45 ns | 10 µA @ 300 V | -55°C ~ 150°C | Through Hole |
