| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDUR60P60WTDIODE ARRAY GP 600V 30A TO247AD |
643 | 2.87 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Standard | 600 V | 30A | 1.7 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 150 µA @ 600 V | -55°C ~ 175°C | Through Hole |
|
|
MBR60100WTDIODE ARRAY SCHOTTKY 100V TO247 |
3,747 | 3.14 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 100 V | - | 900 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 100 V | -55°C ~ 150°C | Through Hole |
|
|
MBR80150WTDIODE ARRAY SCHOTTKY 150V TO247 |
2,679 | 3.82 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 150 V | - | 900 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 150 V | -55°C ~ 150°C | Through Hole |
|
89CNQ150DIODE SCHOTTKY 150V 40A PRM2 |
223 | 22.82 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 150 V | 40A | 1.14 V @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 150 V | -55°C ~ 175°C | Chassis Mount |
|
MBRD6100CTDIODE ARRAY SCHOTTKY 100V DPAK |
2,114 | 0.59 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 100 V | - | 850 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 100 V | -55°C ~ 150°C | Surface Mount |
|
|
MBRD1060CTDIODE ARRAY SCHOTTKY 60V DPAK |
2,620 | 0.63 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 60 V | - | 700 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 60 V | -55°C ~ 150°C | Surface Mount |
|
|
MBRD1560CTDIODE ARRAY SCHOTTKY 60V DPAK |
3,016 | 0.68 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 60 V | - | 900 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 60 V | -55°C ~ 150°C | Surface Mount |
|
|
STD10100CDIODE ARRAY SCHOTTKY 100V DPAK |
3,004 | 0.69 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 100 V | - | 750 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 120 µA @ 100 V | -55°C ~ 150°C | Surface Mount |
|
SDURF1530CTDIODE ARRAY GP 300V ITO220AB |
3,970 | 0.74 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Standard | 300 V | - | 1.3 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 45 ns | 10 µA @ 300 V | -55°C ~ 150°C | Through Hole |
|
MBR2060CTLDIODE ARRAY SCHOTTKY 60V TO220AB |
2,839 | 0.91 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 60 V | - | 690 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 60 V | -55°C ~ 125°C | Through Hole |
|
|
MBRF30100CTPDIODE ARRAY SCHOTTKY 100V ITO220 |
2,908 | 0.93 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 100 V | - | 850 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 100 V | -55°C ~ 150°C | Through Hole |
|
|
SDUR6040WTDIODE ARRAY GP 400V TO247AD |
3,872 | 2.44 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Standard | 400 V | - | 1.41 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 45 ns | 5 µA @ 400 V | -55°C ~ 150°C | Through Hole |
|

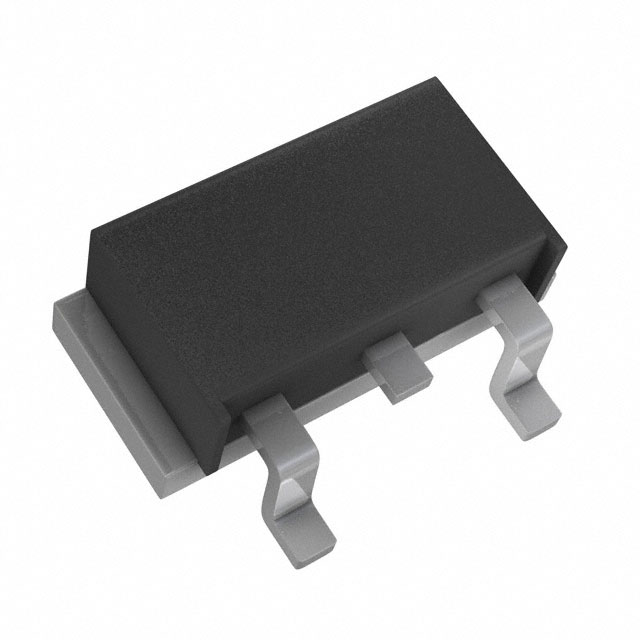

80CNQ045SLDIODE SCHOTTKY 45V 40A PRM2-SL |
3,413 | 22.80 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 45 V | 40A | 660 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 45 V | -55°C ~ 150°C | Surface Mount |
|
|
85CNQ015SLDIODE SCHOTTKY 15V 40A PRM2-SL |
3,450 | 23.84 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 15 V | 40A | 450 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 mA @ 15 V | -55°C ~ 125°C | Surface Mount |
|
403CMQ100DIODE ARRAY SCHOTTKY 100V PRM4 |
146 | 79.55 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 100 V | - | 830 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 6 mA @ 100 V | -55°C ~ 175°C | Chassis Mount |
;;.jpg)
|
409CNQ150DIODE ARRAY SCHOTTKY 150V PRM4 |
136 | 79.55 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 150 V | - | 1.03 V @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 6 mA @ 150 V | -55°C ~ 150°C | Chassis Mount |
|
S3D20065DDIODE SCHOTTKY SILICON CARBIDE S |
431 | 6.57 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Silicon Carbide Schottky | 650 V | 10A | 1.7 V @ 10 A | No Recovery Time > 500mA (Io) | 0 ns | 20 µA @ 650 V | -55°C ~ 175°C | Through Hole |
|
|
S4D15120DDIODE SCHOTTKY SILICON CARBIDE S |
299 | 7.64 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Silicon Carbide Schottky | 1200 V | 8A | 1.8 V @ 8 A | No Recovery Time > 500mA (Io) | 0 ns | 15 µA @ 1200 V | -55°C ~ 175°C | Through Hole |
|
|
S4D20120DDIODE SCHOTTKY SILICON CARBIDE S |
474 | 11.61 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Silicon Carbide Schottky | 1200 V | 10A | 1.8 V @ 10 A | No Recovery Time > 500mA (Io) | 0 ns | 30 µA @ 1200 V | -55°C ~ 175°C | Through Hole |
|
|
S4D40120DDIODE SCHOTTKY SILICON CARBIDE S |
290 | 18.33 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Silicon Carbide Schottky | 1200 V | 20A | 1.8 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 40 µA @ 1200 V | -55°C ~ 175°C | Through Hole |
