| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBRB20150CT-TPDIODE SCHOTTKY 20A 150V D2PAK |
2,682 | 1.20 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 150 V | 20A | 900 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 µA @ 150 V | -55°C ~ 150°C | Surface Mount |
|
MD36K16D1-BPDIODE RECT 1600V 36A D1 PACK |
3,895 | 24.55 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 1600 V | 36A | 1.4 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
BAS16TW-TPDIODE ARRAY GP 75V 150MA SOT363 |
3,222 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 3 Independent | Standard | 75 V | 150mA (DC) | 1.25 V @ 150 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 1 µA @ 75 V | -65°C ~ 150°C | Surface Mount |
|

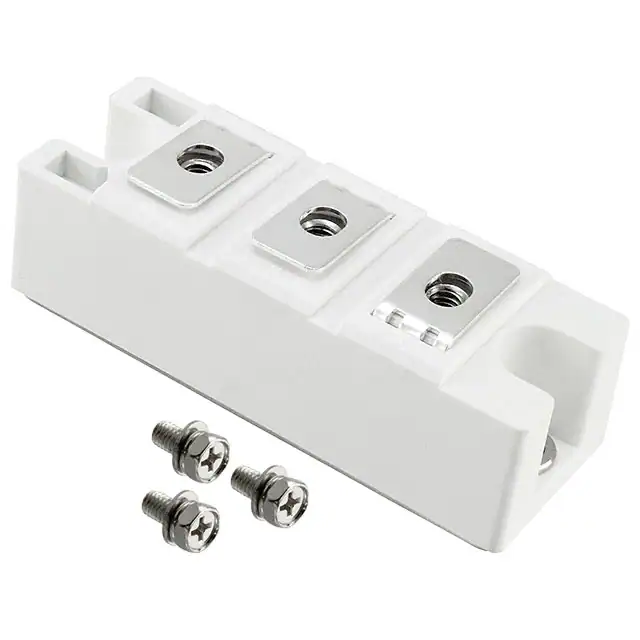

MD165C16D2-BPDIODE RECT 1600V 165A D2 PAC |
3,191 | 53.13 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 165A | 1.4 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 9 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
|
MD200A16D2-BPDIODE RECT 1600V 200A D2 PAC |
3,546 | 53.13 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Standard | 1600 V | 200A | 1.3 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 9 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
MF300C12F2-BPDIODE MODULE GP 1200V 300A F2 |
3,724 | 53.16 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 1200 V | 300A | 3 V @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | 135 ns | 1 mA @ 1200 V | -40°C ~ 150°C | Chassis Mount |
|
|
MD240C16D2-BPDIODE RECT 1600V 240A D2 PAC |
2,035 | 53.49 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 240A | 1.25 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 9 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
.jpg)
|
BAS40-05HE3-TP200MW SCHOTTKY BARRIER RECTIFIER |
3,191 | 0.18 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 40 V | 200mA | 1 V @ 40 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 200 nA @ 30 V | -55°C ~ 125°C | Surface Mount |
|
|
BAT54AHE3-TP200MW SCHOTTKY BARRIER RECTIFIER |
3,999 | 0.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Anode | Schottky | 30 V | 200mA | 800 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | -55°C ~ 125°C | Surface Mount |
|
|
BAS70-06HE3-TP200MW SCHOTTKY BARRIER RECTIFIER |
3,100 | 0.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Anode | Schottky | 70 V | 70mA | 1 V @ 15 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 200 nA @ 50 V | -55°C ~ 125°C | Surface Mount |
|

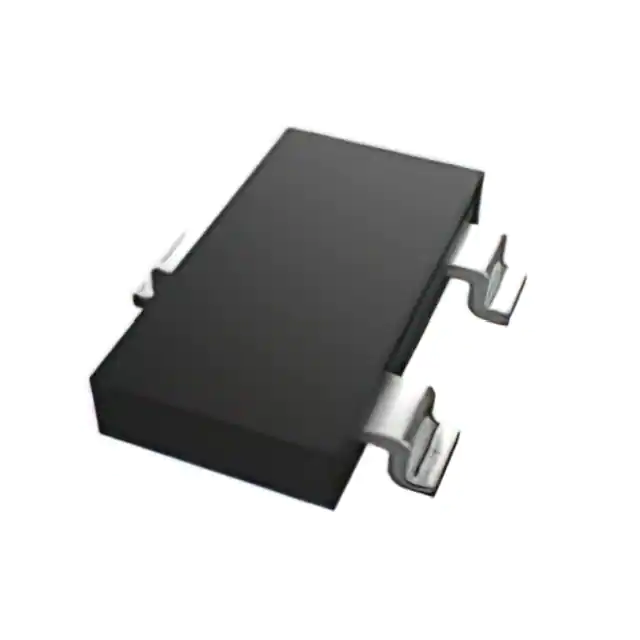

BAV70WTHE3-TP0.15A SWITCHING DIODES SOT-323 |
2,832 | 0.28 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Standard | 100 V | 150mA (DC) | 1.25 V @ 150 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 2 µA @ 75 V | -55°C ~ 150°C | Surface Mount | |
|
BAV70HE3-TP0.215A SWITCHING DIODES SOT-23 |
2,680 | 0.28 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Standard | 100 V | 215mA | 1.25 V @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 4 ns | 1 µA @ 75 V | -55°C ~ 150°C | Surface Mount | |
|
|
BAV199HE3-TP0.215A SWITCHING DIODES SOT-23 |
2,906 | 0.28 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Independent | Standard | 85 V | 215mA (DC) | 1.25 V @ 150 mA | Standard Recovery >500ns, > 200mA (Io) | 3 µs | 5 nA @ 75 V | -55°C ~ 150°C | Surface Mount | |
|
|
BAV23AHE3-TP0.225A SWITCHING DIODES SOT-23 |
2,488 | 0.28 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Anode | Standard | 200 V | 225mA (DC) | 1.25 V @ 200 mA | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 100 nA @ 250 V | -65°C ~ 150°C | Surface Mount | |
|
|
BAV23CHE3-TP0.225A SWITCHING DIODES SOT-23 |
3,723 | 0.28 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Standard | 200 V | 225mA (DC) | 1.25 V @ 200 mA | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 100 nA @ 250 V | -65°C ~ 150°C | Surface Mount | |
|
|
BAV23SHE3-TP0.225A SWITCHING DIODES SOT-23 |
3,152 | 0.28 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Series Connection | Standard | 200 V | 225mA (DC) | 1.25 V @ 200 mA | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 100 nA @ 250 V | -65°C ~ 150°C | Surface Mount | |
|
|
MMBD4148TW-TPDIODE ARRAY GP 75V 150MA SOT363 |
3,491 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 3 Independent | Standard | 75 V | 150mA (DC) | 1.25 V @ 150 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 1 µA @ 75 V | -55°C ~ 150°C | Surface Mount |
|
|
BAW56WTHE3-TP0.15A SWITCHING DIODES SOT-323 |
3,687 | 0.30 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Anode | Standard | 75 V | 150mA (DC) | 1.25 V @ 150 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 2.5 µA @ 75 V | -55°C ~ 150°C | Surface Mount | |
|
|
BAT54CHE3-TP0.2A SCHOTTKY BARRIER RECTIFIERS |
3,023 | 0.31 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 30 V | 200mA | 800 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | -55°C ~ 125°C | Surface Mount | |
|
|
BAV199WTHE3-TP0.16A SWITCHING DIODES SOT-323 |
2,887 | 0.35 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Series Connection | Standard | 85 V | 160mA | 1.25 V @ 150 mA | Small Signal =< 200mA (Io), Any Speed | 3 µs | 5 nA @ 75 V | -55°C ~ 150°C | Surface Mount |
