| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBR10200FCT-BPDIODE ARRAY SCHOTT 200V ITO220AB |
3,357 | 1.17 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 200 V | 10A | 920 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 200 V | -50°C ~ 150°C | Through Hole |
|
MBR3045CT-BPDIODE ARRAY SCHOTTKY 45V TO220AB |
3,904 | 1.38 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 45 V | 15A | 700 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 45 V | -55°C ~ 150°C | Through Hole |
|
|
MBRL30300CT-BPDIODE SCHOTTKY 30A 300V TO-220AB |
2,936 | 1.67 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 300 V | 30A | 1.1 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 µA @ 300 V | -55°C ~ 150°C | Through Hole |
|
|
MBR30150FCT-BPDIODE ARRAY SCHOTT 150V ITO220AB |
2,097 | 1.74 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 150 V | 15A | 990 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 µA @ 150 V | -55°C ~ 150°C | Through Hole |
|

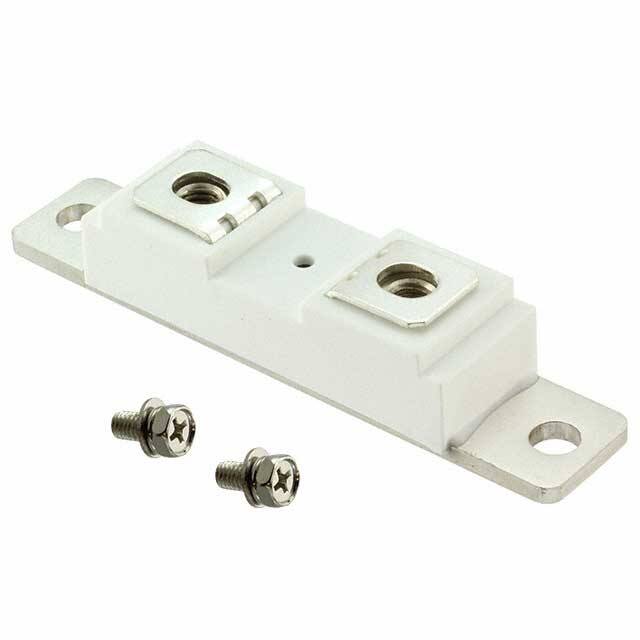

MF200K06F4-BPDIODE MODULE GP 600V 100A F4 |
2,234 | 19.98 |
RFQ |
Datasheet |
Bulk | - | Last Time Buy | 1 Pair Common Anode | Standard | 600 V | 100A | 1.15 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 105 ns | 500 µA @ 600 V | -40°C ~ 150°C | Chassis Mount |
|
MD36C16D1-BPDIODE RECT 1600V 36A D1 PACK |
2,528 | 18.81 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 36A | 1.4 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
|
MF200K04F4-BPDIODE MODULE GP 400V 100A F4 |
3,104 | 19.83 |
RFQ |
Datasheet |
Bulk | - | Last Time Buy | 1 Pair Common Anode | Standard | 400 V | 100A | 1.35 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 95 ns | 500 µA @ 400 V | -40°C ~ 150°C | Chassis Mount |
|
MF200K04F3-BPDIODE MODULE GP 400V 100A F3 |
2,002 | 23.39 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Standard | 400 V | 100A | 1.35 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 95 ns | 500 µA @ 400 V | -40°C ~ 150°C | Chassis Mount |
|
|
MD120A16D1-BPDIODE RECT 1600V 120A D1 PAC |
3,047 | 27.26 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Standard | 1600 V | 120A | 1.35 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 6 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
|
MD36A16D1-BPDIODE RECT 1600V 36A D1 PACK |
2,905 | 24.55 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Standard | 1600 V | 36A | 1.4 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
|
MD60A16D1-BPDIODE RECT 1600V 60A D1 PACK |
3,385 | 24.55 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Standard | 1600 V | 60A | 1.45 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
|
MD60C16D1-BPDIODE RECT 1600V 60A D1 PACK |
2,212 | 24.55 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 60A | 1.45 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
|
MD70C16D1-BPDIODE RECT 1600V 70A D1 PACK |
2,902 | 24.55 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 70A | 1.3 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
|
MD70K16D1-BPDIODE RECT 1600V 70A D1 PACK |
3,873 | 24.55 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 1600 V | 70A | 1.3 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
|
MD100A16D1-BPDIODE RECT 1600V 100A D1 PAC |
3,761 | 30.15 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Standard | 1600 V | 100A | 1.4 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
|
MD100C16D1-BPDIODE RECT 1600V 100A D1 PAC |
2,484 | 30.69 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 100A | 1.4 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
|
MD100K16D1-BPDIODE RECT 1600V 100A D1 PAC |
3,359 | 30.69 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 1600 V | 100A | 1.4 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
|
MD70A16D1-BPDIODE RECT 1600V 70A D1 PACK |
3,343 | 30.69 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Standard | 1600 V | 70A | 1.3 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|

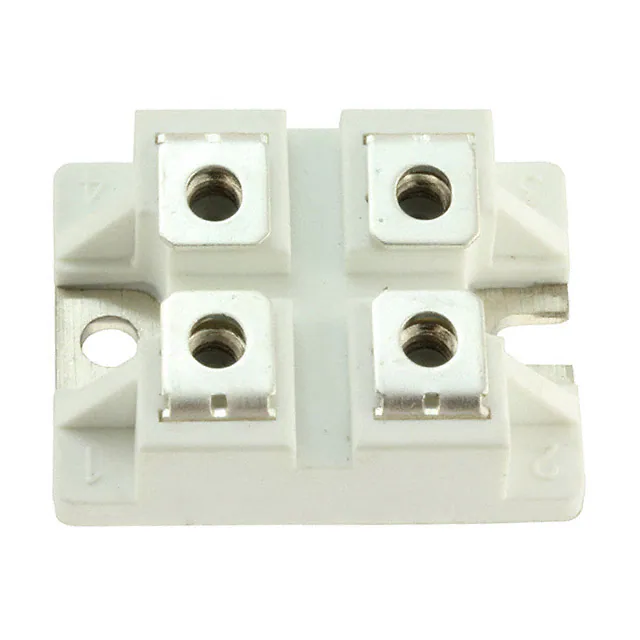

MF200DU06FJ-BPDIODE FRED 600V 100A FJ SOT227 |
2,637 | 30.69 |
RFQ |
Datasheet |
Bulk | - | Active | 2 Independent | Standard | 600 V | 100A | 1.4 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 105 ns | 500 µA @ 600 V | -40°C ~ 150°C | Chassis Mount |
|
|
MF300K06F3-BPDIODE MODULE GP 600V 150A F3 |
3,341 | 31.91 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Standard | 600 V | 150A | 1.4 V @ 150 A | Fast Recovery =< 500ns, > 200mA (Io) | 130 ns | 1 mA @ 600 V | -40°C ~ 150°C | Chassis Mount |
