| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BAT54BRW-TPDIODE ARRAY SCHOTTKY 30V SOT363 |
2,576 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 Pair Series Connection | Schottky | 30 V | 200mA (DC) | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | -65°C ~ 125°C | Surface Mount |
|
MBR3U200-TPDIODE SCHOTTKY 3A 200V TO-277 |
3,783 | 0.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | - | Schottky | 200 V | 3A | 850 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 200 V | -55°C ~ 150°C | Surface Mount |
|
MBRD5100C-TPDIODE SCHOTTKY 5A 100V DPAK |
3,201 | 0.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | - | Schottky | 100 V | 5A | 760 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 µA @ 100 V | -55°C ~ 150°C | Surface Mount |
|
MURSB1660CTA-TP16A/600V FRED RECTIFIERS,D2PAK P |
2,684 | 1.27 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Standard | 600 V | 16A | 1.6 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 5 µA @ 600 V | -55°C ~ 150°C | Surface Mount |
|
MBRL20100CT-BPDIODE ARRAY SCHOTT 100V TO220AB |
3,290 | 1.47 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 100 V | 20A | 700 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | -55°C ~ 150°C | Through Hole |
|
|
MBR20100CT-BPDIODE ARRAY SCHOTTKY 100V TO220 |
480 | 1.24 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 100 V | 10A | 950 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 150 µA @ 100 V | -55°C ~ 150°C | Through Hole |
|
|
MURS1660CTA-BP16A/600V FRED RECTIFIERS,TO-220A |
277 | 1.28 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Standard | 600 V | 16A | 1.6 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 5 µA @ 600 V | -55°C ~ 150°C | Through Hole |
|
MURS1620FCTA-BP16A/200V FRED RECTIFIERS,ITO-220 |
975 | 1.17 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Standard | 200 V | 16A | 1 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 5 µA @ 200 V | -55°C ~ 150°C | Through Hole |
|
|
MURS1660FCTA-BP16A/600V FRED RECTIFIERS,ITO-220 |
993 | 1.33 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Standard | 600 V | 16A | 1.6 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 5 µA @ 600 V | -55°C ~ 150°C | Through Hole |
|
|
MBR40200CT-BPDIODE SCHOTTKY 40A 200V TO-220AB |
3,207 | 1.93 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 200 V | 40A | 900 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 µA @ 200 V | -55°C ~ 150°C | Through Hole |
|
|
MURS1620CTA-BP16A/200V FRED RECTIFIERS,TO-220A |
949 | 1.10 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Standard | 200 V | 16A | 1 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 5 µA @ 200 V | -55°C ~ 150°C | Through Hole |
|

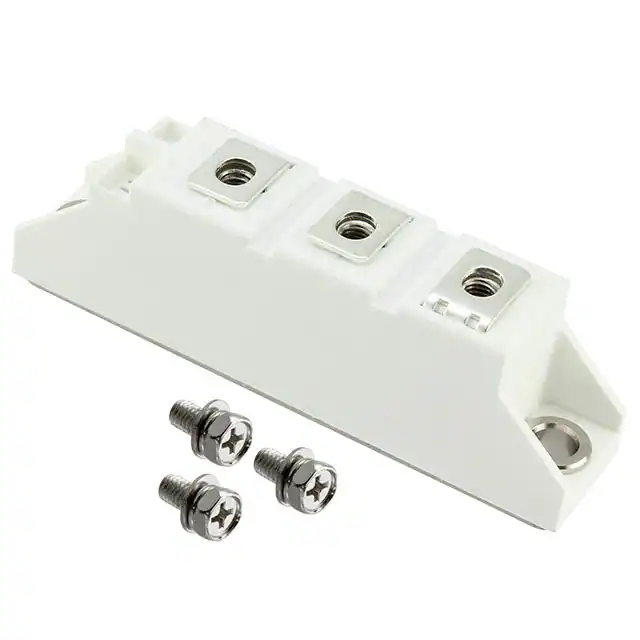

MD60K16D1-BPDIODE RECT 1600V 60A D1 PACK |
3,013 | 25.78 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 1600 V | 60A | 1.45 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
|
MD120K16D1-BPDIODE RECT 1600V 120A D1 PAC |
3,707 | 30.69 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 1600 V | 120A | 1.35 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 6 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|

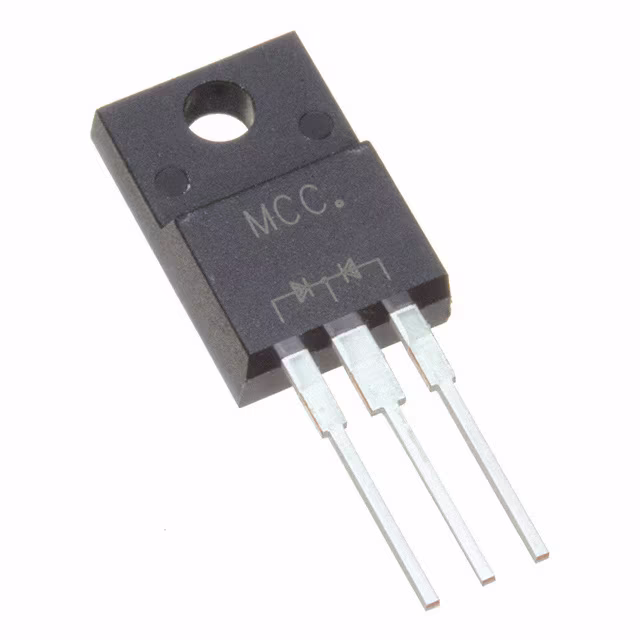

MBR2045FCTS-BPSCHOTTKY BARRIER RECTIFIERS 45V |
3,418 | 0.88 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 45 V | 20A | 650 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 45 V | -55°C ~ 150°C | Through Hole |
|
|
MBR3045FCTS-BPSCHOTTKY BARRIER RECTIFIERS 45V |
2,175 | 1.24 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 45 V | 30A | 650 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 45 V | -55°C ~ 150°C | Through Hole |
|
BAV99T-TPDIODE ARRAY GP 85V 75MA SOT523 |
3,618 | 0.27 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Series Connection | Standard | 85 V | 75mA (DC) | 1 V @ 50 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 2 µA @ 75 V | -55°C ~ 150°C | Surface Mount |
|
BAV74-TP225MWDUALSWITCHINGDIODESOT-23 |
3,879 | 0.18 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Standard | 50 V | 200mA | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 100 nA @ 50 V | -55°C ~ 150°C | Surface Mount |
|
|
BAV99HE3-TPSWITCHING DIODES 100V 0.215A, SO |
342 | 0.18 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Series Connection | Standard | 100 V | 215mA | 1.25 V @ 150 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 2.5 µA @ 75 V | -55°C ~ 150°C | Surface Mount |
|
|
MMBD1504-TPDIODE ARRAY GP 180V 200MA SOT23 |
342 | 0.25 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Standard | 180 V | 200mA | 1.3 V @ 200 mA | Small Signal =< 200mA (Io), Any Speed | - | 10 nA @ 180 V | -55°C ~ 150°C | Surface Mount |
|
|
BAV23C-TP350MWSMALLSIGNALDIODESSOT-23 |
2,301 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Standard | 200 V | 225mA (DC) | 1.25 V @ 200 mA | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 100 nA @ 250 V | -65°C ~ 150°C | Surface Mount |
