| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

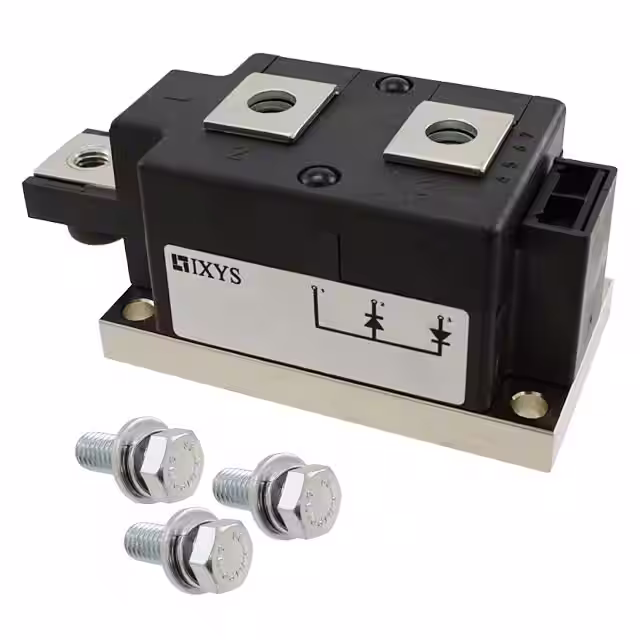

MDD312-22N1DIODE MODULE 2.2KV 310A Y1-CU |
3,771 | 177.98 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 2200 V | 310A | 1.32 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | 30 mA @ 2200 V | - | Chassis Mount |
|
MDNA380P2200KCBIPOLAR MODULE - DIODE Y1-CU |
2,828 | 186.46 |
RFQ |
Box | - | Active | 1 Pair Series Connection | Standard | 2200 V | 380A | 1.05 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 500 µA @ 2.2 kV | -40°C ~ 150°C | Chassis Mount | |
|
|
MDNA600P2200PTSFBIPOLAR MODULE - DIODE SIMBUS F- |
2,227 | 195.92 |
RFQ |
Box | - | Active | - | Standard | 2200 V | 600A | - | - | - | - | - | Chassis Mount | |
|
|
MDD175-28N1DIODE MODULE 2.8KV 240A Y1-CU |
2,528 | 254.26 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 2800 V | 240A | 1.07 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 1 mA @ 2800 V | - | Chassis Mount |
|
|
MDMA1400C1600CCBIPOLAR MODULE - THYRISTOR COMP |
3,178 | 204.45 |
RFQ |
Box | MDMA1400C1600CC | Active | 1 Pair Common Cathode | Standard | 1600 V | 700A | 1.14 V @ 700 A | Standard Recovery >500ns, > 200mA (Io) | - | 500 µA @ 1600 V | -40°C ~ 150°C | Chassis Mount | |
|
|
MDMA700P1600CCBIPOLAR MODULE - DIODE COMPACK |
2,565 | 204.45 |
RFQ |
Box | MDMA700P1600CC | Active | 1 Pair Series Connection | Standard | 1600 V | 700A | 1.14 V @ 700 A | Standard Recovery >500ns, > 200mA (Io) | - | 500 µA @ 1600 V | -40°C ~ 150°C | Chassis Mount | |
|
DSS2X61-0045ADIODE MODULE 45V 60A SOT227B |
2,425 | 0.00 |
RFQ |
Datasheet |
Tube | - | Discontinued at Mosen | 2 Independent | Schottky | 45 V | 60A | 740 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 45 V | - | Chassis Mount |
|
DSSK40-0015BDIODE ARRAY SCHOTTKY 15V TO247AD |
3,380 | 0.00 |
RFQ |
Datasheet |
Tube | - | Discontinued at Mosen | 1 Pair Common Cathode | Schottky | 15 V | 20A | 440 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 15 V | -55°C ~ 150°C | Through Hole |
|
|
DSSK60-0045ADIODE ARRAY SCHOTTKY 45V TO247AD |
3,627 | 0.00 |
RFQ |
Datasheet |
Tube | - | Discontinued at Mosen | 1 Pair Common Cathode | Schottky | 45 V | 30A | 690 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 45 V | -55°C ~ 175°C | Through Hole |
|
|
DSSK70-0015BDIODE ARRAY SCHOTTKY 15V TO247AD |
3,995 | 0.00 |
RFQ |
Datasheet |
Tube | - | Discontinued at Mosen | 1 Pair Common Cathode | Schottky | 15 V | 35A | 450 mV @ 35 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 mA @ 15 V | -55°C ~ 150°C | Through Hole |
|
|
DSSK70-008ADIODE ARRAY SCHOTTKY 80V TO247AD |
2,117 | 0.00 |
RFQ |
Datasheet |
Tube | - | Discontinued at Mosen | 1 Pair Common Cathode | Schottky | 80 V | 35A | 770 mV @ 35 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4 mA @ 80 V | -55°C ~ 175°C | Through Hole |
|
|
DSS2X121-0045BDIODE MODULE 45V 120A SOT227B |
2,897 | 0.00 |
RFQ |
Datasheet |
Tube | - | Discontinued at Mosen | 2 Independent | Schottky | 45 V | 120A | 620 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 120 mA @ 45 V | - | Chassis Mount |
|
|
DSS2X160-01ADIODE MODULE 100V 160A SOT227B |
3,281 | 0.00 |
RFQ |
Datasheet |
Tube | - | Discontinued at Mosen | 1 Pair Common Cathode | Schottky | 100 V | 160A | 980 mV @ 160 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4 mA @ 100 V | - | Chassis Mount |
|
|
DSS2X41-01ADIODE MODULE 100V 40A SOT227B |
3,717 | 0.00 |
RFQ |
Datasheet |
Tube | - | Discontinued at Mosen | 2 Independent | Schottky | 100 V | 40A | 880 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 100 V | - | Chassis Mount |
|
|
DSS2X61-01ADIODE MODULE 100V 60A SOT227B |
2,742 | 0.00 |
RFQ |
Datasheet |
Tube | - | Discontinued at Mosen | 2 Independent | Schottky | 100 V | 60A | 910 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 100 V | - | Chassis Mount |
|
|
DSSK60-015ADIODE ARRAY SCHOTTKY 150V TO247 |
2,557 | 0.00 |
RFQ |
Datasheet |
Tube | - | Discontinued at Mosen | 1 Pair Common Cathode | Schottky | 150 V | 30A | 810 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 150 V | -55°C ~ 175°C | Through Hole |
|
|
DSSK80-0045BDIODE ARRAY SCHOTTKY 45V TO247AD |
2,558 | 0.00 |
RFQ |
Datasheet |
Tube | - | Discontinued at Mosen | 1 Pair Common Cathode | Schottky | 45 V | 40A | 510 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 30 mA @ 45 V | -55°C ~ 150°C | Through Hole |
|
|
DSS2X101-015ADIODE MODULE 150V 100A SOT227B |
3,021 | 0.00 |
RFQ |
Datasheet |
Tube | - | Discontinued at Mosen | 2 Independent | Schottky | 150 V | 100A | 910 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4 mA @ 150 V | - | Chassis Mount |
|
|
HTZ270H48KDIODE MODULE 48KV 3.4A |
3,071 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 48000 V | 3.4A | 46 V @ 12 A | Standard Recovery >500ns, > 200mA (Io) | - | 500 µA @ 48000 V | - | Chassis Mount |
|
|
DSEC30-04ADIODE ARRAY GP 400V 15A TO247AD |
2,200 | 0.00 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | Obsolete | 1 Pair Common Cathode | Standard | 400 V | 15A | 1.47 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 100 µA @ 400 V | -55°C ~ 175°C | Through Hole |
