| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DSIK45-16ARDIODE ARRAY 1600V 45A ISOPLUS247 |
3,074 | 7.40 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Standard | 1600 V | 45A | 1.22 V @ 40 A | Standard Recovery >500ns, > 200mA (Io) | - | 3 mA @ 1600 V | -40°C ~ 175°C | Through Hole |
|
|
DSSK70-008ARDIODE ARRAY SCHOTTKY 80V 35A |
2,645 | 8.97 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 80 V | 35A | 760 mV @ 35 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4 mA @ 80 V | -55°C ~ 175°C | Through Hole |
|
|
DSSS35-008ARDIODE ARRAY SCHOTTKY 80V 35A |
3,913 | 8.97 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Series Connection | Schottky | 80 V | 35A | 790 mV @ 35 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4 mA @ 80 V | -55°C ~ 175°C | Through Hole |
|

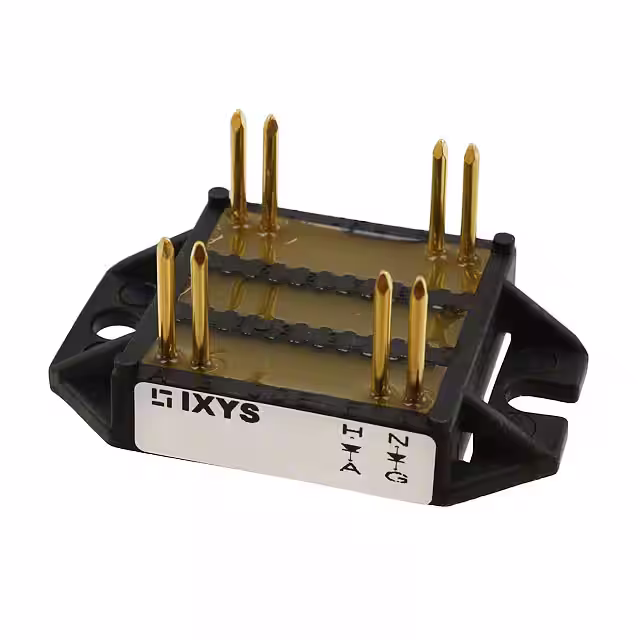

DSEI2X61-06PDIODE MODULE 600V 60A ECO-PAC1 |
2,681 | 20.15 |
RFQ |
Datasheet |
Box | FRED | Active | 2 Independent | Standard | 600 V | 60A | 1.8 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 200 µA @ 600 V | - | Chassis Mount |
|
DHG50X1200NADIODE MODULE 1.2KV 25A SOT227B |
2,701 | 20.28 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Standard | 1200 V | 25A | 2.12 V @ 25 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 50 µA @ 1200 V | - | Chassis Mount |
|
DSEI2X60-04CPWR DIODE DISC-FRED SOT-227B (MI |
3,245 | 19.02 |
RFQ |
Tube | DSEI2x60-04C | Active | 1 Pair Series Connection | Standard | 400 V | 60A | 1.8 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 200 µA @ 400 V | -40°C ~ 150°C | Chassis Mount | |
|
|
DSEP2X31-06BDIODE MODULE 600V 30A SOT227B |
3,781 | 19.36 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | Active | 2 Independent | Standard | 600 V | 30A | 2.49 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 250 µA @ 600 V | - | Chassis Mount |
|
|
DHG50X650NAPOWER DIODE DISC-SONIC SOT-227B |
2,353 | 20.18 |
RFQ |
Tube | DHG 50X650NA | Active | 2 Independent | Standard | 650 V | 25A | 2.03 V @ 25 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | - | - | Chassis Mount | |
|
|
DSEI2X61-12PDIODE MODULE 1.2KV 52A ECO-PAC1 |
3,219 | 21.10 |
RFQ |
Datasheet |
Bulk | FRED | Active | 2 Independent | Standard | 1200 V | 52A | 2.5 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 2.2 mA @ 1200 V | - | Chassis Mount |
|
MDMA35P1200TGDIODE MODULE 1.2KV 35A TO240AA |
2,563 | 21.35 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1200 V | 35A | 1.16 V @ 35 A | Standard Recovery >500ns, > 200mA (Io) | - | 40 µA @ 1200 V | - | Chassis Mount |
|
|
MDD44-08N1BDIODE MODULE 800V 64A TO240AA |
3,156 | 21.65 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 800 V | 64A | 1.6 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 800 V | - | Chassis Mount |
|
|
DHG100X650NAPOWER DIODE DISC-SONIC SOT-227B |
2,090 | 22.14 |
RFQ |
Tube | DFE250X600NA | Active | 2 Independent | Standard | 600 V | 125A | 1.26 V @ 125 A | Fast Recovery =< 500ns, > 200mA (Io) | 80 ns | 3 mA @ 600 V | -40°C ~ 150°C | Chassis Mount | |
|
|
MDMA50P1200TGDIODE MODULE 1.2KV 50A TO240AA |
2,986 | 22.17 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1200 V | 50A | 1.18 V @ 50 A | Standard Recovery >500ns, > 200mA (Io) | - | 100 µA @ 1200 V | - | Chassis Mount |
|
|
DSEP2X31-12ADIODE MODULE 1.2KV 30A SOT227B |
3,658 | 23.01 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | Active | 2 Independent | Standard | 1200 V | 30A | 2.72 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 40 ns | 250 µA @ 1200 V | - | Chassis Mount |
|
|
MDMA35P1600TGDIODE MODULE 1.6KV 35A TO240AA |
3,588 | 23.37 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 35A | 1.16 V @ 35 A | Standard Recovery >500ns, > 200mA (Io) | - | 40 µA @ 1600 V | - | Chassis Mount |
|
|
DFE250X600NAPWR DIODE DISC-FRED SOT-227B (MI |
3,249 | 23.73 |
RFQ |
Tube | DFE250X600NA | Active | 2 Independent | Standard | 600 V | 125A | 1.26 V @ 125 A | Fast Recovery =< 500ns, > 200mA (Io) | 80 ns | 3 mA @ 600 V | -40°C ~ 150°C | Chassis Mount | |
|
|
MDD26-12N1BDIODE MODULE 1.2KV 36A TO240AA |
2,696 | 23.91 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1200 V | 36A | 1.38 V @ 80 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 1200 V | - | Chassis Mount |
|
|
MDMA50P1600TGDIODE MODULE 1.6KV 50A TO240AA |
2,477 | 24.28 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 50A | 1.18 V @ 50 A | Standard Recovery >500ns, > 200mA (Io) | - | 100 µA @ 1600 V | - | Chassis Mount |
|
|
MDMA65P1200TGDIODE MODULE 1.2KV 65A TO240AA |
2,074 | 24.44 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1200 V | 65A | 1.18 V @ 65 A | Standard Recovery >500ns, > 200mA (Io) | - | 100 µA @ 1200 V | - | Chassis Mount |
|
|
DHG100X1200NADIODE MODULE 1.2KV 50A SOT227B |
3,538 | 26.42 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Standard | 1200 V | 50A | 2.16 V @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 100 µA @ 1200 V | - | Chassis Mount |
