Categories
Diodes - Bridge Rectifiers(9417)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeType | Technology | Voltage-PeakReverse(Max) | Current-AverageRectified(Io) | Voltage-Forward(Vf)(Max)@If | Current-ReverseLeakage@Vr | OperatingTemperature | MountingType | VRRM(V) | I(AV)(A) | IFSM(A) | VF@IF(V) | VF@IF(A) | IR(μA) | Trr(ns) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

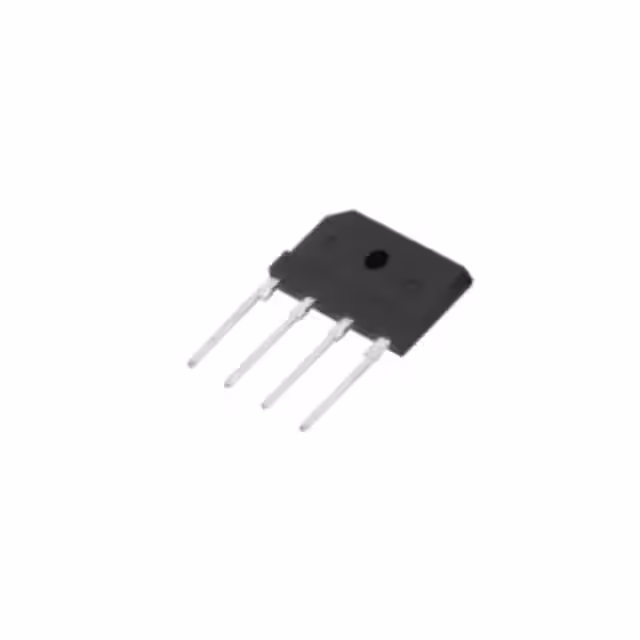

GBJ2508RECT BRIDGE 800V 25A 6KBJ |
3,058 | 1.20 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 800 V | 25 A | 1 V @ 12.5 A | 5 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBJ | ||||||
|
GBJ1510ARECT BRIDGE 1000V 15A 6KBJ |
2,677 | 1.20 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 15 A | 1 V @ 7.5 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP, KBJ | ||||||
|
GBPC2506WBRIDGE RECTIFIER DIODE, 1 PHASE |
2,211 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 600 V | 25 A | 1.1 V @ 12.5 A | 5 µA @ 600 V | -65°C ~ 150°C (TJ) | Through Hole | |||||||
|
GBU6KBRIDGE RECTIFIER DIODE, 1 PHASE |
3,024 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 800 V | 4.2 A | 1 V @ 6 A | 5 µA @ 800 V | -50°C ~ 150°C (TJ) | Through Hole | |||||||
|
|
DF02SBRIDGE RECTIFIER DIODE, 1 PHASE |
2,485 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 200 V | 1 A | 1.1 V @ 1.5 A | 10 µA @ 200 V | -65°C ~ 150°C (TJ) | Surface Mount | |||||||
|
KBU810RECT BRIDGE 1000V 8A KBU |
3,354 | 1.23 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 1 kV | 8 A | 1.1 V @ 4 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP, KBU | ||||||
|
|
KBU806RECT BRIDGE 600V 8A KBU |
3,316 | 1.23 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 600 V | 8 A | 1.1 V @ 4 A | 10 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP, KBU | ||||||
|
RS1505M-C-LVBDGE RCT GLASS 600V LV 15A RS15M |
2,519 | 1.25 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 15 A | 900 mV @ 7.5 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-15M | ||||||
|
|
GBJ2506ARECT BRIDGE 600V 25A 6KBJ |
2,645 | 1.25 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 25 A | 1 V @ 12.5 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP, KBJ | ||||||
|
|
KBJ1510RECT BRIDGE 1000V 15A 4KBJ |
3,667 | 1.28 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 15 A | 1 V @ 7.5 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP, KBJ | ||||||
|
RS1001M-C-LVBRDGE RCT GLASS LV 50V 10A RS10M |
2,400 | 1.35 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 50 V | 10 A | 900 mV @ 5 A | 5 µA @ 50 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-10M | ||||||
|
RS1003M-C-LVBDGE RCT GLASS LV 200V 10A RS10M |
2,998 | 1.35 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 200 V | 10 A | 900 mV @ 5 A | 5 µA @ 200 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-10M | ||||||
|
RS2502MBRIDGE RECT GLASS 100V 25A RS25M |
3,791 | 1.35 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 100 V | 25 A | 1 V @ 12.5 A | 500 nA @ 100 V | 150°C (TJ) | Through Hole | 4-SIP, RS-25M | ||||||
|
|
RS1005M-C-LVBRDGE RT GLASS LV 600V 10A RS10M |
3,960 | 1.35 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 10 A | 900 mV @ 5 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-10M | ||||||
|
RS2507MBRIDGE REC GLASS 1000V 25A RS25M |
2,429 | 1.35 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 25 A | 1 V @ 12.5 A | 500 nA @ 1000 V | 150°C (TJ) | Through Hole | 4-SIP, RS-25M | ||||||
|
|
RS1004M-C-LVBDGE RT GLASS LV 400V 10A RS10M |
2,265 | 1.35 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 400 V | 10 A | 900 mV @ 5 A | 5 µA @ 400 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-10M | ||||||
|
|
RS2503MBRIDGE RECT GLASS 200V 25A RS25M |
2,036 | 1.35 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 200 V | 25 A | 1 V @ 12.5 A | 500 nA @ 200 V | 150°C (TJ) | Through Hole | 4-SIP, RS-25M | ||||||
|
RS2504MBRIDGE RECT GLASS 400V 25A RS25M |
3,387 | 1.35 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 400 V | 25 A | 1 V @ 12.5 A | 500 nA @ 400 V | 150°C (TJ) | Through Hole | 4-SIP, RS-25M | ||||||
|
|
RS1002M-C-LVBRDG RCT GLASS LV 100V 10A RS10M |
2,828 | 1.35 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 100 V | 10 A | 900 mV @ 5 A | 5 µA @ 100 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-10M | ||||||
|
|
RS2506MBRIDGE RECT GLASS 800V 25A RS25M |
3,980 | 1.35 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 800 V | 25 A | 1 V @ 12.5 A | 500 nA @ 800 V | 150°C (TJ) | Through Hole | 4-SIP, RS-25M |
