Diodes - Bridge Rectifiers(9417)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeType | Technology | Voltage-PeakReverse(Max) | Current-AverageRectified(Io) | Voltage-Forward(Vf)(Max)@If | Current-ReverseLeakage@Vr | OperatingTemperature | MountingType | VRRM(V) | I(AV)(A) | IFSM(A) | VF@IF(V) | VF@IF(A) | IR(μA) | Trr(ns) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RS2007MBRIDGE REC GLASS 1000V 20A RS20M |
2,103 | 1.16 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 20 A | 1.1 V @ 10 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-20M | ||||||
|
|
RS2001MBRIDGE RECT GLASS 50V 20A RS-20M |
2,561 | 1.16 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 50 V | 20 A | 1.1 V @ 10 A | 5 µA @ 50 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-20M | ||||||
|
GBU810ARECT BRIDGE 1000V 8A GBU |
2,496 | 1.16 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 8 A | 1 V @ 4 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP, GBU | ||||||
|
|
GBU1508RECT BRIDGE 800V 15A GBU |
2,795 | 1.16 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 800 V | 15 A | 1 V @ 7.5 A | 5 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP, GBU | ||||||
|
KBU606RECT BRIDGE 600V 6A KBU |
2,490 | 1.16 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 600 V | 6 A | 1 V @ 3 A | 10 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP, KBU | ||||||
|
|
KBU610RECT BRIDGE 1000V 6A KBU |
2,064 | 1.16 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 1 kV | 6 A | 1 V @ 3 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP, KBU | ||||||
|
|
GBU1506RECT BRIDGE 600V 15A GBU |
2,850 | 1.16 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 15 A | 1 V @ 7.5 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP, GBU | ||||||
|
|
KBU608RECT BRIDGE 800V 6A KBU |
2,058 | 1.16 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 800 V | 6 A | 1 V @ 3 A | 10 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP, KBU | ||||||
|
|
GBU1010ARECT BRIDGE 1000V 10A GBU |
3,739 | 1.16 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 10 A | 1 V @ 5 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP, GBU | ||||||
|
|
GBU1510RECT BRIDGE 1000V 15A GBU |
2,520 | 1.16 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 15 A | 1 V @ 7.5 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP, GBU | ||||||
|
|
GBU806ARECT BRIDGE 600V 8A GBU |
3,382 | 1.16 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 8 A | 1 V @ 4 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP, GBU | ||||||
|

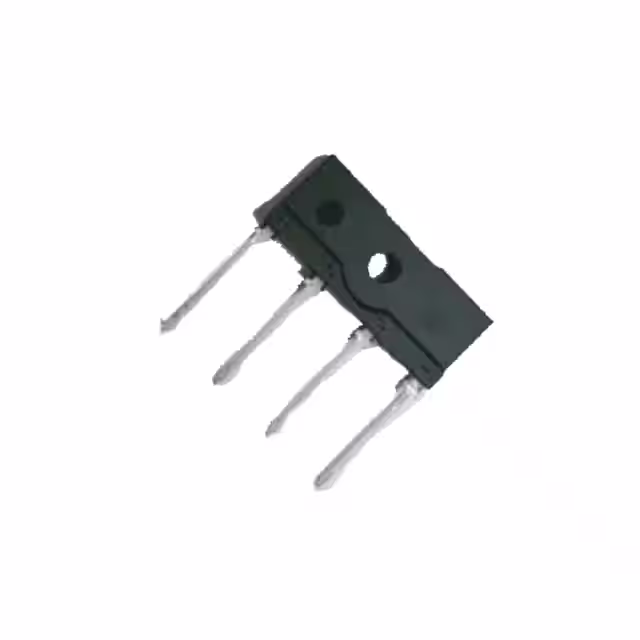

RS2006MLSBRDGE RCT GLASS 800V 20A RS10MLS |
3,353 | 1.20 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 800 V | 20 A | 1 V @ 10 A | 5 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-20MLS | ||||||
|
|
RS2007MLSBRDGE RC GLASS 1000V 20A RS10MLS |
2,617 | 1.20 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 20 A | 1 V @ 10 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-20MLS | ||||||
|
|
RS2005MLSBRDGE RCT GLASS 600V 20A RS10MLS |
3,025 | 1.20 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 20 A | 1 V @ 10 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-20MLS | ||||||
|
|
RS2003MLSBRDGE RCT GLASS 200V 20A RS10MLS |
3,275 | 1.20 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 200 V | 20 A | 1 V @ 10 A | 5 µA @ 200 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-20MLS | ||||||
|
|
RS2002MLSBRDGE RCT GLASS 100V 20A RS10MLS |
3,300 | 1.20 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 100 V | 20 A | 1 V @ 10 A | 5 µA @ 100 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-20MLS | ||||||
|
|
RS2004MLSBRDGE RCT GLASS 400V 20A RS10MLS |
2,673 | 1.20 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 400 V | 20 A | 1 V @ 10 A | 5 µA @ 400 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-20MLS | ||||||
|
|
RS2001MLSBRIDGE RCT GLASS 50V 15A RS10MLS |
3,469 | 1.20 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 50 V | 20 A | 1 V @ 10 A | 5 µA @ 50 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-20MLS | ||||||
|
GBJ2006RECT BRIDGE 600V 20A 6KBJ |
3,322 | 1.20 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 20 A | 1 V @ 1 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBJ | ||||||
|
|
GBJ2506RECT BRIDGE 600V 25A 6KBJ |
2,205 | 1.20 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 25 A | 1 V @ 12.5 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBJ |
