Diodes - Bridge Rectifiers(9417)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeType | Technology | Voltage-PeakReverse(Max) | Current-AverageRectified(Io) | Voltage-Forward(Vf)(Max)@If | Current-ReverseLeakage@Vr | OperatingTemperature | MountingType | VRRM(V) | I(AV)(A) | IFSM(A) | VF@IF(V) | VF@IF(A) | IR(μA) | Trr(ns) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RS1001MBRIDGE RECT GLASS 50V 10A RS10M |
2,859 | 0.98 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 50 V | 10 A | 1.1 V @ 5 A | 5 µA @ 50 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-10M | ||||||
|

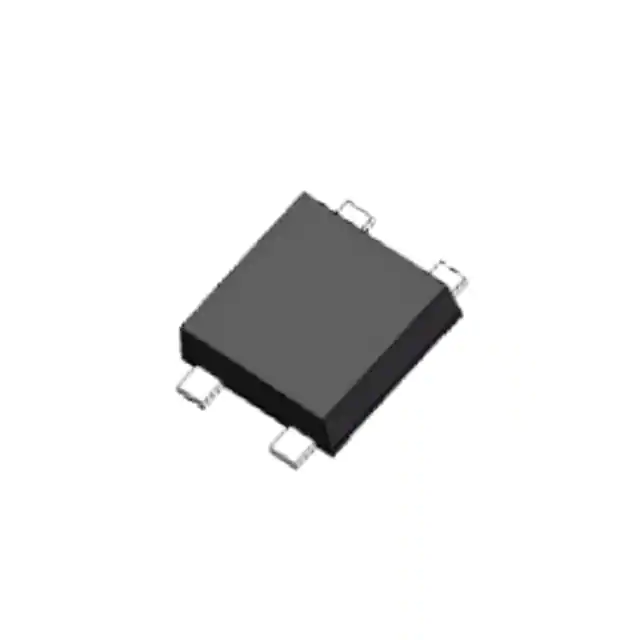

RS607MBRIDGE RECT GLASS 1000V 6A RS-6M |
3,294 | 0.98 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 6 A | 1.1 V @ 6 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-6M | ||||||
|
RS605MBRIDGE RECT GLASS 600V 6A RS-6M |
3,894 | 0.98 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 6 A | 1.1 V @ 6 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-6M | ||||||
|
RS601BRIDGE RECT GLASS 50V 6A RS-6L |
3,588 | 0.98 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 50 V | 6 A | 1.05 V @ 6 A | 500 nA @ 50 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-6 | ||||||
|
|
RS602BRIDGE RECT GLASS 100V 6A RS-6L |
2,260 | 0.98 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 100 V | 6 A | 1.05 V @ 6 A | 500 nA @ 100 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-6 | ||||||
|
GBJ810RECT BRIDGE 1000V 8A 6KBJ |
2,534 | 0.98 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 8 A | 1 V @ 4 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBJ | ||||||
|
D8JB80RECT BRIDGE 800V 8A JB |
3,889 | 0.98 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 800 V | 8 A | 1 V @ 4 A | 5 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP, JB | ||||||
|
GBU606RECT BRIDGE 600V 6A GBU |
3,843 | 0.99 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 6 A | 1 V @ 3 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP, GBU | ||||||
|
|
GBU408ARECT BRIDGE 800V 4A GBU |
3,549 | 0.99 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 800 V | 4 A | 1 V @ 2 A | 5 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP, GBU | ||||||
|
|
GBU406ARECT BRIDGE 600V 4A GBU |
2,217 | 0.99 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 4 A | 1 V @ 2 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP, GBU | ||||||
|
|
GBU410ARECT BRIDGE 1000V 4A GBU |
2,436 | 0.99 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 4 A | 1 V @ 2 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP, GBU | ||||||
|
RS1505MBRIDGE RECT GLASS 600V 15A RS15M |
3,532 | 1.00 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 15 A | 1.05 V @ 7.5 A | 500 nA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-15M | ||||||
|
|
RS1502MBRIDGE RECT GLASS 100V 15A RS15M |
2,349 | 1.00 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 100 V | 15 A | 1.05 V @ 7.5 A | 500 nA @ 100 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-15M | ||||||
|
|
RS1501MBRIDGE RECT GLASS 50V 15A RS-15M |
3,151 | 1.00 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 50 V | 15 A | 1.05 V @ 7.5 A | 500 nA @ 50 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-15M | ||||||
|
|
RS1504MBRIDGE RECT GLASS 400V 15A RS15M |
2,709 | 1.00 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 400 V | 15 A | 1.05 V @ 7.5 A | 500 nA @ 400 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-15M | ||||||
|
|
RS1507MBRIDGE REC GLASS 1000V 15A RS15M |
2,092 | 1.00 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 15 A | 1.05 V @ 7.5 A | 500 nA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-15M | ||||||
|
|
RS1503MBRIDGE RECT GLASS 200V 15A RS15M |
2,334 | 1.00 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 200 V | 15 A | 1.05 V @ 7.5 A | 500 nA @ 200 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-15M | ||||||
|
|
RS1506MBRIDGE RECT GLASS 800V 15A RS15M |
3,393 | 1.00 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 800 V | 15 A | 1.05 V @ 7.5 A | 500 nA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-15M | ||||||
|
GBU6JBRIDGE RECTIFIER DIODE, 1 PHASE |
3,961 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 600 V | 4.2 A | 1 V @ 6 A | 5 µA @ 600 V | -50°C ~ 150°C (TJ) | Through Hole | |||||||
|
|
GBU4JBRIDGE RECTIFIER DIODE, 1 PHASE |
3,627 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 600 V | 2.8 A | 1 V @ 4 A | 5 µA @ 600 V | -50°C ~ 150°C (TJ) | Through Hole |
