Diodes - Bridge Rectifiers(9417)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeType | Technology | Voltage-PeakReverse(Max) | Current-AverageRectified(Io) | Voltage-Forward(Vf)(Max)@If | Current-ReverseLeakage@Vr | OperatingTemperature | MountingType | VRRM(V) | I(AV)(A) | IFSM(A) | VF@IF(V) | VF@IF(A) | IR(μA) | Trr(ns) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BR101BRIDGE RECT 100V 10A BR-10 |
3,799 | 0.98 |
RFQ |
Datasheet |
Tray | - | Active | Single Phase | Standard | 100 V | 6 A | 1.1 V @ 5 A | 5 µA @ 100 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, BR-8 | ||||||
|
RS1002MBRIDGE RECT GLASS 100V 10A RS10M |
3,759 | 0.98 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 100 V | 10 A | 1.1 V @ 5 A | 5 µA @ 100 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-10M | ||||||
|
RS605BRIDGE RECT GLASS 600V 6A RS-6L |
3,398 | 0.98 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 6 A | 1.05 V @ 6 A | 200 nA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-6 | ||||||
|
RS601MBRIDGE RECT GLASS 50V 6A RS-6M |
3,715 | 0.98 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 50 V | 6 A | 1.1 V @ 6 A | 5 µA @ 50 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-6M | ||||||
|
|
RS606MBRIDGE RECT GLASS 800V 6A RS-6M |
2,377 | 0.98 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 800 V | 6 A | 1.1 V @ 6 A | 5 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-6M | ||||||
|
|
RS1004MBRIDGE RECT GLASS 400V 10A RS10M |
2,743 | 0.98 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 400 V | 10 A | 1.1 V @ 5 A | 5 µA @ 400 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-10M | ||||||
|
|
RS604BRIDGE RECT GLASS 400V 6A RS-6L |
2,584 | 0.98 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 400 V | 6 A | 1.05 V @ 6 A | 200 nA @ 400 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-6 | ||||||
|
|
RS1006MBRIDGE RECT GLASS 800V 10A RS10M |
2,689 | 0.98 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 800 V | 10 A | 1.1 V @ 5 A | 5 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-10M | ||||||
|
|
BR104BRIDGE RECT 400V 10A BR-10 |
3,692 | 0.98 |
RFQ |
Datasheet |
Tray | - | Active | Single Phase | Standard | 400 V | 6 A | 1.1 V @ 5 A | 5 µA @ 400 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, BR-8 | ||||||
|
|
RS607BRIDGE RECT GLASS 1000V 6A RS-6L |
2,394 | 0.98 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 6 A | 1.05 V @ 6 A | 200 nA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-6 | ||||||
|
BR1005BRIDGE RECT 50V 10A BR-10 |
2,895 | 0.98 |
RFQ |
Datasheet |
Tray | - | Active | Single Phase | Standard | 50 V | 6 A | 1.1 V @ 5 A | 5 µA @ 50 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, BR-8 | ||||||
|
BR106BRIDGE RECT 600V 10A BR-10 |
3,294 | 0.98 |
RFQ |
Datasheet |
Tray | - | Active | Single Phase | Standard | 600 V | 6 A | 1.1 V @ 5 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, BR-8 | ||||||
|
|

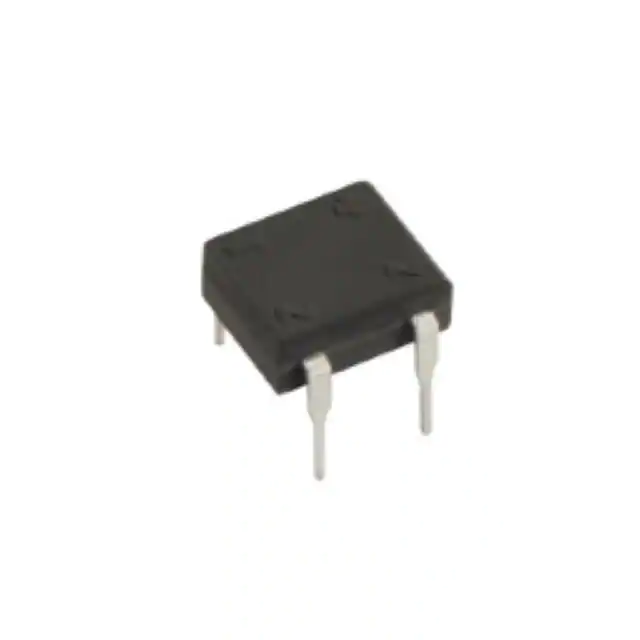

BR1010BRIDGE RECT 1000V 10A BR-10 |
3,783 | 0.98 |
RFQ |
Datasheet |
Tray | - | Active | Single Phase | Standard | 1 kV | 6 A | 1.1 V @ 5 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, BR-8 | ||||||
|
RS1003MBRIDGE RECT GLASS 200V 10A RS10M |
3,035 | 0.98 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 200 V | 10 A | 1.1 V @ 5 A | 5 µA @ 200 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-10M | ||||||
|
|
RS603BRIDGE RECT GLASS 200V 6A RS-6L |
3,826 | 0.98 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 200 V | 6 A | 1.05 V @ 6 A | 200 nA @ 200 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-6 | ||||||
|
|
RS1007MBRIDGE REC GLASS 1000V 10A RS10M |
2,025 | 0.98 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 10 A | 1.1 V @ 5 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-10M | ||||||
|
|
RS1005MBRIDGE RECT GLASS 600V 10A RS10M |
2,645 | 0.98 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 10 A | 1.1 V @ 5 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-10M | ||||||
|
|
RS603MBRIDGE RECT GLASS 200V 6A RS-6M |
3,152 | 0.98 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 200 V | 6 A | 1.1 V @ 6 A | 5 µA @ 200 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-6M | ||||||
|
|
BR108BRIDGE RECT 800V 10A BR-10 |
3,825 | 0.98 |
RFQ |
Datasheet |
Tray | - | Active | Single Phase | Standard | 800 V | 6 A | 1.1 V @ 5 A | 5 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, BR-8 | ||||||
|
|
RS602MBRIDGE RECT GLASS 100V 6A RS-6M |
3,666 | 0.98 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 100 V | 6 A | 1.1 V @ 6 A | 5 µA @ 100 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-6M |
