| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | NumberofOutputs | Voltage-Input(Min) | Voltage-Input(Max) | Voltage-Output1 | Voltage-Output2 | Voltage-Output3 | Voltage-Output4 | Current-Output(Max) | Power(Watts) | Voltage-Isolation | Applications | Features | OperatingTemperature | Efficiency | MountingType | Size/Dimension | ControlFeatures | ApprovalAgency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEME1-S12-D15-SDC-DC ISOLATED 3KV, 1 W, 10.8~13 |
190 | 3.95 |
RFQ |
Datasheet |
7-SIP Module, 5 Leads | Tube | PEME1-S (1W) | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 34mA, 34mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 81% | Through Hole | 0.77 L x 0.24 W x 0.40 H (19.7mm x 6.0mm x 10.2mm) | ||
|
|
PEME1-S24-D12-SDC-DC ISOLATED 3KV, 1 W, 21.6~26 |
375 | 4.17 |
RFQ |
Datasheet |
7-SIP Module, 5 Leads | Tube | PEME1-S (1W) | Active | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 81% | Through Hole | 0.77 L x 0.24 W x 0.40 H (19.7mm x 6.0mm x 10.2mm) | ||
|
|
PEME1-S24-D15-SDC-DC ISOLATED 3KV, 1 W, 21.6~26 |
236 | 4.17 |
RFQ |
Datasheet |
7-SIP Module, 5 Leads | Tube | PEME1-S (1W) | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 34mA, 34mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 79% | Through Hole | 0.77 L x 0.24 W x 0.40 H (19.7mm x 6.0mm x 10.2mm) | ||
|
PDME2-S12-S15-SDC-DC ISOLATED, 2 W, 10.8~13.2 V |
275 | 4.21 |
RFQ |
Datasheet |
6-SIP Module, 4 Leads | Tube | PDME2-S (2W) | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 133mA | 1.995 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 85% | Through Hole | 0.77 L x 0.28 W x 0.40 H (19.7mm x 7.1mm x 10.2mm) | ||
|
|
PDME2-S12-S5-SDC-DC ISOLATED, 2 W, 10.8~13.2 V |
212 | 4.21 |
RFQ |
Datasheet |
6-SIP Module, 4 Leads | Tube | PDME2-S (2W) | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 82% | Through Hole | 0.77 L x 0.28 W x 0.40 H (19.7mm x 7.1mm x 10.2mm) | ||
|
|

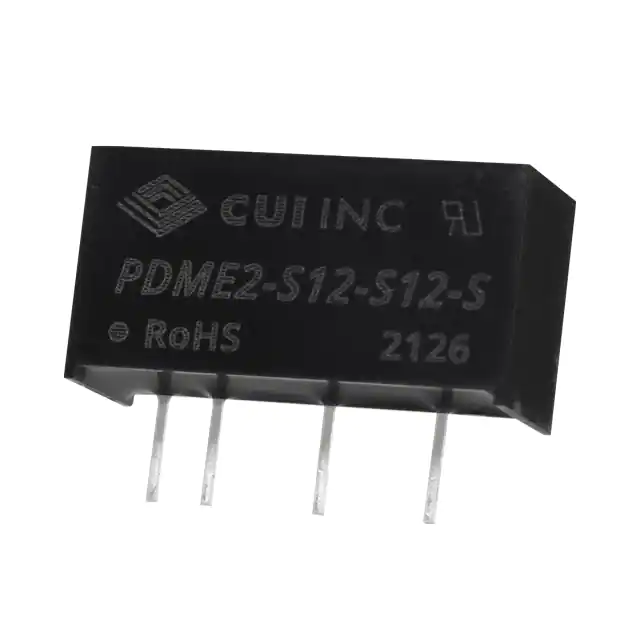

PDME2-S12-S12-SDC-DC ISOLATED, 2 W, 10.8~13.2 V |
185 | 4.21 |
RFQ |
Datasheet |
6-SIP Module, 4 Leads | Tube | PDME2-S (2W) | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 167mA | 2.004 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 84% | Through Hole | 0.77 L x 0.28 W x 0.40 H (19.7mm x 7.1mm x 10.2mm) | ||
|
|
PDME2-S12-D5-SDC-DC ISOLATED, 2 W, 10.8~13.2 V |
111 | 4.24 |
RFQ |
Datasheet |
6-SIP Module, 5 Leads | Tube | PDME2-S (2W) | Active | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 80% | Through Hole | 0.77 L x 0.28 W x 0.40 H (19.7mm x 7.1mm x 10.2mm) | ||
|
PQME1-S12-S15-M-TRDC-DC ISOLATED 1.5KV, 0.75 W, 11 |
500 | 5.31 |
RFQ |
Datasheet |
8-SMD Module, 5 Leads | Tape & Reel (TR),Cut Tape (CT) | PQME1-M (1W) | Active | Isolated Module | 1 | 11.4V | 12.6V | 15V | - | - | - | 50mA | 750 mW | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 74% | Surface Mount | 0.52 L x 0.33 W x 0.29 H (13.2mm x 8.5mm x 7.3mm) | ||
|
|
PDME2-S24-S24-SDC-DC ISOLATED, 2 W, 21.6~26.4 V |
250 | 4.34 |
RFQ |
Datasheet |
6-SIP Module, 4 Leads | Tube | PDME2-S (2W) | Active | Isolated Module | 1 | 21.6V | 26.4V | 24V | - | - | - | 83mA | 1.992 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 86% | Through Hole | 0.77 L x 0.28 W x 0.40 H (19.7mm x 7.1mm x 10.2mm) | ||
|
|
PDME2-S24-S12-SDC-DC ISOLATED, 2 W, 21.6~26.4 V |
149 | 4.34 |
RFQ |
Datasheet |
6-SIP Module, 4 Leads | Tube | PDME2-S (2W) | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 167mA | 2.004 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 84% | Through Hole | 0.77 L x 0.28 W x 0.40 H (19.7mm x 7.1mm x 10.2mm) | ||
|
|
PDME2-S24-S5-SDC-DC ISOLATED, 2 W, 21.6~26.4 V |
141 | 4.34 |
RFQ |
Datasheet |
6-SIP Module, 4 Leads | Tube | PDME2-S (2W) | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 80% | Through Hole | 0.77 L x 0.28 W x 0.40 H (19.7mm x 7.1mm x 10.2mm) | ||
|
|
PDME2-S24-D12-SDC-DC ISOLATED, 2 W, 21.6~26.4 V |
187 | 4.50 |
RFQ |
Datasheet |
6-SIP Module, 5 Leads | Tube | PDME2-S (2W) | Active | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 83mA, 83mA | 1.992 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 83% | Through Hole | 0.77 L x 0.28 W x 0.40 H (19.7mm x 7.1mm x 10.2mm) | ||
|
PDSE2-S15-S15-M-TRDC-DC 1.5KV ISOLATED, 2 W, 13.5~ |
665 | 5.64 |
RFQ |
Datasheet |
8-SMD Module, 5 Leads | Tape & Reel (TR),Cut Tape (CT) | PDSE2-M (2W) | Active | Isolated Module | 1 | 13.5V | 16.5V | 15V | - | - | - | 133mA | 1.995 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 84% | Surface Mount | 0.52 L x 0.33 W x 0.29 H (13.2mm x 8.5mm x 7.3mm) | ||
|
|
PDSE2-S12-S9-M-TRDC-DC 1.5KV ISOLATED, 2 W, 10.8~ |
500 | 5.64 |
RFQ |
Datasheet |
8-SMD Module, 5 Leads | Tape & Reel (TR),Cut Tape (CT) | PDSE2-M (2W) | Active | Isolated Module | 1 | 10.8V | 13.2V | 9V | - | - | - | 222mA | 1.998 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 83% | Surface Mount | 0.52 L x 0.33 W x 0.29 H (13.2mm x 8.5mm x 7.3mm) | ||
|
|
PDSE2-S12-S24-M-TRDC-DC 1.5KV ISOLATED, 2 W, 10.8~ |
500 | 5.64 |
RFQ |
Datasheet |
8-SMD Module, 5 Leads | Tape & Reel (TR),Cut Tape (CT) | PDSE2-M (2W) | Active | Isolated Module | 1 | 10.8V | 13.2V | 24V | - | - | - | 83mA | 1.992 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 85% | Surface Mount | 0.52 L x 0.33 W x 0.29 H (13.2mm x 8.5mm x 7.3mm) | ||
|
PESE1-S24-S9-M-TRDC-DC ISOLATED 3KV, 1 W, 21.6~26 |
975 | 5.66 |
RFQ |
Datasheet |
8-SMD Module, 5 Leads | Tape & Reel (TR),Cut Tape (CT) | PESE1-M (1W) | Active | Isolated Module | 1 | 21.6V | 26.4V | 9V | - | - | - | 111mA | 999 mW | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | Surface Mount | 0.52 L x 0.33 W x 0.29 H (13.2mm x 8.5mm x 7.3mm) | ||
|
|
PESE1-S24-S5-M-TRDC-DC ISOLATED 3KV, 1 W, 21.6~26 |
940 | 5.66 |
RFQ |
Datasheet |
8-SMD Module, 5 Leads | Tape & Reel (TR),Cut Tape (CT) | PESE1-M (1W) | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | Surface Mount | 0.52 L x 0.33 W x 0.29 H (13.2mm x 8.5mm x 7.3mm) | ||
|
|
PESE1-S24-S24-M-TRDC-DC ISOLATED 3KV, 1 W, 21.6~26 |
798 | 5.66 |
RFQ |
Datasheet |
8-SMD Module, 5 Leads | Tape & Reel (TR),Cut Tape (CT) | PESE1-M (1W) | Active | Isolated Module | 1 | 21.6V | 26.4V | 24V | - | - | - | 42mA | 1.008 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 85% | Surface Mount | 0.52 L x 0.33 W x 0.29 H (13.2mm x 8.5mm x 7.3mm) | ||
|
PDS1-S24-S24-SDC DC CONVERTER 24V 1W |
11,695 | 4.70 |
RFQ |
Datasheet |
4-SIP Module | Tube | PDS1-S (1W) | Active | Isolated Module | 1 | 21.6V | 26.4V | 24V | - | - | - | 42mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 82% | Through Hole | 0.46 L x 0.24 W x 0.40 H (11.6mm x 6.0mm x 10.2mm) | ||
|
|
PDSE2-S24-S9-M-TRDC-DC 1.5KV ISOLATED, 2 W, 21.6~ |
500 | 6.06 |
RFQ |
Datasheet |
8-SMD Module, 5 Leads | Tape & Reel (TR),Cut Tape (CT) | PDSE2-M (2W) | Active | Isolated Module | 1 | 21.6V | 26.4V | 9V | - | - | - | 222mA | 1.998 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 83% | Surface Mount | 0.52 L x 0.33 W x 0.29 H (13.2mm x 8.5mm x 7.3mm) |
