| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | NumberofOutputs | Voltage-Input(Min) | Voltage-Input(Max) | Voltage-Output1 | Voltage-Output2 | Voltage-Output3 | Voltage-Output4 | Current-Output(Max) | Power(Watts) | Voltage-Isolation | Applications | Features | OperatingTemperature | Efficiency | MountingType | Size/Dimension | ControlFeatures | ApprovalAgency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PDSE1-S24-S24-DDC-DC 3KV ISOLATED, 1 W, 21.6~26 |
120 | 3.33 |
RFQ |
Datasheet |
7-DIP Module, 4 Leads | Tube | PDSE1-D (1W) | Active | Isolated Module | 1 | 21.6V | 26.4V | 24V | - | - | - | 42mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 81% | Through Hole | 0.50 L x 0.40 W x 0.32 H (12.7mm x 10.2mm x 8.2mm) | ||
|
PYSE1-S24-S24-DDC-DC 1.5KV ISOLATED, 1 W, 21.6~ |
120 | 3.33 |
RFQ |
Datasheet |
8-DIP Module, 4 Leads | Tube | PYSE1-D (1W) | Active | Isolated Module | 1 | 21.6V | 26.4V | 24V | - | - | - | 42mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 81% | Through Hole | 0.50 L x 0.40 W x 0.32 H (12.7mm x 10.2mm x 8.2mm) | ||
|

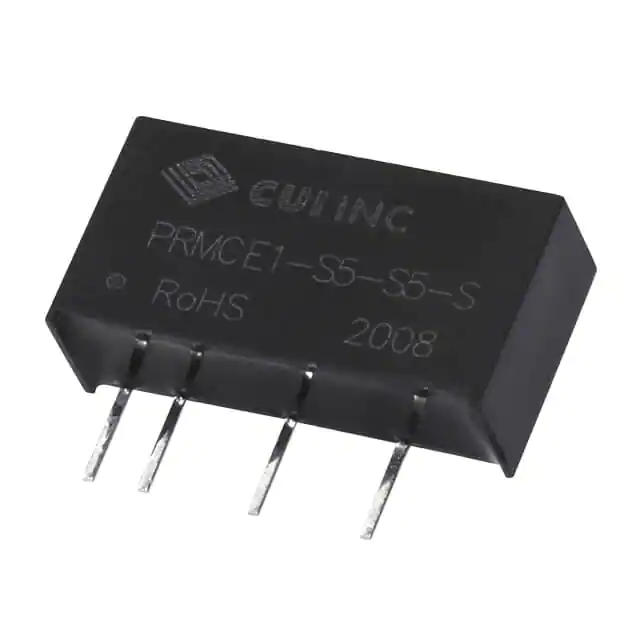

PRMCE1-S12-S5-SDC-DC ISOLATED 3K, 1 W, 11.4~12. |
469 | 3.42 |
RFQ |
Datasheet |
7-SIP Module, 4 Leads | Tube | PRMCE1-S (1W) | Active | Isolated Module | 1 | 11.4V | 12.6V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 73% | Through Hole | 0.77 L x 0.24 W x 0.40 H (19.7mm x 6.0mm x 10.2mm) | ||
|
|
PRMCE1-S12-S12-SDC-DC ISOLATED 3K, 1 W, 11.4~12. |
175 | 3.42 |
RFQ |
Datasheet |
7-SIP Module, 4 Leads | Tube | PRMCE1-S (1W) | Active | Isolated Module | 1 | 11.4V | 12.6V | 12V | - | - | - | 83mA | 996 mW | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 73% | Through Hole | 0.77 L x 0.24 W x 0.40 H (19.7mm x 6.0mm x 10.2mm) | ||
|
PDSE1-S12-S15-MDC-DC ISOLATED 1.5KV, 1 W, 10.8~ |
159 | 3.42 |
RFQ |
Datasheet |
8-SMD Module, 5 Leads | Tube | PDSE1-M (1W) | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 67mA | 1.005 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | Surface Mount | 0.52 L x 0.33 W x 0.29 H (13.2mm x 8.5mm x 7.3mm) | ||
|
|
PDSE1-S12-S12-MDC-DC ISOLATED 1.5KV, 1 W, 10.8~ |
135 | 3.42 |
RFQ |
Datasheet |
8-SMD Module, 5 Leads | Tube | PDSE1-M (1W) | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 84mA | 1.008 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | Surface Mount | 0.52 L x 0.33 W x 0.29 H (13.2mm x 8.5mm x 7.3mm) | ||
|
|
PRMCE1-S12-S15-SDC-DC ISOLATED 3K, 1 W, 11.4~12. |
128 | 3.42 |
RFQ |
Datasheet |
7-SIP Module, 4 Leads | Tube | PRMCE1-S (1W) | Active | Isolated Module | 1 | 11.4V | 12.6V | 15V | - | - | - | 67mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 75% | Through Hole | 0.77 L x 0.24 W x 0.40 H (19.7mm x 6.0mm x 10.2mm) | ||
|
PDME1-S12-S9-SDC-DC ISOLATED 1.5KV, 1 W, 10.8~ |
226 | 3.44 |
RFQ |
Datasheet |
7-SIP Module, 4 Leads | Tube | PDME1-S (1W) | Active | Isolated Module | 1 | 10.8V | 13.2V | 9V | - | - | - | 111mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 80% | Through Hole | 0.77 L x 0.24 W x 0.40 H (19.7mm x 6.0mm x 10.2mm) | ||
|
|
PDME1-S12-S12-SDC-DC ISOLATED 1.5KV, 1 W, 10.8~ |
211 | 3.44 |
RFQ |
Datasheet |
7-SIP Module, 4 Leads | Tube | PDME1-S (1W) | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 83mA | 996 mW | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 80% | Through Hole | 0.77 L x 0.24 W x 0.40 H (19.7mm x 6.0mm x 10.2mm) | ||
|
|
PDSE1-S12-D15-M-TRDC-DC ISOLATED 1.5KV, 1 W, 10.8~ |
3,495 | 4.35 |
RFQ |
Datasheet |
10-SMD Module, 6 Leads | Tape & Reel (TR),Cut Tape (CT) | PDSE1-M (1W) | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 36mA, 36mA | 1.08 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | Surface Mount | 0.60 L x 0.33 W x 0.29 H (15.2mm x 8.5mm x 7.3mm) | ||
|
|
PDSE1-S12-D12-M-TRDC-DC ISOLATED 1.5KV, 1 W, 10.8~ |
2,975 | 4.35 |
RFQ |
Datasheet |
10-SMD Module, 6 Leads | Tape & Reel (TR),Cut Tape (CT) | PDSE1-M (1W) | Active | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 42mA, 42mA | 1.008 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | Surface Mount | 0.60 L x 0.33 W x 0.29 H (15.2mm x 8.5mm x 7.3mm) | ||
|
|
PDSE1-S12-D5-M-TRDC-DC ISOLATED 1.5KV, 1 W, 10.8~ |
996 | 4.35 |
RFQ |
Datasheet |
10-SMD Module, 6 Leads | Tape & Reel (TR),Cut Tape (CT) | PDSE1-M (1W) | Active | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | Surface Mount | 0.60 L x 0.33 W x 0.29 H (15.2mm x 8.5mm x 7.3mm) | ||
|
|
PDSE1-S24-D12-M-TRDC-DC ISOLATED 1.5KV, 1 W, 21.6~ |
927 | 4.39 |
RFQ |
Datasheet |
10-SMD Module, 6 Leads | Tape & Reel (TR),Cut Tape (CT) | PDSE1-M (1W) | Active | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 42mA, 42mA | 1.008 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | Surface Mount | 0.60 L x 0.33 W x 0.29 H (15.2mm x 8.5mm x 7.3mm) | ||
|
|
PDSE1-S24-D5-M-TRDC-DC ISOLATED 1.5KV, 1 W, 21.6~ |
983 | 4.39 |
RFQ |
Datasheet |
10-SMD Module, 6 Leads | Tape & Reel (TR),Cut Tape (CT) | PDSE1-M (1W) | Active | Isolated Module | 2 | 21.6V | 26.4V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | Surface Mount | 0.60 L x 0.33 W x 0.29 H (15.2mm x 8.5mm x 7.3mm) | ||
|
|
PDSE1-S24-D9-M-TRDC-DC ISOLATED 1.5KV, 1 W, 21.6~ |
955 | 4.39 |
RFQ |
Datasheet |
10-SMD Module, 6 Leads | Tape & Reel (TR),Cut Tape (CT) | PDSE1-M (1W) | Active | Isolated Module | 2 | 21.6V | 26.4V | 9V | -9V | - | - | 56mA, 56mA | 1.008 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | Surface Mount | 0.60 L x 0.33 W x 0.29 H (15.2mm x 8.5mm x 7.3mm) | ||
|
|
PDME1-S12-D15-SDC-DC ISOLATED 1.5KV, 1 W, 10.8~ |
188 | 3.55 |
RFQ |
Datasheet |
7-SIP Module, 5 Leads | Tube | PDME1-S (1W) | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 34mA, 34mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 81% | Through Hole | 0.77 L x 0.24 W x 0.40 H (19.7mm x 6.0mm x 10.2mm) | ||
|
|
PEME1-S12-S5-SDC-DC ISOLATED 3KV, 1 W, 10.8~13 |
171 | 3.55 |
RFQ |
Datasheet |
7-SIP Module, 4 Leads | Tube | PEME1-S (1W) | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 80% | Through Hole | 0.77 L x 0.24 W x 0.40 H (19.7mm x 6.0mm x 10.2mm) | ||
|
|
PEME1-S12-S12-SDC-DC ISOLATED 3KV, 1 W, 10.8~13 |
131 | 3.55 |
RFQ |
Datasheet |
7-SIP Module, 4 Leads | Tube | PEME1-S (1W) | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 83mA | 996 mW | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 80% | Through Hole | 0.77 L x 0.24 W x 0.40 H (19.7mm x 6.0mm x 10.2mm) | ||
|
|
PDME1-S12-D12-SDC-DC ISOLATED 1.5KV, 1 W, 10.8~ |
105 | 3.55 |
RFQ |
Datasheet |
7-SIP Module, 5 Leads | Tube | PDME1-S (1W) | Active | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 81% | Through Hole | 0.77 L x 0.24 W x 0.40 H (19.7mm x 6.0mm x 10.2mm) | ||
|
|
PDME1-S24-S3-SDC-DC ISOLATED 1.5KV, 1 W, 21.6~ |
396 | 3.62 |
RFQ |
Datasheet |
7-SIP Module, 4 Leads | Tube | PDME1-S (1W) | Active | Isolated Module | 1 | 21.6V | 26.4V | 3.3V | - | - | - | 303mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 75% | Through Hole | 0.77 L x 0.24 W x 0.40 H (19.7mm x 6.0mm x 10.2mm) |
