| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | NumberofOutputs | Voltage-Input(Min) | Voltage-Input(Max) | Voltage-Output1 | Voltage-Output2 | Voltage-Output3 | Voltage-Output4 | Current-Output(Max) | Power(Watts) | Voltage-Isolation | Applications | Features | OperatingTemperature | Efficiency | MountingType | Size/Dimension | ControlFeatures | ApprovalAgency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Gull Wing12.7mm.jpg)
|
PES1-S24-D5-M-TRDC DC CONVERTER +/-5V 1W |
452 | 5.73 |
RFQ |
Datasheet |
8-SMD Module, 6 Leads | Tape & Reel (TR),Cut Tape (CT) | PES1-M (1W) | Active | Isolated Module | 2 | 21.6V | 26.4V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 82% | Surface Mount | 0.50 L x 0.33 W x 0.29 H (12.7mm x 8.3mm x 7.3mm) | ||
Gull Wing15.2mm.jpg)
|
PES1-S12-D5-M-TRDC DC CONVERTER +/-5V 1W |
435 | 5.73 |
RFQ |
Datasheet |
10-SMD Module, 6 Leads | Tape & Reel (TR),Cut Tape (CT) | PES1-M (1W) | Active | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 80% | Surface Mount | 0.60 L x 0.33 W x 0.29 H (15.2mm x 8.3mm x 7.3mm) | ||
|
|
PES1-S12-D24-M-TRDC DC CONVERTER +/-24V 1W |
333 | 5.73 |
RFQ |
Datasheet |
8-SMD Module, 6 Leads | Tape & Reel (TR),Cut Tape (CT) | PES1-M (1W) | Active | Isolated Module | 2 | 10.8V | 13.2V | 24V | -24V | - | - | 21mA, 21mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 81% | Surface Mount | 0.60 L x 0.33 W x 0.29 H (15.2mm x 8.3mm x 7.3mm) | ||
|
|
PES1-S24-D12-M-TRDC DC CONVERTER +/-12V 1W |
333 | 5.73 |
RFQ |
Datasheet |
8-SMD Module, 6 Leads | Tape & Reel (TR),Cut Tape (CT) | PES1-M (1W) | Active | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 82% | Surface Mount | 0.50 L x 0.33 W x 0.29 H (12.7mm x 8.3mm x 7.3mm) | ||
|
|
PES1-S24-D9-M-TRDC DC CONVERTER +/-9V 1W |
318 | 5.73 |
RFQ |
Datasheet |
8-SMD Module, 6 Leads | Tape & Reel (TR),Cut Tape (CT) | PES1-M (1W) | Active | Isolated Module | 2 | 21.6V | 26.4V | 9V | -9V | - | - | 56mA, 56mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 82% | Surface Mount | 0.50 L x 0.33 W x 0.29 H (12.7mm x 8.3mm x 7.3mm) | ||
|

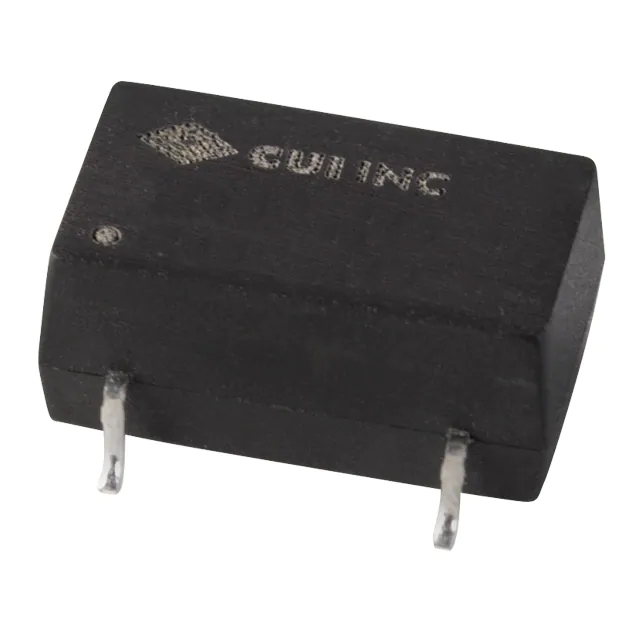

V7803-500-SMT-TRDC DC CONVERTER 3.3V 1.65W |
1,573 | 7.21 |
RFQ |
Datasheet |
10-SMD Module, 6 Leads | Tape & Reel (TR),Cut Tape (CT) | V78-500-SMT | Active | Linear Regulator Replacement | 1 | 4.5V | 28V | 3.3V | - | - | - | 500mA | 1.65 W | - | ITE (Commercial) | Remote On/Off, OTP, SCP | -40°C ~ 85°C | 90% | Surface Mount | 0.60 L x 0.33 W x 0.29 H (15.2mm x 8.3mm x 7.3mm) | ||
|
PCN1-S12-D5-M-TRDC DC CONVERTER +/-5V 1W |
347 | 5.88 |
RFQ |
Datasheet |
10-SMD Module, 5 Leads | Tape & Reel (TR),Cut Tape (CT) | PCN1-M (1W) | Active | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 77% | Surface Mount | 0.64 L x 0.39 W x 0.29 H (16.2mm x 9.8mm x 7.4mm) | ||
|
|
PCN1-S5-D5-M-TRDC DC CONVERTER +/-5V 1W |
341 | 5.88 |
RFQ |
Datasheet |
10-SMD Module, 5 Leads | Tape & Reel (TR),Cut Tape (CT) | PCN1-M (1W) | Active | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 74% | Surface Mount | 0.64 L x 0.39 W x 0.29 H (16.2mm x 9.8mm x 7.4mm) | ||
|
|
PCN1-S5-D12-M-TRDC DC CONVERTER +/-12V 1W |
218 | 5.88 |
RFQ |
Datasheet |
10-SMD Module, 5 Leads | Tape & Reel (TR),Cut Tape (CT) | PCN1-M (1W) | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 78% | Surface Mount | 0.64 L x 0.39 W x 0.29 H (16.2mm x 9.8mm x 7.4mm) | ||
|
PRME1-S12-S5-M-TRDC-DC ISOLATED 3K, 1 W, 11.4~12. |
493 | 6.05 |
RFQ |
Datasheet |
10-SMD Module, 6 Leads | Tape & Reel (TR),Cut Tape (CT) | PRME1-M (1W) | Active | Isolated Module | 1 | 11.4V | 12.6V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 69% | Surface Mount | 0.60 L x 0.33 W x 0.29 H (15.2mm x 8.5mm x 7.3mm) | ||
|
PDSE2-S24-S12-M-TRDC-DC 1.5KV ISOLATED, 2 W, 21.6~ |
480 | 6.06 |
RFQ |
Datasheet |
8-SMD Module, 5 Leads | Tape & Reel (TR),Cut Tape (CT) | PDSE2-M (2W) | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 167mA | 2.004 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 84% | Surface Mount | 0.52 L x 0.33 W x 0.29 H (13.2mm x 8.5mm x 7.3mm) | ||
|
|
PDSE2-S24-S15-M-TRDC-DC 1.5KV ISOLATED, 2 W, 21.6~ |
470 | 6.06 |
RFQ |
Datasheet |
8-SMD Module, 5 Leads | Tape & Reel (TR),Cut Tape (CT) | PDSE2-M (2W) | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 133mA | 1.995 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 84% | Surface Mount | 0.52 L x 0.33 W x 0.29 H (13.2mm x 8.5mm x 7.3mm) | ||
|
|
PDSE2-S24-S24-M-TRDC-DC 1.5KV ISOLATED, 2 W, 21.6~ |
374 | 6.06 |
RFQ |
Datasheet |
8-SMD Module, 5 Leads | Tape & Reel (TR),Cut Tape (CT) | PDSE2-M (2W) | Active | Isolated Module | 1 | 21.6V | 26.4V | 24V | - | - | - | 83mA | 1.992 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 85% | Surface Mount | 0.52 L x 0.33 W x 0.29 H (13.2mm x 8.5mm x 7.3mm) | ||
|
|
PCN1-S5-D15-M-TRDC DC CONVERTER +/-15V 1W |
393 | 6.17 |
RFQ |
Datasheet |
10-SMD Module, 6 Leads | Tape & Reel (TR),Cut Tape (CT) | PCN1-M (1W) | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 100°C | 78% | Surface Mount | 0.64 L x 0.36 W x 0.30 H (16.3mm x 9.1mm x 7.6mm) | ||
|
|
PES1-S5-D12-M-TRDC DC CONVERTER +/-12V 1W |
373 | 6.32 |
RFQ |
Datasheet |
8-SMD Module, 6 Leads | Tape & Reel (TR),Cut Tape (CT) | PES1-M (1W) | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 81% | Surface Mount | 0.50 L x 0.33 W x 0.29 H (12.7mm x 8.3mm x 7.3mm) | ||
|
V7806-500DC DC CONVERTER 6.5V 3.25W |
2,829 | 6.54 |
RFQ |
Datasheet |
3-SIP Module | Tube | V78-500 | Active | Linear Regulator Replacement | 1 | 8V | 32V | 6.5V | - | - | - | 500mA | 3.25 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 94% | Through Hole | 0.45 L x 0.30 W x 0.40 H (11.4mm x 7.6mm x 10.2mm) | ||
|
|
V7809-500DC DC CONVERTER 9V 4.5W |
2,590 | 6.54 |
RFQ |
Datasheet |
3-SIP Module | Tube | V78-500 | Active | Linear Regulator Replacement | 1 | 11V | 32V | 9V | - | - | - | 500mA | 4.5 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 95% | Through Hole | 0.45 L x 0.30 W x 0.40 H (11.4mm x 7.6mm x 10.2mm) | ||
|
PES1-S12-S9-M-TRDC DC CONVERTER 9V 1W |
552 | 6.78 |
RFQ |
Datasheet |
8-SMD Module, 5 Leads | Tape & Reel (TR),Cut Tape (CT) | PES1-M (1W) | Active | Isolated Module | 1 | 10.8V | 13.2V | 9V | - | - | - | 111mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 80% | Surface Mount | 0.50 L x 0.33 W x 0.29 H (12.7mm x 8.3mm x 7.3mm) | ||
|
|
PES1-S5-S24-M-TRDC DC CONVERTER 24V 1W |
346 | 6.78 |
RFQ |
Datasheet |
8-SMD Module, 6 Leads | Tape & Reel (TR),Cut Tape (CT) | PES1-M (1W) | Active | Isolated Module | 1 | 4.5V | 5.5V | 24V | - | - | - | 42mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 80% | Surface Mount | 0.50 L x 0.33 W x 0.29 H (12.7mm x 8.3mm x 7.3mm) | ||
|
|
V7805-500DC DC CONVERTER 5V 2.5W |
2,004 | 6.88 |
RFQ |
Datasheet |
3-SIP Module | Tube | V78-500 | Active | Linear Regulator Replacement | 1 | 6.5V | 32V | 5V | - | - | - | 500mA | 2.5 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 93% | Through Hole | 0.45 L x 0.30 W x 0.40 H (11.4mm x 7.6mm x 10.2mm) |
