| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | NumberofBits | NumberofD/AConverters | SettlingTime | OutputType | DifferentialOutput | DataInterface | ReferenceType | Voltage-SupplyAnalog | Voltage-SupplyDigital | INL/DNL(LSB) | Architecture | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTC2637IMS-HZ12#PBFIC DAC 12BIT V-OUT 16MSOP |
3,383 | 21.69 |
RFQ |
Datasheet |
16-TFSOP (0.118, 3.00mm Width) | Tube | - | Active | 12 | 8 | 5µs (Typ) | Voltage - Buffered | No | I²C | External, Internal | 5V | 5V | ±1, ±1 (Max) | - | -40°C ~ 85°C |
|
LTC2751BIUHF-16#PBFIC DAC 16BIT A-OUT 38QFN |
2,679 | 24.71 |
RFQ |
Datasheet |
38-WFQFN Exposed Pad | Tube | SoftSpan™ | Active | 16 | 1 | 2µs (Typ) | Current - Unbuffered | Yes | Parallel | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±2 (Max), ±1 (Max) | Multiplying DAC | -40°C ~ 85°C |
|
LTC2656CIUFD-L16#PBFIC DAC 16BIT V-OUT 20QFN |
2,179 | 39.63 |
RFQ |
Datasheet |
20-WFQFN Exposed Pad | Tube | - | Active | 16 | 8 | 8.9µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±6, ±0.3 | - | -40°C ~ 85°C |
|
LTC2704CGW-12#PBFIC DAC 12BIT V-OUT 44SSOP |
2,999 | 44.68 |
RFQ |
Datasheet |
44-BSOP (0.295, 7.50mm Width) | Tube | SoftSpan™ | Active | 12 | 4 | 8µs (Typ) | Voltage - Buffered | No | SPI | External | ±4.5V ~ 16.5V | 2.7V ~ 5.5V | ±1 (Max), ±1 (Max) | - | 0°C ~ 70°C |
|
AD8522ANZIC DAC 12BIT V-OUT 14DIP |
15,883 | 42.08 |
RFQ |
Datasheet |
14-DIP (0.300, 7.62mm) | Bulk,Tube | - | Active | 12 | 2 | 16µs (Typ) | Voltage - Buffered | No | SPI | Internal | 5V | 5V | ±0.5, ±0.5 | R-2R | -40°C ~ 85°C |
|
|
LTC2657BIUFD-H16#PBFIC DAC 16BIT V-OUT 20QFN |
3,094 | 46.24 |
RFQ |
Datasheet |
20-WFQFN Exposed Pad | Tube | - | Active | 16 | 8 | 9.1µs (Typ) | Voltage - Buffered | No | I²C | External, Internal | 5V | 5V | ±2, ±0.3 | - | -40°C ~ 85°C |
|
AD7537KNZIC DAC 12BIT A-OUT 24DIP |
2,923 | 59.06 |
RFQ |
Datasheet |
24-DIP (0.300, 7.62mm) | Tube | - | Active | 12 | 2 | 1.5µs | Current - Unbuffered | No | Parallel | External | 10.8V ~ 16.5V | 10.8V ~ 16.5V | ±0.5 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C |
|
AD9121BCPZIC DAC 14BIT A-OUT 72LFCSP |
7,287 | 69.23 |
RFQ |
Datasheet |
72-VFQFN Exposed Pad, CSP | Bulk,Tray | TxDAC+® | Active | 14 | 2 | 20ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 3.13V ~ 3.47V | 1.71V ~ 1.89V | ±1, ±0.5 | Current Source | -40°C ~ 85°C |
|
AD7226KPZIC DAC 8BIT V-OUT 20PLCC |
196 | 69.74 |
RFQ |
Datasheet |
20-LCC (J-Lead) | Bulk,Tube | - | Active | 8 | 4 | 4µs | Voltage - Buffered | No | Parallel | External | 11.4V ~ 16.5V, -5V | 14.25V ~ 15.75V | ±0.5 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C |
|
LTC2000CY-11#PBFIC DAC 11BIT A-OUT 170BGA |
3,961 | 82.28 |
RFQ |
Datasheet |
170-LFBGA | Tray | - | Active | 11 | 1 | 2.2ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 1.8V ~ 1.92V, 3.135V ~ 3.465V | 1.8V ~ 1.92V, 3.135V ~ 3.465V | ±0.2, ±0.1 | Current Steering | 0°C ~ 70°C |
|
DAC8413FPZIC DAC 12BIT V-OUT 28DIP |
2,579 | 1.00 |
RFQ |
Datasheet |
28-DIP (0.600, 15.24mm) | Bulk,Tube | - | Active | 12 | 4 | 10µs (Typ) | Voltage - Buffered | No | Parallel | External | 5V ~ 15V, -15V | 5V | ±2 (Max), -1 | R-2R | -40°C ~ 85°C |
|
DAC8420EPZIC DAC 12BIT V-OUT 16DIP |
3,323 | 1.00 |
RFQ |
Datasheet |
16-DIP (0.300, 7.62mm) | Bulk,Tube | - | Active | 12 | 4 | 13µs (Typ) | Voltage - Buffered | No | SPI | External | 5V ~ 15V, -15V | 5V | ±0.5, ±0.25 | R-2R | -40°C ~ 85°C |
|
AD9119BBCZIC DAC 11BIT A-OUT 160CSPBGA |
3,580 | 111.40 |
RFQ |
160-LFBGA, CSPBGA | Tray | - | Active | 11 | 1 | 13ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 1.7V ~ 1.9V | 1.7V ~ 1.9V | 0.2, 0.15 | Quad-Switch | -40°C ~ 85°C | |
|

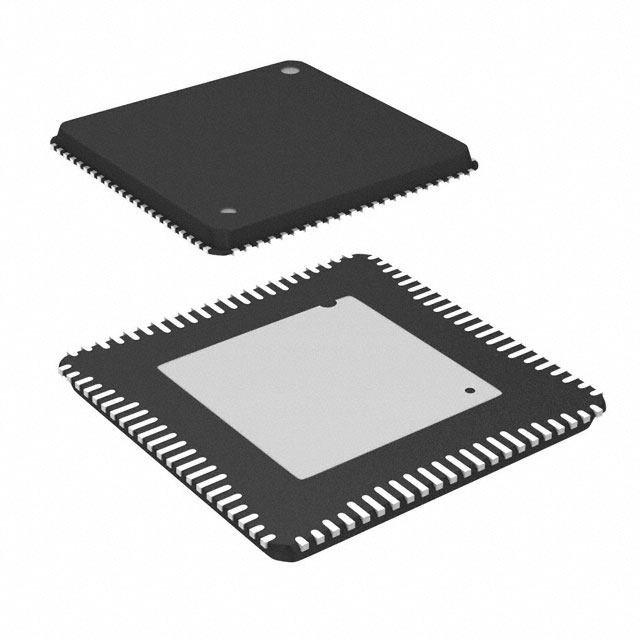

AD9144BCPAZIC DAC 16BIT A-OUT 88LFCSP |
3,932 | 166.58 |
RFQ |
Datasheet |
88-VFQFN Exposed Pad, CSP | Tray | TxDAC+® | Active | 16 | 4 | 20ns (Typ) | Current - Unbuffered | Yes | JESD204B | Internal | 3.13V ~ 3.47V | 1.14V ~ 1.26V | ±2, ±1 | Oversampling Interpolating DAC | -40°C ~ 85°C |
|

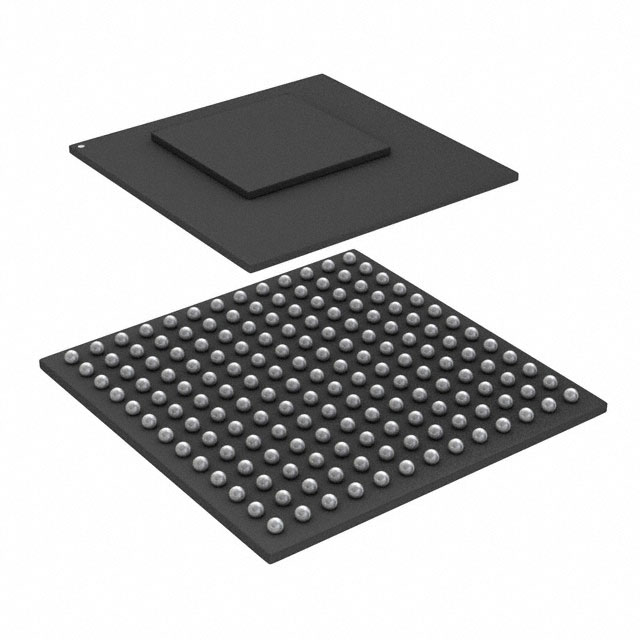

AD9161BBCZIC DAC 11BIT A-OUT 169CSPBGA |
2,919 | 185.32 |
RFQ |
Datasheet |
169-VFBGA, CSPBGA | Tray | - | Active | 11 | 1 | - | Current - Unbuffered | No | JESD204B | External, Internal | 1.14V ~ 1.326V, 2.375V ~ 2.625V | - | ±2.7, ±1.7 | Quad-Switch | -40°C ~ 85°C |
|
AD5398ABCBZ-REEL7IC DAC 10BIT A-OUT 9WLCSP |
974,112 | 0.78 |
RFQ |
Datasheet |
9-UFBGA, WLCSP | Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | 10 | 1 | 250µs (Typ) | Current - Unbuffered | No | I²C | Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±1.5, ±1 (Max) | Current Sink | -30°C ~ 85°C |
|
AD5660ARJ-2500RL7DAC,SERIAL INPUT LOADING |
3,787 | 1.00 |
RFQ |
Datasheet |
SOT-23-8 | Bulk | nanoDAC® | Obsolete | 16 | 1 | 10µs | Voltage - Buffered | No | DSP, Microwire, QSPI, SPI | Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±32LSB (Max), ±1 (Max) | String DAC | -40°C ~ 105°C |
|
AD567KD/+D/A CONVERTER |
3,506 | 1.00 |
RFQ |
Datasheet |
28-CDIP (0.605, 15.37mm) | Bulk | AD567 | Obsolete | 12 | 1 | 500ns | Current - Unbuffered | No | Parallel | External, Internal | ±11.4V ~ 16.5V | - | ±0.125, ±0.25 | Current Steering | -55°C ~ 125°C |
|
AD5668ARUZ-6OCTAL, 16-BIT DAC |
2,324 | 1.00 |
RFQ |
Datasheet |
16-TSSOP (0.173, 4.40mm Width) | Bulk | denseDAC | Obsolete | 16 | 8 | 7µs | Voltage - Buffered | No | DSP, Microwire, QSPI, SPI | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±8LSB, ±1 (Max) | String DAC | -40°C ~ 105°C |
|
DAC01FY6-BIT VOLTAGE OUTPUT DAC |
3,115 | 1.00 |
RFQ |
Datasheet |
14-CDIP (0.300, 7.62mm) | Bulk | - | Obsolete | 6 | 1 | 3µs | Voltage - Unbuffered | No | Parallel | Internal | 9.85V ~ 10.25V | 9.85V ~ 10.25V | - | - | -55°C ~ 125°C |
