| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | NumberofBits | NumberofD/AConverters | SettlingTime | OutputType | DifferentialOutput | DataInterface | ReferenceType | Voltage-SupplyAnalog | Voltage-SupplyDigital | INL/DNL(LSB) | Architecture | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD558KPZIC DAC 8BIT V-OUT 20PLCC |
2,586 | 1.00 |
RFQ |
Datasheet |
20-LCC (J-Lead) | Bulk,Tube | DACPORT® | Active | 8 | 1 | 3µs | Voltage - Buffered | No | Parallel | Internal | 4.5V ~ 16.5V | 4.5V ~ 16.5V | ±0.25 (Max), - | R-2R | 0°C ~ 70°C |
|
LTC2656BIUFD-L16#PBFIC DAC 16BIT V-OUT 20QFN |
3,510 | 46.24 |
RFQ |
Datasheet |
20-WFQFN Exposed Pad | Tube | - | Active | 16 | 8 | 8.9µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±2, ±0.3 | - | -40°C ~ 85°C |
|
LTC2656BIFE-L16#PBFIC DAC 16BIT V-OUT 20TSSOP |
3,792 | 46.24 |
RFQ |
Datasheet |
20-TSSOP (0.173, 4.40mm Width) Exposed Pad | Tube | - | Active | 16 | 8 | 8.9µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±2, ±0.3 | - | -40°C ~ 85°C |
|
|
LTC2656BIUFD-H16#PBFIC DAC 16BIT V-OUT 20QFN |
2,429 | 46.24 |
RFQ |
Datasheet |
20-WFQFN Exposed Pad | Tube | - | Active | 16 | 8 | 7.9µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | 5V | 5V | ±2, ±0.3 | - | -40°C ~ 85°C |
|
|
LTC2657BIUFD-L16#PBFIC DAC 16BIT V-OUT 20QFN |
2,772 | 46.24 |
RFQ |
Datasheet |
20-WFQFN Exposed Pad | Tube | - | Active | 16 | 8 | 9.1µs (Typ) | Voltage - Buffered | No | I²C | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±2, ±0.3 | - | -40°C ~ 85°C |
|
AD767JPZIC DAC 12BIT V-OUT 28PLCC |
2,544 | 1.00 |
RFQ |
Datasheet |
28-LCC (J-Lead) | Bulk,Tube | - | Active | 12 | 1 | 4µs | Voltage - Buffered | No | Parallel | External, Internal | ±11.4V ~ 16.5V | - | ±0.5, ±0.5 | Current Steering | 0°C ~ 70°C |
|
AD7547JRZIC DAC 12BIT A-OUT 24SOIC |
3,388 | 52.69 |
RFQ |
Datasheet |
24-SOIC (0.295, 7.50mm Width) | Tube | - | Active | 12 | 2 | 1.5µs | Current - Unbuffered | No | Parallel | External | 10.8V ~ 16.5V | 10.8V ~ 16.5V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C |
|
LTC2704IGW-12#PBFIC DAC 12BIT V-OUT 44SSOP |
3,927 | 53.62 |
RFQ |
Datasheet |
44-BSOP (0.295, 7.50mm Width) | Tube | SoftSpan™ | Active | 12 | 4 | 8µs (Typ) | Voltage - Buffered | No | SPI | External | ±4.5V ~ 16.5V | 2.7V ~ 5.5V | ±1 (Max), ±1 (Max) | - | -40°C ~ 85°C |
|

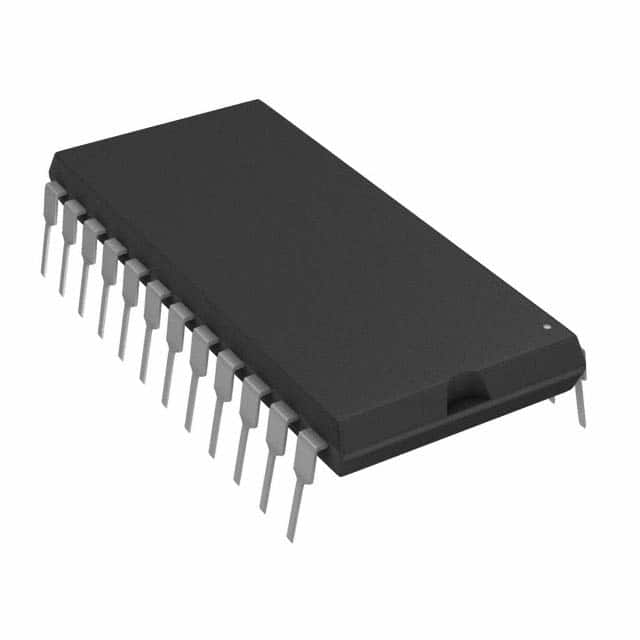

ADDAC80NZ-CBI-VIC DAC 12BIT V-OUT 24DIP |
3,855 | 53.66 |
RFQ |
Datasheet |
24-DIP (0.600, 15.24mm) | Bulk,Tube | - | Active | 12 | 1 | 4µs | Voltage - Buffered | No | Parallel | External, Internal | ±11.4V ~ 16.5V | 4.5V ~ 16V | ±0.25, ±0.75 (Max) | R-2R | -25°C ~ 85°C |
|
AD9776ABSVZIC DAC 12BIT A-OUT 100TQFP |
3,471 | 1.00 |
RFQ |
Datasheet |
100-TQFP Exposed Pad | Bulk,Tray | - | Active | 12 | 2 | - | Current - Unbuffered | Yes | Parallel | Internal | 3.13V ~ 3.47V | 1.7V ~ 2.05V, 3.13V ~ 3.47V | ±0.86, ±0.1 | Oversampling Interpolating DAC | -40°C ~ 85°C |
|
AD7547JNZIC DAC 12BIT A-OUT 24DIP |
3,467 | 1.00 |
RFQ |
Datasheet |
24-DIP (0.300, 7.62mm) | Bulk,Tube | - | Active | 12 | 2 | 1.5µs | Current - Unbuffered | No | Parallel | External | 10.8V ~ 16.5V | 10.8V ~ 16.5V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C |
|
|
AD7847BRZIC DAC 12BIT V-OUT 24SOIC |
2,604 | 55.25 |
RFQ |
Datasheet |
24-SOIC (0.295, 7.50mm Width) | Tube | - | Active | 12 | 2 | 5µs | Voltage - Buffered | No | Parallel | External | ±14.25V ~ 15.75V | - | ±0.5 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C |
|
AD5362BCPZIC DAC 16BIT V-OUT 56LFCSP |
2,623 | 55.27 |
RFQ |
Datasheet |
56-VFQFN Exposed Pad, CSP | Tray | - | Active | 16 | 8 | 30µs | Voltage - Buffered | No | SPI, DSP | External | 8V ~ 16.5V, -4.5V ~ 16.5V | 2.5V ~ 5.5V | ±4 (Max), ±1 (Max) | String DAC | -40°C ~ 85°C |
|
|
AD667KPZIC DAC 12BIT V-OUT 28PLCC |
1,999 | 55.86 |
RFQ |
Datasheet |
28-LCC (J-Lead) | Bulk,Tube | - | Active | 12 | 1 | 4µs | Voltage - Buffered | No | Parallel | External, Internal | ±11.4V ~ 16.5V | - | ±0.25, ±0.25 | R-2R | 0°C ~ 70°C |
|
LTC2668IUJ-12#PBFIC DAC 12BIT V-OUT 40QFN |
2,630 | 60.87 |
RFQ |
Datasheet |
40-WFQFN Exposed Pad | Tube | SoftSpan™ | Active | 12 | 16 | 15.5µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | ±4.5V ~ 15.75V | 1.71V ~ 5.5V | ±0.2, ±0.05 | - | -40°C ~ 85°C |
|
|
AD7237AARZIC DAC 12BIT V-OUT 24SOIC |
3,251 | 1.00 |
RFQ |
Datasheet |
24-SOIC (0.295, 7.50mm Width) | Bulk,Tube | DACPORT® | Active | 12 | 2 | 8µs | Voltage - Buffered | No | Parallel | External, Internal | ±10.8V ~ 16.5V | - | ±1 (Max), ±0.9 (Max) | R-2R | -40°C ~ 85°C |
|
|
AD7237JRZIC DAC 12BIT V-OUT 24SOIC |
2,848 | 61.51 |
RFQ |
Datasheet |
24-SOIC (0.295, 7.50mm Width) | Bulk,Tube | DACPORT® | Active | 12 | 2 | 10µs | Voltage - Buffered | No | Parallel | External, Internal | ±15V | - | ±1 (Max), ±0.9 (Max) | R-2R | -40°C ~ 85°C |
|
AD5543SRMZ-EPIC DAC 16BIT A-OUT 8MSOP |
2,366 | 1.00 |
RFQ |
Datasheet |
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | Bulk,Tube | - | Active | 16 | 1 | 500ns (Typ) | Current - Unbuffered | No | SPI | External | 5V | 5V | ±3 (Max), -1/+2 | R-2R | -40°C ~ 85°C |
|
AD7542JNZIC DAC 12BIT A-OUT 16DIP |
2,077 | 1.00 |
RFQ |
Datasheet |
16-DIP (0.300, 7.62mm) | Bulk,Tube | - | Active | 12 | 1 | 2µs | Current - Unbuffered | Yes | Parallel | External | 5V | 5V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C |
|
|
DAC8248FPZIC DAC 12BIT A-OUT 24DIP |
2,859 | 62.91 |
RFQ |
Datasheet |
24-DIP (0.300, 7.62mm) | Bulk,Tube | - | Active | 12 | 2 | 1µs | Current - Unbuffered | No | Parallel | External | 5V ~ 15V | 5V ~ 15V | ±1 (Max), ±4 (Max) | R-2R | -40°C ~ 85°C |
