| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | NumberofBits | NumberofD/AConverters | SettlingTime | OutputType | DifferentialOutput | DataInterface | ReferenceType | Voltage-SupplyAnalog | Voltage-SupplyDigital | INL/DNL(LSB) | Architecture | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD7228LNZIC DAC 8BIT V-OUT 24DIP |
3,357 | 1.00 |
RFQ |
Datasheet |
24-DIP (0.300, 7.62mm) | Bulk,Tube | - | Active | 8 | 8 | 5µs, 7µs | Voltage - Buffered | No | Parallel | External | 10.8V ~ 16.5V, -5V | 13.5V ~ 16.5V | ±0.5 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C |
|

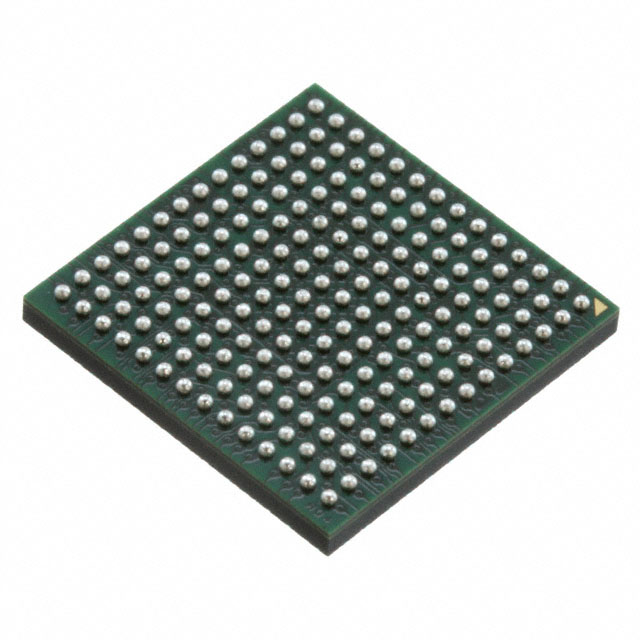

AD9148BBPZIC DAC 16BIT A-OUT 196BGA |
3,723 | 1.00 |
RFQ |
Datasheet |
196-LFBGA Exposed Pad | Bulk,Tray | TxDAC+® | Active | 16 | 4 | 20ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 3.13V ~ 3.47V | 1.71V ~ 1.89V | ±3.7, ±2.1 | Current Source | -40°C ~ 85°C |
|
AD664JPZIC DAC 12BIT V-OUT 44PLCC |
2,761 | 185.03 |
RFQ |
Datasheet |
44-LCC (J-Lead) | Bulk,Tube | - | Active | 12 | 4 | 10µs | Voltage - Buffered | No | Parallel | External | ±11.4V ~ 16.5V | 5V | ±0.75, ±0.75 (Max) | R-2R | 0°C ~ 70°C |
|
|
AD664KPZIC DAC 12BIT V-OUT 44PLCC |
2,546 | 1.00 |
RFQ |
Datasheet |
44-LCC (J-Lead) | Bulk,Tube | - | Active | 12 | 4 | 10µs | Voltage - Buffered | No | Parallel | External | ±11.4V ~ 16.5V | 5V | ±0.5, ±0.5 (Max) | R-2R | 0°C ~ 70°C |
|

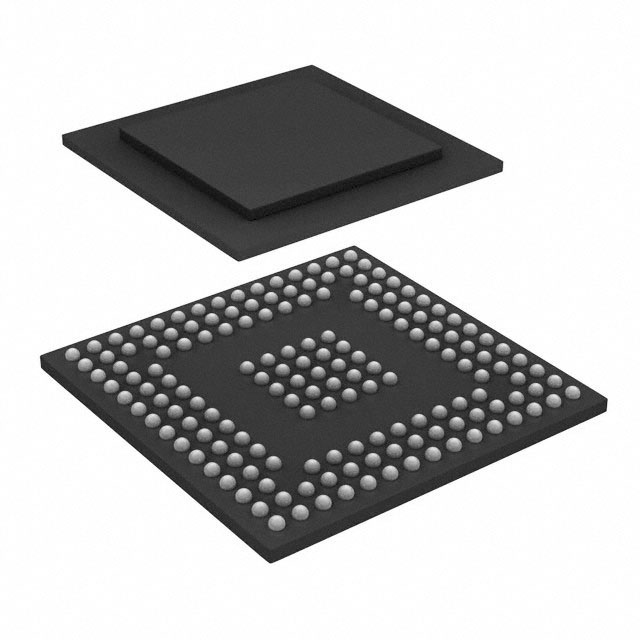

AD9162BBCZIC DAC 16BIT A-OUT 165CSPBGA |
3,559 | 312.36 |
RFQ |
Datasheet |
165-VFBGA, CSPBGA | Tray | - | Active | 16 | 1 | - | Current - Unbuffered | No | JESD204B | External, Internal | 1.14V ~ 1.326V, 2.375V ~ 2.625V | 1.14V ~ 1.326V | ±2.7, ±1.7 | Quad-Switch | -40°C ~ 85°C |
|
AD5791SRUZ-EPIC DAC 20BIT 20TSSOP |
2,158 | 326.58 |
RFQ |
Datasheet |
20-TSSOP (0.173, 4.40mm Width) | Tube | - | Active | 20 | 1 | 1µs | Voltage - Unbuffered | Yes | Serial | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±1 (Max), ±1 (Max) | - | -55°C ~ 125°C |
|
LTC2630ISC6-HM10#TRMPBFIC DAC 10BIT V-OUT SC70-6 |
2,717 | 4.66 |
RFQ |
Datasheet |
6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR),Cut Tape (CT) | - | Active | 10 | 1 | 4.4µs (Typ) | Voltage - Buffered | No | SPI | Internal, Supply | 5V | 5V | ±0.2, ±0.5 (Max) | - | -40°C ~ 85°C |
|
AD5622BKSZ-2500RL7IC DAC 12BIT V-OUT SC70-6 |
2,305 | 6.49 |
RFQ |
6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR),Cut Tape (CT) | nanoDAC® | Active | 12 | 1 | 10µs | Voltage - Buffered | No | I²C | Supply | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±2 (Max), ±1 (Max) | String DAC | -40°C ~ 125°C | |
|
LTC2632HTS8-LI8#TRMPBFIC DAC 8BIT V-OUT TSOT23-8 |
2,473 | 6.60 |
RFQ |
Datasheet |
SOT-23-8 Thin, TSOT-23-8 | Tape & Reel (TR),Cut Tape (CT) | - | Active | 8 | 2 | 3.5µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.05, ±0.5 (Max) | - | -40°C ~ 125°C |
|
|
LTC2630AHSC6-HM12#TRMPBFIC DAC 12BIT V-OUT SC70-6 |
3,357 | 6.69 |
RFQ |
Datasheet |
6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR),Cut Tape (CT) | - | Active | 12 | 1 | 4.8µs (Typ) | Voltage - Buffered | No | SPI | Internal, Supply | 5V | 5V | ±0.5, ±1 (Max) | - | -40°C ~ 125°C |
|
AD5316RBCPZ-RL7IC DAC 10BIT V-OUT 16LFCSP |
3,023 | 1.00 |
RFQ |
Datasheet |
16-WFQFN Exposed Pad, CSP | Tape & Reel (TR),Cut Tape (CT),Bulk | nanoDAC® | Active | 10 | 4 | 7µs | Voltage - Buffered | No | I²C | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.12, ±0.5 (Max) | String DAC | -40°C ~ 105°C |
|
|
LTC2640AHTS8-HM12#TRMPBFIC DAC 12BIT V-OUT TSOT23-8 |
3,042 | 7.64 |
RFQ |
Datasheet |
SOT-23-8 Thin, TSOT-23-8 | Tape & Reel (TR),Cut Tape (CT) | - | Active | 12 | 1 | 4.6µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | 5V | 5V | ±0.5, ±1 (Max) | - | -40°C ~ 125°C |
|
|
AD5721RBCPZ-RL7IC DAC 12BIT V-OUT 16LFCSP |
2,143 | 8.60 |
RFQ |
Datasheet |
16-WFQFN Exposed Pad, CSP | Tape & Reel (TR),Cut Tape (CT) | - | Active | 12 | 1 | 12.5µs | Voltage - Buffered | No | SPI | External, Internal | 4.75V ~ 30V | 1.7V ~ 5.5V | ±0.5 (Max), ±0.5 (Max) | R-2R | -40°C ~ 125°C |
|
|
LTC2632ACTS8-HI12#TRMPBFIC DAC 12BIT V-OUT TSOT23-8 |
3,504 | 9.51 |
RFQ |
Datasheet |
SOT-23-8 Thin, TSOT-23-8 | Tape & Reel (TR),Cut Tape (CT) | - | Active | 12 | 2 | 4.9µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | 5V | 5V | ±0.5, ±1 (Max) | - | 0°C ~ 70°C |
|
|
LTC2633ACTS8-HI12#TRMPBFIC DAC 12BIT V-OUT TSOT23-8 |
2,760 | 9.51 |
RFQ |
Datasheet |
SOT-23-8 Thin, TSOT-23-8 | Tape & Reel (TR),Cut Tape (CT) | - | Active | 12 | 2 | 4.7µs (Typ) | Voltage - Buffered | No | I²C | External, Internal | 5V | 5V | ±0.5, ±1 (Max) | - | 0°C ~ 70°C |
|
AD5337BRMZIC DAC 8BIT V-OUT 8MSOP |
2,155 | 6.61 |
RFQ |
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | Bulk,Tube | - | Active | 8 | 2 | 8µs | Voltage - Buffered | No | I²C | External | 2.5V ~ 5.5V | 2.5V ~ 5.5V | ±0.15, ±0.02 | String DAC | -40°C ~ 105°C | |
|
AD5624RBCPZ-5REEL7IC DAC 12BIT V-OUT 10LFCSP |
2,914 | 12.13 |
RFQ |
Datasheet |
10-VFDFN Exposed Pad, CSP | Tape & Reel (TR),Cut Tape (CT) | nanoDAC® | Active | 12 | 4 | 4.5µs | Voltage - Buffered | No | SPI, DSP | External, Internal | 5V | 5V | ±0.5, ±0.25 (Max) | String DAC | -40°C ~ 105°C |
|
AD5671RBCPZ-REEL7IC DAC 12BIT V-OUT 20LFCSP |
3,789 | 1.00 |
RFQ |
Datasheet |
20-WFQFN Exposed Pad, CSP | Tape & Reel (TR),Cut Tape (CT),Bulk | nanoDAC+® | Active | 12 | 8 | 8µs | Voltage - Buffered | No | I²C | Internal | 2.7V ~ 5.5V | 1.8V ~ 5.5V | ±0.12, ±0.01 | String DAC | -40°C ~ 125°C |
|
AD5440YRUZIC DAC 10BIT A-OUT 24TSSOP |
2,626 | 1.00 |
RFQ |
24-TSSOP (0.173, 4.40mm Width) | Bulk,Tube | - | Active | 10 | 2 | 120ns | Current - Unbuffered | No | Parallel | External | 2.5V ~ 5.5V | 2.5V ~ 5.5V | ±0.5 (Max), ±1 (Max) | R-2R | -40°C ~ 125°C | |
|
AD5678ARUZ-2IC DAC 12/16BIT V-OUT 16TSSOP |
781 | 26.68 |
RFQ |
Datasheet |
16-TSSOP (0.173, 4.40mm Width) | Bulk,Tube | - | Active | 12, 16 | 8 | 10µs | Voltage - Buffered | No | SPI, DSP | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±8, ±1 (Max) | String DAC | -40°C ~ 105°C |
