| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | NumberofBits | NumberofD/AConverters | SettlingTime | OutputType | DifferentialOutput | DataInterface | ReferenceType | Voltage-SupplyAnalog | Voltage-SupplyDigital | INL/DNL(LSB) | Architecture | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADDAC80Z-CCD-IDAC, PARALLEL, WORD INPUT |
2,268 | 53.98 |
RFQ |
Datasheet |
24-CDIP (0.600, 15.24mm) | Bulk | - | Active | 12 | 1 | 4µs | Current - Buffered | No | Parallel | External, Internal | ±11.4V ~ 16.5V | ±11.4V ~ 16.5V | ±0.5, ±0.5 | - | -25°C ~ 85°C |
|
AD7247AANZIC DAC 12BIT V-OUT 24DIP |
3,227 | 56.41 |
RFQ |
Datasheet |
24-DIP (0.300, 7.62mm) | Bulk,Tube | DACPORT® | Active | 12 | 2 | 8µs | Voltage - Buffered | No | Parallel | External, Internal | ±10.8V ~ 16.5V | 10.8V ~ 16.5V | ±1 (Max), ±0.9 (Max) | R-2R | -40°C ~ 85°C |
|
|
AD7247JNZIC DAC 12BIT V-OUT 24DIP |
3,438 | 56.41 |
RFQ |
Datasheet |
24-DIP (0.300, 7.62mm) | Tube | DACPORT® | Active | 12 | 2 | 10µs | Voltage - Buffered | No | Parallel | External, Internal | ±15V | 15V | ±1 (Max), ±0.9 (Max) | R-2R | -40°C ~ 85°C |
|
AD667KNZIC DAC 12BIT V-OUT 28DIP |
265 | 61.44 |
RFQ |
Datasheet |
28-DIP (0.600, 15.24mm) | Bulk,Tube | - | Active | 12 | 1 | 4µs | Voltage - Buffered | No | Parallel | External, Internal | ±11.4V ~ 16.5V | - | ±0.25, ±0.25 | R-2R | 0°C ~ 70°C |
|

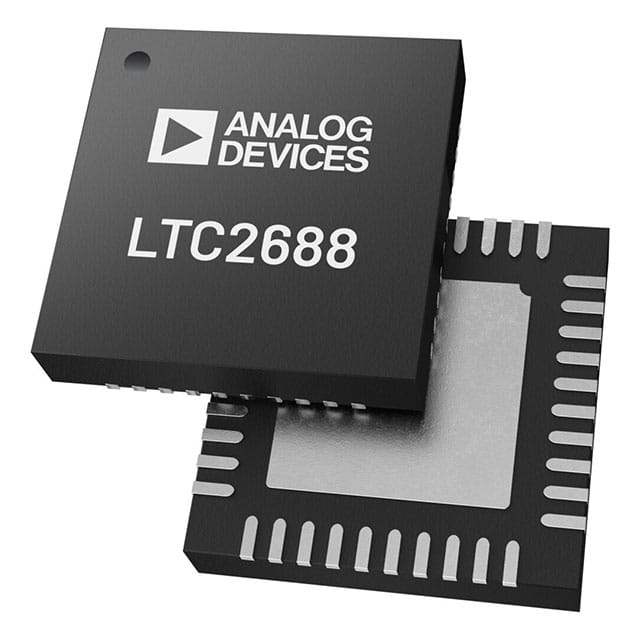

LTC2688CUJ-16#PBF16 CHANNEL 16-BIT 15V SOFTSPAN D |
2,247 | 61.46 |
RFQ |
Datasheet |
40-WFQFN Exposed Pad | Tube | - | Active | 16 | 16 | 28µs | Voltage - Buffered | No | SPI | External, Internal | 4.75V ~ 5.25V | 1.71V ~ 5.5V | ±3 (Max), ±1 (Max) | Multiplying DAC | 0°C ~ 70°C |
|
LTC2688IUJ-16#PBF16 CHANNEL 16-BIT 15V SOFTSPAN D |
2,920 | 61.77 |
RFQ |
Datasheet |
40-WFQFN Exposed Pad | Tube | - | Active | 16 | 16 | 28µs | Voltage - Buffered | No | SPI | External, Internal | 4.75V ~ 5.25V | 1.71V ~ 5.55V | ±3LSB (Max), ±1 (Max) | Multiplying DAC | -40°C ~ 85°C |
|
AD5781BRUZIC DAC 18BIT V-OUT 20TSSOP |
3,857 | 1.00 |
RFQ |
Datasheet |
20-TSSOP (0.173, 4.40mm Width) | Bulk,Tube | - | Active | 18 | 1 | 1µs (Typ) | Voltage - Unbuffered | No | SPI, DSP | External | 7.5V ~ 16.5V, -2.5V ~ 16.5V | 2.7V ~ 5.5V | ±0.5, ±0.5 | R-2R | -40°C ~ 125°C |
|
AD767ADIC DAC 12BIT V-OUT 24CDIP |
2,528 | 62.46 |
RFQ |
Datasheet |
24-CDIP (0.300, 7.62mm) | Tube | - | Active | 12 | 1 | 4µs | Voltage - Buffered | No | Parallel | External, Internal | ±11.4V ~ 16.5V | - | ±0.5, ±0.5 | Current Steering | -25°C ~ 85°C |
|
|
AD7847BNZIC DAC 12BIT V-OUT 24DIP |
2,570 | 62.54 |
RFQ |
Datasheet |
24-DIP (0.300, 7.62mm) | Tube | - | Active | 12 | 2 | 5µs | Voltage - Buffered | No | Parallel | External | ±14.25V ~ 15.75V | - | ±0.5 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C |
|
AD9139BCPZIC DAC 16BIT A-OUT 72LFCSP |
3,069 | 62.60 |
RFQ |
Datasheet |
72-VFQFN Exposed Pad, CSP | Tray | TxDAC+® | Active | 16 | 1 | 20ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 3.13V ~ 3.47V | 1.7V ~ 1.9V | ±3.7, ±2.1 | Current Source | -40°C ~ 85°C |
|
AD9778ABSVZIC DAC 14BIT A-OUT 100TQFP |
2,331 | 62.89 |
RFQ |
Datasheet |
100-TQFP Exposed Pad | Tray | - | Active | 14 | 2 | - | Current - Unbuffered | Yes | Parallel | Internal | 3.13V ~ 3.47V | 1.7V ~ 2.05V, 3.13V ~ 3.47V | ±1.5, ±0.65 | Oversampling Interpolating DAC | -40°C ~ 85°C |
|
AD7542KRZIC DAC 12BIT A-OUT 16SOIC |
15,401 | 63.16 |
RFQ |
Datasheet |
16-SOIC (0.295, 7.50mm Width) | Bulk,Tube | - | Active | 12 | 1 | 2µs | Current - Unbuffered | Yes | Parallel | External | 5V | 5V | ±0.5 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C |
|
AD7542KNZIC DAC 12BIT A-OUT 16DIP |
2,243 | 63.19 |
RFQ |
Datasheet |
16-DIP (0.300, 7.62mm) | Bulk,Tube | - | Active | 12 | 1 | 2µs | Current - Unbuffered | Yes | Parallel | External | 5V | 5V | ±0.5 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C |
|
|
AD7538KNZIC DAC 14BIT A-OUT 24DIP |
3,930 | 58.47 |
RFQ |
Datasheet |
24-DIP (0.300, 7.62mm) | Tube | - | Active | 14 | 1 | 1.5µs | Current - Unbuffered | No | Parallel | External | 11.4V ~ 15.75V | 11.4V ~ 15.75V | ±1 (Max), ±1 (Max) | R-2R | 0°C ~ 70°C |
|
AD7837BRZIC DAC 12BIT V-OUT 24SOIC |
3,762 | 58.70 |
RFQ |
Datasheet |
24-SOIC (0.295, 7.50mm Width) | Tube | - | Active | 12 | 2 | 5µs | Voltage - Buffered | No | Parallel | External | ±14.25V ~ 15.75V | - | ±0.5 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C |
|
LTC1821-1BCGW#PBFIC DAC 16BIT V-OUT 36SSOP |
2,501 | 64.68 |
RFQ |
Datasheet |
36-BSOP (0.295, 7.50mm Width) | Tube | - | Active | 16 | 1 | 2µs (Typ) | Voltage - Buffered | No | Parallel | External | ±4.5V ~ 16.5V | 5V | ±2 (Max), ±1 (Max) | R-2R | 0°C ~ 70°C |
|
AD5764RBSUZIC DAC 16BIT V-OUT 32TQFP |
3,603 | 65.19 |
RFQ |
Datasheet |
32-TQFP | Tray | iCMOS® | Active | 16 | 4 | 10µs | Voltage - Buffered | No | SPI, DSP | External, Internal | 11.4V ~ 16.5V | 2.7V ~ 5.25V | ±2 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C |
|
AD5780BCPZIC DAC 18BIT V-OUT 24LFCSP |
2,729 | 1.00 |
RFQ |
24-VFQFN Exposed Pad, CSP | Bulk,Tray | - | Active | 18 | 1 | 3.5µs (Typ) | Voltage - Unbuffered | No | SPI, DSP | External | 7.5V ~ 16.5V, -2.5V ~ 16.5V | 2.7V ~ 5.5V | ±1 (Max), ±0.75 (Max) | R-2R | -40°C ~ 125°C | |
|
AD7528SQIC DAC 8BIT A-OUT 20CDIP |
2,834 | 1.00 |
RFQ |
Datasheet |
20-CDIP (0.300, 7.62mm) | Bulk,Tube | - | Active | 8 | 2 | 400ns | Current - Unbuffered | No | Parallel | External | 5V ~ 15V | 5V ~ 15V | ±1 (Max), ±1 (Max) | R-2R | -55°C ~ 125°C |
|
LTC1599AIG#PBFIC DAC 16BIT A-OUT 24SSOP |
3,982 | 68.23 |
RFQ |
Datasheet |
24-SSOP (0.209, 5.30mm Width) | Tube | - | Active | 16 | 1 | 1µs (Typ) | Current - Unbuffered | Yes | Parallel | External | 5V | 5V | ±0.35, ±0.2 | R-2R | -40°C ~ 85°C |
