| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | NumberofBits | NumberofD/AConverters | SettlingTime | OutputType | DifferentialOutput | DataInterface | ReferenceType | Voltage-SupplyAnalog | Voltage-SupplyDigital | INL/DNL(LSB) | Architecture | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DAC8412FPCZIC DAC 12BIT V-OUT 28PLCC |
305 | 87.42 |
RFQ |
Datasheet |
28-LCC (J-Lead) | Bulk,Tube | - | Active | 12 | 4 | 10µs (Typ) | Voltage - Buffered | No | Parallel | External | 5V ~ 15V, -15V | 5V | ±2 (Max), -1 | R-2R | -40°C ~ 85°C |
|
AD9122SCPZ-EPIC DAC 16BIT A-OUT 72LFCSP |
2,638 | 94.13 |
RFQ |
Datasheet |
72-VFQFN Exposed Pad, CSP | Tray | TxDAC+® | Active | 16 | 2 | 20ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 3.13V ~ 3.47V | 1.71V ~ 1.89V | ±3.7, ±2.1 | Current Source | -55°C ~ 105°C |
|
LTC1821-1AIGW#PBFIC DAC 16BIT V-OUT 36SSOP |
3,895 | 91.19 |
RFQ |
Datasheet |
36-BSOP (0.295, 7.50mm Width) | Tube | - | Active | 16 | 1 | 2µs (Typ) | Voltage - Buffered | No | Parallel | External | ±4.5V ~ 16.5V | 5V | ±0.35, ±0.2 | R-2R | -40°C ~ 85°C |
|
|
LTC1821AIGW#PBFIC DAC 16BIT V-OUT 36SSOP |
2,897 | 91.19 |
RFQ |
Datasheet |
36-BSOP (0.295, 7.50mm Width) | Tube | - | Active | 16 | 1 | 2µs (Typ) | Voltage - Buffered | No | Parallel | External | ±4.5V ~ 16.5V | 5V | ±0.35, ±0.2 | R-2R | -40°C ~ 85°C |
|
AD5373BCPZIC DAC 14BIT V-OUT 64LFCSP |
2,802 | 1.00 |
RFQ |
Datasheet |
64-VFQFN Exposed Pad, CSP | Bulk,Tray | - | Active | 14 | 32 | 30µs | Voltage - Buffered | No | SPI, DSP | External | 9V ~ 16.5V, -4.5V ~ 16.5V | 2.5V ~ 5.5V | ±1 (Max), ±1 (Max) | String DAC | -40°C ~ 85°C |
|
AD7244AQIC DAC 14BIT V-OUT 24CDIP |
3,315 | 102.13 |
RFQ |
Datasheet |
24-CDIP (0.300, 7.62mm) | Bulk,Tube | - | Active | 14 | 2 | 4µs | Voltage - Buffered | No | SPI | External, Internal | ±5V | - | ±2 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C |
|
AD5373BSTZIC DAC 14BIT V-OUT 64LQFP |
2,173 | 1.00 |
RFQ |
Datasheet |
64-LQFP | Bulk,Tray | - | Active | 14 | 32 | 30µs | Voltage - Buffered | No | SPI, DSP | External | 9V ~ 16.5V, -4.5V ~ 16.5V | 2.5V ~ 5.5V | ±1 (Max), ±1 (Max) | String DAC | -40°C ~ 85°C |
|
AD7226TE/883BDAC, PARALLEL, 8 BITS INPUT |
3,218 | 92.00 |
RFQ |
Datasheet |
20-CLCC | Bulk | - | Active | 8 | 4 | 4µs | Voltage - Buffered | No | Parallel | External | 11.4V ~ 16.5V | 11.4V ~ 16.5V | ±1 (Max), ±1 (Max) | R-2R | -55°C ~ 125°C |
|
5962-89932012AIC DAC 8BIT MULTIPLY HS 20CLCC |
1,204 | 108.50 |
RFQ |
20-CLCC | Bulk,Tube | - | Active | 8 | 1 | 85ns (Typ) | Current - Unbuffered | Yes | Parallel | External | ±4.5V ~ 18V | 9V ~ 36V | - | Multiplying DAC | -55°C ~ 125°C | |
|
AD7249SQIC DAC 12BIT V-OUT 16CDIP |
1,015 | 112.25 |
RFQ |
Datasheet |
16-CDIP (0.300, 7.62mm) | Bulk,Tube | DACPORT® | Active | 12 | 2 | 10µs | Voltage - Buffered | No | SPI | External, Internal | ±10.8V ~ 16.5V | - | ±1 (Max), ±0.9 (Max) | R-2R | -55°C ~ 125°C |
|
AD5382BSTZ-5IC DAC 14BIT V-OUT 100LQFP |
3,595 | 113.97 |
RFQ |
Datasheet |
100-LQFP | Tray | - | Active | 14 | 32 | 8µs | Voltage - Buffered | No | I²C, Parallel, SPI, DSP | External, Internal | 5V | 2.7V ~ 5.5V | ±4 (Max), -1/+2 (Max) | String DAC | -40°C ~ 85°C |
|
|
AD75004KPZIC DAC 12BIT V-OUT 28PLCC |
2,918 | 1.00 |
RFQ |
Datasheet |
28-LCC (J-Lead) | Bulk,Tube | - | Active | 12 | 4 | 4µs | Voltage - Buffered | No | Parallel | External, Internal | ±10.8V ~ 13.2V | - | ±0.5, ±0.5 | Current Steering | 0°C ~ 70°C |
|
AD9712BTEDAC, PARALLEL, WORD INPUT |
3,164 | 110.50 |
RFQ |
Datasheet |
28-CLCC | Bulk | AD9712B | Active | 12 | 1 | 27ns | Current - Buffered | No | - | External, Internal | -5.2V | -5.2V | ±1, ±1 | Current Source, R-2R | -55°C ~ 125°C |
|
AD5371BBCZIC DAC 14BIT V-OUT 100CSBGA |
2,070 | 1.00 |
RFQ |
Datasheet |
100-LFBGA, CSPBGA | Bulk,Tray | - | Active | 14 | 40 | 30µs | Voltage - Buffered | No | SPI, DSP | External | 9V ~ 16.5V, -4.5V ~ 16.5V | 2.5V ~ 5.5V | ±1 (Max), ±1 (Max) | String DAC | -40°C ~ 85°C |
|
AD5371BSTZIC DAC 14BIT V-OUT 80LQFP |
3,598 | 1.00 |
RFQ |
Datasheet |
80-LQFP | Bulk,Tray | - | Active | 14 | 40 | 30µs | Voltage - Buffered | No | SPI, DSP | External | 9V ~ 16.5V, -4.5V ~ 16.5V | 2.5V ~ 5.5V | ±1 (Max), ±1 (Max) | String DAC | -40°C ~ 85°C |
|

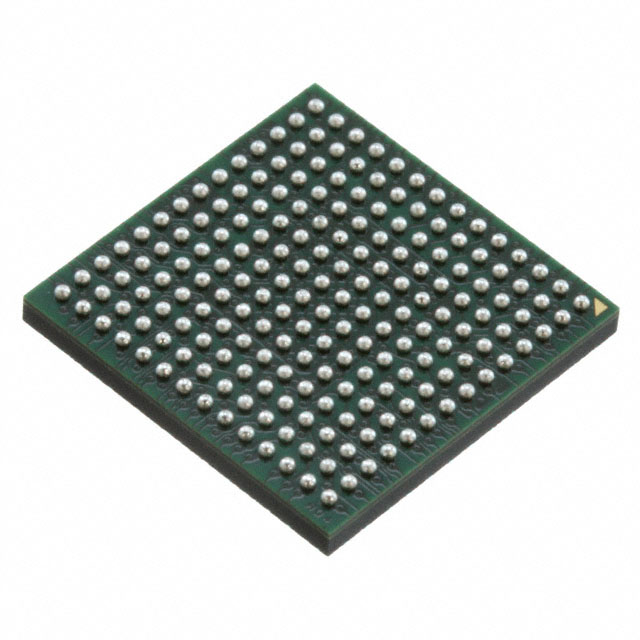

AD9148BBCZIC DAC 16BIT A-OUT 196CSPBGA |
3,012 | 123.26 |
RFQ |
Datasheet |
196-LFBGA, CSPBGA | Bulk,Tray | TxDAC+® | Active | 16 | 4 | 20ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 3.13V ~ 3.47V | 1.71V ~ 1.89V | ±3.7, ±2.1 | Current Source | -40°C ~ 85°C |
|
|
AD5380BSTZ-3IC DAC 14BIT V-OUT 100LQFP |
2,981 | 126.77 |
RFQ |
100-LQFP | Bulk,Tray | - | Active | 14 | 40 | 8µs | Voltage - Buffered | No | I²C, Parallel, SPI, DSP | External, Internal | 2.7V ~ 3.6V | 2.7V ~ 5.5V | ±4 (Max), -1/+2 (Max) | String DAC | -40°C ~ 85°C | |
|
5962-8770103RAIC DAC 8BIT A-OUT 20CERDIP |
3,777 | 127.37 |
RFQ |
Datasheet |
20-CDIP (0.300, 7.62mm) | Tube | - | Active | 8 | 2 | 400ns | Current - Unbuffered | No | Parallel | External | 5V ~ 15V | 5V ~ 15V | ±0.5 (Max), ±1 (Max) | R-2R | -55°C ~ 125°C |
|
5962-8776301LADUAL 12-BIT DAC |
2,496 | 119.39 |
RFQ |
Datasheet |
24-CDIP (0.300, 7.62mm) | Bulk | AD7537 | Active | 12 | 2 | 1.5µs | Current - Unbuffered | No | Parallel | External | 10.8V ~ 16.5V | 10.8V ~ 16.5V | ±1 (Max), ±1 (Max) | R-2R | -55°C ~ 125°C |
|
AD5379ABCZIC DAC 14BIT V-OUT 108CSPBGA |
2,093 | 1.00 |
RFQ |
Datasheet |
108-BGA, CSPBGA | Bulk,Tray | - | Active | 14 | 40 | 30µs | Voltage - Buffered | No | SPI, DSP | External | 8.5V ~ 16.5V , -3V ~ 16.5V | 2.7V ~ 5.5V | ±3 (Max), -1/+1.5 (Max) | String DAC | -40°C ~ 85°C |
