| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | NumberofBits | NumberofD/AConverters | SettlingTime | OutputType | DifferentialOutput | DataInterface | ReferenceType | Voltage-SupplyAnalog | Voltage-SupplyDigital | INL/DNL(LSB) | Architecture | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTC1458IG#PBFIC DAC 12BIT V-OUT 28SSOP |
3,294 | 36.52 |
RFQ |
Datasheet |
28-SSOP (0.209, 5.30mm Width) | Tube | - | Active | 12 | 4 | 14µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | 5V | 5V | ±2.25, ±0.5 (Max) | R-2R | -40°C ~ 85°C |
|
LTC2755IUP-14#PBFIC DAC 14BIT A-OUT 64QFN |
2,719 | 36.68 |
RFQ |
Datasheet |
64-WFQFN Exposed Pad | Tube | SoftSpan™ | Active | 14 | 4 | 2µs (Typ) | Current - Unbuffered | Yes | Parallel | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±1 (Max), ±1 (Max) | Multiplying DAC | -40°C ~ 85°C |
|
AD5542LRZIC DAC 16BIT V-OUT 14SOIC |
3,712 | 1.00 |
RFQ |
Datasheet |
14-SOIC (0.154, 3.90mm Width) | Bulk,Tube | - | Active | 16 | 1 | 1µs (Typ) | Voltage - Unbuffered | No | SPI, DSP | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.5, ±0.5 | R-2R | 0°C ~ 70°C |
|
PM7542AQ/883CM-PROC COMPATIBLE 12-BIT DAC |
3,063 | 32.90 |
RFQ |
Datasheet |
16-CDIP (0.300, 7.62mm) | Bulk | - | Active | 12 | 1 | 1µs | Current - Unbuffered | Yes | - | External | 4.75V ~ 5.25V | 4.75V ~ 5.25V | ±0.5 (Max), ±0.5 (Max) | Multiplying DAC | -55°C ~ 125°C |
|
DAC8408FPZIC DAC 8BIT A-OUT 28DIP |
2,402 | 38.22 |
RFQ |
Datasheet |
28-DIP (0.600, 15.24mm) | Tube | - | Active | 8 | 4 | 250ns | Current - Unbuffered | No | Parallel | External | 5V | 5V | ±0.5 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C |
|
|
AD8522ARZIC DAC 12BIT V-OUT 14SO |
2,876 | 38.26 |
RFQ |
Datasheet |
14-SOIC (0.154, 3.90mm Width) | Tube | - | Active | 12 | 2 | 16µs (Typ) | Voltage - Buffered | No | SPI | Internal | 5V | 5V | ±0.5, ±0.5 | R-2R | -40°C ~ 85°C |
|
LTC2664HUH-12#PBFIC DAC 12BIT V-OUT 32QFN |
3,173 | 38.32 |
RFQ |
Datasheet |
32-WFQFN Exposed Pad | Tube | SoftSpan™ | Active | 12 | 4 | 15.5µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | ±4.5V ~ 15.75V | 1.71V ~ 5.5V | ±0.2, ±0.05 | - | -40°C ~ 125°C |
|
LTC2686CUJ-16#PBF8 CH +/-15V SOFTSPAN DACS |
3,238 | 40.38 |
RFQ |
Datasheet |
40-WFQFN Exposed Pad | Tube | - | Active | 16 | 8 | 18µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | 4.75V ~ 5.25V | 4.75V ~ 5.25V | ±3LSB (Max), ±1 (Max) | - | 0°C ~ 70°C |
|
AD7564BRZIC DAC 12BIT A-OUT 28SOIC |
2,670 | 1.00 |
RFQ |
Datasheet |
28-SOIC (0.295, 7.50mm Width) | Bulk,Tube | - | Active | 12 | 4 | 550µs (Typ) | Current - Unbuffered | Yes | SPI | External | 5V | 5V | ±0.5 (Max), ±0.5 (Max) | R-2R | -40°C ~ 85°C |
|

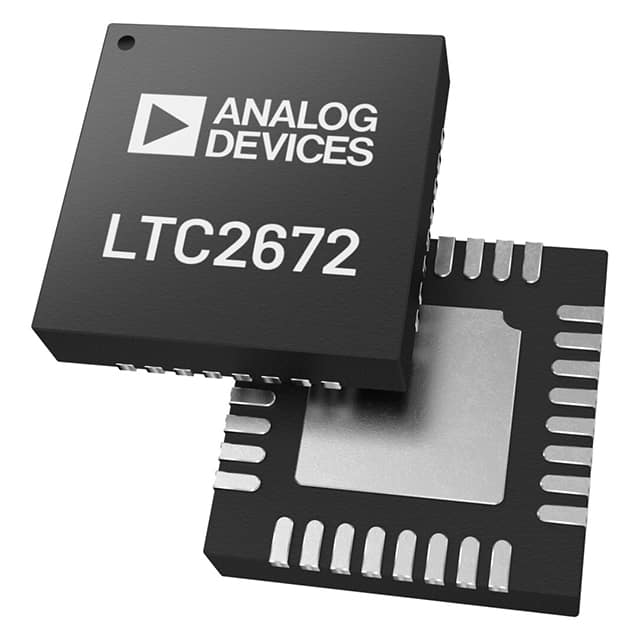

LTC2672CUH-16#PBF5CH 300MA 16BIT CURRENTSOURCEOUT |
3,635 | 38.40 |
RFQ |
Datasheet |
32-WFQFN Exposed Pad | Tube | SoftSpan™ | Active | 16 | 5 | 21.1µs (Typ) | Current - Unbuffered | No | Serial, SPI | External, Internal | 2.85V ~ 5.5V | 1.7V ~ 5.5V | ±12, ±0.45LSB | Current Source | 0°C ~ 70°C |
|
|
LTC2666CUH-12#PBFIC DAC 12BIT V-OUT 32QFN |
2,165 | 38.88 |
RFQ |
Datasheet |
32-WFQFN Exposed Pad | Tube | SoftSpan™ | Active | 12 | 8 | 15.5µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | ±4.5V ~ 15.75V | 5V | ±0.2, ±0.05 | - | 0°C ~ 70°C |
|
AD5755BCPZ16BIT QUAD, V/I DAC WITH DYNAMIC |
3,922 | 39.09 |
RFQ |
Datasheet |
64-VFQFN Exposed Pad, CSP | Tray | AD5755 | Active | 16 | 4 | 18µs | Voltage - Buffered, Current - Unbuffered | No | SPI, DSP | External, Internal | 9V ~ 33V | 2.7V ~ 5.5V | ±1, ±1 (Max) | R-2R | -40°C ~ 105°C |
|
|
LTC2686IUJ-16#PBF8 CH +/-15V SOFTSPAN DACS |
3,115 | 39.60 |
RFQ |
Datasheet |
40-WFQFN Exposed Pad | Tube | - | Active | 16 | 8 | 18µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | 4.75V ~ 5.25V | 4.75V ~ 5.25V | ±3LSB (Max), ±1 (Max) | - | -40°C ~ 85°C |
|
AD7849CRZIC DAC 16BIT V-OUT 20SOIC |
3,809 | 42.82 |
RFQ |
Datasheet |
20-SOIC (0.295, 7.50mm Width) | Tube | - | Active | 16 | 1 | 10µs (Typ) | Voltage - Buffered | No | SPI | External | ±14.25V ~ 15.75V | 5V | ±8 (Max), ±0.5 (Max) | String DAC | -40°C ~ 85°C |
|
AD667JPZIC DAC 12BIT V-OUT 28PLCC |
3,701 | 43.28 |
RFQ |
Datasheet |
28-LCC (J-Lead) | Tube | - | Active | 12 | 1 | 4µs | Voltage - Buffered | No | Parallel | External, Internal | ±11.4V ~ 16.5V | - | ±0.5, ±0.5 | R-2R | 0°C ~ 70°C |
|
LTC2656BCFE-L16#PBFIC DAC 16BIT V-OUT 20TSSOP |
3,077 | 40.22 |
RFQ |
Datasheet |
20-TSSOP (0.173, 4.40mm Width) Exposed Pad | Tube | - | Active | 16 | 8 | 8.9µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±2, ±0.3 | - | 0°C ~ 70°C |
|
LTC2656BCUFD-L16#PBFIC DAC 16BIT V-OUT 20QFN |
2,283 | 40.22 |
RFQ |
Datasheet |
20-WFQFN Exposed Pad | Tube | - | Active | 16 | 8 | 8.9µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±2, ±0.3 | - | 0°C ~ 70°C |
|
|
LTC2664IUH-16#PBFIC DAC 16BIT V-OUT 32QFN |
2,184 | 40.22 |
RFQ |
Datasheet |
32-WFQFN Exposed Pad | Tube | SoftSpan™ | Active | 16 | 4 | 20µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | ±4.5V ~ 15.75V | 1.71V ~ 5.5V | ±2.2, ±0.35 | - | -40°C ~ 85°C |
|
|
LTC2686HUJ-16#PBF8 CH +/-15V SOFTSPAN DACS |
2,072 | 40.59 |
RFQ |
Datasheet |
40-WFQFN Exposed Pad | Tube | - | Active | 16 | 8 | 18µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | 4.75V ~ 5.25V | 4.75V ~ 5.25V | ±3LSB (Max), ±1 (Max) | - | -40°C ~ 125°C |
|
AD5679RBCPZ-116-CH16-BITNANODAC+WITH2PPM/CREF |
3,808 | 44.00 |
RFQ |
28-VFQFN Exposed Pad, CSP | Tray | nanoDAC+® | Active | 16 | 16 | 8µs | Voltage - Buffered | No | SPI, DSP | Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.18LSB, ±0.7LSB | String DAC | -40°C ~ 125°C |
