| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

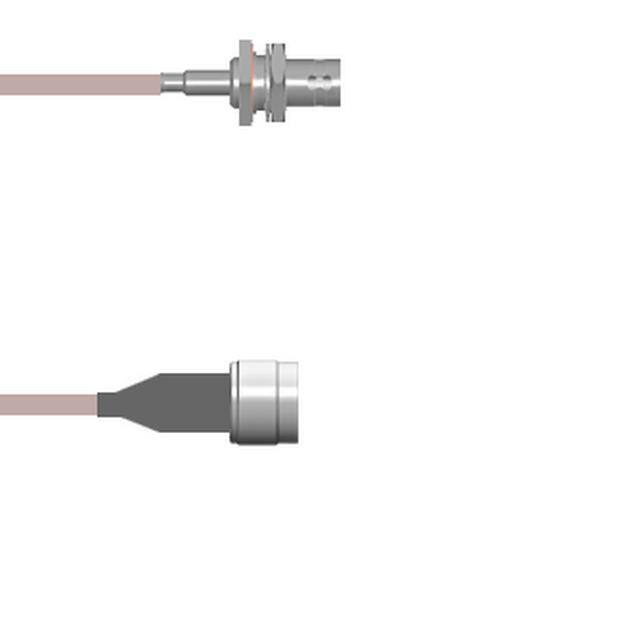

Q-0402I0005003MCBL ASSY BNC-N-TYPE J-P RG316 3M |
2,566 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to N-Type | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 118.1 (3.0m) 9.8' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

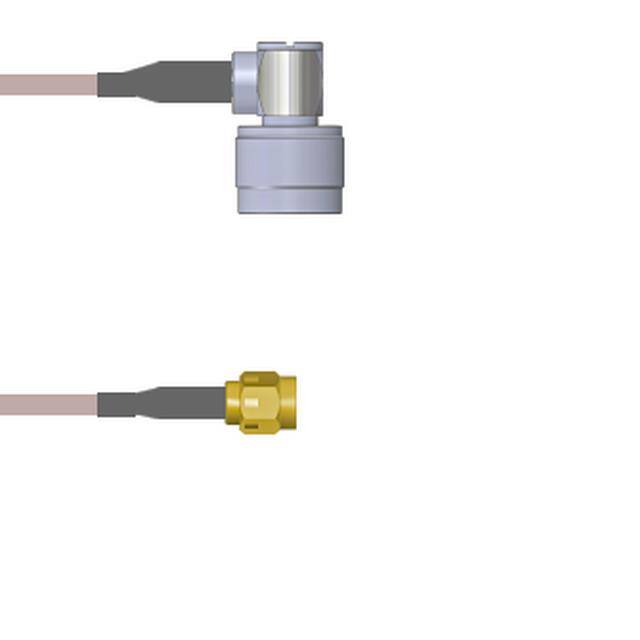

Q-2C03B0005036iCBL ASSY SMA-N PLUG RG316 36 |
3,933 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Plug | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 36.00 (914.40mm) | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|
Q-2I03L0005048iCBL ASY SMB-N JK TO PLG RG316 4' |
3,969 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Jack | Male | - | - | N-Type Plug | Male | - | - | 48.0 (1.2m) 4.0' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|
Q-0A04X000H0.5MCBL ASSY BNC-TNC RG142 19.69 |
2,044 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 19.69 (500.00mm) | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

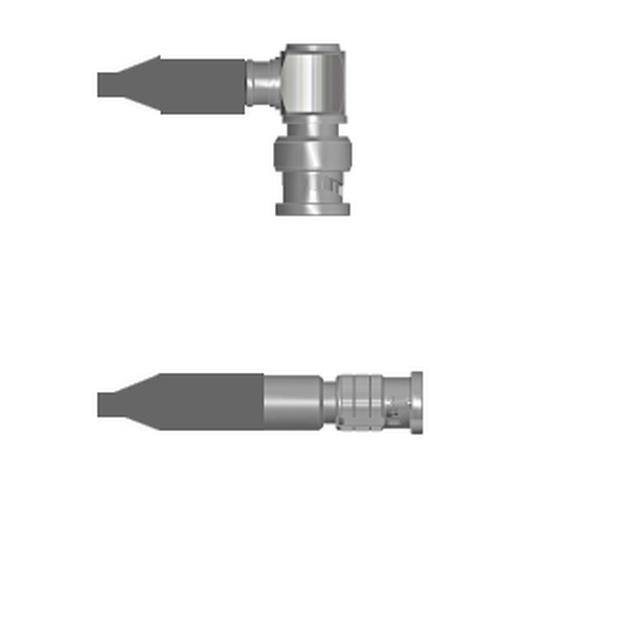

Q-62064000K001MCBL ASSY BNC-HD-BNC PLUG 1M |
2,316 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Plug, Right Angle | Male | - | - | HD-BNC Plug | Male | - | - | 39.4 (1.0m) 3.3' | Belden 4855R | - | - | 75 Ohms | 18 GHz | Black | Shielded | - |
|

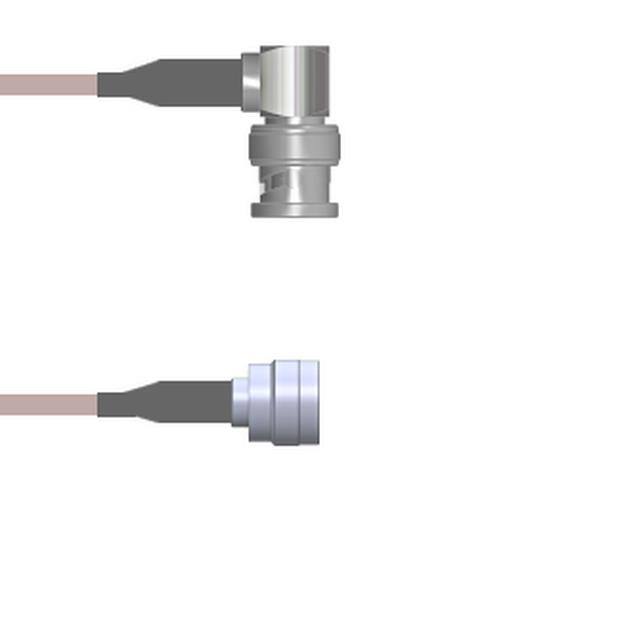

Q-0F056000H.75MCBL ASSY BNC-TNC PL RG142 29.53 |
3,447 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Plug, Right Angle | Male | - | - | TNC Plug | Male | - | - | 29.53 (750.00mm) | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

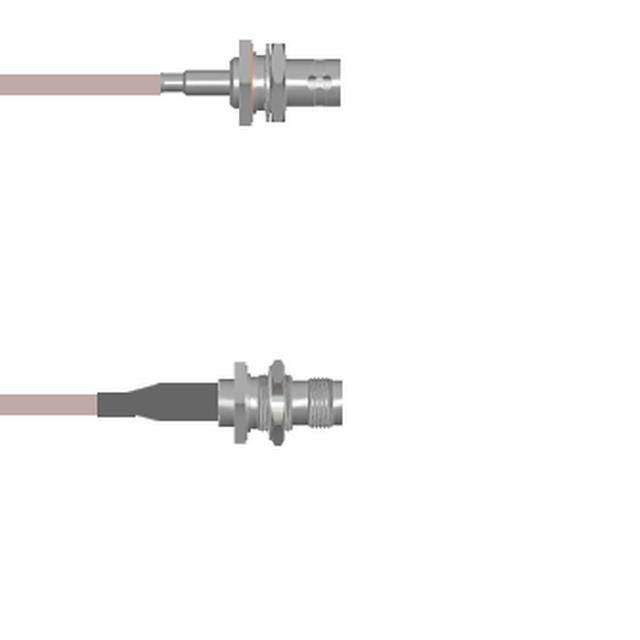

Q-0404F0005.75MCBL ASSY BNC-TNC JK RG316 29.53 |
2,286 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 29.53 (750.00mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

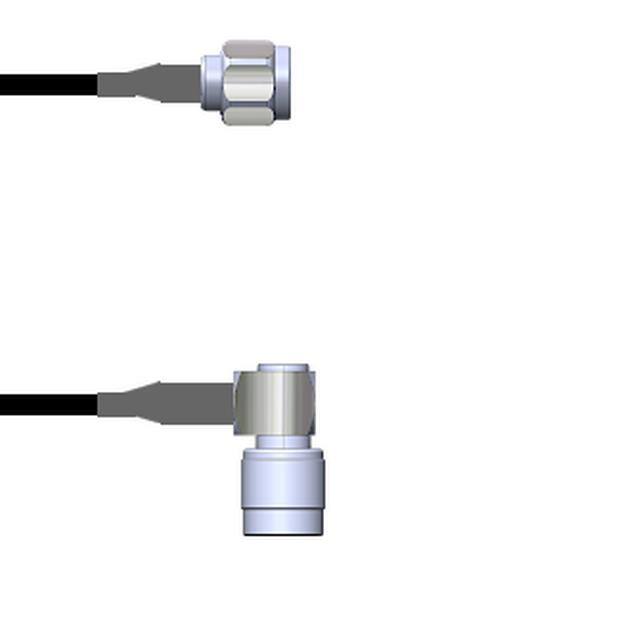

Q-2O04V000D001MCBL ASSY N TO TNC PLUG 1M |
3,088 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Plug | Male | - | - | TNC Plug, Right Angle | Male | - | - | 39.4 (1.0m) 3.3' | LMR 195 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

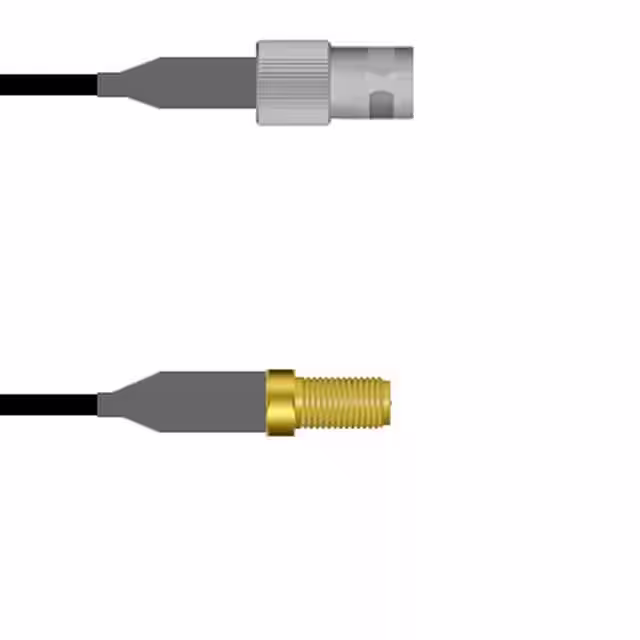

Q-090720008.25MCB ASY RP-SMA-BNC JK RG58 9.843 |
2,583 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to BNC | RP-SMA Jack | Male | - | - | BNC Jack | Female | - | - | 9.843 (250.00mm) | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

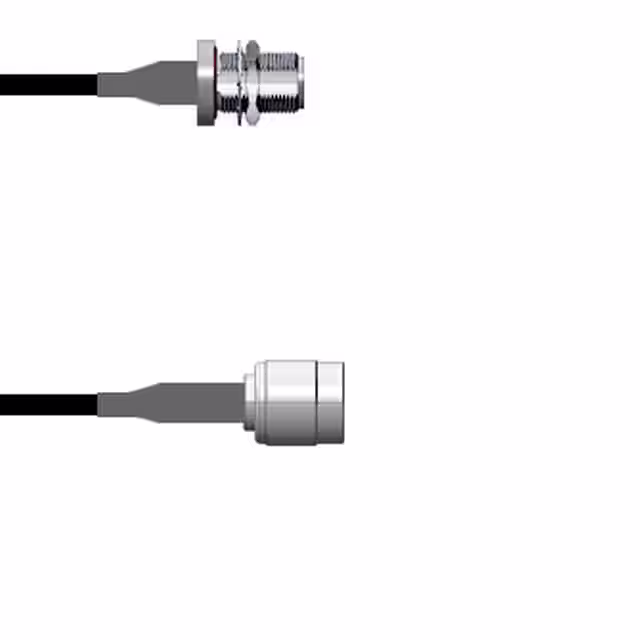

Q-1T0520003012iCBL ASY N-TNC J-P RG174 12 |
3,649 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

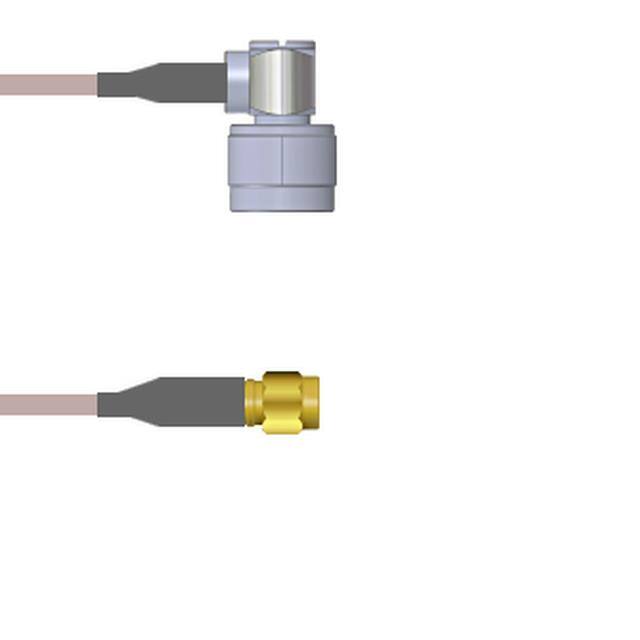

Q-2G03F000H006iCBL ASSY SMA-N PLUG RG142 6 |
2,497 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Plug | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 6.000 (152.40mm) | RG-142 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

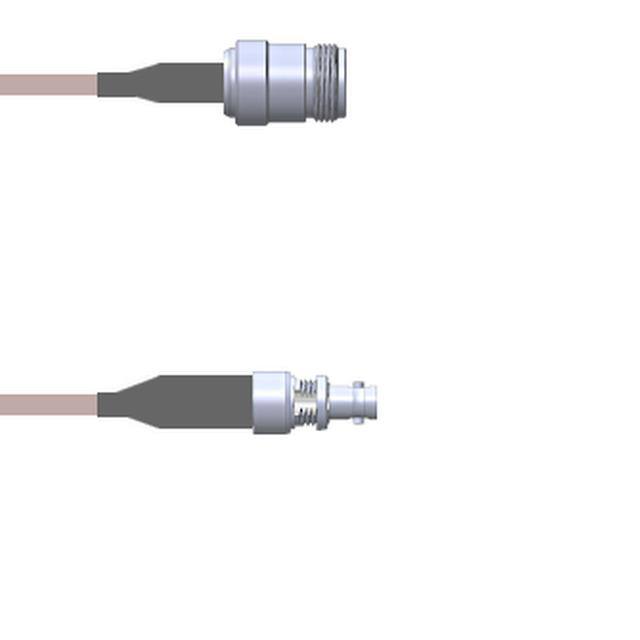

Q-2400S000H.75MCBL ASY HD-BNC TO N RG142 29.53 |
3,540 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | HD-BNC to N-Type | HD-BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Free Hanging (In-Line) | - | 29.53 (750.00mm) | RG-142 | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

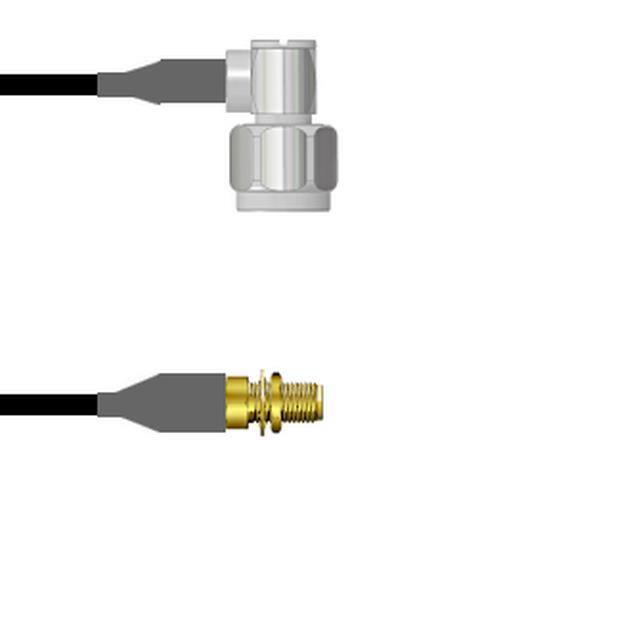

Q-2E030000D108iCBL ASSY SMA-N JACK TO PLUG 9' |
2,209 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 108.0 (2.7m) 9.0' | LMR 195 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

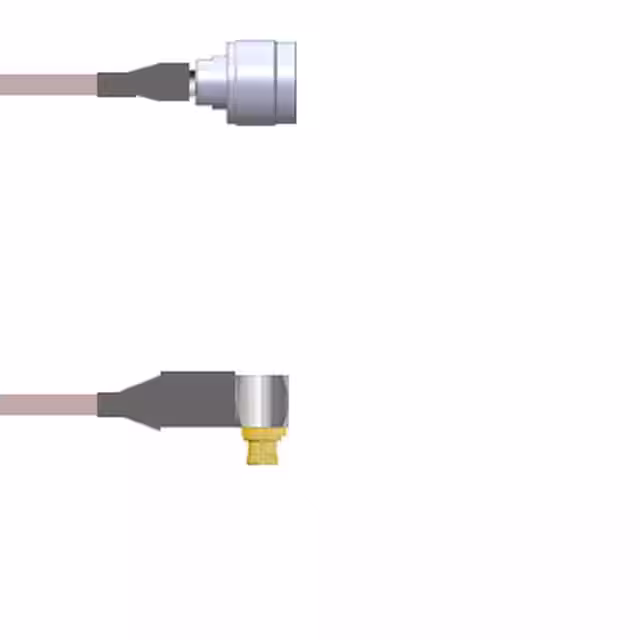

Q-2H04600012.5MCBL ASSY SMPM-N PLUG RG178 2.5M |
2,423 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMPM to N-Type | SMPM Plug, Right Angle | Male | - | - | N-Type Plug | Male | - | - | 98.4 (2.5m) 8.2' | RG-178 | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

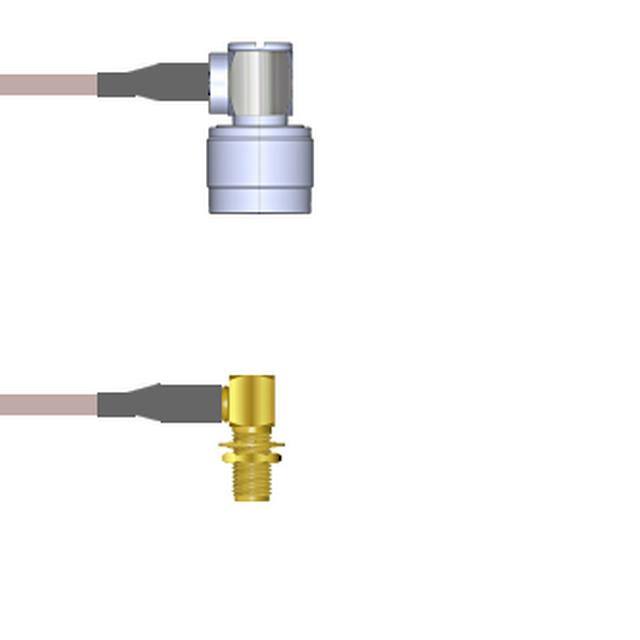

Q-2D02Q000R012iCBL ASY SMA-N J-P RG316 DB 12 |
3,487 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-316 DB | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

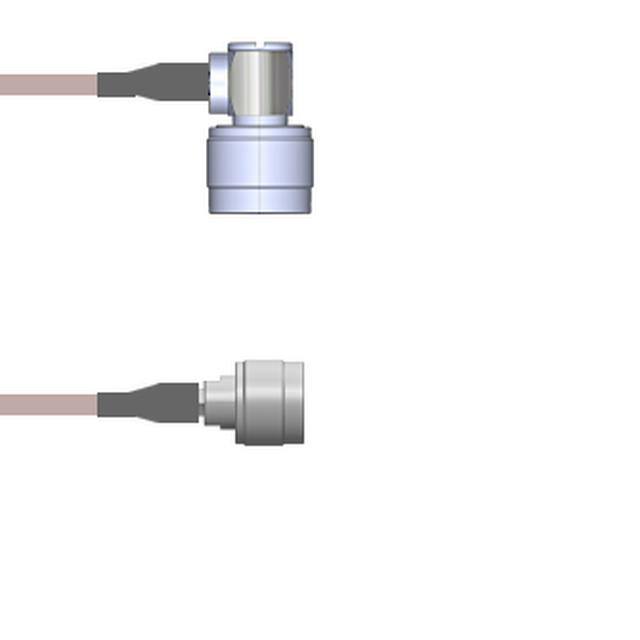

Q-2D02M000R2.5MCBL ASSY N-TYP PLG RG316 DB 2.5M |
2,166 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Plug, Right Angle | Male | - | - | N-Type Plug | Male | - | - | 98.4 (2.5m) 8.2' | RG-316 DB | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

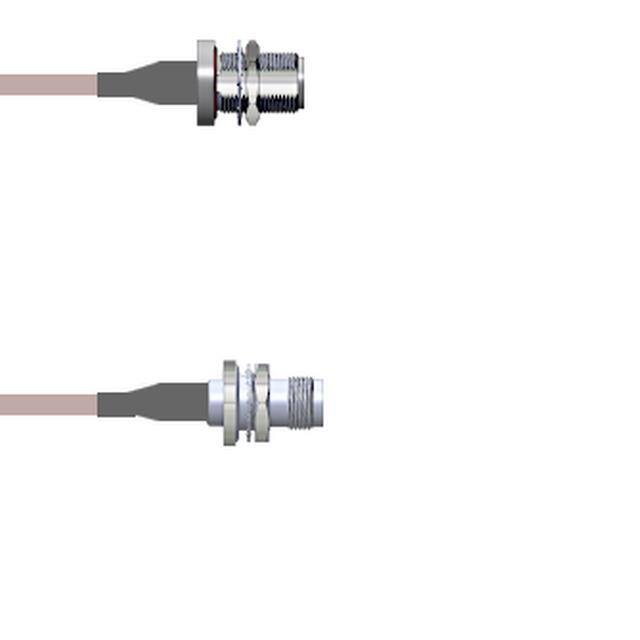

Q-1T04E0005009iCBL ASSY N TO TNC JACK RG316 9 |
2,370 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 9.000 (228.60mm) | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

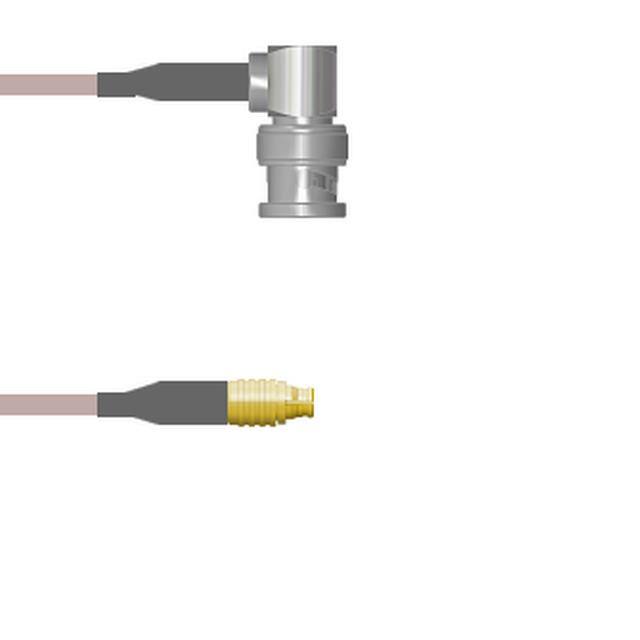

Q-0D0440005009iCBL ASSY BNC-SMP PLUG RG316 9 |
3,351 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMP | BNC Plug, Right Angle | Male | - | - | SMP Plug | Male | - | - | 9.000 (228.60mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|
Q-0D01Q0005003iCBL ASSY BNC-MMCX PLUG RG316 3 |
3,647 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MMCX | BNC Plug, Right Angle | Male | - | - | MMCX Plug | Male | - | - | 3.000 (76.20mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

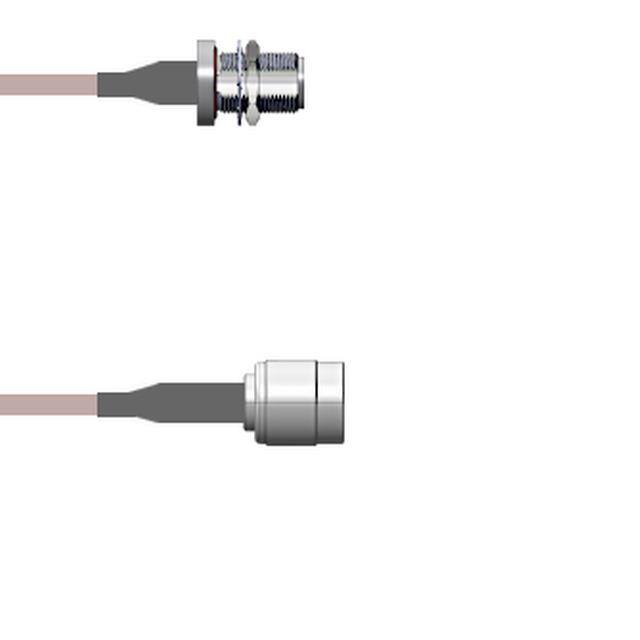

Q-1T0520005009iCBL ASY N TO TNC J TO P RG316 9 |
2,179 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug | Male | Free Hanging (In-Line) | - | 9.000 (228.60mm) | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
