| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

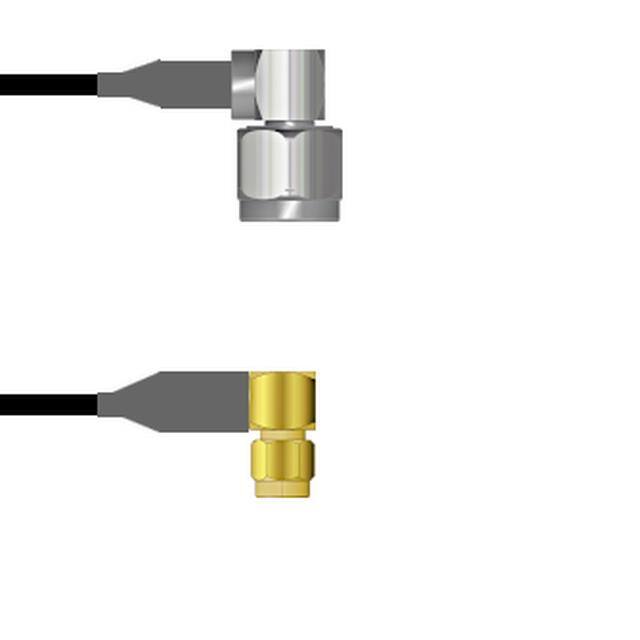

Q-2A039000M048iCBL ASSY SMA-N PLUG 4' |
3,750 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Plug, Right Angle | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 48.0 (1.2m) 4.0' | LMR 240 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

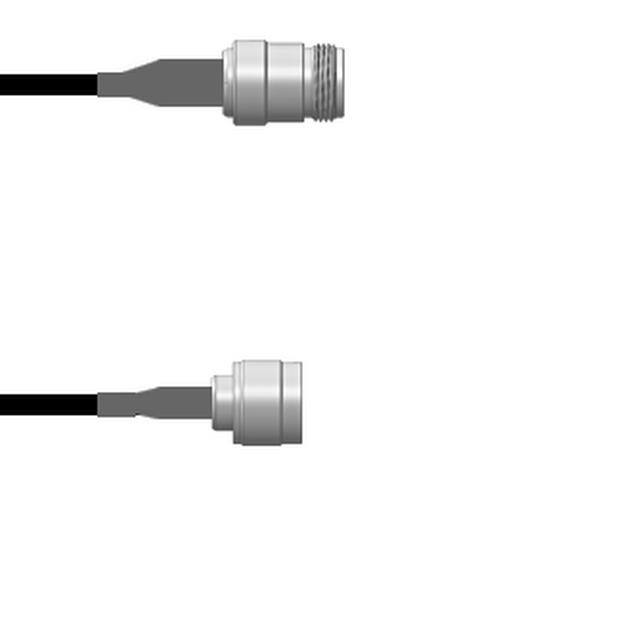

Q-1W02N0008018iCBL ASSY N-TYPE J TO P RG58 18 |
3,010 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Jack | Female | - | - | N-Type Plug | Male | - | - | 18.00 (457.20mm) | RG-58 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

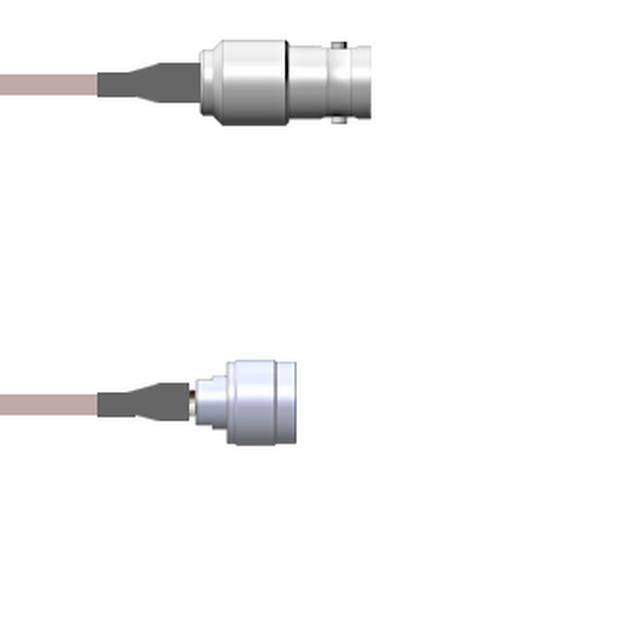

Q-0202H0001001MCBL ASSY BNC-N-TYPE J-P RG178 1M |
3,800 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to N-Type | BNC Jack | Female | - | - | N-Type Plug | Male | - | - | 39.4 (1.0m) 3.3' | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|
Q-040140005012iCBL ASSY BNC-MCX JACK RG316 12 |
3,972 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Jack | Female | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

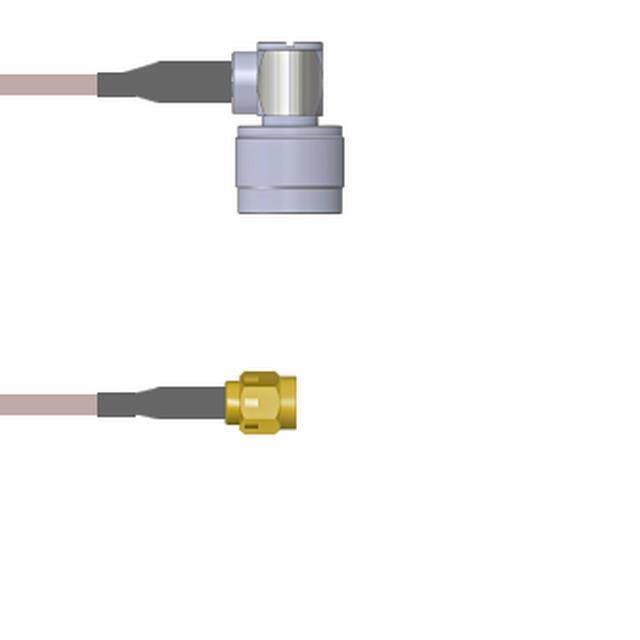

Q-2C03B0005003iCBL ASSY SMA-N PLUG RG316 3 |
2,458 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Plug | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 3.000 (76.20mm) | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

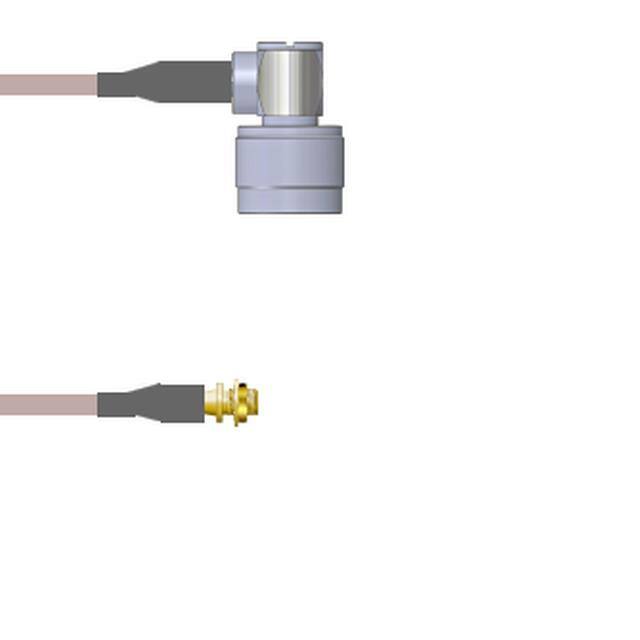

Q-2C01I0005018iCBL ASY MMCX-N J TO P RG316 18 |
2,373 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MMCX to N-Type | MMCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00 (457.20mm) | RG-316 | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

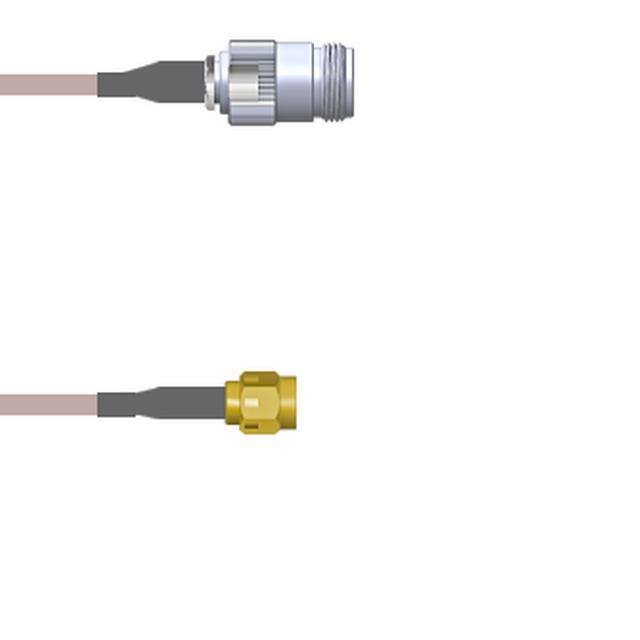

Q-2003B00050.5MCBL ASY SMA-N P-J RG316 19.69 |
2,491 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Plug | Male | - | - | N-Type Jack | Female | - | - | 19.69 (500.00mm) | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

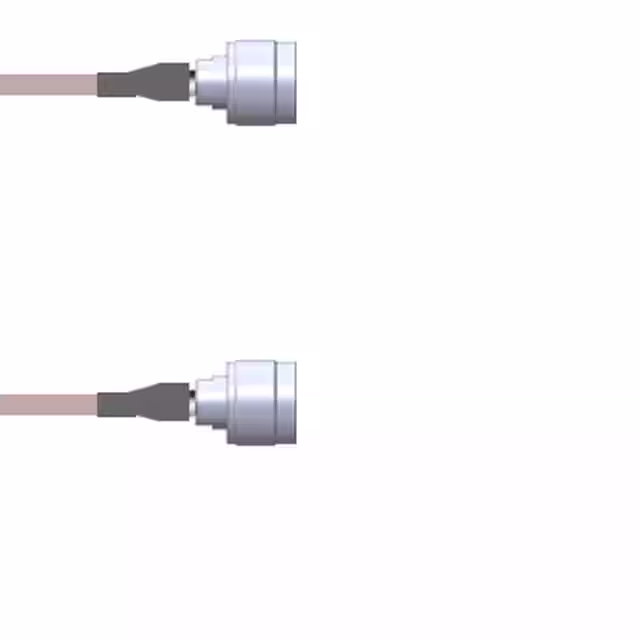

Q-2H02H0001024iCBL ASSY N-TYPE PLUG RG178 24 |
3,337 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Plug | Male | - | - | N-Type Plug | Male | - | - | 24.00 (609.60mm) | RG-178 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

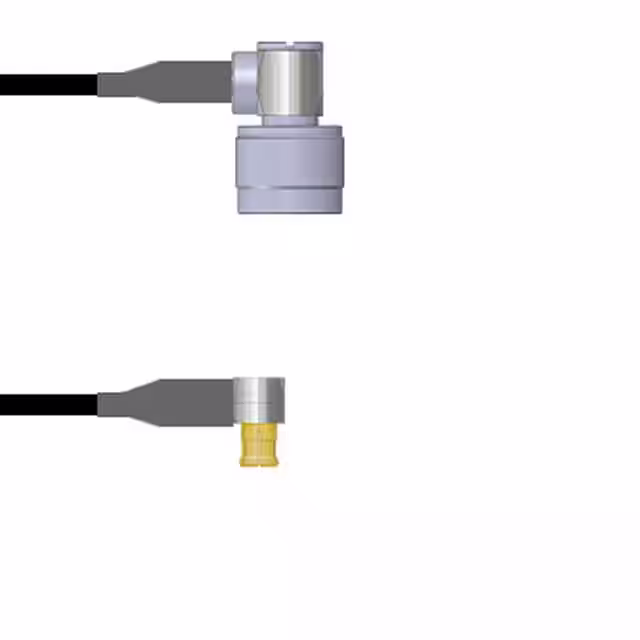

Q-2C01A0003108iCBL ASSY MCX-N PLUG RG174 9' |
3,214 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Plug, Right Angle | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 108.0 (2.7m) 9.0' | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

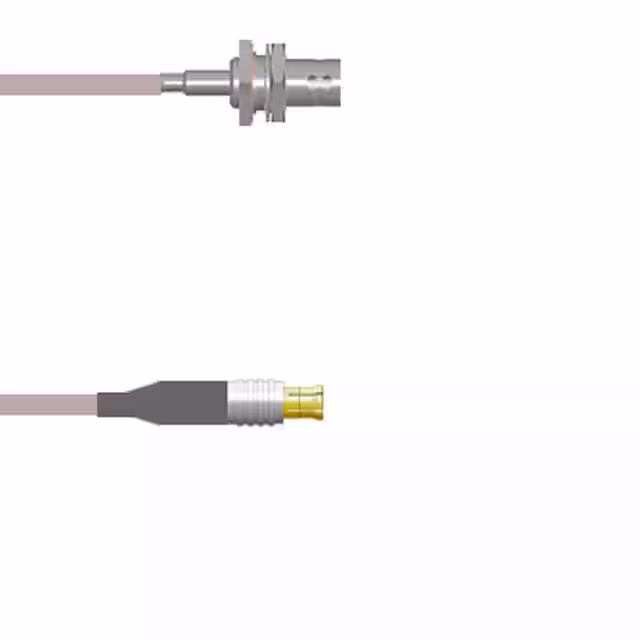

Q-0401F0005.25MCBL ASSY BNC-MCX RG316 9.843 |
2,056 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug | Male | Free Hanging (In-Line) | - | 9.843 (250.00mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

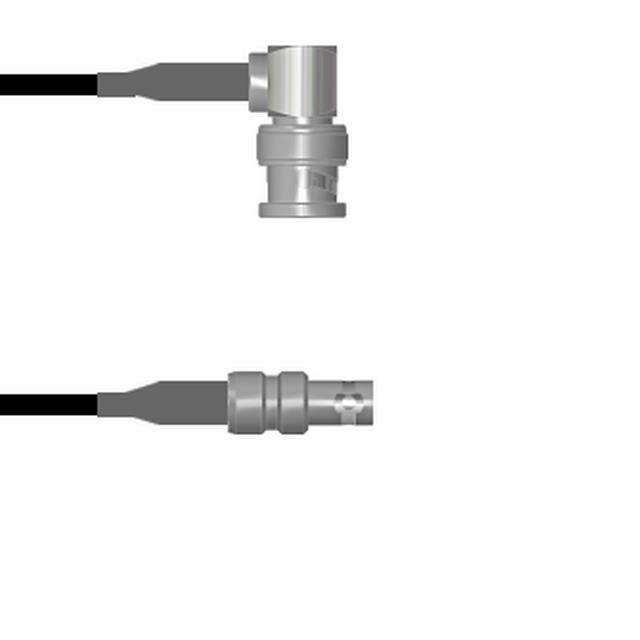

Q-0D00Q0003048iCBL ASSY BNC-HD-BNC P-J RG174 4' |
2,640 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Plug, Right Angle | Male | - | - | HD-BNC Jack | Female | - | - | 48.0 (1.2m) 4.0' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

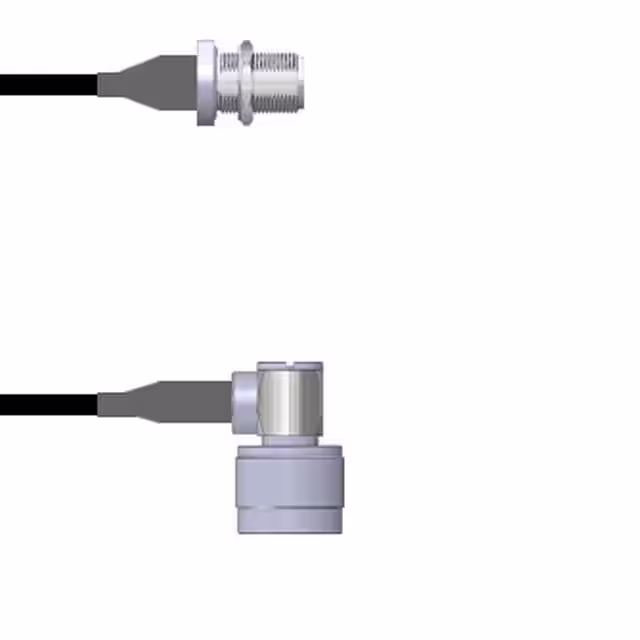

Q-1U02C0003003MCBL ASSY N-TYPE J TO P RG174 3M |
3,030 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 118.1 (3.0m) 9.8' | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|
Q-62063000K003iCBL ASSY BNC PLUG TO JACK 3 |
3,230 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug, Right Angle | Male | - | - | BNC Jack | Female | - | - | 3.000 (76.20mm) | Belden 4855R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - |
|

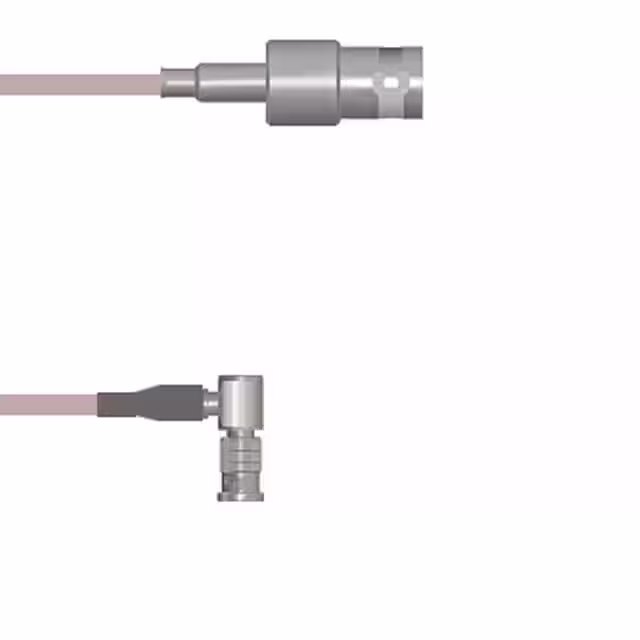

Q-0305G0005060iCBL ASSY BNC-HD-BNC J-P RG316 5' |
3,063 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Jack | Female | - | - | HD-BNC Plug, Right Angle | Male | - | - | 60.0 (1.5m) 5.0' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

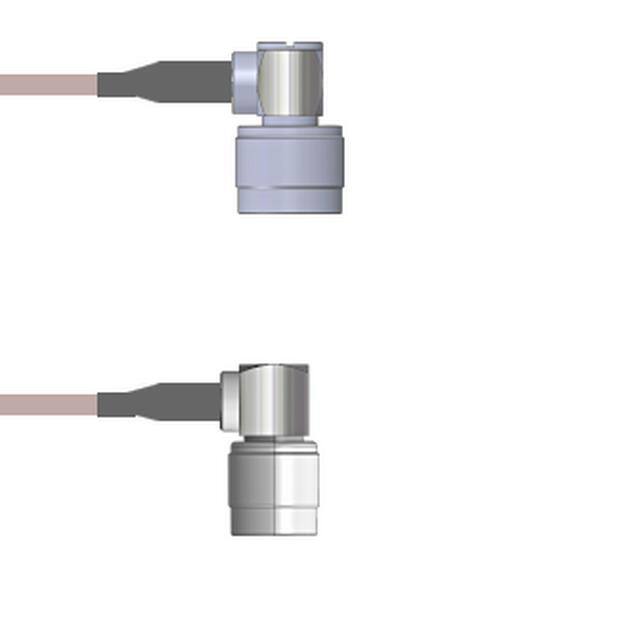

Q-2C04T00052.5MCBL ASSY N TO TNC PLG RG316 2.5M |
3,622 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Plug, Right Angle | Male | - | - | TNC Plug, Right Angle | Male | - | - | 98.4 (2.5m) 8.2' | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

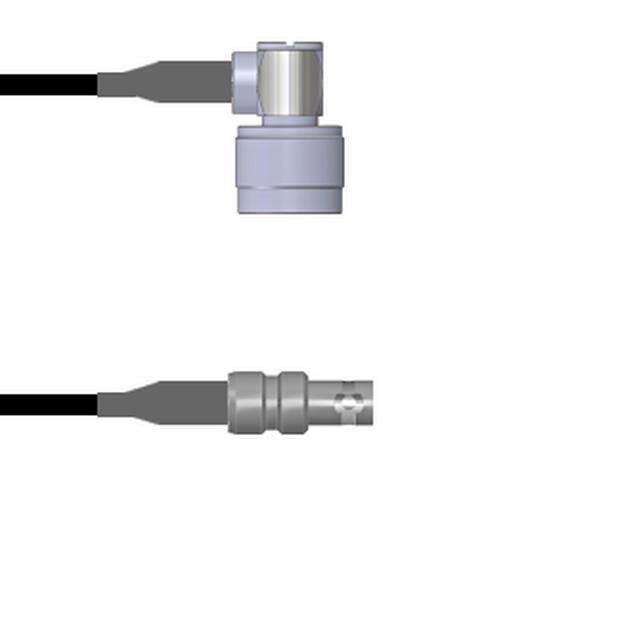

Q-2C00Q00031.5MCBL ASSY HD-BNC TO N RG174 1.5M |
2,922 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | HD-BNC to N-Type | HD-BNC Jack | Female | - | - | N-Type Plug, Right Angle | Male | - | - | 59.1 (1.5m) 4.9' | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

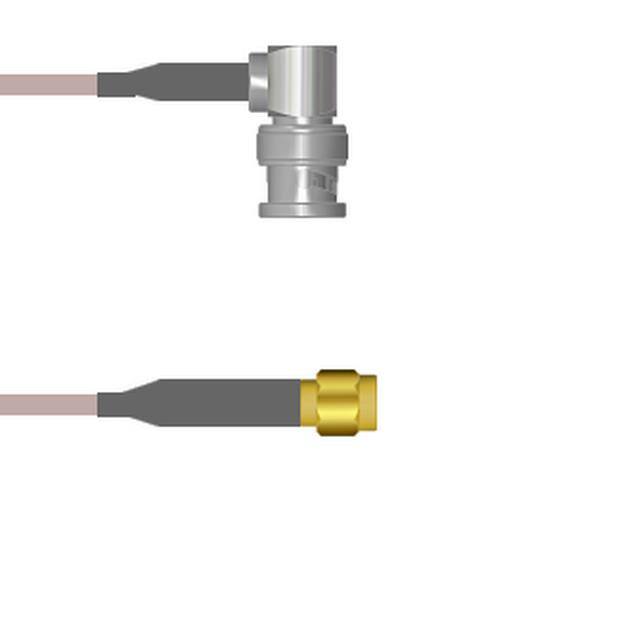

Q-0D0680005003MCBL ASSY RP-SMA-BNC PLG RG316 3M |
3,742 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to BNC | RP-SMA Plug | Female | - | - | BNC Plug, Right Angle | Male | - | - | 118.1 (3.0m) 9.8' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|
Q-1U02V0005006iCBL ASSY SMA-N JACK RG316 6 |
3,945 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 6.000 (152.40mm) | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

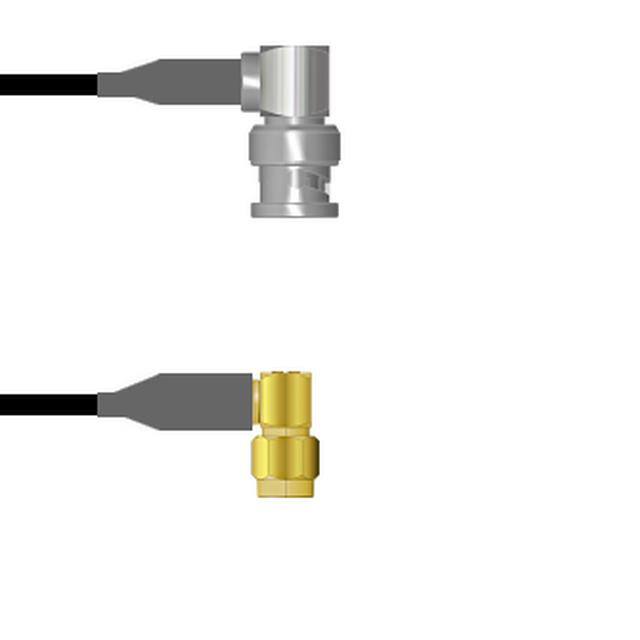

Q-0E0360008024iCBL ASSY BNC-SMA PLUG RG58 24 |
2,500 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Plug, Right Angle | Male | - | - | SMA Plug, Right Angle | Male | - | - | 24.00 (609.60mm) | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

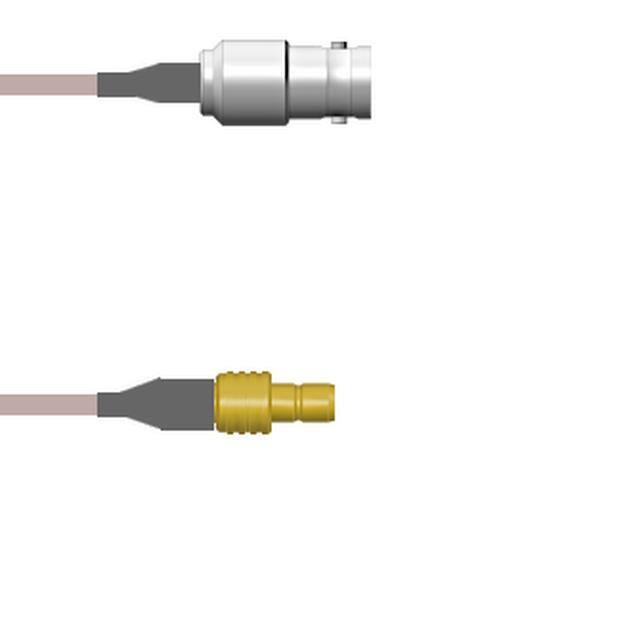

Q-0203J0001003MCBL ASSY BNC-SMB JACK RG178 3M |
2,664 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Jack | Female | - | - | SMB Jack | Female | - | - | 118.1 (3.0m) 9.8' | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
