| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

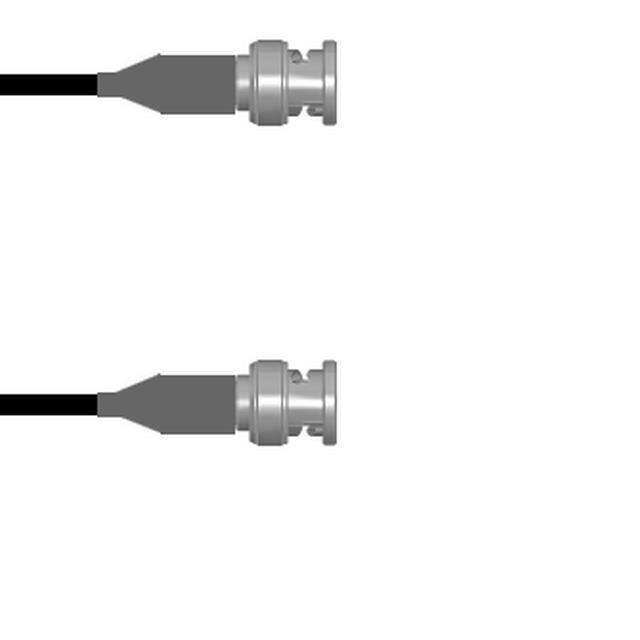

Q-0N00N001A084iCBL ASSY BNC PLUG RG59 7' |
3,818 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug | Male | - | - | BNC Plug | Male | - | - | 84.0 (2.1m) 7.0' | RG-59 | - | - | 75 Ohms | 4 GHz | Black | Shielded | - |
|

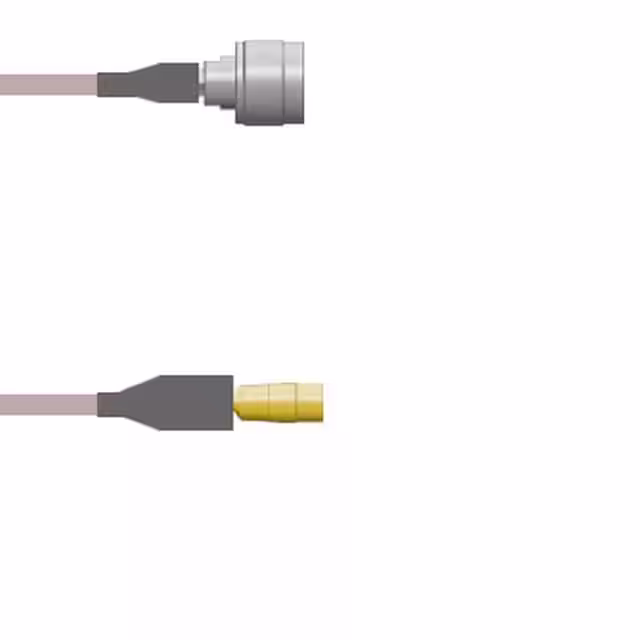

Q-2M01L000R001MCBL ASY MMCX-N J-P RG316 DB 1M |
3,102 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MMCX to N-Type | MMCX Jack | Female | - | - | N-Type Plug | Male | - | - | 39.4 (1.0m) 3.3' | RG-316 DB | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|
Q-1U04F00031.5MCBL ASSY N TO TNC JCK RG174 1.5M |
2,053 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 59.1 (1.5m) 4.9' | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

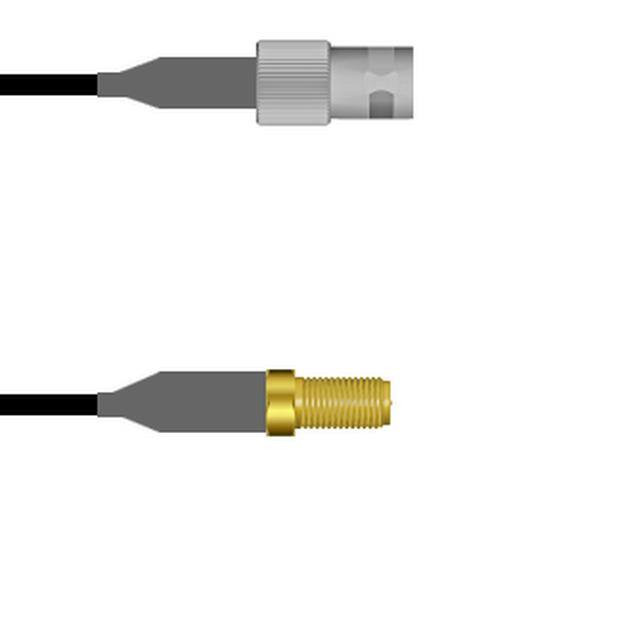

Q-090720008.75MCB ASY RP-SMA-BNC JK RG58 29.53 |
2,959 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to BNC | RP-SMA Jack | Male | - | - | BNC Jack | Female | - | - | 29.53 (750.00mm) | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|
Q-0F02S000H1.5MCBL ASY BNC-SMA P-J RG142 1.5M |
2,637 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Plug, Right Angle | Male | - | - | SMA Jack, Right Angle | Female | - | - | 59.1 (1.5m) 4.9' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|
Q-0N058001A012iCBL ASSY BNC-TNC PLUG RG59 12 |
2,309 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Plug | Male | - | - | TNC Plug | Male | - | - | 12.00 (304.80mm) | RG-59 | - | - | 75 Ohms | 1 GHz | Black | Shielded | - |
|

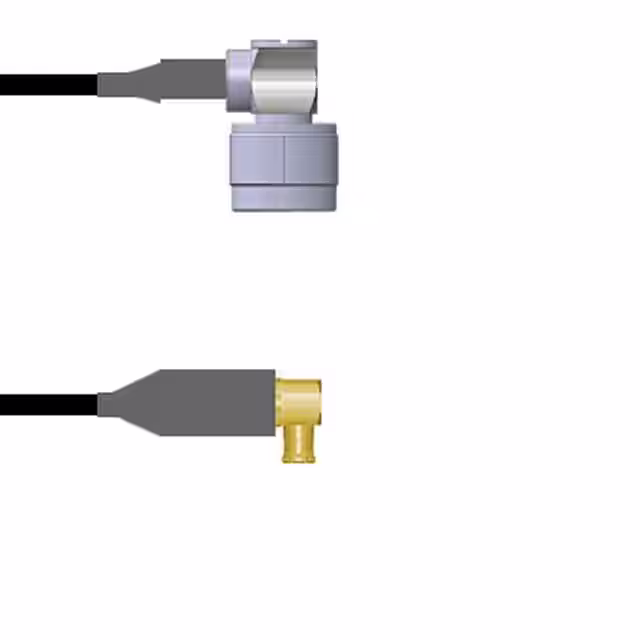

Q-2F0180008084iCBL ASSY MCX-N PLUG RG58 7' |
3,634 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Plug, Right Angle | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 84.0 (2.1m) 7.0' | RG-58 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

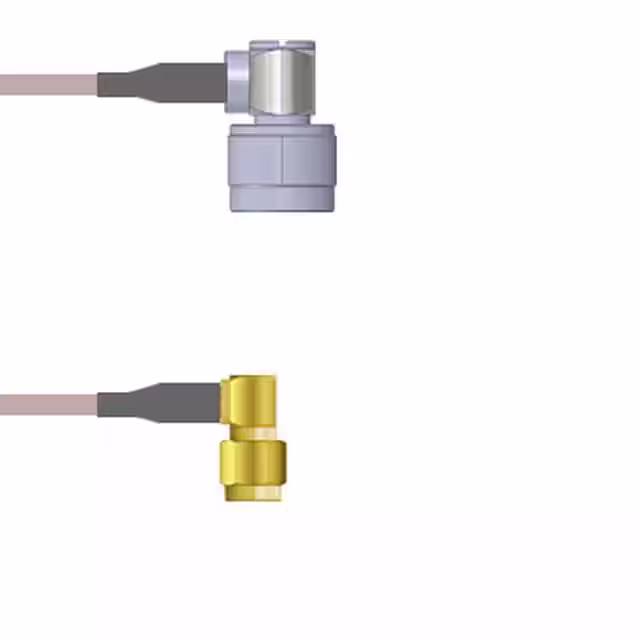

Q-2G038000H036iCBL ASSY SMA-N PLUG RG142 36 |
3,242 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Plug, Right Angle | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 36.00 (914.40mm) | RG-142 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

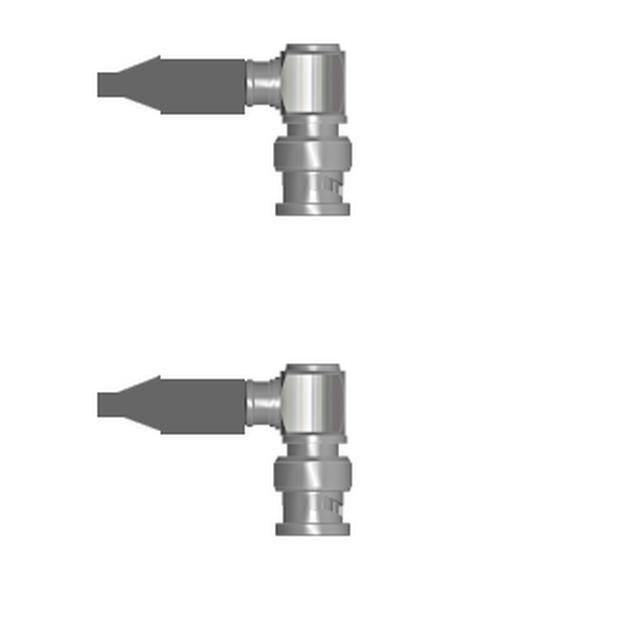

Q-62062000K.75MCBL ASSY BNC PLUG 29.53 |
3,308 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug, Right Angle | Male | - | - | BNC Plug, Right Angle | Male | - | - | 29.53 (750.00mm) | Belden 4855R | - | - | 75 Ohms | 18 GHz | Black | Shielded | - |
|

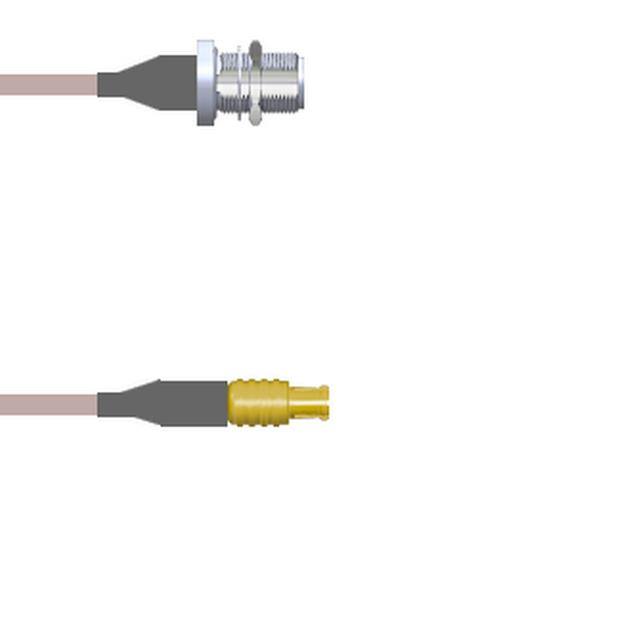

Q-2201D000R.25MCBL ASSY MCX-N RG316 DB 9.843 |
2,815 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 9.843 (250.00mm) | RG-316 DB | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

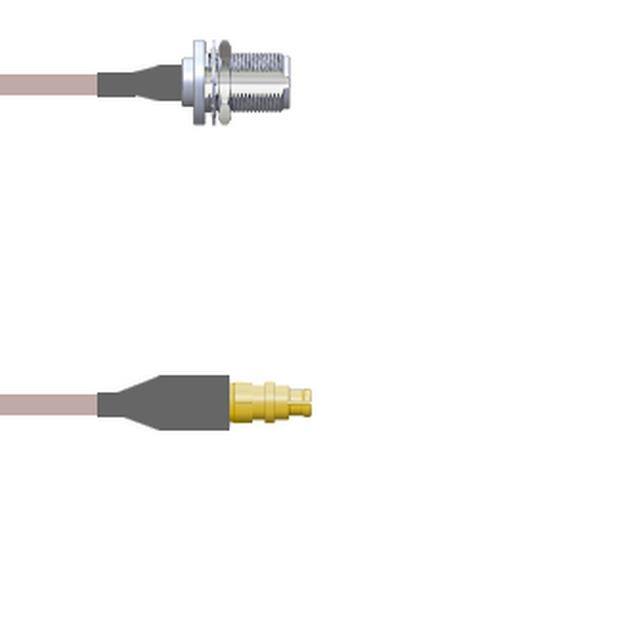

Q-1Z0470001048iCBL ASSY SMPM-N P TO J RG178 4' |
2,152 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMPM to N-Type | SMPM Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 48.0 (1.2m) 4.0' | RG-178 | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|
Q-0L04W0008048iCBL ASSY BNC-TNC PLUG RG58 4' |
2,315 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Plug | Male | - | - | TNC Plug, Right Angle | Male | - | - | 48.0 (1.2m) 4.0' | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

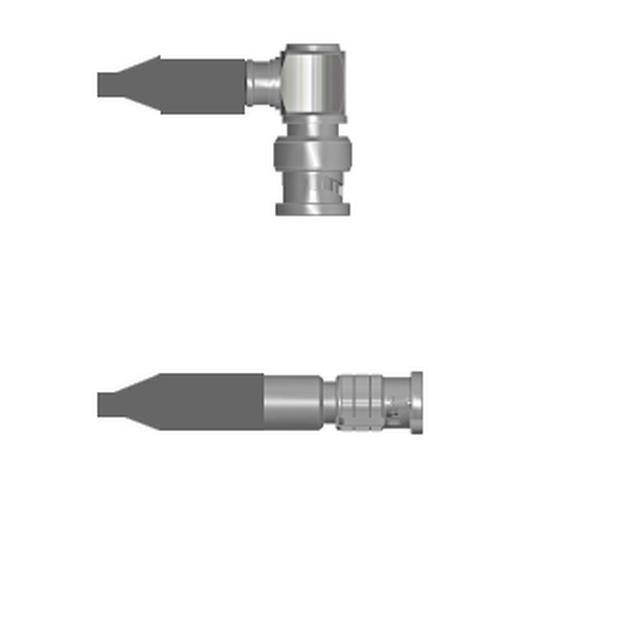

Q-62064000K.25MCBL ASSY BNC-HD-BNC PLUG 9.843 |
3,118 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Plug, Right Angle | Male | - | - | HD-BNC Plug | Male | - | - | 9.843 (250.00mm) | Belden 4855R | - | - | 75 Ohms | 18 GHz | Black | Shielded | - |
|

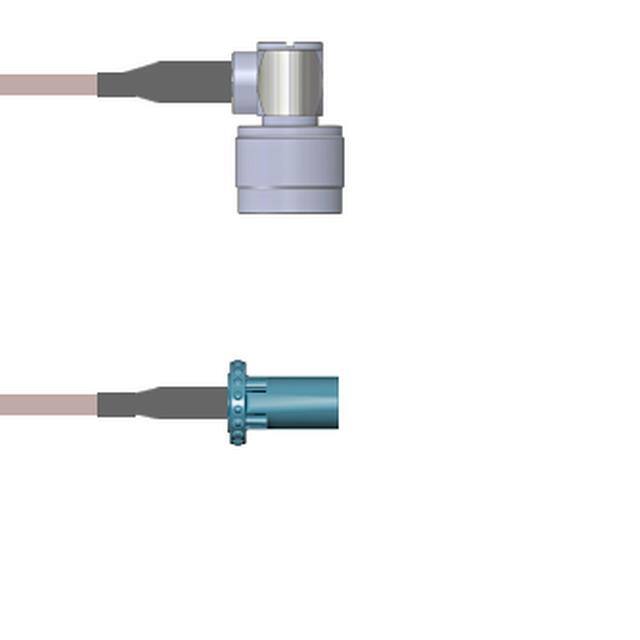

Q-2C05A0005018iCBL ASSY N-FAKRA PLUG RG316 18 |
2,644 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to Fakra | N-Type Plug, Right Angle | Male | - | - | Fakra Plug | Male | - | - | 18.00 (457.20mm) | RG-316 | - | - | 50 Ohms | 3 GHz | Copper | Shielded | - |
|

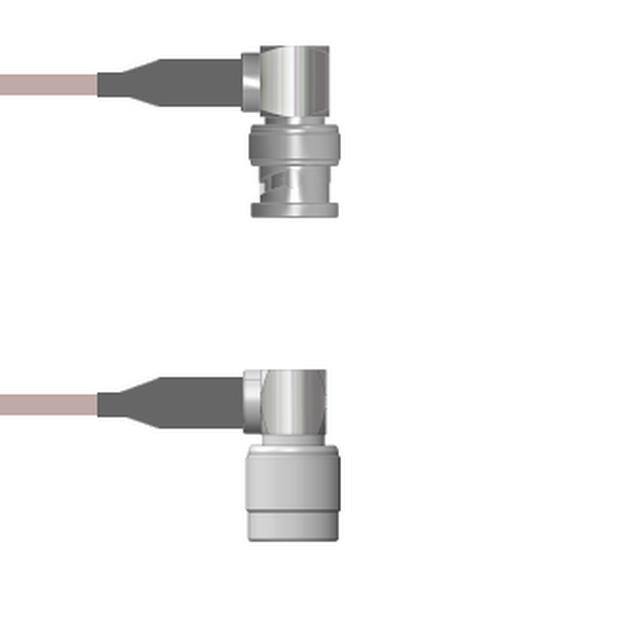

Q-0F04X000H060iCBL ASSY BNC-TNC PLUG RG142 5' |
3,865 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Plug, Right Angle | Male | - | - | TNC Plug, Right Angle | Male | - | - | 60.0 (1.5m) 5.0' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

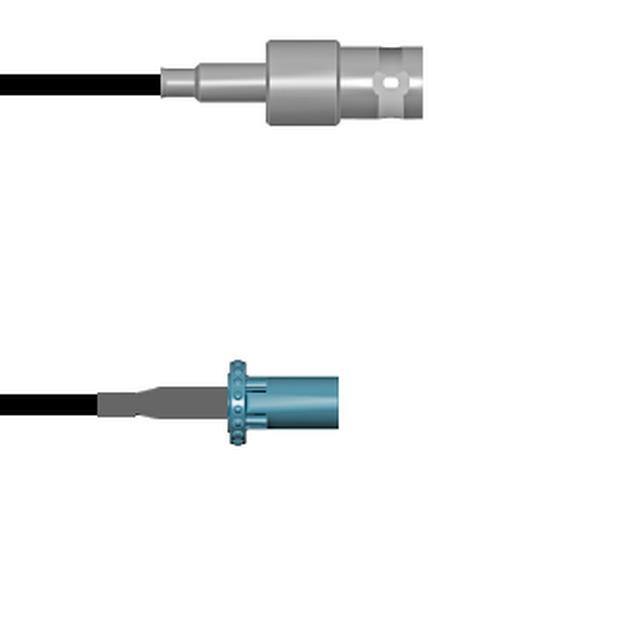

Q-0305A0003036iCBL ASSY BNC-FAKRA J-P RG174 36 |
3,395 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to Fakra | BNC Jack | Female | - | - | Fakra Plug | Male | - | - | 36.00 (914.40mm) | RG-174 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - |
|

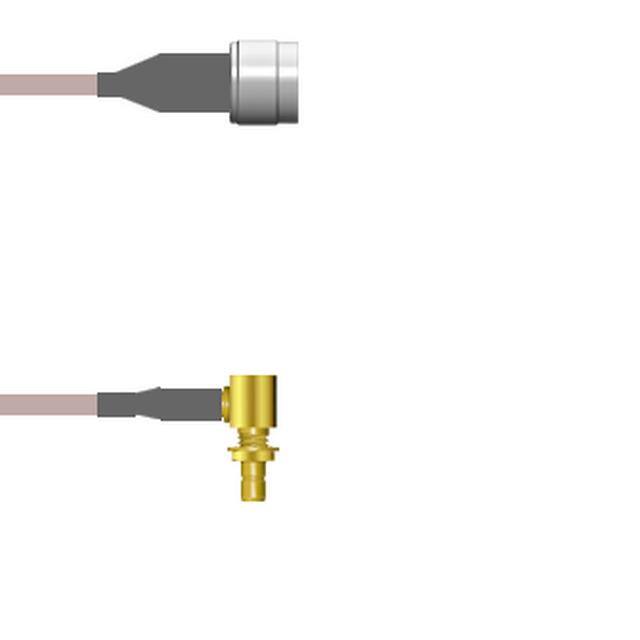

Q-2I03H0005012iCBL ASSY SMB-N J TO P RG316 12 |
3,379 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Jack, Right Angle | Male | - | - | N-Type Plug | Male | - | - | 12.00 (304.80mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

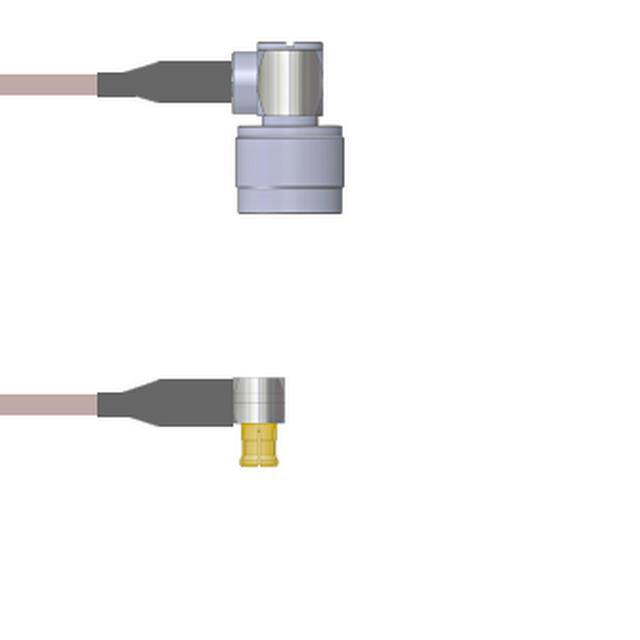

Q-2C01A0005002MCBL ASSY MCX-N PLUG RG316 2M |
2,712 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Plug, Right Angle | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 78.7 (2.0m) 6.6' | RG-316 | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

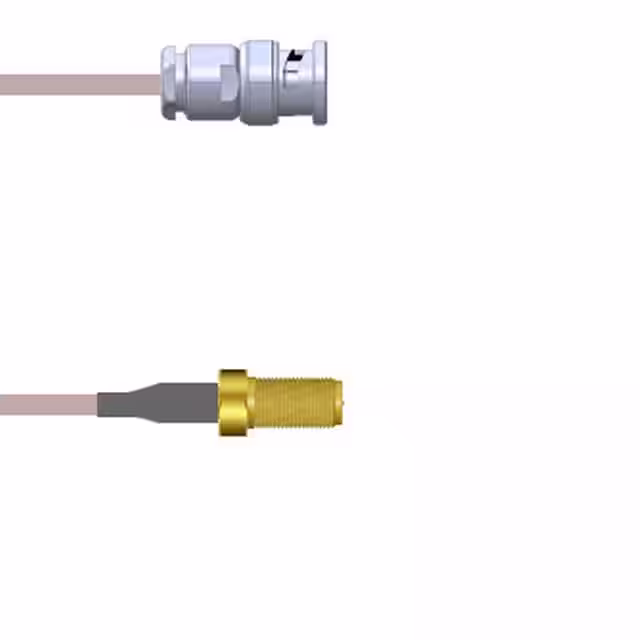

Q-0J0710005009iCBL ASSY RP-SMA-BNC J-P RG316 9 |
3,420 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to BNC | RP-SMA Jack | Male | - | - | BNC Plug | Male | - | - | 9.000 (228.60mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

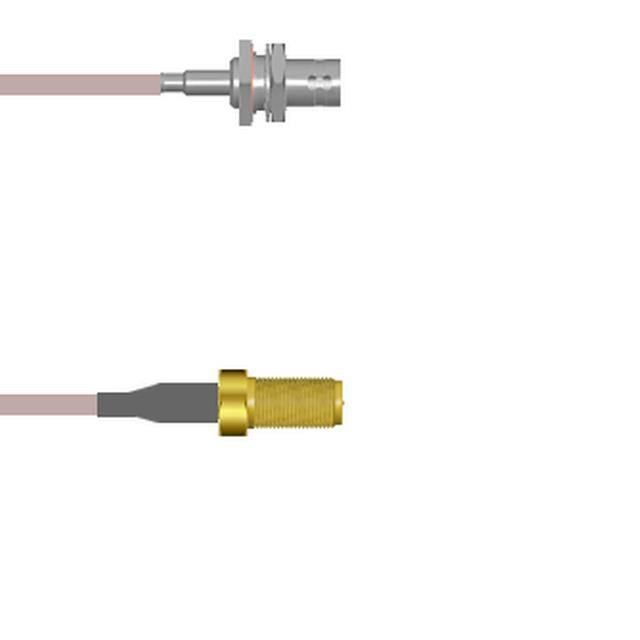

Q-040710005036iCBL ASSY RP-SMA-BNC JK RG316 36 |
2,965 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to BNC | RP-SMA Jack | Male | Free Hanging (In-Line) | - | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 36.00 (914.40mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
