| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-909-168-036ATC-PS TEST CABLE ASSEMBLY, N-TY |
3,487 | 162.53 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00 (914.40mm) | - | - | - | 50 Ohms | 18 GHz | Blue | - | -55°C ~ 200°C |
|

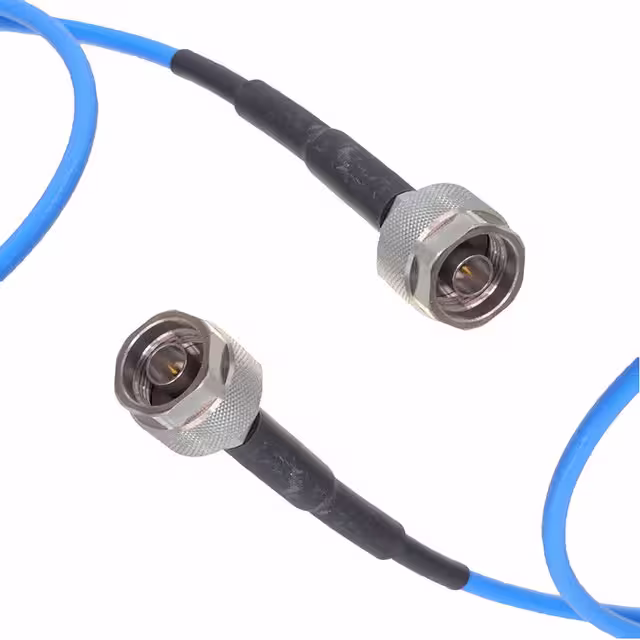

095-909-164-024ATC-PS TEST CABLE ASSEMBLY, N-TY |
3,221 | 170.46 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 24.00 (609.60mm) | - | - | - | 50 Ohms | 18 GHz | Blue | - | -55°C ~ 200°C |
|
|
095-909-164-072ATC-PS TEST CABLE ASSEMBLY, N-TY |
2,379 | 256.19 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 72.0 (1.8m) 6.0' | - | - | - | 50 Ohms | 18 GHz | Blue | - | -55°C ~ 200°C |
.jpg)
|
A-1PA-081-150B2CBL ASSY UMCC PLUG-PLUG 5.906 |
3,919 | 4.32 |
RFQ |
Datasheet |
Bag | - | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906 (150.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C |
|
U-1PU-113-300B2AMC4 PLUG TO AMC4 PLUG ON 1.13MM |
3,468 | 5.76 |
RFQ |
Datasheet |
Bag | USS | Active | AMC4 to AMC4 | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811 (300.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C |
|

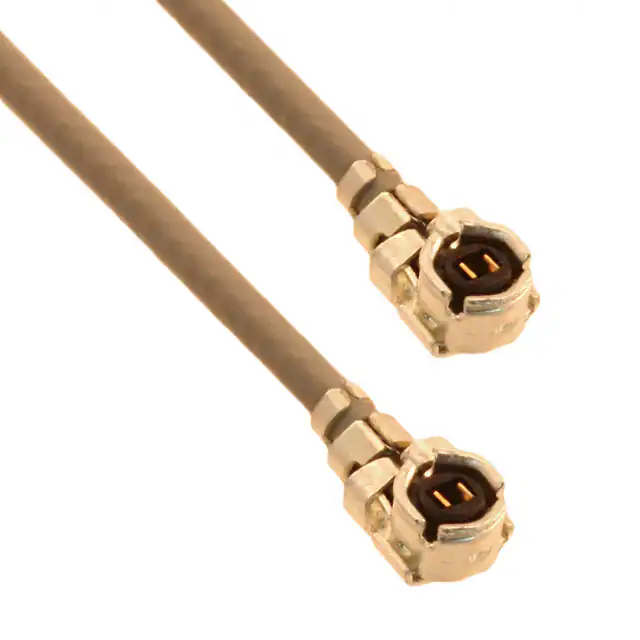

A-1PA-113-050G2CBL ASSY UMCC PLUG-PLUG 1.969 |
100 | 6.01 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969 (50.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | -40°C ~ 90°C |
|
A-1PA-113-048B2CBL ASSY UMCC PLUG-PLUG 1.890 |
3,535 | 6.01 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.890 (48.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C |
|
A-1PA-113-100G2CBL ASSY UMCC PLUG-PLUG 3.937 |
2,168 | 6.11 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937 (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | -40°C ~ 90°C |
|
|
A-1PA-113-205B2CBL ASSY UMCC PLUG-PLUG 8.071 |
3,569 | 6.40 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 8.071 (205.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C |
|

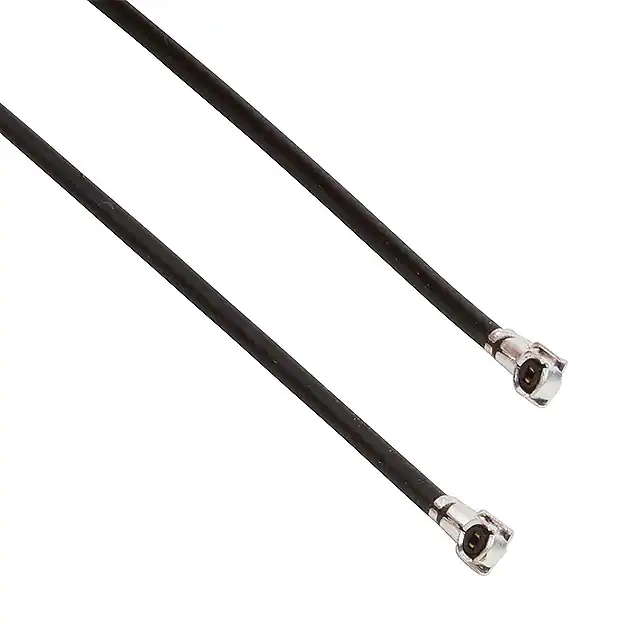

A-2PA-113-300B2CBL ASSY AMMC PLUG-PLUG 11.811 |
3,364 | 6.52 |
RFQ |
Datasheet |
Bag | - | Active | AMMC to AMMC | AMMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | AMMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811 (300.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C |
|
A-2PA-081-500B2CBL ASSY AMMC PLUG-PLUG 19.69 |
2,886 | 7.03 |
RFQ |
Datasheet |
Bag | - | Active | AMMC to AMMC | AMMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | AMMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 19.69 (500.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C |
|
|
A-2PA-113-500B2CBL ASSY AMMC PLUG-PLUG 19.69 |
3,651 | 7.10 |
RFQ |
Datasheet |
Bag | - | Active | AMMC to AMMC | AMMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | AMMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 19.69 (500.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C |
|
A-1PA-132-100B2CBL ASSY UMCC PLUG-PLUG 3.937 |
2,203 | 7.42 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937 (100.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C |
|
A-1PA-132-300B2CBL ASSY UMCC PLUG-PLUG 11.811 |
3,544 | 8.00 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811 (300.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C |
|
|
A-1PA-137-200B2CBL ASSY UMCC PLUG-PLUG 7.874 |
2,993 | 8.17 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874 (200.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C |
|
336314-13-0200CBL ASSY RP-SMA-UMC 7.874 |
100 | 10.15 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874 (200.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|
336313-13-0200CBL ASSY SMA-UMC 7.874 |
3,413 | 10.15 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874 (200.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|
|
336314-13-0300CBL ASSY RP-SMA-UMC 11.811 |
3,618 | 10.62 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811 (300.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|
095-902-501-200RP SMA STRAIGHT BULKHEAD JACK TO |
2,267 | 13.82 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to AMC4 | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874 (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|
|
095-902-503-050AMC4 PLUG TO RP SMA STRAIGHT BUL |
3,969 | 16.86 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to AMC4 | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969 (50.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
