| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
255104-01-24.00CBL ASSY MCX PLUG RG316 24 |
3,366 | 23.43 |
RFQ |
Datasheet |
Bag | - | Active | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - |
|
095-820-109-15DFAKRA BULKHEAD STRAIGHT PLUG, IP |
3,147 | 23.77 |
RFQ |
Datasheet |
Bag | - | Active | U.FL (UMCC), AMC to Fakra SMB | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | Fakra SMB Plug | Male | Panel Mount | Bulkhead - Front Side Nut | 5.906 (150.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Locking | -40°C ~ 90°C |
|
265104-01-24.00CBL ASSY MMCX PLUG RG316 24 |
2,820 | 23.88 |
RFQ |
Datasheet |
Bag | - | Active | MMCX to MMCX | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - |
|
095FJZFJZAG-024FAKRA STRAIGHT JACK TO FAKRA RIG |
2,803 | 24.23 |
RFQ |
Datasheet |
Bag | - | Active | Fakra to Fakra | Fakra III (Gen 3.0) Jack | Female | Free Hanging (In-Line) | - | Fakra Gen 3.5 Fakra Jack, Right Angle | Female | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | Z Code | -40°C ~ 85°C |
|
095-820-109-20CFAKRA BULKHEAD STRAIGHT PLUG, IP |
3,954 | 24.31 |
RFQ |
Datasheet |
Bag | - | Active | U.FL (UMCC), AMC to Fakra SMB | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | Fakra SMB Plug | Male | Panel Mount | Bulkhead - Front Side Nut | 7.874 (200.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Locking | -40°C ~ 90°C |
|
245102-08-36.00SMA RP BULKHEAD JACK TO MMCX RIG |
2,847 | 24.40 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to MMCX | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00 (914.40mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | - |
|
115101-06-60.00CBL ASSY BNC PLUG-PLUG 5' |
2,880 | 24.76 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 60.0 (1.5m) 5.0' | Belden 8218 | 75 Ohms | 75 Ohms | 75 Ohms | - | Black | Shielded | - |
|
095-820-109-25ZCABLE FAKRA-RA AMC PLUG 250MM |
2,941 | 24.83 |
RFQ |
Datasheet |
Bag | - | Active | U.FL (UMCC), AMC to Fakra SMB | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | Fakra SMB Plug | Male | Panel Mount | Bulkhead - Front Side Nut | 9.843 (250.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Locking | -40°C ~ 90°C |
|

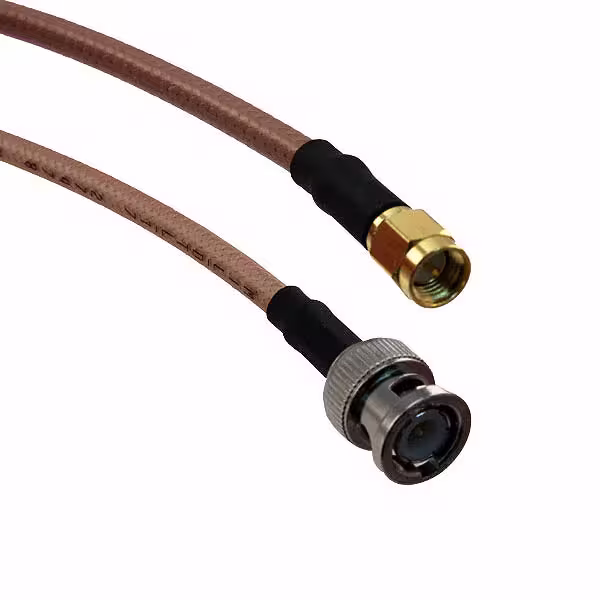

245101-07-12.00CBL ASSY SMA-BNC PLUG RG142 12 |
2,219 | 25.49 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-142 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - |
|
095-850-166-036CBL ASSY BNC PLUG-PLUG 36 |
3,695 | 25.64 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 36.00 (914.40mm) | Belden 1694A | - | - | 75 Ohms | 4 GHz | Black | Shielded | - |
|
135104-01-M0.75CBL ASSY SMA PLUG RG316 29.53 |
2,146 | 25.97 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 29.53 (750.00mm) | RG-316 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | - |
|
135110-07-06.00CBL ASSY SMA JACK-PLUG RG142 6 |
2,361 | 25.97 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000 (152.40mm) | RG-142 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - |
|

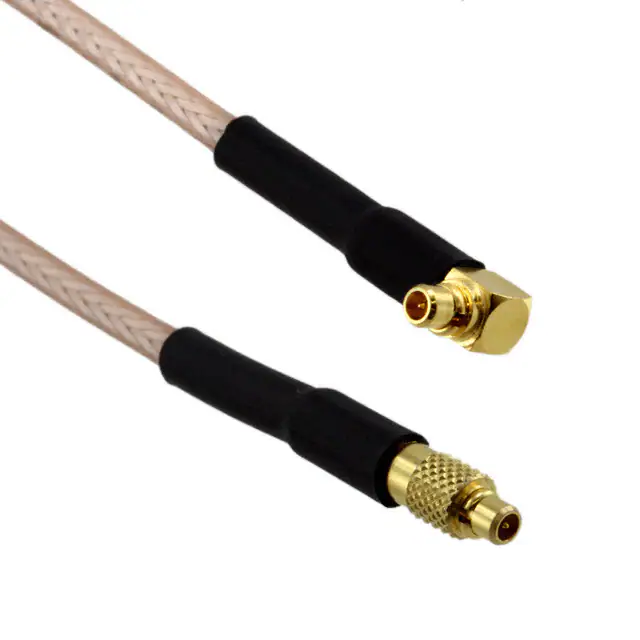

265103-01-36.00CBL ASSY MMCX PLUG RG316 36 |
3,019 | 26.59 |
RFQ |
Datasheet |
Bag | - | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00 (914.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - |
|
135111-03-M0.25CBL ASSY SMA RG316 DS 9.843 |
2,864 | 27.13 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 9.843 (250.00mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | - |
|
095-909-155-001CBL ASSY AMC-N RG178 1.969 |
3,688 | 27.17 |
RFQ |
Datasheet |
Bag | - | Active | U.FL (UMCC), AMC to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969 (50.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|
145104-01-M1.00CBL ASSY SMB PLUG RG316 3.3' |
2,144 | 27.22 |
RFQ |
Datasheet |
Bag | - | Active | SMB to SMB | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 39.4 (1.0m) 3.3' | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - |
|
135101-R1-09.00CBL ASSY SMA PLUG-PLUG .085 9 |
3,135 | 27.32 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 9.000 (228.60mm) | Hand Formable .085 | - | - | 50 Ohms | 12.4 GHz | Gray | - | - |
|
095-850-186-006CBL ASSY BNC PLUG-PLUG 6 |
3,279 | 27.41 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 6.000 (152.40mm) | Belden 4794R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - |
|
095-902-463-012CBL ASSY SMA UT-085C 12 |
3,087 | 27.56 |
RFQ |
Datasheet |
Bag | - | Active | SMA to Cable | SMA Jack | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 12.00 (304.80mm) | UT-085C | - | - | 50 Ohms | 18 GHz | Gray | Shielded | -20°C ~ 75°C |
|
135101-03-M0.75CBL ASSY SMA PLUG RG316 29.53 |
3,386 | 27.84 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 29.53 (750.00mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | 12.4 GHz | Copper | Shielded | - |
