| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
336209-12-0150CBL ASSY UMCC-TNC 5.906 |
3,404 | 33.71 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to TNC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 5.906 (150.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|
135101-R1-18.00CBL ASSY SMA PLUG-PLUG .085 18 |
2,880 | 34.21 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 18.00 (457.20mm) | Hand Formable .085 | - | - | 50 Ohms | 12.4 GHz | Gray | - | - |
|
115101-07-24.00CBL ASSY BNC PLUG RG142 24 |
3,010 | 34.60 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-142 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - |
|
095-850-130M075CBL ASSY HD-BNC PLUG 29.53 |
2,349 | 35.24 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 29.53 (750.00mm) | Belden 1855A | - | - | 75 Ohms | 3 GHz | Black | Shielded | -30°C ~ 75°C |
|
095-902-450-003CBL ASSY SMA PLUG-PLUG .141 3 |
2,463 | 35.52 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 3.000 (76.20mm) | Hand Formable .141 | - | - | 50 Ohms | 18 GHz | Gray | - | - |
|
095-902-451-003CBL ASSY SMA PLUG TFLEX-405 3 |
2,124 | 35.58 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 3.000 (76.20mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | - |
|
095-850-189M025CBL ASSY HD-BNC PLUG 9.843 |
2,772 | 35.88 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 9.843 (250.00mm) | Belden 4855R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - |
|

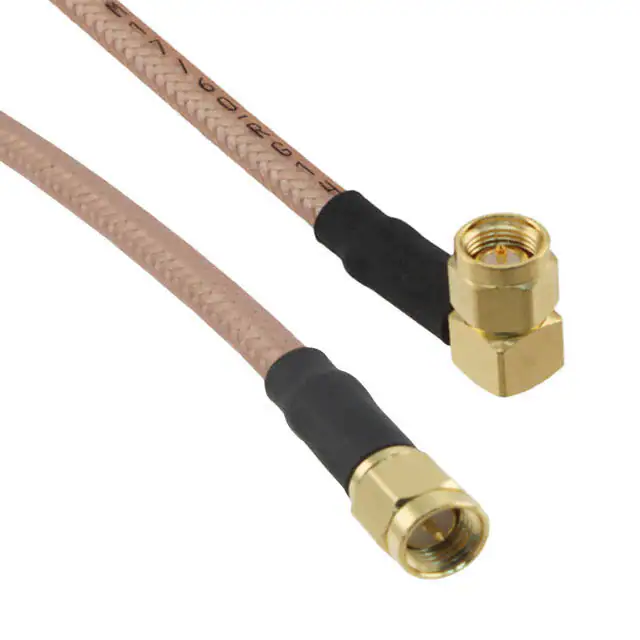

135103-07-18.00CBL ASSY SMA PLUG RG142 18 |
2,272 | 36.08 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00 (457.20mm) | RG-142 | 50 Ohms | - | 50 Ohms | 12.4 GHz | Copper | Shielded | - |
|
|
095-902-450-004CBL ASSY SMA PLUG-PLUG .141 4 |
2,721 | 36.17 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 4.000 (101.60mm) | Hand Formable .141 | - | - | 50 Ohms | 18 GHz | Gray | - | - |
|

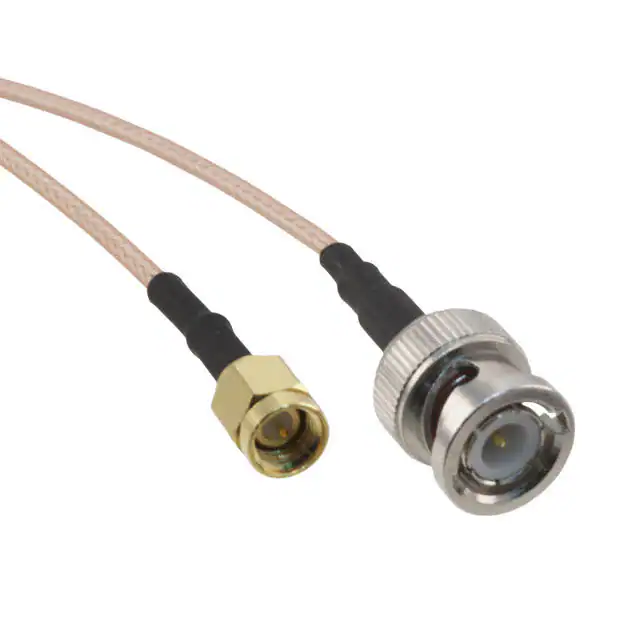

245101-07-24.00CBL ASSY SMA-BNC PLUG RG142 24 |
3,284 | 36.25 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-142 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - |
|
|
095-850-189-012CBL ASSY HD-BNC PLUG-PLUG 12 |
3,748 | 36.53 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | Belden 4855R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - |
|

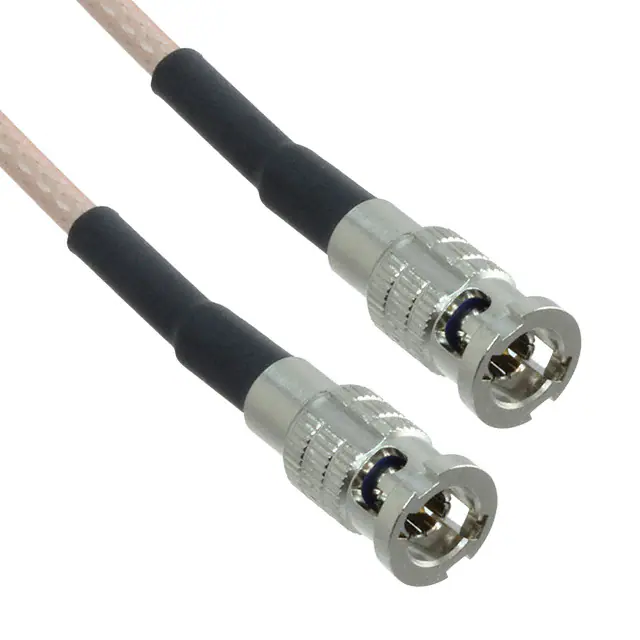

095-850-185-012CBL ASSY HD-BNC PLUG RG316 12 |
3,017 | 36.73 |
RFQ |
Datasheet |
Bag | - | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | - | - |
|
095-902-450-005CBL ASSY SMA PLUG-PLUG .141 5 |
2,788 | 36.83 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 5.000 (127.00mm) | Hand Formable .141 | - | - | 50 Ohms | 18 GHz | Gray | - | - |
|

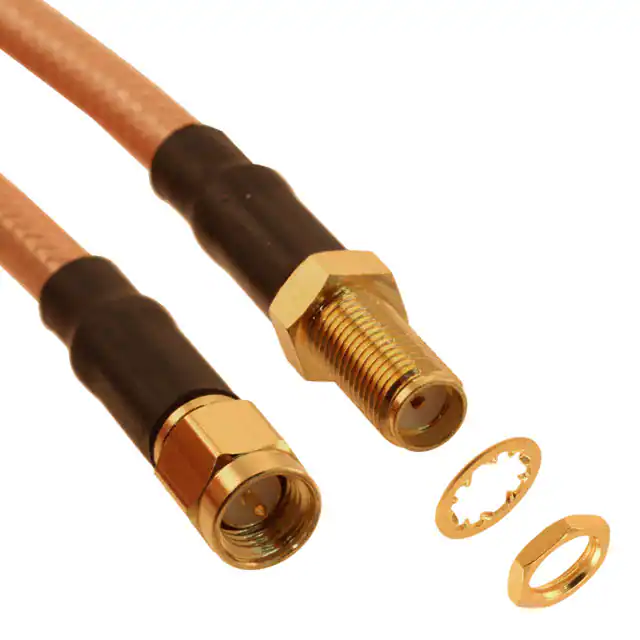

135110-07-24.00CBL ASSY SMA JACK-PLUG RG142 24 |
2,328 | 37.09 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-142 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - |
|

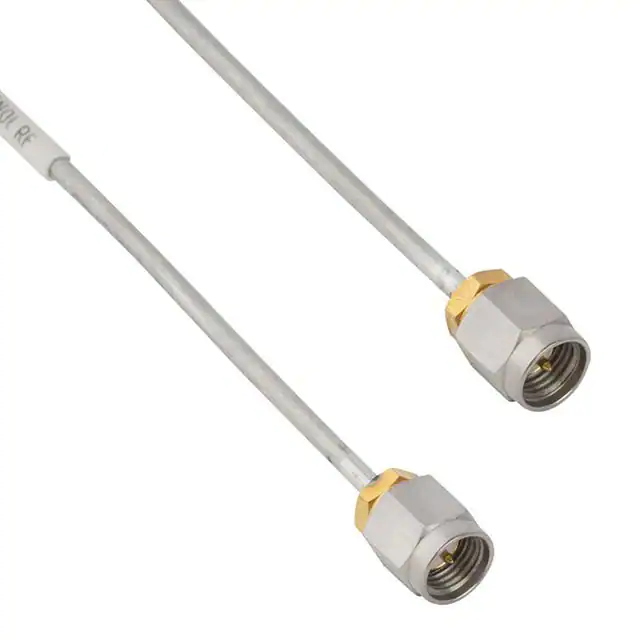

095-902-449-010CBL ASSY SMA PLUG-PLUG .085 10 |
2,470 | 37.33 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 10.000 (254.00mm) | Hand Formable .085 | - | - | 50 Ohms | 18 GHz | Gray | - | - |
|

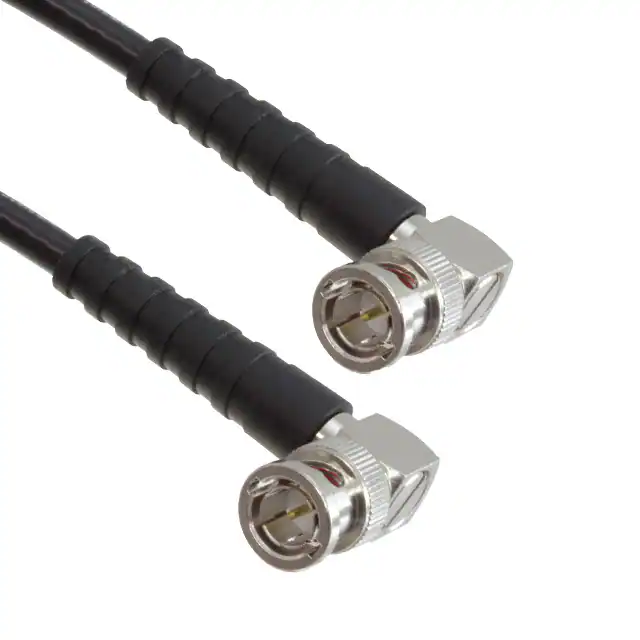

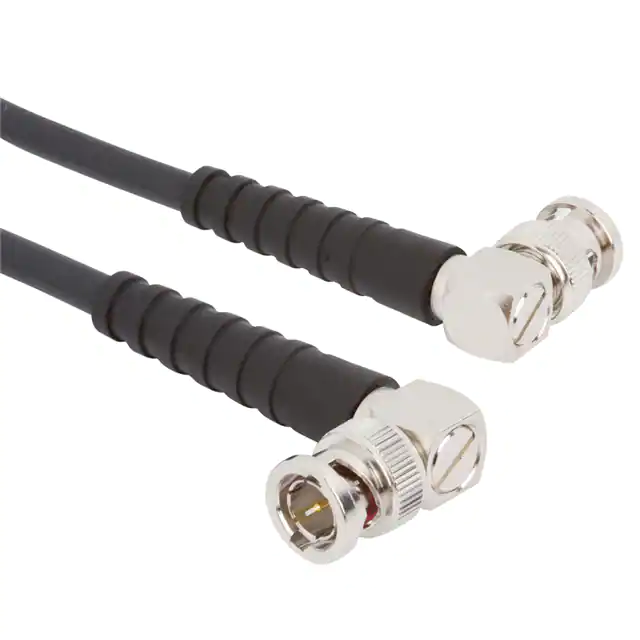

115104-15-06.00BNC RIGHT ANGLE PLUG TO BNC RIGH |
2,454 | 37.61 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000 (152.40mm) | RG-59 | 75 Ohms | - | 75 Ohms | - | Black | Shielded | - |
|
|
095-902-451-005CBL ASSY SMA PLUG TFLEX-405 5 |
2,040 | 37.91 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 5.000 (127.00mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | - |
|
115104-15-12.00BNC RIGHT ANGLE PLUG TO BNC RIGH |
3,005 | 37.99 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-59 | 75 Ohms | - | 75 Ohms | - | Black | Shielded | - |
|
095-725-121-003SMP RIGHT ANGLE PLUG TO SMP RIGH |
2,220 | 38.02 |
RFQ |
Datasheet |
Bag | - | Active | SMP to SMP | SMP Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMP Plug, Right Angle | Male | Free Hanging (In-Line) | - | 3.000 (76.20mm) | Hand Formable .047 | - | - | 50 Ohms | 20 GHz | Gray | - | - |
|
|
115104-15-18.00BNC RIGHT ANGLE PLUG TO BNC RIGH |
2,878 | 38.36 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00 (457.20mm) | RG-59 | 75 Ohms | - | 75 Ohms | - | Black | Shielded | - |
