| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

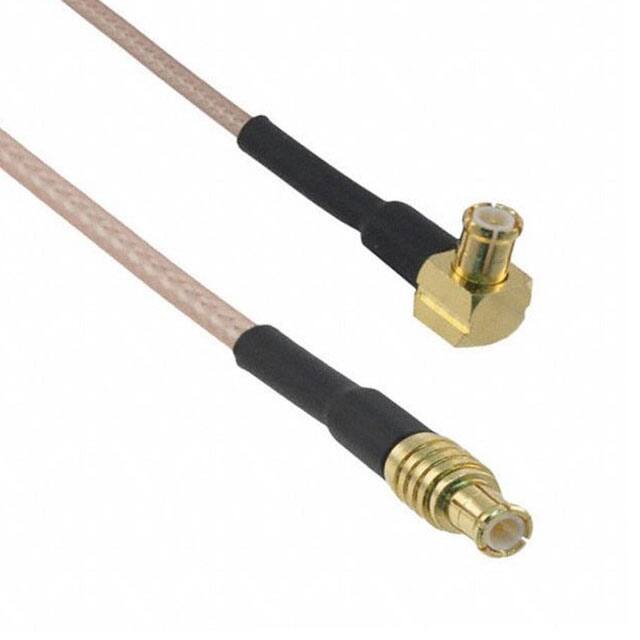

255103-01-48.00CBL ASSY MCX PLUG-PLUG RG316 4' |
2,455 | 22.21 |
RFQ |
Datasheet |
Bulk | - | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0 (1.2m) 4.0' | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - |
|
095-850-273M200CBL ASSY TNC PLUG RG316 2M |
3,027 | 22.21 |
RFQ |
Datasheet |
Bag | TNC | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 78.7 (2.0m) 6.6' | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | -40°C ~ 85°C |
|

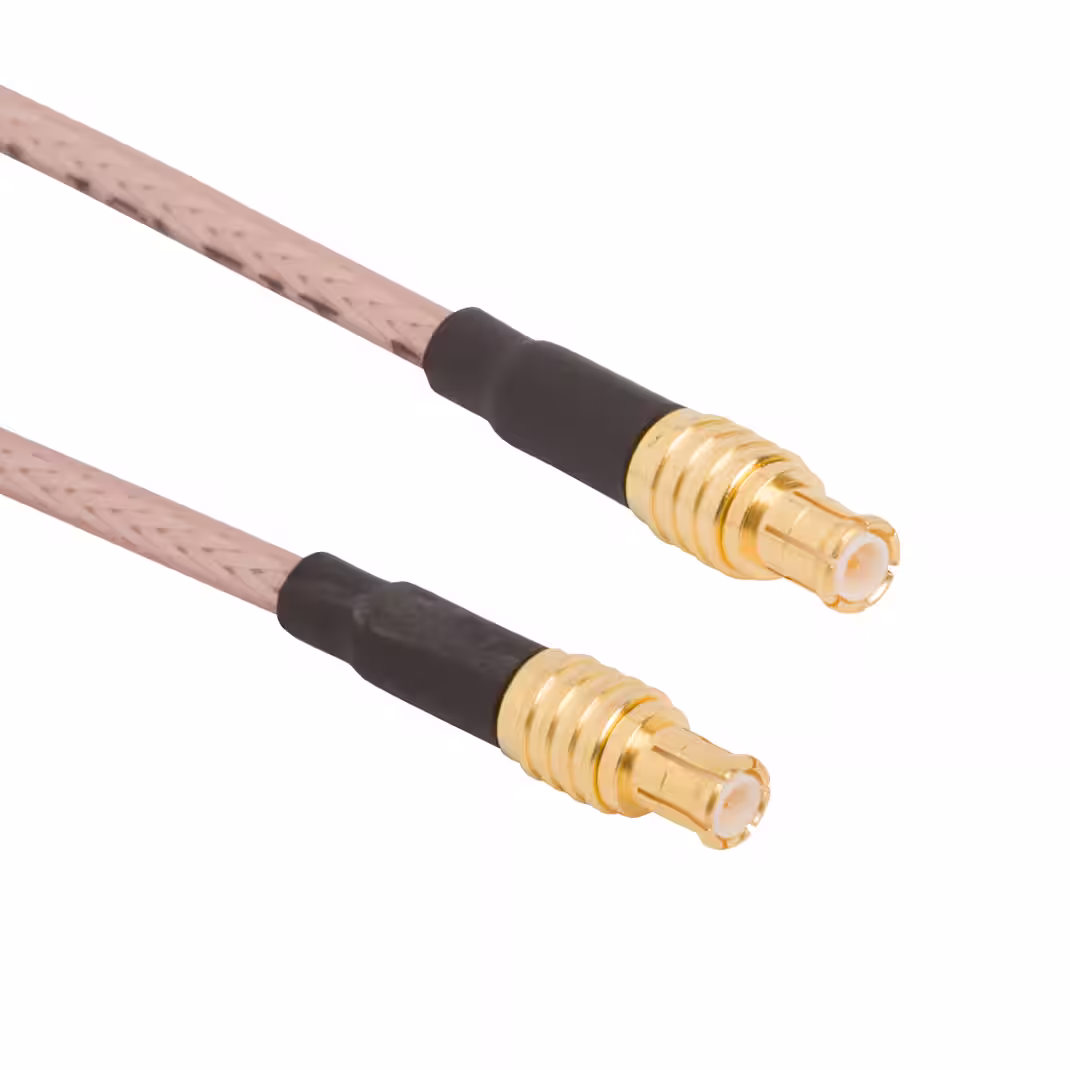

255101-01-36.00CBL ASSY MCX PLUG RG316 36 |
3,770 | 22.23 |
RFQ |
Datasheet |
Bulk | - | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 36.00 (914.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - |
|
095-850-234M010BNC STRAIGHT BULKHEAD JACK PIGTA |
3,531 | 22.25 |
RFQ |
Datasheet |
Bag | - | Active | BNC to Cable | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Cable (Round) | - | - | - | 3.937 (100.00mm) | Hand Formable .085 | - | - | 50 Ohms | 4 GHz | Silver | - | - |
|
095-850-236M025BNC STRAIGHT PLUG TO SMB STRAIGH |
2,349 | 22.26 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Plug | Male | Free Hanging (In-Line) | - | SMB Plug | Female | Free Hanging (In-Line) | - | 9.843 (250.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - |
|
|
245110-08-M0.75CBL ASSY SMA-MMCX RG178 29.53 |
3,155 | 22.34 |
RFQ |
Datasheet |
Bag | - | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 29.53 (750.00mm) | RG-178 | - | - | 50 Ohms | - | Copper | Shielded | - |
|
255104-08-36.00CBL ASSY MCX PLUG RG178 36 |
2,726 | 22.36 |
RFQ |
Datasheet |
Bag | - | Active | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00 (914.40mm) | RG-178 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - |
|
095-850-259-036RF CABLE ASSEMBLY BNC STRAIGHT P |
2,166 | 22.36 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00 (914.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 85°C |
|
336206-12-0100CBL ASSY UMCC-RPTNC 3.937 |
2,650 | 22.37 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to RP-TNC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | RP-TNC Jack | Male | Panel Mount | Bulkhead - Front Side Nut | 3.937 (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|
095-902-529-036SMA STRAIGHT JACK TO MMCX STRAIG |
2,753 | 22.37 |
RFQ |
Datasheet |
Bag | - | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 36.00 (914.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|
135111-04-36.00CBL ASSY SMA JACK-PLUG RG58 36 |
2,639 | 22.42 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00 (914.40mm) | RG-58 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - |
|
095-902-570M075SMA RIGHT ANGLE MALE PLUG TO SMA |
2,750 | 22.46 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 29.53 (750.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Copper | - | -65°C ~ 165°C |
|
135110-01-48.00CBL ASSY SMA JACK-PLUG RG316 4' |
2,363 | 22.47 |
RFQ |
Datasheet |
Bulk | - | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 48.0 (1.2m) 4.0' | RG-316 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | - |
|
095-902-463-011SMA STRAIGHT JACK TO BLUNT CUT O |
3,566 | 22.48 |
RFQ |
Datasheet |
Bulk | - | Active | SMA to Cable | SMA Jack | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 11.000 (279.40mm) | UT-085C | - | - | 50 Ohms | 18 GHz | Gray | Shielded | -20°C ~ 75°C |
|
|
095-850-259M100RF CABLE ASSEMBLY BNC STRAIGHT P |
2,741 | 22.48 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 39.4 (1.0m) 3.3' | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 85°C |
|
095-850-268M125CBL ASY BNC JK TO PLG RG58 49.2 |
3,007 | 22.48 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 49.2 (1.3m) 4.1' | RG-58 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 80°C |
|
095-700-37-M300CBL ASSY SMB PLUG RG174 3M |
2,977 | 22.53 |
RFQ |
Datasheet |
Bag | SMB | Active | SMB to SMB | SMB Plug | Female | Free Hanging (In-Line) | - | SMB Plug | Female | Free Hanging (In-Line) | - | 118.1 (3.0m) 9.8' | RG-174 | 50 Ohms | - | 50 Ohms | 4 GHz | Black | - | -40°C ~ 85°C |
|
|
336206-12-0150CBL ASSY UMCC-RPTNC 5.906 |
2,177 | 22.59 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to RP-TNC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | RP-TNC Jack | Male | Panel Mount | Bulkhead - Front Side Nut | 5.906 (150.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|
095-850-257-012RF CABLE ASSEMBLY BNC RIGHT ANGL |
3,475 | 22.61 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 85°C |
|
245101-04-96.00BNC STRAIGHT PLUG TO SMA STRAIGH |
2,844 | 22.64 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 96.0 (2.4m) 8.0' | RG-58 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - |
