| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-850-234M005BNC STRAIGHT BULKHEAD JACK PIGTA |
3,125 | 21.02 |
RFQ |
Datasheet |
Bag | - | Active | BNC to Cable | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Cable (Round) | - | - | - | 1.969 (50.00mm) | Hand Formable .085 | - | - | 50 Ohms | 4 GHz | Silver | - | - |
|
135111-02-18.00CBL ASSY SMA JACK-PLUG RG174 18 |
3,590 | 21.04 |
RFQ |
Datasheet |
Bulk | - | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00 (457.20mm) | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | - |
|
095-850-275M050CBL ASSY TNC PLUG RG142 19.69 |
2,573 | 21.04 |
RFQ |
Datasheet |
Bag | TNC | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 19.69 (500.00mm) | RG-142 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | -40°C ~ 85°C |
|
095-850-277-048CBL ASSY BNC PLUG 4' |
2,744 | 21.06 |
RFQ |
Datasheet |
Bag | BNC | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 48.0 (1.2m) 4.0' | LMR 195 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | -40°C ~ 85°C |
|

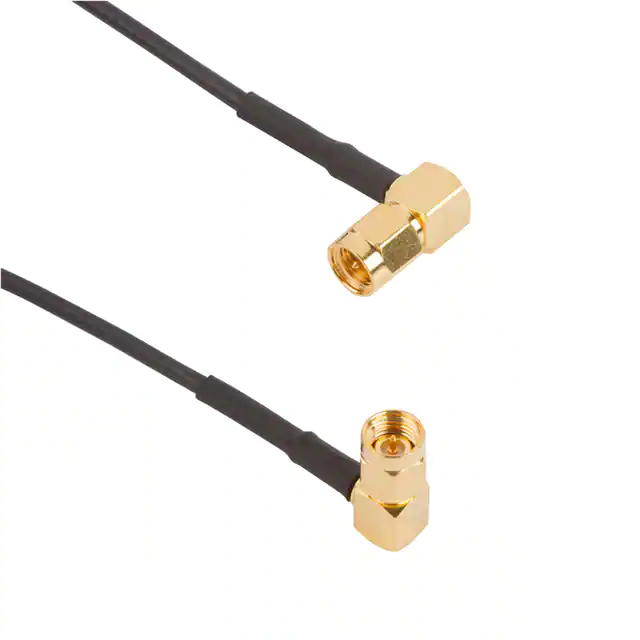

135104-02-48.00CBL ASSY SMA PLUG-PLUG RG174 4' |
2,026 | 21.07 |
RFQ |
Datasheet |
Bulk | - | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0 (1.2m) 4.0' | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | - |
|
095-850-266M075CBL ASSY BNC PLUG RG316 29.53 |
2,339 | 21.10 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 29.53 (750.00mm) | RG-316 | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | Shielded | -55°C ~ 165°C |
|
095-700-37-M200CBL ASSY SMB PLUG RG174 2M |
3,620 | 21.13 |
RFQ |
Datasheet |
Bag | SMB | Active | SMB to SMB | SMB Plug | Female | Free Hanging (In-Line) | - | SMB Plug | Female | Free Hanging (In-Line) | - | 78.7 (2.0m) 6.6' | RG-174 | 50 Ohms | - | 50 Ohms | 4 GHz | Black | - | -40°C ~ 85°C |
|
095Z820-163-036FAKRA STRAIGHT JACK TO SMA STRAI |
3,082 | 21.15 |
RFQ |
Datasheet |
Bag | - | Active | SMA to Fakra III | SMA Jack | Female | Free Hanging (In-Line) | - | Fakra III (Gen 3.0) Jack | Female | Free Hanging (In-Line) | - | 36.00 (914.40mm) | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | - |
|
095-902-570M050SMA RIGHT ANGLE MALE PLUG TO SMA |
3,504 | 21.18 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 19.69 (500.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Copper | - | -65°C ~ 165°C |
|
145104-05-12.00CBL ASSY SMB MINI PLUG RG179 12 |
3,869 | 21.18 |
RFQ |
Datasheet |
Bulk | - | Active | SMB Mini to SMB Mini | SMB Mini Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMB Mini Plug, Right Angle | Female | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-179 | 75 Ohms | 75 Ohms | 75 Ohms | - | Copper | Shielded | - |
|
336303-12-0100CBL ASSY SMA-UMC 3.937 |
2,835 | 21.20 |
RFQ |
Datasheet |
Bulk | - | Not For New Designs | U.FL (UMCC), AMC to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937 (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|
095-850-259-018RF CABLE ASSEMBLY BNC STRAIGHT P |
2,566 | 21.21 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00 (457.20mm) | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 85°C |
|
135106-01-24.00CBL ASSY SMA JACK-PLUG RG316 24 |
2,325 | 21.21 |
RFQ |
Datasheet |
Bulk | - | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | 3 GHz | - | Shielded | - |
|
|
135111-01-18.00CBL ASSY SMA JACK-PLUG RG316 18 |
3,926 | 21.23 |
RFQ |
Datasheet |
Bulk | - | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00 (457.20mm) | RG-316 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | - |
|

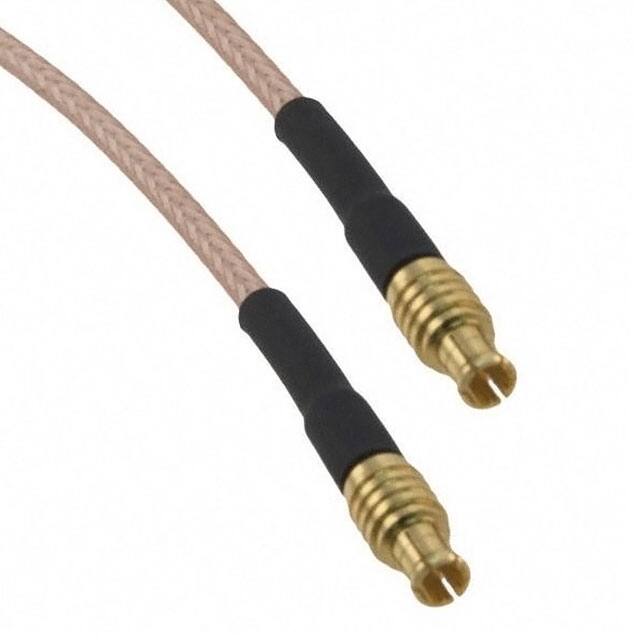

255101-08-48.00CBL ASSY MCX PLUG-PLUG RG178 4' |
2,655 | 21.26 |
RFQ |
Datasheet |
Bulk | - | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 48.0 (1.2m) 4.0' | RG-178 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - |
|
|
336306-13-0200CBL ASSY RP-SMA-UMC 7.874 |
3,496 | 21.26 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874 (200.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | - | - | - | - |
|
245101-04-84.00BNC STRAIGHT PLUG TO SMA STRAIGH |
3,515 | 21.29 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 84.0 (2.1m) 7.0' | RG-58 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - |
|
|
095-850-259M050RF CABLE ASSEMBLY BNC STRAIGHT P |
3,090 | 21.29 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 19.69 (500.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 85°C |
|
095-850-258-036RF CABLE ASSEMBLY BNC RIGHT ANGL |
2,902 | 21.31 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00 (914.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 85°C |
|
|
336303-12-0150CBL ASSY SMA-UMC 5.906 |
3,240 | 21.40 |
RFQ |
Datasheet |
Bulk | - | Not For New Designs | U.FL (UMCC), AMC to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906 (150.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
